ASME SA193 high tensile Fastener, Werkstoff Nr. 1.4404 high tensile Fastener, Werkstoff Nr. 1.4404 Hot Forged Fastener, JIS SUS 316L high tensile Fastener, Afnor Z3Cnd17‐11‐02 high tensile Fastener, Afnor Z3Cnd17‐11‐02 Hot Forged Fastener.
Ranflex Metals are the leading manufacturer of high integrity special fasteners (e.g. bolts, set screws, stud-bolts, nuts and washers), meeting clients’ exacting demands for critical applications in hostile environments. Whether for offshore (buoyancy and petrochemical), seawater, pump, valve or nuclear, the demands for an exceptional service and supply is never ending. We believe manufacturing bolting in exotic materials is an art form and it is something we have perfected at Ranflex Metals.
ASTM A193 high tensile Fastener supplier, ASTM A193 industrial Fastener retailer, ASME SA193 industrial Fastener distributor, ASME SA193 high tensile Fastener trader, UNS S31603 high tensile Fastener manufacturer, UNS S31603 Hot Forged Fastener stockyards, ASTM A193 high tensile Fastener dealer, ASTM A193 industrial Fastener wholesaler.

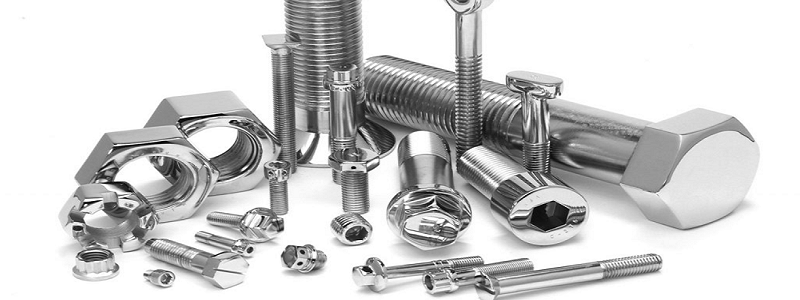

Our 316L Stainless Steel Fasteners product range includes 316L Stainless Steel Bolts, Hexagon head bolt, Hexagon head screw, Round head square neck bolt, Hexagon socket head cap screw in full thread and half thread, Hexagon wood screw, Hexagon socket button head screw, Hexagon socket button flange screw, Hexagon socket counter sunk head cap screw in full thread and half thread, square nuts, square weld nuts, hexagon weld nuts, thick nyloc nuts, hexagon flange nuts, threaded rods, dowel screws,Plain / Flat Washer, Spring Washers, Countersunk Washer,Tooth Lock Washer and many more. We provide products as per DIN, ANSI, JIS standards.
We export to United State,Canada, Kazakhstan, Algiers, Johannesburg, Pretoria, Dakar, Ghana, Uganda, Mozambique, Iraq, Subra al-Haymah,Australia, Yaounde, Saudi Arabia, Kampala, Benin, Ethiopa, Kuwait, Nairobi, Turkey, Russia, Khartoum, Kano, UAE, Bahrain, London, Lebanon, Tunisia, Qatar, Zaria, Dubai, Yemen, Casablanca, South Africa, Oman, UK,USA, Argentina, China,Las Vegas Hong Kong, Vietnam, Singapore, Egypt, Venezuela, Iran,Vancouver Malaysia, Mexico, New York, Indonesia, Italy, Azerbaijan, Israel, Brazil, United States, Thailand (Bangkok), Cyprus, Sri Lanka, Colombo, Germany
JIS SUS 316L industrial Fastener, UNS S31603 high tensile Fastener, SS 316L industrial Fastener, Werkstoff Nr. 1.4404 industrial Fastener, EN X2Crnimo17-12-2 industrial Fastener, UNS S31603 industrial Fastener.
Specification of 316L Stainless Steel Fasteners :
| Specifications | ASTM A193 ASME SA193 / ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
| Standard | DIN, ASTM, BS and all International Standards |
| Bolts Size | 3 mm to 200 mm | Custom Sizes |
| Nut Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Screw Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Machine Screws Size | M1.6 - M12 | Custom Sizes |
| Washers Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Fasteners Type | Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw, Pan Head Screw, Socket Head Cap Screw, Wing Screw, T-Head Bolts, Foundation Bolts,Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts,Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets, Screws, Allen Cap screw |
Equivalent Grades of Stainless Steel 316L Fasteners :
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316L | 1.4404 | S31603 | SUS 316L | 316S11 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 |
Chemical Composition of 316L Stainless Steel Fasteners :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
|---|---|---|---|---|---|---|---|---|---|
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
Mechanical Properties of SS 316L Fasteners :
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Physical Properties of Stainless Steel WERKSTOFF NR. 1.4404 :
| Grade | Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Elec Resistivity (nΩ.m) |
|||
| 0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
| 316L | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
UNS S31603 high tensile Fastener supplier, UNS S31603 high tensile Fastener stockyards, ASTM A193 Hot Forged Fastener stockiest, SS 316L industrial Fastener manufacturer, UNS S31603 Hot Forged Fastener wholesaler, ASME SA193 high tensile Fastener retailer, ASTM A193 industrial Fastener trader.
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
Property Class of Fasteners 316L Stainless Steel :
Looking for 316L stainless steel fasteners? Ranflex Metals is a top-class manufacturer of 316L stainless steel screws. We are the most experienced among all the steel fasteners market and progresses with a highly professional team who is wholly engaged in making 316L screws, 316L bolts, and Fastener at the lowest cost.
For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H
For Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040
For SHCS: F837B, F837C, F837E, F837
For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2
Dimensions of Stainless Steel 316L Fasteners :
Stainless Steel 316L Bolts Dimensions Chart :
| Nominal Size Of D | Diameter Of Body | ASTM A193 Head Thickness | ASTM A193 Flats Acro | ASTM A193 Corners Acro | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAXIMUM) | D (MINIMUM) | H (MAXIMUM) | H (MINIMUM) | F (MAXIMUM) | F (MINIMUM) | C (MAXIMUM) | C (MINIMUM) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Stainless Steel 316L Hex Nuts Dimensions Chart :
| Nominal Size Of Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Across Flats Width |
Across Corners Width |
Thickness Row | |||||||
| Basic | Maximum | Minimum | Maximum | Minimum | Basic | Maximum | Minimum | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Stainless Steel 316L Stud Bolts Dimensions Chart :
| Diameter | ||
|---|---|---|
| Plain | ||
| UNC | 8UN | |
| 1/2 | 19568 | - |
| 5/8 | 19569 | - |
| 3/4 | 19570 | |
| 7/8 | 19571 | - |
| 1 | 19572 | - |
| 11/8 | 19573 | 13979 |
| 11/4 | 19574 | 13980 |
| 13/8 | 19656 | 13981 |
| 11/2 | 19657 | 13982 |
| 13/4 | 19658 | 13983 |
| 2 | 19659 | 13984 |
| Available lengths 12 Inch ASME B18.31.3, Also available lengths Dimensions 6 Inch |
||
Stainless Steel 316L Square Bolts Dimensions Chart :
| Size Of Bolt | A (maximum) | B | C (minimum) | D | E | F Length Of Thread for Bolt Length |
||
|---|---|---|---|---|---|---|---|---|
| maximum | minimum | 6 Inch and shorter |
over 6 Inch | |||||
| 1/4" | 0.260 | 3/8 | 0.498 | 11/64 | 0.03 | 0.01 | 0.750 | 1.000 |
| 5/16" | 0.324 | 1/2 | 0.665 | 13/64 | 0.03 | 0.01 | 0.875 | 1.125 |
| 3/8" | 0.388 | 9/16 | 0.747 | 1/4 | 0.03 | 0.01 | 1.000 | 1.250 |
| 7/16" | 0.452 | 5/8 | 0.828 | 19/64 | 0.03 | 0.01 | 1.125 | 1.375 |
| 1/2" | 0.515 | 3/4 | 0.995 | 21/64 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8" | 0.642 | 15/16 | 1.244 | 27/64 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4" | 0.768 | 1-1/8 | 1.494 | 1/2 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8" | 0.895 | 1-5/16 | 1.742 | 19/32 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1" | 1.022 | 1-1/2 | 1.991 | 21/32 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1-1/8" | 1.149 | 1-11/16 | 2.239 | 3/4 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1-1/4" | 1.277 | 1-7/8 | 2.489 | 27/32 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1-3/8" | 1.404 | 2-1/16 | 2.738 | 29/32 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1-1/2" | 1.531 | 2-1/4 | 2.986 | 1 | 0.09 | 0.03 | 3.250 | 3.500 |
Stainless Steel 316L Heavy Hex Bolts Dimensions Chart :
| Nominal Size Of D | Diameter Of Body | Thickness Of Head | Flats Across | Bolts Corners Across | ||||
|---|---|---|---|---|---|---|---|---|
| D (Maximum) | D (Minimum) | H (Maximum) | H (Minimum) | F (Maximum) | F (Minimum) | C (Maximum) | C (Minimum) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Stainless Steel 316L Heavy Hex Nuts Dimensions :
| Nominal Size For Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Width Of Across Flats | Width Of Across Corners | Thickness Table | |||||||
| Basic | Maximum | Minimum | Maximum | Minimum | Basic | Maximum | Minimum | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | 226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2. | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Stainless Steel 316L Socket Head Cap Screw Dimensions Chart :
| Nominal Size Of D | Diameter Of Body | Thickness Of Head | Flats Across | Bolts Corners Across | ||||
|---|---|---|---|---|---|---|---|---|
| D (Maximum) | D (Minimum) | H (Maximum) | H (Minimum) | F (Maximum) | F (Minimum) | C (Maximum) | C (Minimum) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Stainless Steel 316L Threaded Rod Dimensions Chart :
| D | P |
D
|
P |
|---|---|---|---|
| M2 | 0.4 | M20 | 1.5/2.5 |
| M2.5 | 0.45 | M22 | 1.5/2.5 |
| M3 | 0.5 | M24 | 2/3 |
| M3.5 | 0.6 | M27 | 2/3 |
| M4 | 0.7 | M30 | 2/3.5 |
| M5 | 0.8 | M33 | 2/3.5 |
| M6 | 1 | M36 | 3/4 |
| M8 | 1/1.25 | M39 | 3/4 |
| M10 | 1/1.25/1.5 | M42 | 3/4.5 |
| M12 | 1.25/1.5/1.75 | M45 | 3/4.5 |
| M14 | 1.5/2 | M48 | 3/5 |
| M16 | 1.5/2 | M52 | 3/5 |
| M18 | 1.5/2.5 |
Stainless Steel 316L Flat Washer Dimensions Chart :
| Size Table | USS | SAE | ||||
|---|---|---|---|---|---|---|
| Inside Diameter (I.D.) Of (A) |
Outside Diameter (O.D.) Of (B) |
Thickness Of (C) |
I.D. Of (A) |
O.D. Of (B) |
Thickness Of (C) |
|
| #2 | - | - | - | 3/32" | 1/4" | 0.020" |
| #4 | - | - | - | 1/8" | 5/16" | 0.032" |
| #6 | - | - | - | 5/32" | 3/8" | 0.049" |
| #8 | - | - | - | 3/16" | 7/16" | 0.049" |
Size of Stainless Steel 316L FASTENER :
Stainless Steel 316L Nuts Size Chart :
| Size Of Nut (millimeter) |
Diameter Of (millimeter) |
Height Table (millimeter) |
||
|---|---|---|---|---|
| Hex Nut | Jam Nut | Nylock Nut | ||
| 2 | 4 | 1.6 | 1.2 | - |
| 2.5 | 5 | 2 | 1.6 | - |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 5 | 8 | 4 | 2.7 | 5 |
| 6 | 10 | 5 | 3.2 | 6 |
| 7 | 11 | 5.5 | 3.5 | - |
| 8 | 13 | 6.5 | 4 | 8 |
| 10 | 17 | 8 | 5 | 10 |
| 12 | 19 | 10 | 6 | 12 |
| 14 | 22 | 11 | 7 | 14 |
| 16 | 24 | 13 | 8 | 16 |
| 18 | 27 | 15 | 9 | 18.5 |
| 20 | 30 | 16 | 10 | 20 |
Stainless Steel 316L Screws Sizes :
| Screw Size | Body Dia | Minimum Thread Length | Hex Key Size | Head Dia | Head Height | Maximum Thread Length |
|---|---|---|---|---|---|---|
| No. 0 | 0.06 | 3/8 | 0.05 | 0.096 | 0.06 | 5/8 |
| No. 1 | 0.073 | 3/8 | 1/16 | 0.118 | 0.073 | 7/8 |
| No. 2 | 0.086 | 1/2 | 5/64 | 0.14 | 0.086 | 7/8 |
| No. 3 | 0.099 | 1/2 | 5/64 | 0.161 | 0.099 | 7/8 |
| No. 4 | 0.112 | 11/16 | 3/32 | 0.183 | 0.112 | 11/8 |
| No. 5 | 0.125 | 11/16 | 3/32 | 0.205 | 0.125 | 1 |
| No. 6 | 0.138 | 11/16 | 7/64 | 0.226 | 0.138 | 11/8 |
| No. 8 | 0.164 | 3/4 | 9/64 | 0.27 | 0.164 | 11/4 |
| No. 10 | 0.19 | 15/16 | 5/32 | 0.312 | 0.19 | 13/8 |
| No. 12 | 0.216 | 15/16 | 5/32 | 0.345 | 0.216 | 11/4 |
| 1/4 | 0.250 | 15/16 | 3/16 | 3/8 | 1/4 | 11/2 |
| 5/16 | 0.3125 | 1-1/16 | 1/4 | 15/32 | 5/16 | 1-3/4 |
| 3/8 | 0.375 | 1-3/16 | 5/16 | 9/16 | 3/8 | 2 |
| 7/16 | 0.438 | 13/16 | 3/8 | 21/32 | 7/16 | 2-1/4 |
| 1/2 | 0.500 | 1-3/8 | 3/8 | 3/4 | 1/2 | 2-1/2 |
| 9/16 | 0.5625 | 1-5/8 | 7/16 | 27/32 | 9/16 | 2-7/16 |
| 5/8 | 0.625 | 1-5/8 | 1/2 | 15/16 | 5/8 | 3 |
| 3/4 | 0.750 | 1-7/8 | 5/8 | 11/8 | 3/4 | 3-1/2 |
| 7/8 | 0.875 | 2-1/16 | 3/4 | 15/16 | 7/8 | 3-3/4 |
| 1 | 1.000 | 2-1/4 | 3/4 | 11/2 | 1 | 4-1/2 |
| 1-1/8 | 1.125 | 2-13/16 | 7/8 | 111/16 | 1-1/8 | 4-21/32 |
| 1-1/4 | 1.250 | 3-1/8 | 7/8 | 17/8 | 1-1/4 | 5-3/32 |
| 1-1/2 | 1.500 | 3-3/4 | 1 | 21/4 | 1-1/2 | 6-5/64 |
| 1-3/4 | 1.750 | 4-3/8 | 11/4 | 25/8 | 1-3/4 | 7-1/8 |
| 2 | 2.000 | 5 | 11/2 | 3 | 2 | 8-7/64 |
Stainless Steel 316L Threaded Rod Size Chart :
|
Size Table Of Threaded Rod
|
per Inch Threads
|
||
|---|---|---|---|
|
Frac. [Number]
|
Decimal
|
UNC
|
UNF
|
|
1/8 [#6]
|
0.1380
|
32
|
40
|
|
5/32 [#8]
|
0.1640
|
32
|
36
|
|
3/16 [#10]
|
0.1900
|
24
|
32
|
|
1/4
|
0.2500
|
20
|
28
|
|
5/16
|
0.3125
|
18
|
24
|
|
3/8
|
0.3750
|
16
|
24
|
|
7/16
|
0.4375
|
14
|
20
|
|
1/2
|
0.5000
|
13
|
20
|
|
9/16
|
0.5625
|
12
|
18
|
|
5/8
|
0.6250
|
11
|
18
|
|
3/4
|
0.7500
|
10
|
16
|
|
7/8
|
0.8750
|
9
|
14
|
|
1
|
1.0000
|
8
|
12, 14
|
|
1 1/8
|
1.1250
|
7
|
12
|
|
1 1/4
|
1.2500
|
7
|
12
|
|
1 3/8
|
1.3750
|
6
|
12
|
|
1 1/2
|
1.5000
|
6
|
12
|
|
1 3/4
|
1.7500
|
5
|
–
|
Stainless Steel 316L Washer Sizes :
| Washer Size | Inner Dia, Basic [in] |
Basic Diameter [in] | Outer Dia, Basic [in] |
Series | Washer Thickness, Basic [in] |
|---|---|---|---|---|---|
| #0 | 0.078 | 0.0600 | 0.188 | - | 0.020 |
| #2 | 0.094 | 0.0860 | 0.250 | - | 0.020 |
| #4 | 0.125 | 0.1120 | 0.312 | - | 0.032 |
| #6 | 0.156 | 0.1380 | 0.375 | - | 0.049 |
| #8 | 0.188 | 0.1640 | 0.438 | - | 0.049 |
| #10 | 0.219 | 0.1900 | 0.500 | - | 0.049 |
| 1/4" | 0.281 | 0.2500 | 0.625 | Narrow | 0.065 |
| 1/4" | 0.312 | 0.2500 | 0.734 | Wide | 0.065 |
| 5/16" | 0.344 | 0.3125 | 0.688 | Narrow | 0.065 |
| 5/16" | 0.375 | 0.3125 | 0.875 | Wide | 0.083 |
| 3/8" | 0.406 | 0.3750 | 0.812 | Narrow | 0.065 |
| 3/8" | 0.438 | 0.3750 | 1.000 | Wide | 0.083 |
| 7/16" | 0.469 | 0.4375 | 0.922 | Narrow | 0.065 |
| 7/16" | 0.500 | 0.4375 | 1.250 | Wide | 0.083 |
| 1/2" | 0.531 | 0.5000 | 1.062 | Narrow | 0.095 |
| 1/2" | 0.562 | 0.5000 | 1.375 | Wide | 0.109 |
| 9/16" | 0.594 | 0.5625 | 1.156 | Narrow | 0.095 |
| 9/16" | 0.625 | 0.5625 | 1.469 | Wide | 0.109 |
| 5/8" | 0.656 | 0.6250 | 1.312 | Narrow | 0.095 |
| 5/8" | 0.688 | 0.6250 | 1.750 | Wide | 0.134 |
| 3/4" | 0.812 | 0.7500 | 1.469 | Narrow | 0.134 |
| 3/4" | 0.812 | 0.7500 | 2.000 | Wide | 0.148 |
| 7/8" | 0.938 | 0.8750 | 1.750 | Narrow | 0.134 |
| 7/8" | 0.938 | 0.8750 | 2.250 | Wide | 0.165 |
| 1" | 1.062 | 1.0000 | 2.000 | Narrow | 0.134 |
| 1" | 1.062 | 1.0000 | 2.500 | Wide | 0.165 |
| 1-1/8" | 1.250 | 1.1250 | 2.250 | Narrow | 0.134 |
| 1-1/8" | 1.250 | 1.1250 | 2.750 | Wide | 0.165 |
| 1-1/4" | 1.375 | 1.2500 | 2.500 | Narrow | 0.165 |
| 1-1/4" | 1.375 | 1.2500 | 3.000 | Wide | 0.165 |
| 1-3/8" | 1.500 | 1.3750 | 2.750 | Narrow | 0.165 |
| 1-3/8" | 1.500 | 1.3750 | 3.250 | Wide | 0.180 |
| 1-1/2" | 1.625 | 1.5000 | 3.000 | Narrow | 0.165 |
| 1-1/2" | 1.625 | 1.5000 | 3.500 | Wide | 0.180 |
| 1-5/8" | 1.750 | 1.6250 | 3.750 | - | 0.180 |
| 1-3/4" | 1.875 | 1.7500 | 4.000 | - | 0.180 |
| 1-7/8" | 2.000 | 1.8750 | 4.250 | - | 0.180 |
| 2" | 2.125 | 2.0000 | 4.500 | - | 0.180 |
Stainless Steel 316L Type Fasteners
Bolts Types :
Nuts Types:
Washer :
Stainless Steel Fasteners Surface Coating :
- Hot Dipped Galvanizing
- Epoxy Coating
- Electro Polished
- Passivation
- Zinc Plating
- Chrome Plating
- Mirror Buffed
- Teflon Coating
- Oxidized
Stainless Steel 316L Price Per Kg (As per demand and manufacturer):
| Price of SS 316L Fasteners manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
|---|---|---|---|
| Stainless Steel Fasteners Grade – 316L | $3.04 | €2.60 | 44 UAE Dirham |
| Stainless Steel Hex Bolts 316L | $3.82 | €3.28 | 8.10 UAE Dirham |
| Stainless Steel Square Nuts Grade – 316L | $4.46 | €3.82 | 26.56 UAE Dirham |
SS 316L Hot Forged Fasteners catalogue, UNS S31603 industrial Fasteners price list, ASTM A193 high tensile Fasteners weight calculator, ASTM A193 industrial Fasteners At Factory Price, ASTM A193 high tensile Fasteners price list in India, ASTM A193 industrial Fasteners weight chart, ASTM industrial Fasteners weight chart, UNS S31603 Hot Forged Fasteners price per kg, ASME SA193 Hot Forged Fasteners At Factory Price, SS 316L Hot Forged Fasteners price list, UNS S31603 high tensile Fasteners catalogue, ASTM A193 industrial Fasteners catalogue, SS 316L industrial Fasteners price per kg, SS 316L industrial Fasteners price list in India.
ASME SA193 Hot Forged Fasteners manufacturer in Visakhapatnam, SS 316L Hot Forged Fasteners exporter in Chennai, ASTM A193 high tensile Fasteners exporter in Salem, Werkstoff Nr. 1.4404 industrial Fasteners exporter in Ahmedabad, SS 316L industrial Fasteners supplier in Visakhapatnam, ASTM A193 industrial Fasteners exporter in Bengaluru, Werkstoff Nr. 1.4404 industrial Fasteners supplier in Bengaluru, UNS S31603 industrial Fasteners stockist in Hyderabad, UNS S31603 industrial Fasteners stockist in Coimbatore, UNS S31603 Hot Forged Fasteners wholesaler in Chennai, ASME SA193 Hot Forged Fasteners stockist in Ahmedabad, ASME SA193 industrial Fasteners wholesaler in Bhubaneswar.
UNS S31603 Hot Forged Fasteners stockist in Dammam, UNS S31603 Hot Forged Fasteners manufacturer in UAE, ASME SA193 high tensile Fasteners stockist in UAE, Werkstoff Nr. 1.4404 high tensile Fasteners distributor in UAE, Werkstoff Nr. 1.4404 industrial Fasteners distributor in India, ASTM A193 high tensile Fasteners supplier in India, ASME SA193 high tensile Fasteners manufacturer in Singapore, UNS S31603 Hot Forged Fasteners manufacturer in Saudi Arabia, ASTM A193 industrial Fasteners exporter in Bahrain, UNS S31603 industrial Fasteners dealer in Singapore, ASME SA193 Hot Forged Fasteners distributor in Qatar, UNS S31603 Hot Forged Fasteners trader in Qatar.
