Ranflex Metals are the leading manufacturer of high integrity special 310 Stainless Steel Fasteners (e.g. bolts, set screws, stud-bolts, nuts and washers), meeting clients’ exacting demands for critical applications in hostile environments. Whether for offshore (buoyancy and petrochemical), seawater, pump, valve or nuclear, the demands for an exceptional service and supply is never ending. We believe manufacturing bolting in exotic materials like Grade 310 SS Fasteners is an art form and it is something we have perfected at Ranflex Metals.

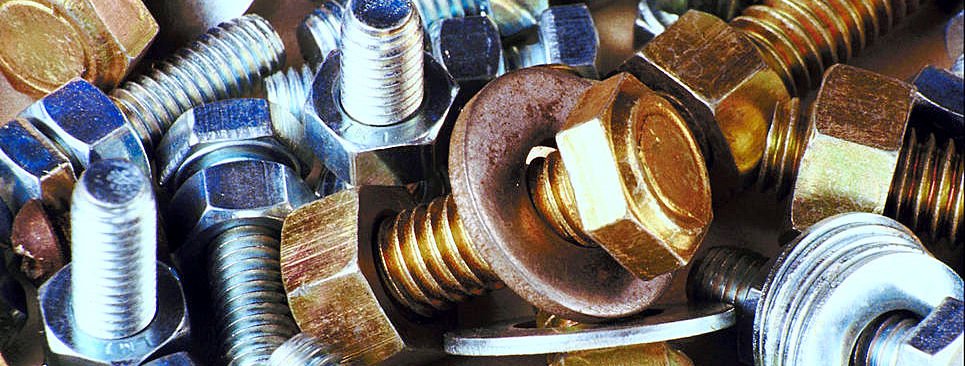

Our UNS S31000 fasteners product range includes 310 Stainless Steel Bolts, Hexagon head bolt, Hexagon head screw, Round head square neck bolt, Hexagon socket head cap screw in full thread and half thread, Hexagon wood screw, Hexagon socket button head screw, Hexagon socket button flange screw, Alloy 310S Fasteners, square nuts, square weld nuts, hexagon weld nuts, thick nyloc nuts, hexagon flange nuts, threaded rods, dowel screws,Plain / Flat Washer, Spring Washers, Countersunk Washer, 310 Grade SS fasteners, Tooth Lock Washer and many more. We provide products as per DIN, ANSI, JIS standards.
The ASTM A479 310 Fasteners are produced from premium quality materials, and therefore, the 310 Stainless Steel Fasteners manufactured are of excellent quality and perform well. These WNR 1.4307 Stainless Steel Fasteners offer various properties and features, and this is because they get these properties from their chemical composition. These ASTM A193 SS 310 Fasteners also have various mechanical properties along with physical properties, and this is why these 310 Stainless Steel Fasteners are used in a large number of industrial applications. These UNS S31000 SS Fasteners are of excellent quality as they are evaluated and improved so that they are produced of excellent quality. These Din 1.4307 Stainless Steel Fasteners are procured by considering the required standards, guidelines as well norms so that the Grade 310 UNS S31000 Fasteners that are manufactured meet the specifications provided by the client.
Specifications | ASTM A193 ASME SA193 / ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
Standard | DIN, ASTM, BS and all International Standards |
Bolts Size | 3 mm to 200 mm | Custom Sizes |
Nut Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
Screw Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
Machine Screws Size | M1.6 - M12 | Custom Sizes |
Washers Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
Fasteners Type | Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw, Pan Head Screw, Socket Head Cap Screw, Wing Screw, T-Head Bolts, Foundation Bolts,Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts,Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets, Screws, Allen Cap screw |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
---|---|---|---|---|---|---|---|
SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
---|---|---|---|---|---|---|---|---|---|
SS 310 | 0.025 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (alo 50mm) min | Hardness | |
---|---|---|---|---|---|
Rockwell B (HR B) max | Brinell (HB) max | ||||
310 | 515 | 205 | 40 | 95 | 2.17 |
Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
310 | 7750 | 200 | 15.9 | 16.2 | 17.0 | 14.2 | 18.7 | 500 | 720 |
Looking for 310 stainless steel fasteners? Ranflex Metals is a top-class manufacturer of 310 stainless steel screws. We are the most experienced among all the steel fasteners market and progresses with a highly professional team who is wholly engaged in making 310 screws, 310 bolts, and Fastener at the lowest cost.
For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H
For Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040
For SHCS: F837B, F837C, F837E, F837
For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2
Nominal Size Of D | Diameter Of Body | ASTM A193 Head Thickness | ASTM A193 Flats Acro | ASTM A193 Corners Acro | ||||
---|---|---|---|---|---|---|---|---|
D (MAXIMUM) | D (MINIMUM) | H (MAXIMUM) | H (MINIMUM) | F (MAXIMUM) | F (MINIMUM) | C (MAXIMUM) | C (MINIMUM) | |
m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Nominal Size Of Thread Diameter | F | G | H | ||||||
---|---|---|---|---|---|---|---|---|---|
Across Flats Width |
Across Corners Width |
Thickness Row | |||||||
Basic | Maximum | Minimum | Maximum | Minimum | Basic | Maximum | Minimum | ||
1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Diameter | ||
---|---|---|
Plain | ||
UNC | 8UN | |
1/2 | 19568 | - |
5/8 | 19569 | - |
3/4 | 19570 | |
7/8 | 19571 | - |
1 | 19572 | - |
11/8 | 19573 | 13979 |
11/4 | 19574 | 13980 |
13/8 | 19656 | 13981 |
11/2 | 19657 | 13982 |
13/4 | 19658 | 13983 |
2 | 19659 | 13984 |
Available lengths 12 Inch ASME B18.31.3, Also available lengths Dimensions 6 Inch |
Size Of Bolt | A (maximum) | B | C (minimum) | D | E | F Length Of Thread for Bolt Length |
||
---|---|---|---|---|---|---|---|---|
maximum | minimum | 6 Inch and shorter |
over 6 Inch | |||||
1/4" | 0.260 | 3/8 | 0.498 | 11/64 | 0.03 | 0.01 | 0.750 | 1.000 |
5/16" | 0.324 | 1/2 | 0.665 | 13/64 | 0.03 | 0.01 | 0.875 | 1.125 |
3/8" | 0.388 | 9/16 | 0.747 | 1/4 | 0.03 | 0.01 | 1.000 | 1.250 |
7/16" | 0.452 | 5/8 | 0.828 | 19/64 | 0.03 | 0.01 | 1.125 | 1.375 |
1/2" | 0.515 | 3/4 | 0.995 | 21/64 | 0.03 | 0.01 | 1.250 | 1.500 |
5/8" | 0.642 | 15/16 | 1.244 | 27/64 | 0.06 | 0.02 | 1.500 | 1.750 |
3/4" | 0.768 | 1-1/8 | 1.494 | 1/2 | 0.06 | 0.02 | 1.750 | 2.000 |
7/8" | 0.895 | 1-5/16 | 1.742 | 19/32 | 0.06 | 0.02 | 2.000 | 2.250 |
1" | 1.022 | 1-1/2 | 1.991 | 21/32 | 0.09 | 0.03 | 2.250 | 2.500 |
1-1/8" | 1.149 | 1-11/16 | 2.239 | 3/4 | 0.09 | 0.03 | 2.500 | 2.750 |
1-1/4" | 1.277 | 1-7/8 | 2.489 | 27/32 | 0.09 | 0.03 | 2.750 | 3.000 |
1-3/8" | 1.404 | 2-1/16 | 2.738 | 29/32 | 0.09 | 0.03 | 3.000 | 3.250 |
1-1/2" | 1.531 | 2-1/4 | 2.986 | 1 | 0.09 | 0.03 | 3.250 | 3.500 |
Nominal Size Of D | Diameter Of Body | Thickness Of Head | Flats Across | Bolts Corners Across | ||||
---|---|---|---|---|---|---|---|---|
D (Maximum) | D (Minimum) | H (Maximum) | H (Minimum) | F (Maximum) | F (Minimum) | C (Maximum) | C (Minimum) | |
m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Nominal Size For Thread Diameter | F | G | H | ||||||
---|---|---|---|---|---|---|---|---|---|
Width Of Across Flats | Width Of Across Corners | Thickness Table | |||||||
Basic | Maximum | Minimum | Maximum | Minimum | Basic | Maximum | Minimum | ||
1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | 226 | .212 |
5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2. | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Nominal Size Of D | Diameter Of Body | Thickness Of Head | Flats Across | Bolts Corners Across | ||||
---|---|---|---|---|---|---|---|---|
D (Maximum) | D (Minimum) | H (Maximum) | H (Minimum) | F (Maximum) | F (Minimum) | C (Maximum) | C (Minimum) | |
m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
D | P |
D
|
P |
---|---|---|---|
M2 | 0.4 | M20 | 1.5/2.5 |
M2.5 | 0.45 | M22 | 1.5/2.5 |
M3 | 0.5 | M24 | 2/3 |
M3.5 | 0.6 | M27 | 2/3 |
M4 | 0.7 | M30 | 2/3.5 |
M5 | 0.8 | M33 | 2/3.5 |
M6 | 1 | M36 | 3/4 |
M8 | 1/1.25 | M39 | 3/4 |
M10 | 1/1.25/1.5 | M42 | 3/4.5 |
M12 | 1.25/1.5/1.75 | M45 | 3/4.5 |
M14 | 1.5/2 | M48 | 3/5 |
M16 | 1.5/2 | M52 | 3/5 |
M18 | 1.5/2.5 |
Size Table | USS | SAE | ||||
---|---|---|---|---|---|---|
Inside Diameter (I.D.) Of (A) |
Outside Diameter (O.D.) Of (B) |
Thickness Of (C) |
I.D. Of (A) |
O.D. Of (B) |
Thickness Of (C) |
|
#2 | - | - | - | 3/32" | 1/4" | 0.020" |
#4 | - | - | - | 1/8" | 5/16" | 0.032" |
#6 | - | - | - | 5/32" | 3/8" | 0.049" |
#8 | - | - | - | 3/16" | 7/16" | 0.049" |
Size Of Nut (millimeter) |
Diameter Of (millimeter) |
Height Table (millimeter) |
||
---|---|---|---|---|
Hex Nut | Jam Nut | Nylock Nut | ||
2 | 4 | 1.6 | 1.2 | - |
2.5 | 5 | 2 | 1.6 | - |
3 | 5.5 | 2.4 | 1.8 | 4 |
4 | 7 | 3.2 | 2.2 | 5 |
5 | 8 | 4 | 2.7 | 5 |
6 | 10 | 5 | 3.2 | 6 |
7 | 11 | 5.5 | 3.5 | - |
8 | 13 | 6.5 | 4 | 8 |
10 | 17 | 8 | 5 | 10 |
12 | 19 | 10 | 6 | 12 |
14 | 22 | 11 | 7 | 14 |
16 | 24 | 13 | 8 | 16 |
18 | 27 | 15 | 9 | 18.5 |
20 | 30 | 16 | 10 | 20 |
Screw Size | Body Dia | Minimum Thread Length | Hex Key Size | Head Dia | Head Height | Maximum Thread Length |
---|---|---|---|---|---|---|
No. 0 | 0.06 | 3/8 | 0.05 | 0.096 | 0.06 | 5/8 |
No. 1 | 0.073 | 3/8 | 1/16 | 0.118 | 0.073 | 7/8 |
No. 2 | 0.086 | 1/2 | 5/64 | 0.14 | 0.086 | 7/8 |
No. 3 | 0.099 | 1/2 | 5/64 | 0.161 | 0.099 | 7/8 |
No. 4 | 0.112 | 11/16 | 3/32 | 0.183 | 0.112 | 11/8 |
No. 5 | 0.125 | 11/16 | 3/32 | 0.205 | 0.125 | 1 |
No. 6 | 0.138 | 11/16 | 7/64 | 0.226 | 0.138 | 11/8 |
No. 8 | 0.164 | 3/4 | 9/64 | 0.27 | 0.164 | 11/4 |
No. 10 | 0.19 | 15/16 | 5/32 | 0.312 | 0.19 | 13/8 |
No. 12 | 0.216 | 15/16 | 5/32 | 0.345 | 0.216 | 11/4 |
1/4 | 0.250 | 15/16 | 3/16 | 3/8 | 1/4 | 11/2 |
5/16 | 0.3125 | 1-1/16 | 1/4 | 15/32 | 5/16 | 1-3/4 |
3/8 | 0.375 | 1-3/16 | 5/16 | 9/16 | 3/8 | 2 |
7/16 | 0.438 | 13/16 | 3/8 | 21/32 | 7/16 | 2-1/4 |
1/2 | 0.500 | 1-3/8 | 3/8 | 3/4 | 1/2 | 2-1/2 |
9/16 | 0.5625 | 1-5/8 | 7/16 | 27/32 | 9/16 | 2-7/16 |
5/8 | 0.625 | 1-5/8 | 1/2 | 15/16 | 5/8 | 3 |
3/4 | 0.750 | 1-7/8 | 5/8 | 11/8 | 3/4 | 3-1/2 |
7/8 | 0.875 | 2-1/16 | 3/4 | 15/16 | 7/8 | 3-3/4 |
1 | 1.000 | 2-1/4 | 3/4 | 11/2 | 1 | 4-1/2 |
1-1/8 | 1.125 | 2-13/16 | 7/8 | 111/16 | 1-1/8 | 4-21/32 |
1-1/4 | 1.250 | 3-1/8 | 7/8 | 17/8 | 1-1/4 | 5-3/32 |
1-1/2 | 1.500 | 3-3/4 | 1 | 21/4 | 1-1/2 | 6-5/64 |
1-3/4 | 1.750 | 4-3/8 | 11/4 | 25/8 | 1-3/4 | 7-1/8 |
2 | 2.000 | 5 | 11/2 | 3 | 2 | 8-7/64 |
Size Table Of Threaded Rod
|
per Inch Threads
|
||
---|---|---|---|
Frac. [Number]
|
Decimal
|
UNC
|
UNF
|
1/8 [#6]
|
0.1380
|
32
|
40
|
5/32 [#8]
|
0.1640
|
32
|
36
|
3/16 [#10]
|
0.1900
|
24
|
32
|
1/4
|
0.2500
|
20
|
28
|
5/16
|
0.3125
|
18
|
24
|
3/8
|
0.3750
|
16
|
24
|
7/16
|
0.4375
|
14
|
20
|
1/2
|
0.5000
|
13
|
20
|
9/16
|
0.5625
|
12
|
18
|
5/8
|
0.6250
|
11
|
18
|
3/4
|
0.7500
|
10
|
16
|
7/8
|
0.8750
|
9
|
14
|
1
|
1.0000
|
8
|
12, 14
|
1 1/8
|
1.1250
|
7
|
12
|
1 1/4
|
1.2500
|
7
|
12
|
1 3/8
|
1.3750
|
6
|
12
|
1 1/2
|
1.5000
|
6
|
12
|
1 3/4
|
1.7500
|
5
|
–
|
Washer Size | Inner Dia, Basic [in] |
Basic Diameter [in] | Outer Dia, Basic [in] |
Series | Washer Thickness, Basic [in] |
---|---|---|---|---|---|
#0 | 0.078 | 0.0600 | 0.188 | - | 0.020 |
#2 | 0.094 | 0.0860 | 0.250 | - | 0.020 |
#4 | 0.125 | 0.1120 | 0.312 | - | 0.032 |
#6 | 0.156 | 0.1380 | 0.375 | - | 0.049 |
#8 | 0.188 | 0.1640 | 0.438 | - | 0.049 |
#10 | 0.219 | 0.1900 | 0.500 | - | 0.049 |
1/4" | 0.281 | 0.2500 | 0.625 | Narrow | 0.065 |
1/4" | 0.312 | 0.2500 | 0.734 | Wide | 0.065 |
5/16" | 0.344 | 0.3125 | 0.688 | Narrow | 0.065 |
5/16" | 0.375 | 0.3125 | 0.875 | Wide | 0.083 |
3/8" | 0.406 | 0.3750 | 0.812 | Narrow | 0.065 |
3/8" | 0.438 | 0.3750 | 1.000 | Wide | 0.083 |
7/16" | 0.469 | 0.4375 | 0.922 | Narrow | 0.065 |
7/16" | 0.500 | 0.4375 | 1.250 | Wide | 0.083 |
1/2" | 0.531 | 0.5000 | 1.062 | Narrow | 0.095 |
1/2" | 0.562 | 0.5000 | 1.375 | Wide | 0.109 |
9/16" | 0.594 | 0.5625 | 1.156 | Narrow | 0.095 |
9/16" | 0.625 | 0.5625 | 1.469 | Wide | 0.109 |
5/8" | 0.656 | 0.6250 | 1.312 | Narrow | 0.095 |
5/8" | 0.688 | 0.6250 | 1.750 | Wide | 0.134 |
3/4" | 0.812 | 0.7500 | 1.469 | Narrow | 0.134 |
3/4" | 0.812 | 0.7500 | 2.000 | Wide | 0.148 |
7/8" | 0.938 | 0.8750 | 1.750 | Narrow | 0.134 |
7/8" | 0.938 | 0.8750 | 2.250 | Wide | 0.165 |
1" | 1.062 | 1.0000 | 2.000 | Narrow | 0.134 |
1" | 1.062 | 1.0000 | 2.500 | Wide | 0.165 |
1-1/8" | 1.250 | 1.1250 | 2.250 | Narrow | 0.134 |
1-1/8" | 1.250 | 1.1250 | 2.750 | Wide | 0.165 |
1-1/4" | 1.375 | 1.2500 | 2.500 | Narrow | 0.165 |
1-1/4" | 1.375 | 1.2500 | 3.000 | Wide | 0.165 |
1-3/8" | 1.500 | 1.3750 | 2.750 | Narrow | 0.165 |
1-3/8" | 1.500 | 1.3750 | 3.250 | Wide | 0.180 |
1-1/2" | 1.625 | 1.5000 | 3.000 | Narrow | 0.165 |
1-1/2" | 1.625 | 1.5000 | 3.500 | Wide | 0.180 |
1-5/8" | 1.750 | 1.6250 | 3.750 | - | 0.180 |
1-3/4" | 1.875 | 1.7500 | 4.000 | - | 0.180 |
1-7/8" | 2.000 | 1.8750 | 4.250 | - | 0.180 |
2" | 2.125 | 2.0000 | 4.500 | - | 0.180 |
Price of SS 310 Fasteners manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
---|---|---|---|
Stainless Steel Fasteners Grade – 310 | $3.00 | €2.55 | 40 UAE Dirham |
Stainless Steel Hex Bolts 310 | $3.78 | €3.24 | 8.06 UAE Dirham |
Stainless Steel Square Nuts Grade – 310 | $4.42 | €3.78 | 26.52 UAE Dirham |
ASME SA193 Hot Forged Fasteners price list in India, SS 310 Hot Forged Fasteners price per kg, Werkstoff Nr. 1.4841 industrial Fasteners weight chart, ASME SA193 Hot Forged Fasteners catalogue, ASTM A193 industrial Fasteners price list, Werkstoff Nr. 1.4841 industrial Fasteners price per kg, Werkstoff Nr. 1.4841 Hot Forged Fasteners catalogue, UNS S31000 industrial Fasteners At Factory Price, ASME SA193 high tensile Fasteners price list in India, SS 310 high tensile Fasteners catalogue, ASTM A193 Hot Forged Fasteners weight chart, SS 310 high tensile Fasteners price list, UNS S31000 industrial Fasteners price list in India.
ASME SA193 industrial Fasteners manufacturer in Chennai, Werkstoff Nr. 1.4841 Hot Forged Fasteners wholesaler in Hyderabad, ASTM A193 industrial Fasteners exporter in Ahmedabad, UNS S31000 Hot Forged Fasteners wholesaler in Jamnagar, UNS S31000 high tensile Fasteners exporter in Ahmedabad, ASME SA193 Hot Forged Fasteners trader in Bhubaneswar, ASTM A193 Hot Forged Fasteners distributor in Chennai, SS 310 Hot Forged Fasteners wholesaler in Bengaluru, ASTM A193 industrial Fasteners trader in Pimpri-Chinchwad, ASME SA193 Hot Forged Fasteners manufacturer in Salem, Werkstoff Nr. 1.4841 Hot Forged Fasteners distributor in Hyderabad.
Werkstoff Nr. 1.4841 Hot Forged Fasteners wholesaler in Singapore, SS 310 high tensile Fasteners supplier in Abu Dhabi, SS 310 high tensile Fasteners distributor in Kuwait, ASME SA193 Hot Forged Fasteners stockist in Kuwait, SS 310 high tensile Fasteners dealer in Saudi Arabia, ASME SA193 industrial Fasteners manufacturer in Bahrain, ASME SA193 Hot Forged Fasteners dealer in Bahrain, UNS S31000 high tensile Fasteners supplier in Singapore, ASTM A193 industrial Fasteners wholesaler in UAE, ASTM A193 Hot Forged Fasteners supplier in Iraq, ASME SA193 Hot Forged Fasteners wholesaler in UAE, SS 310 industrial Fasteners wholesaler in Singapore, Werkstoff Nr. 1.4841 high tensile Fasteners trader in Dammam.
