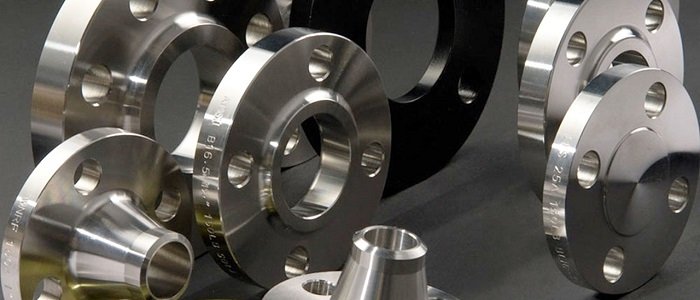

Flanges Fitting
Standard :
ASME/ANSI B16.5, ASME/ANSI B16.36, ASME/ANSI B16. 47 SERIES A (MSS SP-44), SERIES B (API 605), BS4504, EN1092-01, AWWA C207, UNI 2276-67, DIN, JIS, BS 10:1962, IS:6392-1971, API 6A etc.
Class :
ASA (150#, 300#, 400#, 600#, 900#, 1500#, 2500#), BS 4504/EN 1092-01- (PN2.5, PN6, PN10, PN16, PN25, PN40, PN63/64, PN100, PN160, PN250, PN320, PN400), (JIS B2220, B2210), (UNI 2276-67, 2278-67, 2278-67), (IS TABLE 5, 11, 17), BS 10 (TABLE D,E,F,H,J,K,R), DIN (2576, 2527, 2641, 2642, 2638, 2628, 2629, 2630, 2631, 2632, 2633, 2634, 2635, 2627, 28115) AWWA (C207 Class B, D, E ), API 6A (2000PSI, 3000PSI, 5000PSI, 10000PSI), SAE Flanges 3000PSI, 6000PSI etc.
Flanges & Fittings Types & Specifications :
| Size Range | FLANGES ½" to 36" (10 mm to 900 mm) |
| ASME/ANSI B16.5 | Welding Neck Flange, Slipon Flange, Blind Flange, High Hub Blind Flange, High Hub Blind Flange, Socket weld Flange, Lap Joint Flange. Threaded Flange , Ring Type Joint Flange |
| Pressure Class | 150, 300, 400, 600, 900 ,1500, 2500 |
| ASME/ANSI B 16.47 | WELDING NECK FLANGE, Blind Flange (series A & B ) |
| Pressure Class | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | (ORIFICE FLANGES) WELDING NECK FLANGE, SLIPON FLANGE, THREADED FLANGE |
| Pressure Class | 300, 400, 600, 900, 1500, 2500 |
| JIS B220/B2291 | Welding Neck Flange, Slipon Plate Flange, Shut off Flange, Square Flange |
| Pressure Class | 5k, 10k, 16k, 20k, 30k |
| BS 4504 SEC3.1 | Welding Neck Flange (111/134), Hubbed Slipon Flange (112), Hubbed Threaded Flange (113), Lapped Pipe End Flange (133), Plate Flangge (101), Loose Plate Flange (102), Loose Plate with Weld-neck Flange (104), Blank Flange (105) |
| Pressure Class | Pn2.5 To Pn 40 |
| BS 4504 (PART-1) | Welding Neck Flange, Hubbed Slip-on-Hubbed Threaded, Plate Flange, Loose Plate with Weld on Plate Collar, Blank Flange |
| Pressure Class | Pn2.5 to Pn 400 |
| Bs1560 | Welding Neck Flange, Socket Welding Flange, Slip-on Boss Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| Pressure Class | 150, 300, 400, 600, 900, 1500, 2500 |
| BS 10 | Welding Neck Flange, Plate Slip-on Flange, Screwed Boss Flange, Slipon Boss Flage, Blind Flange Table : D, E, F, H |
| DIN Flanges | DIN2527, DIN2566, DIN2573, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2637, DIN2638, DIN2673 |
| Pressure Class | PN 6 to PN 320 |
| AFNOR NFE 29-203 | Plate Flange (01), loose Plate Flange (02,03,04), Blind Flange (05) Welding Neckflange (11), Hubbed Slip on Flange (12), Screwed Flange (13), Hubbed Socket Welding Flange (14) , Loose Hubbed Flange (15) Integral Flange (21) |
| Pressure Class | Iso- Pn 2.5 To Pn 420 |
| Pr EN 1092-1 Flanges | Plate Flange (01), Loose Plate Flange (02,04), Blind Flange (05) Welding Neck Flange (11), Hubbed Slip on Flange (12), Screwed Flange (13), Integral Flange (21) |
| Pressure Class | Pn2.5 To Pn100 |
| ASME/ANSI B16.9/MSS SP-4 | Stub End |
| Type | A,B,C |
