Ranflex Metals are the leading manufacturer of high integrity special fasteners (e.g. bolts, set screws, stud-bolts, nuts and washers), meeting clients’ exacting demands for critical applications in hostile environments. Whether for offshore (buoyancy and petrochemical), seawater, pump, valve or nuclear, the demands for an exceptional service and supply is never ending. We believe manufacturing bolting in exotic materials is an art form and it is something we have perfected at Ranflex Metals.
Our 316L Stainless Steel Fasteners product range includes 316L Stainless Steel Bolts, Hexagon head bolt, Hexagon head screw, Round head square neck bolt, Hexagon socket head cap screw in full thread and half thread, Hexagon wood screw, Hexagon socket button head screw, Hexagon socket button flange screw, Hexagon socket counter sunk head cap screw in full thread and half thread, square nuts, square weld nuts, hexagon weld nuts, thick nyloc nuts, hexagon flange nuts, threaded rods, dowel screws,Plain / Flat Washer, Spring Washers, Countersunk Washer,Tooth Lock Washer and many more. We provide products as per DIN, ANSI, JIS standards.
Specifications | ASTM A479 / A479, ASME SA479 / SA194 |
Standard | DIN, ASTM, BS and all International Standards |
Length | 3 mm to 200 mm |
Nuts Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
Stainless Steel Bolt / Screw Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
Stainless Steel Machine Screws Size | M1.6 - M12 |
Stainless Steel Washers Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
Stainless Steel Stud bolts Type | Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts,Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets, Screws, Allen Cap screw, Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw, Pan Head Screw, Socket Head Cap Screw, Wing Screw, T-Head Bolts, Foundation Bolts,Screw, Studs |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
---|---|---|---|---|---|---|---|
SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
---|---|---|---|---|---|---|---|---|---|
SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
---|---|---|---|---|---|
SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Grade | Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (µm/m/°C) | Thermal Conductivity (W/m.K) |
Specific Heat 0-100°C (J/kg.K) |
Elec Resistivity (nΩ.m) |
|||
0-100°C | 0-315°C | 0-538°C | At 100°C | At 500°C | |||||
316L | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |

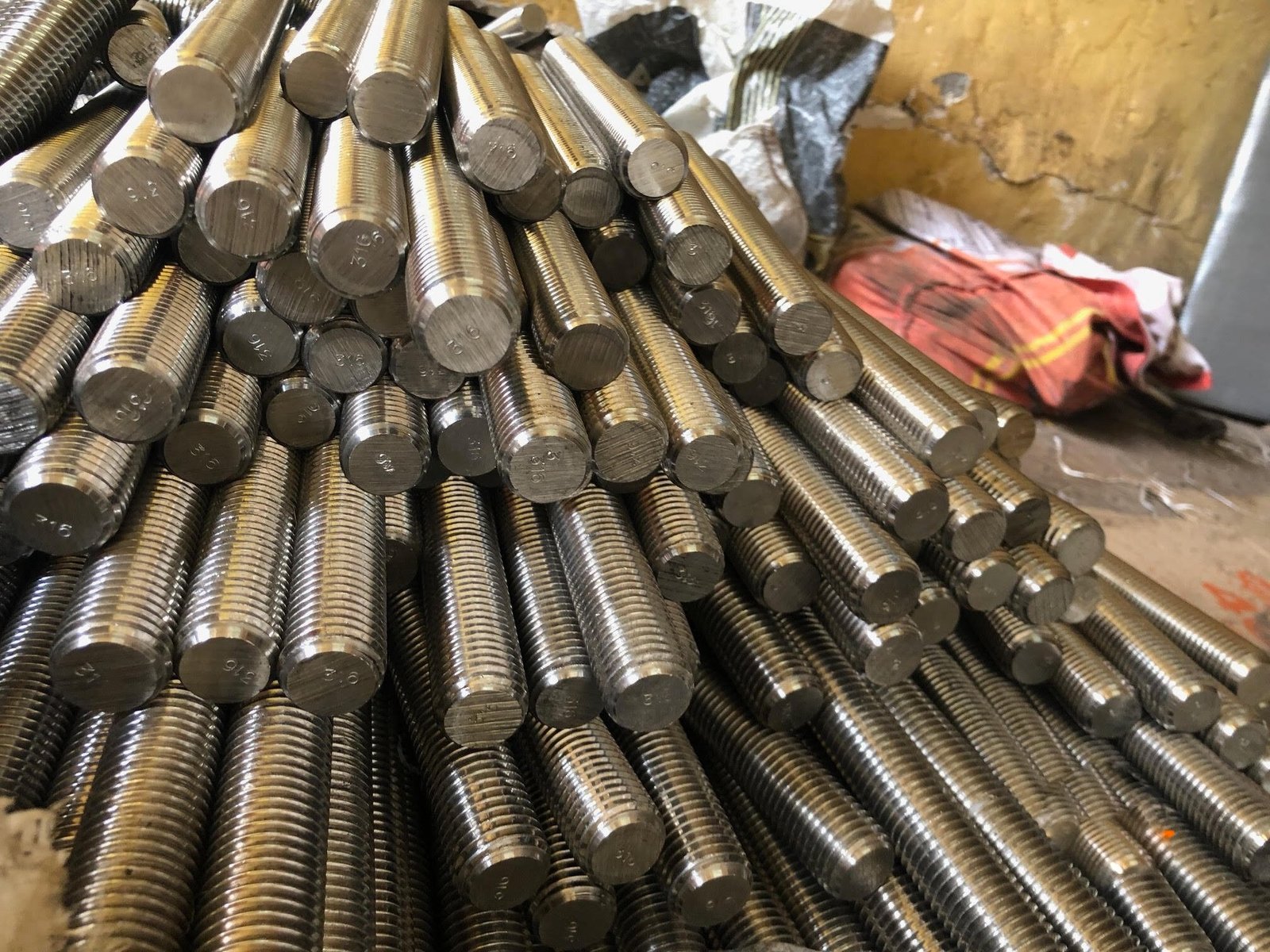

Looking for 316L stainless steel Stud Bolt? Ranflex Metals is a top-class manufacturer of 316L stainless steel screws. We are the most experienced among all the steel fasteners market and progresses with a highly professional team who is wholly engaged in making 316L screws, 316L bolts, and Fastener at the lowest cost.
For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H
For Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040
For SHCS: F837B, F837C, F837E, F837
For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2
Diameter | ||
---|---|---|
Plain | ||
UNC | 8UN | |
1/2 | 19568 | - |
5/8 | 19569 | - |
3/4 | 19570 | |
7/8 | 19571 | - |
1 | 19572 | - |
11/8 | 19573 | 13979 |
11/4 | 19574 | 13980 |
13/8 | 19656 | 13981 |
11/2 | 19657 | 13982 |
13/4 | 19658 | 13983 |
2 | 19659 | 13984 |
Available lengths 12 Inch ASME B18.31.3, Also available lengths Dimensions 6 Inch |
D | P |
D
|
P |
---|---|---|---|
M2 | 0.4 | M20 | 1.5/2.5 |
M2.5 | 0.45 | M22 | 1.5/2.5 |
M3 | 0.5 | M24 | 2/3 |
M3.5 | 0.6 | M27 | 2/3 |
M4 | 0.7 | M30 | 2/3.5 |
M5 | 0.8 | M33 | 2/3.5 |
M6 | 1 | M36 | 3/4 |
M8 | 1/1.25 | M39 | 3/4 |
M10 | 1/1.25/1.5 | M42 | 3/4.5 |
M12 | 1.25/1.5/1.75 | M45 | 3/4.5 |
M14 | 1.5/2 | M48 | 3/5 |
M16 | 1.5/2 | M52 | 3/5 |
M18 | 1.5/2.5 |
Size Of Nut (millimeter) |
Diameter Of (millimeter) |
Height Table (millimeter) |
||
---|---|---|---|---|
Hex Nut | Jam Nut | Nylock Nut | ||
2 | 4 | 1.6 | 1.2 | - |
2.5 | 5 | 2 | 1.6 | - |
3 | 5.5 | 2.4 | 1.8 | 4 |
4 | 7 | 3.2 | 2.2 | 5 |
5 | 8 | 4 | 2.7 | 5 |
6 | 10 | 5 | 3.2 | 6 |
7 | 11 | 5.5 | 3.5 | - |
8 | 13 | 6.5 | 4 | 8 |
10 | 17 | 8 | 5 | 10 |
12 | 19 | 10 | 6 | 12 |
14 | 22 | 11 | 7 | 14 |
16 | 24 | 13 | 8 | 16 |
18 | 27 | 15 | 9 | 18.5 |
20 | 30 | 16 | 10 | 20 |
Size Table Of Threaded Rod
|
per Inch Threads
|
||
---|---|---|---|
Frac. [Number]
|
Decimal
|
UNC
|
UNF
|
1/8 [#6]
|
0.1380
|
32
|
40
|
5/32 [#8]
|
0.1640
|
32
|
36
|
3/16 [#10]
|
0.1900
|
24
|
32
|
1/4
|
0.2500
|
20
|
28
|
5/16
|
0.3125
|
18
|
24
|
3/8
|
0.3750
|
16
|
24
|
7/16
|
0.4375
|
14
|
20
|
1/2
|
0.5000
|
13
|
20
|
9/16
|
0.5625
|
12
|
18
|
5/8
|
0.6250
|
11
|
18
|
3/4
|
0.7500
|
10
|
16
|
7/8
|
0.8750
|
9
|
14
|
1
|
1.0000
|
8
|
12, 14
|
1 1/8
|
1.1250
|
7
|
12
|
1 1/4
|
1.2500
|
7
|
12
|
1 3/8
|
1.3750
|
6
|
12
|
1 1/2
|
1.5000
|
6
|
12
|
1 3/4
|
1.7500
|
5
|
–
|
Price of SS 316L Stud Bolt manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
---|---|---|---|
Stainless Steel Stud Bolt Grade – 316L | $6.64 | €6.34 | 22.66 UAE Dirham |
Stainless Steel Double End Stud Bolt 316L | $5.74 | €5.49 | 19.37 UAE Dirham |
Stainless Steel Square Nuts Grade – 316L | $3.74 | €3.56 | 12.05 UAE Dirham |
