As an acclaimed endeavor of the business, Ranflex Metals is included in offering an immense range of Stainless Steel 431 Round Bars as a Manufacturers, exporter, stockiest and Suppliers to our native and worldwide customers. Stainless Steel 431 Bars (SS 431 Bars) are martensitic and warmth treatable item by methods for having great erosion resistance, torque strength, high sturdiness and tractable properties. We manufacture these Stainless Steel 410/420/430/431 Bars utilizing best nature of materials as a part of going along by method for the best quality measures.
These properties in Stainless Steel 431 Rods (SS 431 Rods) make them best for shaft and jolt applications. Concerning national and worldwide nature of crude materials, we additionally offer these UNS S43100 Round Bars in tweaked sizes and thicknesses according to particular requests by our regarded customers at market driving costs.431 Stainless Steel has been intended to enhanced consumption resistance and sturdiness properties than other 400 stainless evaluations particularly in an extinguish hardenable stainless. 431 would function admirably in marine conditions and additionally in aviation applications, for example, flying machine clasp and fittings. 431 have awesome effect quality at a high hardness level.
Our benefactors can benefit these Stainless Steel 410/420/430/431 Rods from us at the most insignificant expenses. As for national and worldwide nature of raw materials, we additionally offer these Stainless Steel Round Bars, Stainless Steel 431 Round Bar & Rods, Stainless Steel UNS S34700/09 Round Bars, ASTM A276 AISI 431 Stainless Steel Round Bars, SS 431 Round Bars & Rods in altered sizes and thicknesses according to particular requests by our regarded customers at business sector driving costs.
Our benefactors can benefit these Stainless Steel 410/420/430/431 Rods from us at the most insignificant expenses. As for national and worldwide nature of raw materials, we additionally offer these Stainless Steel Round Bars in altered sizes and thicknesses according to particular requests by our regarded customers at business sector driving costs.
Grade | Stainless Steel Round Bar |
---|---|
Stainless Steel Square bar size | 4 to 100mm |
Stainless Steel Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
Hot Rolled Steel Hex Bar size | 2-100mm A/F |
Stainless Steel Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
Stainless Steel Rectangles Size | 33 x 30mm to 295 x 1066mm |
Hot Rolled Steel Flat bar size | Thickness: 2 -100mm |
Width: 10 to 500mm | |
Stainless Steel Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
Stainless Steel Section | 3.0 to 12.0mm thickness |
Hot Rolled Steel Round bar size | Diameter: 3-~800mm |
Stainless Steel Billet Size | 1/2" to 495mm Diameter |
Stainless Steel Round Bar Standard Dimensions | Diameter / Height: Stainless Steel Rod and Bar Sizes : 0.5 inches / 0.625 inches / 0.75 inches / 0.875 inches / 1.0 inches / 1.125 inches / 1.25 inches / 1.375 inches / 1.5 inches / 1.75 inches / 2.0 inches / 2.25 inches / 2.5 inches / 2.75 inches / 3.0 inches / 3.25 inches / 3.5 inches / 3.75 inches / 4.0 inches / 4.25 inches / 4.5 inches / 5.0 inches / 5.25 inches / 5.5 inches / 6.0 inches / 7.0 inches / 8.0 inches / 9.0 inches. |
Stainless Steel Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
Stainless Steel Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
Hot Rolled Steel Technique | Stainless Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
Stainless Steel Condition | Hardened & tempered, annealed |
Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
Form | Stainless Steel Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
Processing | Bar cutting to 650mm |
STANDARD | UNS | WNR. | JIS |
---|---|---|---|
SS 431 | S43100 | 1.4057 | SUS 431 |
Grade | C | Mn | Si | P | S | Cr | Ni |
---|---|---|---|---|---|---|---|
431 | 0.20 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 15.00 - 17.00 | 1.25 - 2.50 |
Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
---|---|---|---|---|---|
Annealed * | 862 | 655 | 20 | 285 max | - |
204 | 1345 | 1055 | 20 | 388 | 50 |
316 | 1295 | 1035 | 19 | 375 | 53 |
427 | 1350 | 1080 | 19 | 388 | # |
538 | 1140 | 965 | 19 | 321 | # |
593 | 1015 | 770 | 20 | 293 | 64 |
650 | 960 | 695 | 20 | 277 | 84 |
Denstiy lbm/in3 |
Coefficient of Thermal Expansion (min/in)-°F |
Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | |
---|---|---|---|---|---|
at 68 °F | at 68 – 212°F | at 68 – 1832°F | at 200°F | at 32 – 212°F | in tension (E) |
0.286 | 9.2 | 20.5 | 9.3 | 0.12 | 28 x 106 |
Diameter or Width (mm) |
Weight per meter | Sectional Area | Perimeter | |||
Square (kg) |
Round (kg) |
Square (cm²) |
Round (cm²) |
Square (cm) |
Round (cm) |
|
5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
---|---|---|---|---|---|
7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
---|---|---|---|
Cold Drawn and Polish | 3.00 - 75.00 | 1/8 - 3.00 | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 - 75.00 | 5/6 - 2.50 | h8-h9-h10-h11 |
Peeled and Polished | 40.00 - 150.00 | 1.50 - 6.00 | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 - 50.00 | 3/4 - 2.00 | h9-h10-h11 |
Stainless Steel Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 200.0 |

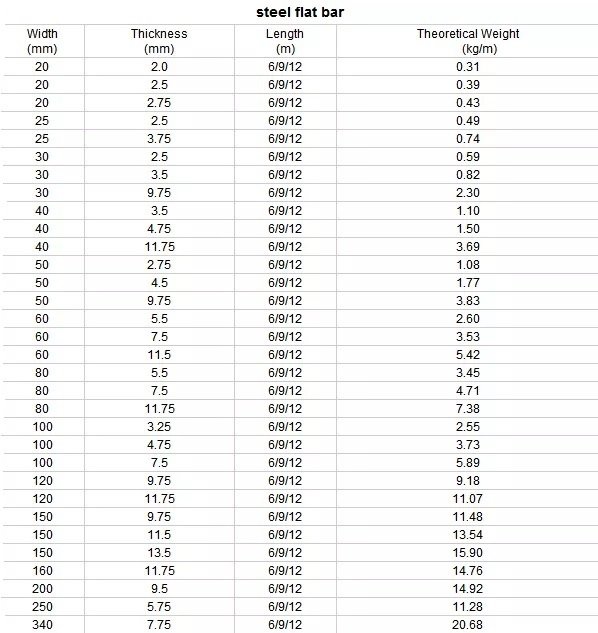

Flat bar sizes in mm | Flat Bar Size (inch) | Flat Bar Thickness (mm) | Flat Bar Thickness (in Inches) |
---|---|---|---|
22 | 7/8 | 17 & 18 | 2/3 - 5/7 |
25 | 1 | 5 to 20 | 3/16 - 4/5 |
30 | 1-3/16 | 5 to 20 | 3/16 - 4/5 |
32 | 1-1/4 | 6 to 20 | 1/4 - 4/5 |
35 | 1-3/8 | 5 to 20 | 3/16 - 3/16 |
40 | 1-4/7 | 5 to 25 | 3/16 - 1 |
45 | 1-7/9 | 5 to 25 | 3/16 - 1 |
47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
50 | 2 | 5 to 32 | 3/16 - 1-1/4 |
55 | 2-1/16 | 5 to 25 | 3/16 - 1 |
57 | 2-1/4 | 32 | 1-1/4 |
60 | 2-3/8 | 5 to 35 | 3/16 - 1-3/8 |
63 | 2-1/2 | 10 to 30 | 3/8 - 1-3/16 |
65 | 2-5/9 | 10 to 30 & 35 | 3/8 - 1-3/16, & 1-3/8 |
70 | 2-3/4 | 6 to 25 & 40 | 1/4 - 1, & 1-4/7 |
75 | 3 | 8 to 25 | 5/16 - 1 |
80 | 3-1/8 | 8 to 20 | 5/16 - 4/5 |
90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
OD = outside diameter, ID = inside diameter
Size | Chucked true to OD | Chucked true to ID | |||||||
---|---|---|---|---|---|---|---|---|---|
OD, mm |
ID, mm |
Max. OD, mm |
Min. ID, mm |
Max. OD, in. |
Min. ID, in. |
Max. OD, mm |
Min. ID, mm |
Max. OD, in. |
Min. ID, in. |
32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
160 | 112 | 157.6 | 115.5 | 6.205 | 4.547 | 155.8 | 113.7 | 6.134 | 4.476 |
160 | 90 | 157.6 | 94.0 | 6.205 | 3.701 | 155.2 | 91.4 | 6.110 | 3.598 |
170 | 140 | 167.4 | 143.5 | 6.591 | 5.650 | 166 | 142.1 | 6.535 | 5.594 |
170 | 130 | 167.4 | 133.6 | 6.591 | 5.260 | 165.8 | 132 | 6.528 | 5.197 |
170 | 128 | 167.4 | 131.6 | 6.591 | 5.181 | 165.7 | 130 | 6.524 | 5.118 |
170 | 118 | 167.4 | 121.7 | 6.591 | 4.791 | 165.5 | 119.8 | 6.516 | 4.717 |
170 | 106 | 167.4 | 109.8 | 6.591 | 4.323 | 165.2 | 107.6 | 6.504 | 4.236 |
170 | 100 | 167.4 | 103.9 | 6.591 | 4.091 | 165 | 101.5 | 6.496 | 3.996 |
180 | 150 | 177.3 | 153.6 | 6.980 | 6.047 | 176 | 152.3 | 6.929 | 5.996 |
180 | 140 | 177.3 | 143.7 | 6.980 | 5.657 | 175.7 | 142.1 | 6.917 | 5.594 |
180 | 125 | 177.3 | 128.9 | 6.980 | 5.075 | 175.3 | 126.9 | 6.902 | 4.996 |
180 | 100 | 177.3 | 104.1 | 6.980 | 4.098 | 174.7 | 101.5 | 6.878 | 3.996 |
190 | 160 | 187.1 | 163.8 | 7.366 | 6.449 | 185.7 | 162.4 | 7.311 | 6.394 |
190 | 150 | 187.1 | 153.9 | 7.366 | 6.059 | 185.5 | 152.3 | 7.303 | 5.996 |
190 | 132 | 187.1 | 136 | 7.366 | 5.354 | 185.1 | 134 | 7.287 | 5.276 |
200 | 170 | 197.0 | 173.9 | 7.756 | 6.846 | 195.6 | 172.6 | 7.701 | 6.795 |
200 | 160 | 197.0 | 164 | 7.756 | 6.457 | 195.4 | 162.4 | 7.693 | 6.394 |
200 | 150 | 197.0 | 154.1 | 7.756 | 6.067 | 195.2 | 152.3 | 7.685 | 5.996 |
200 | 140 | 197.0 | 144.2 | 7.756 | 5.677 | 194.9 | 142.1 | 7.673 | 5.594 |
212 | 170 | 208.8 | 174.2 | 8.220 | 6.858 | 207.2 | 172.6 | 8.157 | 6.795 |
212 | 150 | 208.8 | 154.4 | 8.220 | 6.079 | 206.6 | 152.3 | 8.133 | 5.997 |
212 | 130 | 208.8 | 134.6 | 8.220 | 5.299 | 206.2 | 132 | 8.118 | 5.197 |
224 | 180 | 220.6 | 184.4 | 8.685 | 7.260 | 218.9 | 182.7 | 8.618 | 7.193 |
224 | 140 | 220.6 | 144.8 | 8.685 | 5.701 | 217.9 | 142.1 | 8.579 | 5.594 |
236 | 190 | 232.4 | 194.6 | 9.150 | 7.661 | 230.7 | 192.9 | 9.083 | 7.594 |
236 | 150 | 232.4 | 155.0 | 9.150 | 6.102 | 229.7 | 152.3 | 9.043 | 5.996 |
250 | 200 | 246.2 | 204.9 | 9.693 | 8.067 | 244.3 | 203.0 | 9.618 | 7.992 |
275 | 200 | 268.9 | 205.4 | 10.587 | 8.087 | 266.5 | 203.0 | 10.492 | 7.992 |
Size (mm) | Weight per metre (Kg) |
---|---|
12 x 12 | 1.14 |
16 x 16 | 2.02 |
20 x 20 | 3.16 |
25 x 25 | 4.94 |
30x30 | 7.11 |
40 x 40 | 12.60 |
50 x 50 | 19.80 |
Diameter or Width (mm) |
Weight per meter | Sectional Area | Perimeter | |||
Square (kg) |
Round (kg) |
Square (cm²) |
Round (cm²) |
Square (cm) |
Round (cm) |
|
5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Description | Per Unit (INR) | Price in USD | Pricein EURO |
---|---|---|---|
Stainless Steel Bright Bars Grade Aisi 431 Bright Bars | 125.18 | 1.88 | 1.58 |
Stainless Steel Bright Bars Ss 431 Shape Round | 118.18 | 1.78 | 1.50 |
Grade Aisi 431 Bright Rods Of Stainless Steel | 125.18 | 1.88 | 1.58 |
Stainless Steel Bright Bars grade 431 Shape Round | 118.18 | 1.78 | 1.50 |
Grade Aisi 431 Round Bars | 124.18 | 1.86 | 1.50 |
Grade Aisi 431 Bars & Rods Of Stainless Steel | 135.18 | 2.02 | 2.68 |
