15-5ph vs 17-4 ph
| Material | 15-5 PH | 17-4 PH |
| Chemical Composition | 15% Cr, 5% Ni, Cu | 17% Cr, 4% Ni, Cu |
| 3% Cu, 0.5% Nb | 4% Cu, 0.5% Nb | |
| Tensile Strength | 1700-1900 MPa | 1100-1300 MPa |
| (248-276 ksi) | (160-190 ksi) | |
| Yield Strength | 1350-1450 MPa | 1000-1200 MPa |
| (196-211 ksi) | (145-174 ksi) | |
| Elongation | 5-15% | 6-15% |
| Hardness | 36-43 HRC | 33-43 HRC |
| Corrosion Resistance | Excellent | Excellent |
| Heat Treatment | Precipitation Hardening | Precipitation Hardening |
| at 480-620°C for 4h | at 480-620°C for 4h | |
| Typical Applications | Aerospace components | Aerospace components |
| Chemical processing equipment | Chemical processing equipment | |
| Nuclear reactor components | Nuclear reactor components | |
| Medical implants | Medical implants |
As an acclaimed attempt of the business, Ranflex Metals is incorporated into offering a huge show of Stainless Steel 15-5PH and 17-4PH Round Bars as a manufacturers, exporter, stockiest and suppliers to our valuable native and worldwide customers.
Stainless Steel 15-5 is a precipitation hardening martensitic stainless steel expected to have a more noticeable solidness than 17-4 ph stainless steel. It is used as a piece of uses requiring better disintegration resistance and transverse properties stood out from other similar martensitic grades. Quality and quality fancied can be changed by quiet reach in the glow treatment handle. Our 17-4 PH Stainless Steel (SS) is a precipitation cementing martensitic stainless steel. Normal utilize is found in applications requiring high caliber and an unassuming level of erosion resistance. Quality and toughness needed can be controlled by mellow degree in the glow treatment prepare.
SUS 17-4ph Peeled Rod manufacturer, ASME SA276 Polished Rod wholesaler, UNS S17400 Rectangular Bar wholesaler, Rectangular Rod retailer, Werkstoff Nr. 1.4542 Hot Rolled Rod exporter, ASME SA276 Polished Rod manufacturer, Stainless Steel 17-4ph Hot Rolled Rod trader, Werkstoff Nr. 1.4542 Y Shape Bar retailer.

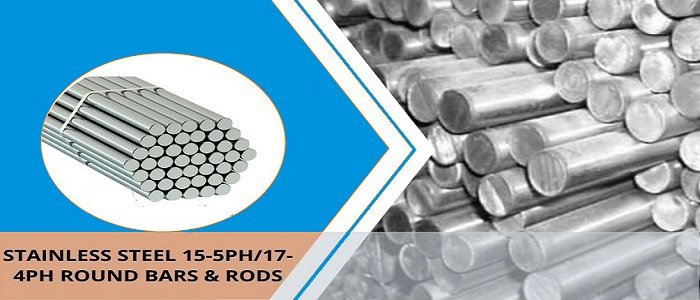

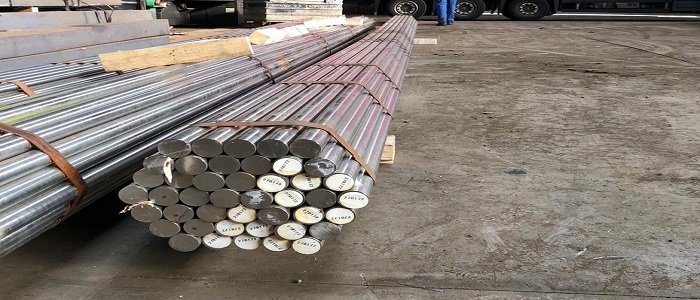

Our clients can profit these Stainless Steel 15-5PH and 17-4PH Round Bars and Rods and no more apparent expenses. With respect to national and overall nature of unrefined materials, we moreover offer these Stainless Steel 15-5PH and 17-4PH Round Bars and Rods, Stainless Steel 15-5ph & 17-4ph Round Bars & Rods, Stainless Steel 15-5ph & 17-4ph Rods in revamp sizes and thicknesses as indicated by specific demands by our respected clients at business area driving cost.
Application SS 15-5PH & 17-4PH Round Bars and Rods :
- Stainless Steel 15-5PH and 17-4PH Round Bars are widely used in Aerospace
- Chemical processing
- Petrochemical processing
- Food processing
- Paper and General Metalworking Industries
Specification of 15-5PH & 17-4PH Stainless Steel Round Bars :
| Grade | Stainless Steel Round Bar |
|---|---|
| Stainless Steel Square bar size | 4 to 100mm |
| Stainless Steel Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Hot Rolled Steel Hex Bar size | 2-100mm A/F |
| Stainless Steel Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Stainless Steel Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hot Rolled Steel Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Stainless Steel Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Stainless Steel Section | 3.0 to 12.0mm thickness |
| Hot Rolled Steel Round bar size | Diameter: 3-~800mm |
| Stainless Steel Billet Size | 1/2" to 495mm Diameter |
| Stainless Steel Round Bar Standard Dimensions | Diameter / Height: Stainless Steel Rod and Bar Sizes : 0.5 inches / 0.625 inches / 0.75 inches / 0.875 inches / 1.0 inches / 1.125 inches / 1.25 inches / 1.375 inches / 1.5 inches / 1.75 inches / 2.0 inches / 2.25 inches / 2.5 inches / 2.75 inches / 3.0 inches / 3.25 inches / 3.5 inches / 3.75 inches / 4.0 inches / 4.25 inches / 4.5 inches / 5.0 inches / 5.25 inches / 5.5 inches / 6.0 inches / 7.0 inches / 8.0 inches / 9.0 inches. |
| Stainless Steel Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Stainless Steel Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Hot Rolled Steel Technique | Stainless Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Stainless Steel Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Stainless Steel Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
Equivalent Grades of Stainless Steel 15-5PH & 17-4PH Round Bars :
| Grade | UNS | WNR |
|---|---|---|
| SS 15-5PH | S15500 | 1.4545 |
| SS 17-4PH | S17400 | 1.4542 |
Chemical Composition of 15-5PH & 17-4PH Stainless Steel Round Bars :
| Grade | C | P | Si | Ni | Al | Fe | Mn | S | Cr | Cb+Ta | Cu |
| SS 15-5 PH | 0.07 | 0.04 | 1.0 | 3.5 – 5.5 | – | Bal | 1.0 | 0.03 | 14.0 – 15.5 | 0.15 – 0.45 | - |
| SS 17-4 PH | 0.07 | 0.04 | 1.0 max | 3.0 – 5.0 | - | Bal | 1.0 max | 0.03 | 15.0 – 17.5 | 5 X C / 0.45 | 3.0 – 5.0 |
Mechanical Properties of SS 15-5PH & 17-4PH Round Bars :
| Condition | Ultimate Tensile Strength (PSI) |
0.2% Yield Strength (PSI) |
Elongation (% in 2in.) |
Reduction Of Area (%) |
Hardness Brinell |
Hardness Rockwell |
|---|---|---|---|---|---|---|
| H900 | 190,000 | 170,000 | 10 | 40 | 388 | C40 |
| H1025 | 155,000 | 145,000 | 12 | 45 | 331 | C35 |
| H1075 | 145,000 | 125,000 | 13 | 45 | 311 | C32 |
| H1150 | 135,000 | 105,000 | 16 | 50 | 277 | C28 |
| H1150-M | 115,000 | 75,000 | 18 | 55 | 255 | C24 |
| H1150-D | 125,000 | 105,000 | 16 | 50 | 255 min- 311 max |
C24-33 |
Physical Properties of Stainless Steel WERKSTOFF NR. 1.4542 :
| Condition | Ultimate Tensile Strength (PSI) |
0.2% Yield Strength (PSI) |
Elongation (% in 2in.) |
Reduction Of Area (%) |
Hardness Brinell |
Hardness Rockwell |
|---|---|---|---|---|---|---|
| H900 | 190,000 | 170,000 | 6 | 15 | 388 | C40 |
| H1025 | 155,000 | 125,000 | 8 | 27 | 331 | C35 |
| H1075 | 145,000 | 125,000 | 9 | 28 | 311 | C32 |
| H1150 | 135,000 | 105,000 | 11 | 30 | 277 | C28 |
| H1150-M | 115,000 | 75,000 | 14 | 35 | 255 |
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
FAQ - Frequently Asked Question :-
What is the difference between 15-5 ph vs 17-4 ph?
Grades 15-5 ph and 17-4 ph are considered extremely strong and ductile. The fundamental difference between these two grades is their chemical composition. Grade 15-5 Ph includes a high amount of iron, whereas 17-4ph has a small amount of iron added to provide stability and strength to the grade. 15-5Ph has extreme solidness; hence it is also called martensitic stainless steel, whereas 17-4 Ph is known for cementing martensitic stainless steel. The 15-5 grade is noticeably more potent than the 17-4 Ph.
Theoretical Weight of Stainless Steel Flat Bars :
Dimension Chart of ASME SA564 Stainless steel 15-5PH & 17-4PH Square Bar :
| Diameter or Width (mm) |
Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) |
Round (kg) |
Square (cm²) |
Round (cm²) |
Square (cm) |
Round (cm) |
|
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Size of Stainless Steel Round Bars :
Stainless Steel 15-5PH & 17-4PH Hex Bar Sizes :
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| 7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
| 8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
| 9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
| 10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
| 11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
| 12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
| 13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
| 14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
| 15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
| 16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
| 17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
| 18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Stainless Steel 15-5PH & 17-4PH Round Bar Sizes :
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 - 75.00 | 1/8 - 3.00 | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 - 75.00 | 5/6 - 2.50 | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 - 150.00 | 1.50 - 6.00 | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 - 50.00 | 3/4 - 2.00 | h9-h10-h11 |
Stainless Steel Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
- SW 13 15-5PH & 17-4PH Stainless Steel Hex Rod
- SW 17 15-5PH & 17-4PH Stainless Steel Hex Rod
- SW 19 15-5PH & 17-4PH Stainless Steel Hex Rod
- SW 24 15-5PH & 17-4PH Stainless Steel Hex Rod
- SW 27 15-5PH & 17-4PH Stainless Steel Hex Rod
Stainless Steel 15-5PH & 17-4PH Flat Bar Sizes :
| Flat bar sizes in mm | Flat Bar Size (inch) | Flat Bar Thickness (mm) | Flat Bar Thickness (in Inches) |
|---|---|---|---|
| 22 | 7/8 | 17 & 18 | 2/3 - 5/7 |
| 25 | 1 | 5 to 20 | 3/16 - 4/5 |
| 30 | 1-3/16 | 5 to 20 | 3/16 - 4/5 |
| 32 | 1-1/4 | 6 to 20 | 1/4 - 4/5 |
| 35 | 1-3/8 | 5 to 20 | 3/16 - 3/16 |
| 40 | 1-4/7 | 5 to 25 | 3/16 - 1 |
| 45 | 1-7/9 | 5 to 25 | 3/16 - 1 |
| 47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
| 50 | 2 | 5 to 32 | 3/16 - 1-1/4 |
| 55 | 2-1/16 | 5 to 25 | 3/16 - 1 |
| 57 | 2-1/4 | 32 | 1-1/4 |
| 60 | 2-3/8 | 5 to 35 | 3/16 - 1-3/8 |
| 63 | 2-1/2 | 10 to 30 | 3/8 - 1-3/16 |
| 65 | 2-5/9 | 10 to 30 & 35 | 3/8 - 1-3/16, & 1-3/8 |
| 70 | 2-3/4 | 6 to 25 & 40 | 1/4 - 1, & 1-4/7 |
| 75 | 3 | 8 to 25 | 5/16 - 1 |
| 80 | 3-1/8 | 8 to 20 | 5/16 - 4/5 |
| 90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
| 100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
Stainless Steel 15-5PH & 17-4PH Hollow Bar Sizes :
OD = outside diameter, ID = inside diameter
| Size | Chucked true to OD | Chucked true to ID | |||||||
|---|---|---|---|---|---|---|---|---|---|
| OD, mm |
ID, mm |
Max. OD, mm |
Min. ID, mm |
Max. OD, in. |
Min. ID, in. |
Max. OD, mm |
Min. ID, mm |
Max. OD, in. |
Min. ID, in. |
| 32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
| 32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
| 36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
| 36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
| 36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
| 40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
| 40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
| 40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
| 45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
| 45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
| 45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
| 50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
| 50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
| 50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
| 56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
| 56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
| 56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
| 63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
| 63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
| 63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
| 63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
| 63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
| 71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
| 71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
| 71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
| 71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
| 75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
| 75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
| 75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
| 80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
| 80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
| 80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
| 80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
| 85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
| 85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
| 85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
| 90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
| 90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
| 90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
| 90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
| 95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
| 95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
| 95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
| 100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
| 100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
| 100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
| 100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
| 106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
| 106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
| 106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
| 106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
| 112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
| 112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
| 112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
| 112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
| 118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
| 118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
| 118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
| 118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
| 125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
| 125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
| 125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
| 125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
| 132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
| 132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
| 132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
| 132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
| 140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
| 140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
| 140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
| 140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
| 150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
| 150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
| 150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
| 150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
| 160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
| 160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
| 160 | 112 | 157.6 | 115.5 | 6.205 | 4.547 | 155.8 | 113.7 | 6.134 | 4.476 |
| 160 | 90 | 157.6 | 94.0 | 6.205 | 3.701 | 155.2 | 91.4 | 6.110 | 3.598 |
| 170 | 140 | 167.4 | 143.5 | 6.591 | 5.650 | 166 | 142.1 | 6.535 | 5.594 |
| 170 | 130 | 167.4 | 133.6 | 6.591 | 5.260 | 165.8 | 132 | 6.528 | 5.197 |
| 170 | 128 | 167.4 | 131.6 | 6.591 | 5.181 | 165.7 | 130 | 6.524 | 5.118 |
| 170 | 118 | 167.4 | 121.7 | 6.591 | 4.791 | 165.5 | 119.8 | 6.516 | 4.717 |
| 170 | 106 | 167.4 | 109.8 | 6.591 | 4.323 | 165.2 | 107.6 | 6.504 | 4.236 |
| 170 | 100 | 167.4 | 103.9 | 6.591 | 4.091 | 165 | 101.5 | 6.496 | 3.996 |
| 180 | 150 | 177.3 | 153.6 | 6.980 | 6.047 | 176 | 152.3 | 6.929 | 5.996 |
| 180 | 140 | 177.3 | 143.7 | 6.980 | 5.657 | 175.7 | 142.1 | 6.917 | 5.594 |
| 180 | 125 | 177.3 | 128.9 | 6.980 | 5.075 | 175.3 | 126.9 | 6.902 | 4.996 |
| 180 | 100 | 177.3 | 104.1 | 6.980 | 4.098 | 174.7 | 101.5 | 6.878 | 3.996 |
| 190 | 160 | 187.1 | 163.8 | 7.366 | 6.449 | 185.7 | 162.4 | 7.311 | 6.394 |
| 190 | 150 | 187.1 | 153.9 | 7.366 | 6.059 | 185.5 | 152.3 | 7.303 | 5.996 |
| 190 | 132 | 187.1 | 136 | 7.366 | 5.354 | 185.1 | 134 | 7.287 | 5.276 |
| 200 | 170 | 197.0 | 173.9 | 7.756 | 6.846 | 195.6 | 172.6 | 7.701 | 6.795 |
| 200 | 160 | 197.0 | 164 | 7.756 | 6.457 | 195.4 | 162.4 | 7.693 | 6.394 |
| 200 | 150 | 197.0 | 154.1 | 7.756 | 6.067 | 195.2 | 152.3 | 7.685 | 5.996 |
| 200 | 140 | 197.0 | 144.2 | 7.756 | 5.677 | 194.9 | 142.1 | 7.673 | 5.594 |
| 212 | 170 | 208.8 | 174.2 | 8.220 | 6.858 | 207.2 | 172.6 | 8.157 | 6.795 |
| 212 | 150 | 208.8 | 154.4 | 8.220 | 6.079 | 206.6 | 152.3 | 8.133 | 5.997 |
| 212 | 130 | 208.8 | 134.6 | 8.220 | 5.299 | 206.2 | 132 | 8.118 | 5.197 |
| 224 | 180 | 220.6 | 184.4 | 8.685 | 7.260 | 218.9 | 182.7 | 8.618 | 7.193 |
| 224 | 140 | 220.6 | 144.8 | 8.685 | 5.701 | 217.9 | 142.1 | 8.579 | 5.594 |
| 236 | 190 | 232.4 | 194.6 | 9.150 | 7.661 | 230.7 | 192.9 | 9.083 | 7.594 |
| 236 | 150 | 232.4 | 155.0 | 9.150 | 6.102 | 229.7 | 152.3 | 9.043 | 5.996 |
| 250 | 200 | 246.2 | 204.9 | 9.693 | 8.067 | 244.3 | 203.0 | 9.618 | 7.992 |
| 275 | 200 | 268.9 | 205.4 | 10.587 | 8.087 | 266.5 | 203.0 | 10.492 | 7.992 |
Stainless Steel 15-5PH & 17-4PH Square Bar Sizes :
| Size (mm) | Weight per metre (Kg) |
|---|---|
| 12 x 12 | 1.14 |
| 16 x 16 | 2.02 |
| 20 x 20 | 3.16 |
| 25 x 25 | 4.94 |
| 30x30 | 7.11 |
| 40 x 40 | 12.60 |
| 50 x 50 | 19.80 |
Weight Chart of ASME SA564 Stainless steel 15-5PH & 17-4PH Square Bar :
| Diameter or Width (mm) |
Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) |
Round (kg) |
Square (cm²) |
Round (cm²) |
Square (cm) |
Round (cm) |
|
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Type of Stainless Steel 15-5PH & 17-4PH Round Bar
UNS S15500 SS 15-5PH Bright Bar
UNS S17400 SS 17-4PH Bright Bar
SS 15-5PH Hex Bar
SS 17-4PH Hex Bar
A564 SS 15-5PH Square Bar
A564 SS 17-4PH Square Bar
UNS S15500 Rectangular Bar
UNS S17400 Rectangular Bar
ASTM A564 SS 15-5PH Flat Bars
ASTM A564 SS 17-4PH Flat Bars
DIN 1.4545 Polished Bar
DIN 1.4542 Polished Bar
Grade 15-5PH SS Threaded Bar
Grade 17-4PH SS Threaded Bar
Stainless Steel 15-5PH & 17-4PH Price Per Kg (As per demand and manufacturer):
| Description | Per Unit (INR) | Price in USD | Pricein EURO |
|---|---|---|---|
| Stainless Steel Bright Bars Grade Aisi 15-5PH Bright Bars | 125.22 | 1.92 | 1.62 |
| Stainless Steel Bright Bars Ss 17-4PH Shape Round | 118.22 | 1.82 | 1.54 |
| Grade Aisi 17-4PH Bright Rods Of Stainless Steel | 125.22 | 1.92 | 1.62 |
| Stainless Steel Bright Bars grade 15-5PH Shape Round | 118.22 | 1.82 | 1.54 |
| Grade Aisi 15-5PH Round Bars | 124.22 | 1.92 | 1.54 |
| Grade Aisi 17-4PH Bars & Rods Of Stainless Steel | 135.22 | 2.06 | 2.72 |
UNS S15500 Black Bar price per kg, Hexagonal Rod weight calculator, ASME SA276 Rectangular Rod At Factory Price, Rectangular Rod weight calculator, Stainless Steel 15-5ph Black Bar price list, Werkstoff Nr. 1.4545 Black Bar in mm, SUS 15-5ph Cold Drawn Bar At Factory Price, ASTM A276 Peeled Bar weight chart , UNS S17400 Hexagonal Bar weight calculator, Stainless Steel 17-4ph Hot Rolled Bar At Factory Price.
UNS S15500 Square Rod dealer in Pune, Grade 15-5ph Triangle Bar manufacturer in Chennai, ASME SA276 Y Shape Rod supplier in Ahmedabad, ASTM A276 Y Shape Bar wholesaler in Kolkata, Stainless Steel 15-5ph Threaded Bar wholesaler in Ahmedabad, Grade 15-5ph Cold Drawn Bar dealer in Mumbai, erkstoff Nr. 1.4542 Square Bar exporter in Kolkata, Rectangular Bar exporter in Ahmedabad.
Y Shape Bar trader in Kuwait, Stainless Steel 15-5ph Triangle Bar dealer in Coimbatore, UNS S15500 Hot Rolled Bar distributor in Singapore, ASME SA276 Black Rod exporter in Oman, UNS S17400 Half Round Bar retailer in Oman, UNS S17400 Industrial Bar wholesaler in Oman, Peeled Bar exporter in Qatar, ASME SA276 Flat Bar wholesaler in Singapore, EN X5CrNiCuNb16.4 Polished Bar stockiest in Indonesia.
