Ranflex Metals (India) is an exceedingly manufacturer, exporter, stockiest and supplier of Stainless Steel 304 Round Bars and SS 304/304L/304H Round Bars and Rods that are being sourced by using dominating nature of rough material.
With respect to a couple of stainless steel audits, these Stainless Steel 304 Round Bars and Rods is the common 18/8 in the gathering of stainless. The specification includes fantastic welding performance and impartial austenitic structure, these stainless steel 304 Rods is for the most part used as a part of transportation and modern machines.

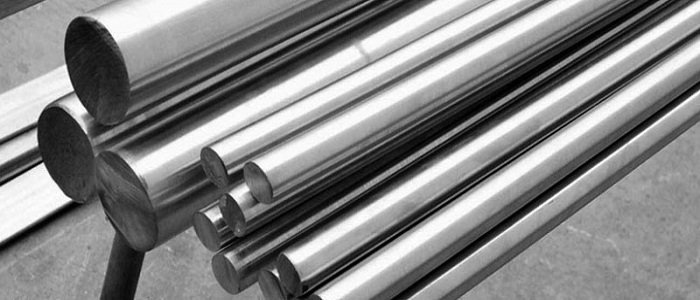

Stainless Steel 304L Round Bars and Rods has a significant measure of the similar mechanical characteristics of SS 304, however this particular audit is extra low-carbon dissimilarity. It is also known as S30403, these Stainless Steel 304L Round Bars has most outrageous measure of carbon substance that disposes of the carbide precipitation that comes in the midst of the welding system. For the reason of these qualities, these Stainless Steel 304L Rods can be used as a piece of welded state, even in enormously ruinous structures.
These Stainless Steel 304H Round Bars and Rods offers updated raised temperature quality when uncovered to temperatures for more than 800 degrees Fahrenheit. These Stainless Steel 304H Round Bars too has better whole deal and transient slither control than Alloy 304L at temperatures for more than 500 Deg C and is more trying to honing than Alloy 304L. Generally called UNS S30409, these SS 304H Rods is again and again used as a substance of advancement for up to around 1500 degrees Fahrenheit.
Most ordinarily utilized as a part of oil refineries, Boilers, Heat exchangers, Condensers, Pipelines, Cooling towers, Steam depletes, Electric era plants, now and again will be found in compost and substance plants.
Stainless steel 304/304L/304H is available in different types such as:
Grade | Stainless Steel Round Bar |
---|---|
Stainless Steel Square bar size | 4 to 100mm |
Stainless Steel Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
Hot Rolled Steel Hex Bar size | 2-100mm A/F |
Stainless Steel Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
Stainless Steel Rectangles Size | 33 x 30mm to 295 x 1066mm |
Hot Rolled Steel Flat bar size | Thickness: 2 -100mm |
Width: 10 to 500mm | |
Stainless Steel Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
Stainless Steel Section | 3.0 to 12.0mm thickness |
Hot Rolled Steel Round bar size | Diameter: 3-~800mm |
Stainless Steel Billet Size | 1/2" to 495mm Diameter |
Stainless Steel Round Bar Standard Dimensions | Diameter / Height: Stainless Steel Rod and Bar Sizes : 0.5 inches / 0.625 inches / 0.75 inches / 0.875 inches / 1.0 inches / 1.125 inches / 1.25 inches / 1.375 inches / 1.5 inches / 1.75 inches / 2.0 inches / 2.25 inches / 2.5 inches / 2.75 inches / 3.0 inches / 3.25 inches / 3.5 inches / 3.75 inches / 4.0 inches / 4.25 inches / 4.5 inches / 5.0 inches / 5.25 inches / 5.5 inches / 6.0 inches / 7.0 inches / 8.0 inches / 9.0 inches. |
Stainless Steel Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
Stainless Steel Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
Hot Rolled Steel Technique | Stainless Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
Stainless Steel Condition | Hardened & tempered, annealed |
Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
Form | Stainless Steel Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
Processing | Bar cutting to 650mm |
STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
---|---|---|---|---|---|---|---|
SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
SS 304L | S30403 | 1.4306/1.4307 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 304S11 | 03Х18Н11 |
SS 304H | S30409 | 1.4301 | - | - | - | - | - |
Grades | C | Mn | Si | P | S | Cr | Ni | N |
---|---|---|---|---|---|---|---|---|
304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
304H | min: 18.0 max:20.0 |
min: 8.0 max: 10.5 |
min: 0.04 max:0.10 |
0.75 max |
2.0 max |
0.045 max |
0.03 max |
0.10 max |
Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
---|---|---|---|---|---|
304 | 75 | 30 | 40 | 201 | 92 |
304L | 70 | 25 | 40 | 201 | 92 |
304H | 75 | 30 | 40 | 201 | 92 |
SS 304/304L | ||||||
---|---|---|---|---|---|---|
Density lbm/in3 |
Thermal Conductivity (BTU/h ft. °F) |
Electrical Resistivity (in x 10-6) |
Modulus of Elasticity (psi x 106 |
Coefficient of Thermal Expansion (in/in)/ °F x 10-6 |
Specific Heat (BTU/lb/ °F) |
Melting Range (°F) |
at 68°F: 0.285 | 9.4 at 212°F | 28.3 at 68°F | 28 | 9.4 at 32 – 212°F | 0.1200 at 68°F to 212°F | 2500 to 2590 |
12.4 at 932 °F | 39.4 at 752°F | 10.2 at 32 – 1000°F | ||||
49.6 at 1652 °F | 10.4 at 32 – 1500°F | |||||
SS 304H | ||||||
Denstiy lbm/in3 |
Coefficient of Thermal Expansion (min/in)-°F |
Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | ||
at 68 °F | at 68 – 212°F | at 68 – 1600°F | at 212°F | at 932°F | at 32 – 212°F | in tension (E) |
0.285 | 9.2 | 11.0 | 9.4 | 12.4 | 0.12 | 29 x 106 |
Diameter or Width (mm) |
Weight per meter | Sectional Area | Perimeter | |||
Square (kg) |
Round (kg) |
Square (cm²) |
Round (cm²) |
Square (cm) |
Round (cm) |
|
5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
---|---|---|---|---|---|
7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
---|---|---|---|
Cold Drawn and Polish | 3.00 - 75.00 | 1/8 - 3.00 | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 - 75.00 | 5/6 - 2.50 | h8-h9-h10-h11 |
Peeled and Polished | 40.00 - 150.00 | 1.50 - 6.00 | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 - 50.00 | 3/4 - 2.00 | h9-h10-h11 |
Stainless Steel Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 200.0 |
Flat bar sizes in mm | Flat Bar Size (inch) | Flat Bar Thickness (mm) | Flat Bar Thickness (in Inches) |
---|---|---|---|
22 | 7/8 | 17 & 18 | 2/3 - 5/7 |
25 | 1 | 5 to 20 | 3/16 - 4/5 |
30 | 1-3/16 | 5 to 20 | 3/16 - 4/5 |
32 | 1-1/4 | 6 to 20 | 1/4 - 4/5 |
35 | 1-3/8 | 5 to 20 | 3/16 - 3/16 |
40 | 1-4/7 | 5 to 25 | 3/16 - 1 |
45 | 1-7/9 | 5 to 25 | 3/16 - 1 |
47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
50 | 2 | 5 to 32 | 3/16 - 1-1/4 |
55 | 2-1/16 | 5 to 25 | 3/16 - 1 |
57 | 2-1/4 | 32 | 1-1/4 |
60 | 2-3/8 | 5 to 35 | 3/16 - 1-3/8 |
63 | 2-1/2 | 10 to 30 | 3/8 - 1-3/16 |
65 | 2-5/9 | 10 to 30 & 35 | 3/8 - 1-3/16, & 1-3/8 |
70 | 2-3/4 | 6 to 25 & 40 | 1/4 - 1, & 1-4/7 |
75 | 3 | 8 to 25 | 5/16 - 1 |
80 | 3-1/8 | 8 to 20 | 5/16 - 4/5 |
90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
OD = outside diameter, ID = inside diameter
Size | Chucked true to OD | Chucked true to ID | |||||||
---|---|---|---|---|---|---|---|---|---|
OD, mm |
ID, mm |
Max. OD, mm |
Min. ID, mm |
Max. OD, in. |
Min. ID, in. |
Max. OD, mm |
Min. ID, mm |
Max. OD, in. |
Min. ID, in. |
32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
160 | 112 | 157.6 | 115.5 | 6.205 | 4.547 | 155.8 | 113.7 | 6.134 | 4.476 |
160 | 90 | 157.6 | 94.0 | 6.205 | 3.701 | 155.2 | 91.4 | 6.110 | 3.598 |
170 | 140 | 167.4 | 143.5 | 6.591 | 5.650 | 166 | 142.1 | 6.535 | 5.594 |
170 | 130 | 167.4 | 133.6 | 6.591 | 5.260 | 165.8 | 132 | 6.528 | 5.197 |
170 | 128 | 167.4 | 131.6 | 6.591 | 5.181 | 165.7 | 130 | 6.524 | 5.118 |
170 | 118 | 167.4 | 121.7 | 6.591 | 4.791 | 165.5 | 119.8 | 6.516 | 4.717 |
170 | 106 | 167.4 | 109.8 | 6.591 | 4.323 | 165.2 | 107.6 | 6.504 | 4.236 |
170 | 100 | 167.4 | 103.9 | 6.591 | 4.091 | 165 | 101.5 | 6.496 | 3.996 |
180 | 150 | 177.3 | 153.6 | 6.980 | 6.047 | 176 | 152.3 | 6.929 | 5.996 |
180 | 140 | 177.3 | 143.7 | 6.980 | 5.657 | 175.7 | 142.1 | 6.917 | 5.594 |
180 | 125 | 177.3 | 128.9 | 6.980 | 5.075 | 175.3 | 126.9 | 6.902 | 4.996 |
180 | 100 | 177.3 | 104.1 | 6.980 | 4.098 | 174.7 | 101.5 | 6.878 | 3.996 |
190 | 160 | 187.1 | 163.8 | 7.366 | 6.449 | 185.7 | 162.4 | 7.311 | 6.394 |
190 | 150 | 187.1 | 153.9 | 7.366 | 6.059 | 185.5 | 152.3 | 7.303 | 5.996 |
190 | 132 | 187.1 | 136 | 7.366 | 5.354 | 185.1 | 134 | 7.287 | 5.276 |
200 | 170 | 197.0 | 173.9 | 7.756 | 6.846 | 195.6 | 172.6 | 7.701 | 6.795 |
200 | 160 | 197.0 | 164 | 7.756 | 6.457 | 195.4 | 162.4 | 7.693 | 6.394 |
200 | 150 | 197.0 | 154.1 | 7.756 | 6.067 | 195.2 | 152.3 | 7.685 | 5.996 |
200 | 140 | 197.0 | 144.2 | 7.756 | 5.677 | 194.9 | 142.1 | 7.673 | 5.594 |
212 | 170 | 208.8 | 174.2 | 8.220 | 6.858 | 207.2 | 172.6 | 8.157 | 6.795 |
212 | 150 | 208.8 | 154.4 | 8.220 | 6.079 | 206.6 | 152.3 | 8.133 | 5.997 |
212 | 130 | 208.8 | 134.6 | 8.220 | 5.299 | 206.2 | 132 | 8.118 | 5.197 |
224 | 180 | 220.6 | 184.4 | 8.685 | 7.260 | 218.9 | 182.7 | 8.618 | 7.193 |
224 | 140 | 220.6 | 144.8 | 8.685 | 5.701 | 217.9 | 142.1 | 8.579 | 5.594 |
236 | 190 | 232.4 | 194.6 | 9.150 | 7.661 | 230.7 | 192.9 | 9.083 | 7.594 |
236 | 150 | 232.4 | 155.0 | 9.150 | 6.102 | 229.7 | 152.3 | 9.043 | 5.996 |
250 | 200 | 246.2 | 204.9 | 9.693 | 8.067 | 244.3 | 203.0 | 9.618 | 7.992 |
275 | 200 | 268.9 | 205.4 | 10.587 | 8.087 | 266.5 | 203.0 | 10.492 | 7.992 |
Size (mm) | Weight per metre (Kg) |
---|---|
12 x 12 | 1.14 |
16 x 16 | 2.02 |
20 x 20 | 3.16 |
25 x 25 | 4.94 |
30x30 | 7.11 |
40 x 40 | 12.60 |
50 x 50 | 19.80 |
Diameter or Width (mm) |
Weight per meter | Sectional Area | Perimeter | |||
Square (kg) |
Round (kg) |
Square (cm²) |
Round (cm²) |
Square (cm) |
Round (cm) |
|
5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Description | Per Unit (INR) | Price in USD | Pricein EURO |
---|---|---|---|
Stainless Steel Bright Bars Grade Aisi 304 Bright Bars | 125 | 1.70 | 1.40 |
Stainless Steel Bright Bars Ss 304l Shape Round | 118 | 1.60 | 1.32 |
Grade Aisi 304H Bright Rods Of Stainless Steel | 125 | 1.70 | 1.40 |
Stainless Steel Bright Bars grade 304l Shape Round | 118 | 1.60 | 1.32 |
Grade Aisi 304H Round Bars | 124 | 1.68 | 1.39 |
Grade Aisi304 Bars & Rods Of Stainless Steel | 135 | 1.83 | 1.51 |
