We manufacture quality stainless steel forged pipe fittings which are durable, dependable and of high efficiency. We are offering to our clients, stainless steel forged pipe fittings which are available in range of 15 NB to 100 NB in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75. These can be provided in following forms.
The offered fittings are used in closing, tapering or joining the two parts of the pipes. Due to corrosion resistance specifications, these fittings are extensively used by the domestic and industrial sector. In order to deliver the high durability, these fittings are manufactured utilizing quality stainless alloy. Additionally, these fittings are quality tested on more than a few parameters to assure high tensile strength.
Being the emerging leader of this field, we completely value our responsibility and work hard to supply only supreme quality Forged Pipe Fitting. These are used in petrochemical industries, automotive, refineries and mechanical industries. It is a perfect use for tight hold on joints and sturdy support. To cater to industry defined quality parameters these components are examined thoroughly by our quality experts upon defined parameters of quality.
Ranflex Metals exports Stainless Steel Forged Pipe Fitting to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Phillipines.
Specification of Stainless Steel Forged Pipe Fittings :
| Designation | ASTM A182, ASME SA182 |
| Range | 1/8" NB TO 4" NB. |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

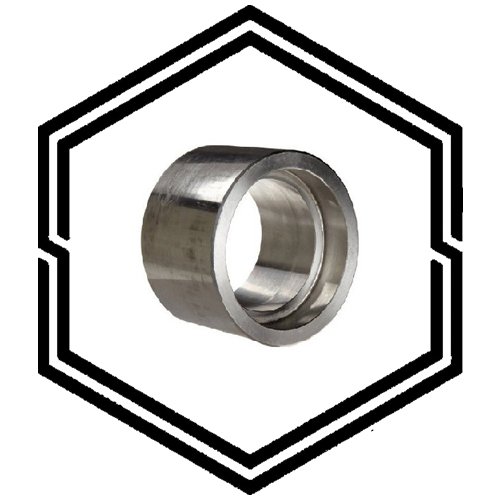

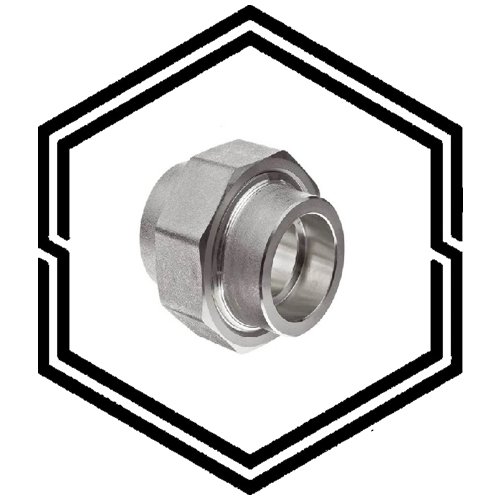

| Form | Elbow 45 deg & 90 degree, Tee , Union, Full & Half coupling, Cross, Cap, Swage Nipple, Plug, Bush |
| Grade | ASTM / ASME A/SA 182 F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L. |
| Outlet's | ¼" to 24" in 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld (S/W) & Screwed (SCRD) |
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
Dimensions of Stainless Steel Forged Pipe Fittings :
Class 150 Stainless Steel Socket Weld Fittings Dimensions :
| Size Of Pipes In Inch | Dia Of (A) |
Dia. Of (B) |
ASME B16.11 Weight in Pounds |
|---|---|---|---|
| 1/8 | 0.69 | 0.66 | 0.06 |
| 1/4 | 0.80 | 0.80 | 0.10 |
| 3/8 | 0.94 | 0.97 | 0.15 |
| 1/2 | 1.11 | 1.17 | 0.22 |
| 3/4 | 1.24 | 1.38 | 0.32 |
| 1 | 1.43 | 1.74 | 0.52 |
| 1-1/4 | 1.72 | 2.07 | 0.76 |
| 1-1/2 | 1.87 | 2.36 | 0.99 |
| 2 | 2.25 | 2.86 | 1.49 |
| 2-1/2 | 2.68 | 3.57 | 2.78 |
| 3 | 3.05 | 4.23 | 4.41 |
| 4 | 3.72 | 5.24 | 6.72 |
Class 300 Stainless Steel Socket Weld Fittings Dimensions :
| Normal Size Of Pipes In Inch | Length Of Thread (Minimum) | Minimum (WT) | Outer Dia. | Center-End | ||
| (J) | (B) | (G) | (D) | |||
| (C) | (A) | |||||
| 1/2 | 13.6 | 10.9 | 3.18 | 33 | 22 | |
| 1/4 | 13.9 | 12.7 | 3.18 | 38 | 25 | 33 |
| 1 | 17.3 | 14.7 | 3.68 | 46 | 28 | 38 |
| 1¼ | 18 | 17 | 3.89 | 56 | 33 | 44 |
| 1½ | 18.4 | 17.8 | 4.01 | 62 | 35 | 51 |
| 2 | 19.2 | 19 | 4.27 | 75 | 43 | 60 |
| 2½ | 28.9 | 23.6 | 5.61 | 92 | 52 | 76 |
| 3 | 30.5 | 25.9 | 5.99 | 109 | 64 | 86 |
| 4 | 33 | 27.7 | 6.55 | 146 | 79 | 106 |
Class 3000 Stainless Steel Socket Weld Fittings Dimensions :
| Nom Pipe Size | Socket Bore Dia (B) | Fitting Bore Dia (D) | Socket Wall Thk (C) | Body Wall Thk (G) | Socket Depth (J) | Center to bottom of socket (A) | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | Min. | Max. | Min. | Max. | Avg. | Min. | Min. | Min. | 90° Elbow |
45° Elbow |
90° Elbow |
45° Elbow |
| 1/8 | 6 | 10.8 | 11.2 | 6.1 | 7.6 | 3.18 | 3.18 | 2.41 | 9.5 | 11.0 | 8.0 | 0.113 | 0.100 |
| 1/4 | 8 | 14.2 | 14.6 | 8.5 | 10.0 | 3.78 | 3.30 | 3.02 | 9.5 | 11.0 | 8.0 | 0.095 | 0.086 |
| 3/8 | 10 | 17.6 | 18.0 | 11.8 | 13.3 | 4.01 | 3.50 | 3.20 | 9.5 | 13.5 | 8.0 | 0.118 | 0.100 |
| 1/2 | 15 | 21.8 | 22.2 | 15.0 | 16.6 | 4.67 | 4.09 | 3.73 | 9.5 | 15.5 | 11.0 | 0.204 | 0.191 |
| 3/4 | 20 | 27.2 | 27.6 | 20.2 | 21.7 | 4.90 | 4.27 | 3.91 | 12.5 | 19.0 | 13.0 | 0.340 | 0.318 |
| 1 | 25 | 33.9 | 34.3 | 25.9 | 27.4 | 5.69 | 4.98 | 4.55 | 12.5 | 22.5 | 14.0 | 0.476 | 0.431 |
| 1-1/4 | 32 | 42.7 | 43.1 | 34.3 | 35.8 | 6.07 | 5.28 | 4.85 | 12.5 | 27.0 | 17.5 | 0.689 | 0.630 |
| 1-1/2 | 40 | 48.8 | 49.2 | 40.1 | 41.6 | 6.35 | 5.54 | 5.08 | 12.5 | 32.0 | 20.5 | 0.943 | 0.762 |
| 2 | 50 | 61.2 | 61.7 | 51.7 | 53.3 | 6.93 | 6.04 | 5.54 | 16.0 | 38.0 | 25.5 | 1.529 | 1.343 |
| 2-1/2 | 65 | 73.9 | 74.4 | 61.2 | 64.2 | 8.76 | 7.67 | 7.01 | 16.0 | 41.0 | 28.5 | 3.025 | 3.520 |
| 3 | 80 | 89.8 | 90.3 | 76.4 | 79.4 | 9.52 | 8.30 | 7.62 | 16.0 | 57.0 | 32.0 | 5.026 | 3.878 |
| 4 | 100 | 115.2 | 115.7 | 100.7 | 103.8 | 10.69 | 9.35 | 8.56 | 19.0 | 66.5 | 41.0 | 10.247 | 10.913 |
Class 6000 Stainless Steel Socket Weld Fittings Dimensions :
| Nom Pipe Size | Socket Bore Dia (B) | Fitting Bore Dia (D) | Socket Wall Thk (C) | Body Wall Thk (G) | Socket Depth (J) | Center to bottom of socket (A) | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | Min. | Max. | Min. | Max. | Avg. | Min. | Min. | Min. | 90° Elbow |
45° Elbow |
90° Elbow |
45° Elbow |
| 1/8 | 6 | 10.8 | 11.2 | 3.2 | 4.8 | 3.96 | 3.43 | 3.15 | 9.5 | 11.0 | 8.0 | 0.000 | 0.000 |
| 1/4 | 8 | 14.2 | 14.6 | 5.6 | 7.1 | 4.60 | 4.01 | 3.68 | 9.5 | 13.5 | 8.0 | 0.118 | 0.100 |
| 3/8 | 10 | 17.6 | 18.0 | 8.4 | 9.9 | 5.03 | 4.37 | 4.01 | 9.5 | 15.5 | 11.0 | 0.268 | 0.218 |
| 1/2 | 15 | 21.8 | 22.2 | 11.0 | 12.5 | 5.97 | 5.18 | 4.78 | 9.5 | 19.0 | 12.5 | 0.440 | 0.404 |
| 3/4 | 20 | 27.2 | 27.6 | 14.8 | 16.3 | 6.96 | 6.04 | 5.56 | 12.5 | 22.5 | 14.0 | 0.644 | 0.572 |
| 1 | 25 | 33.9 | 34.3 | 19.9 | 21.5 | 7.92 | 6.93 | 6.35 | 12.5 | 27.0 | 17.5 | 1.057 | 0.907 |
| 1-1/4 | 32 | 42.7 | 43.1 | 28.7 | 30.2 | 7.92 | 6.93 | 6.35 | 12.5 | 32.0 | 20.5 | 1.343 | 1.039 |
| 1-1/2 | 40 | 48.8 | 49.2 | 33.2 | 34.7 | 8.92 | 7.80 | 7.14 | 12.5 | 38.0 | 25.5 | 2.590 | 2.037 |
| 2 | 50 | 61.2 | 61.7 | 42.1 | 43.6 | 10.92 | 9.50 | 8.74 | 16.0 | 41.0 | 28.5 | 2.912 | 2.527 |
Class 9000 Stainless Steel Socket Weld Fittings Dimensions :
| Nom Pipe Size | Socket Bore Dia (B) | Fitting Bore Dia (D) | Socket Wall Thk (C) | Socket Depth (J) | Laying Length | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | Min. | Max. | Min. | Max. | Avg. | Min. | Min. | Full Coupling (E) |
Half Coupling (F) |
Full Coupling | Half Coupling |
| 1/2 | 15 | 21.8 | 22.2 | 5.6 | 7.2 | 9.35 | 8.18 | 9.5 | 9.5 | 22.5 | 0.281 | 0.399 |
| 3/4 | 20 | 27.2 | 27.6 | 10.3 | 11.8 | 9.78 | 8.56 | 12.5 | 9.5 | 24.0 | 0.472 | 0.363 |
| 1 | 25 | 33.9 | 34.3 | 14.4 | 16.0 | 11.38 | 9.96 | 12.5 | 12.5 | 28.5 | 0.776 | 0.789 |
| 1-1/4 | 32 | 42.7 | 43.1 | 22.0 | 23.5 | 12.14 | 10.62 | 12.5 | 12.5 | 30.0 | 0.767 | 1.007 |
| 1-1/2 | 40 | 48.8 | 49.2 | 27.2 | 28.7 | 12.70 | 11.12 | 12.5 | 12.5 | 32.0 | 1.329 | 1.329 |
| 2 | 50 | 61.2 | 61.7 | 37.4 | 38.9 | 13.84 | 12.12 | 16.0 | 19.0 | 41.0 | 2.091 | 2.263 |
Stainless Steel Socket Weld Type Fittings :
Applications :
- Processing plant for sulphuric, phosphoric and acetic acids
- Pulp and paper processing
- Components in gas scrubbing plants
- Seawater cooling equipment
- Oil refinery components
- Wires in electrostatic precipitators
