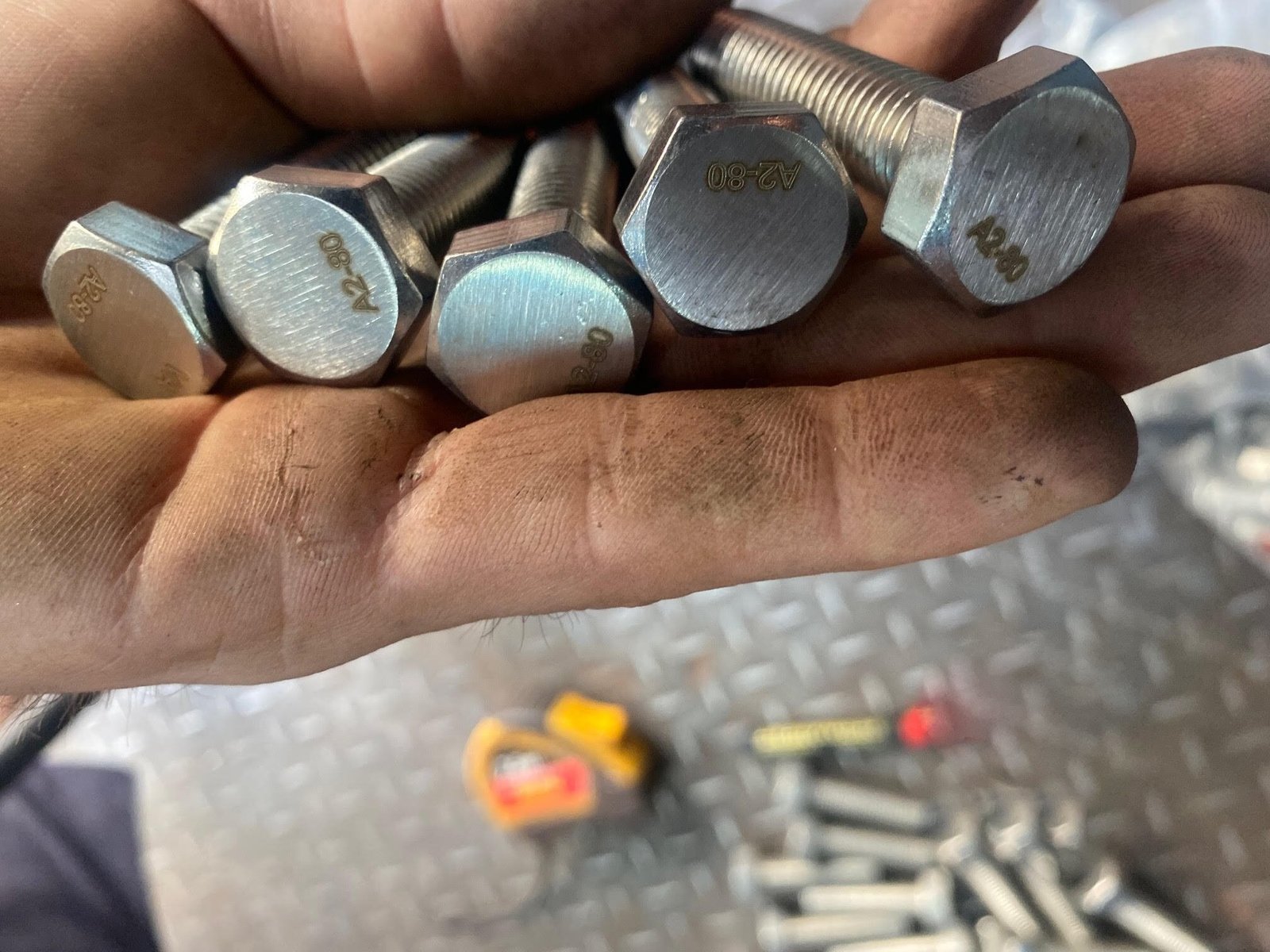

A2-80 Stainless Steel Bolt.

Ranflex Metals is a leading company, for the high quality stainless steel bolts. We are top among the markets, and also a best competitor for offering these excellent quality bolts at the best effectives prices. We also offer contact support, please get in touch.

Stainless Steel A2-80 Hot Forged Fastener weight calculator, ASME SA479 high tensile Fastener price list, Werkstoff Nr. A2-80 Hot Forged Fastener weight chart

A2 80 SS bolts are a part of a group of fasteners, and specification ranges from ASTM A193 and A194 like many such others. A2 80 SS bolts are offered in various specifications in terms of shapes, size and thicknesses on the perquisites of the clients. The wide-range of collection includes UV A2 80 bolts, nuts, washers, screws, and threaded rods. We also feature various standards such as ASTM B 6, ISO 4017, etc. The chemical composition comprises chromium and nickel as 18% and 8% respectively.

A2 80 SS bolts can be available in various sizes ranging from 0.5-24’’ in size, and the metric size of A2 80 SS bolts is made available from M10-M100 including as much as 5 meter length. A2 80 SS bolts also feature excellent tensile strength up to 800 MPa as minimum and good properties in several environments. A2 80 stainless steel is austenitic steel allowing cold working, and during operation, can withstand high temperature conditions up to 870 Degree C. A2 80 SS bolts also have good balance of physical and chemical properties. Contact us for more.

Stainless Steel a2-80 high tensile Fastener, industrial Fastener, high tensile Fastener, Hot Forged Fastener, Werkstoff Nr. A2-80 Hot Forged Fastener.

Specification of A2-80 Stainless Steel Bolts :

Specifications	ASTM A193 / A193, ASME SA193 / SA194
Standard	DIN, ASTM, BS and all International Standards
Length	3 mm to 200 mm
Nuts Size	M3 - M56 \| 3/6" to 2" \| Custom Sizes
Bolt / Screw Size	M3 - M56 \| 3/6" to 2" \| Custom Sizes
Machine Screws Size	M1.6 - M12
Washers Size	M3 - M56 \| 3/6" to 2" \| Custom Sizes
Type	Bolts, Nuts, Sockets, Screws, Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Pan Head Screw, Allen Cap screw, Socket Head Cap Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut, Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts, Wing Screw, T-Head Bolts, Foundation Bolts, Eye Bolt,Structural Bolts.

Chemical Composition of A2-80 Stainless Steel Bolts :

Grade	C	Si	Mn	P	S	Cr	Mo	Ni	Cu	Notes	Alternative names
A1	0.12	1	6.5	0.2	0.15/0.35	16-19	0.7	5-10	1.75-2.25	2 3 2004	303S31, 303S42, 1.4305
A2	0.1	1	2	0.05	0.03	15-20	-5	8-19	4	6 7	304, 394S17 (BS 3111), 1.4301, 1.4567
A3	0.08	1	2	0.045	0.03	17-19	-5	9-12	1	8	321, 1.4541, 347, 1.4550
A4	0.08	1	2	0.045	0.03	16-18.5	2-3	10-15	4	7 9	316, 1.4401, 1.4578
A5	0.08	1	2	0.045	0.03	16-18.5	2-3	10.5-14	1	8 9	316Ti, 1.4571, 316Cb, 1.4580
C1	0.09-0.15	1	1	0.05	0.03	11.5-14	-	1	-	9	410, 1.4006
C3	0.17-0.25	1	1	0.04	0.03	16-18	-	1.5-2.5	-	431, 1.4057
C4	0.08-0.15	1	1.5	0.06	0.15-0.35	12-14	0.6	1	2 9	416, 1.4005
F1	0.12	1	1	0.04	0.03	15-18	-10	1	11 12	430, 1.4016, 430Ti, 1.4520 430Cb, 1.4511

Mechanical Properties of SS A2-80 Bolts :

Grade	Property Class	Tensile Strength Rm MPa (N/mm2) minimum	Yield Stress Rp 0.2 Mpa (N/mm2) minimum	Elongation AL Minimum	Proof Load Stress Sp Mpa (N/mm2) minimum	Diameter Range
80	800	600	0.3d	800	#ERROR!

Physical Properties of Stainless Steel A2-80 :

Grade

Density
(kg/m³)

Elastic Modulus (GPa)

Mean Co-eff of Thermal Expansion (μm/m/°C)

Thermal Conductivity (W/m.K)

Specific Heat
0-100 °C (J/kg.K)

Elec Resistivity (nΩ.m)

0-100 °C

0-315 °C

0-538 °C

At 100 °C

At 500 °C

304/L/H

8000

193

17.2

17.8

18.4

16.2

21.5

500

720

Modern Equipments

Expert Engineers

Efficient Factories

Well Maintained

Property Class of Bolts A2-80 Stainless Steel :

Looking for A2-80 stainless steel fasteners? Ranflex Metals is a top-class manufacturer of A2-80 stainless steel screws. We are the most experienced among all the steel fasteners market and progresses with a highly professional team who is wholly engaged in making A2-80 screws, A2-80 bolts, and Fastener at the lowest cost.

For Bolts & Screws: A2-80, A2-80, A4-70, A4-70, F593C, F593D, F593G, F593H
For Nuts: A2-80, A2-80, A4-70, A4-70, F594C, F594D, F594G, F594H, A2-035, A4-040
For SHCS: F837B, F837C, F837E, F837
For Threaded Rods: A2-80, A2-80, A4-70, A4-70, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2

Dimensions of Stainless Steel A2-80 Bolts :

Stainless Steel A2-80 Bolts Dimensions Chart :

Nominal Size Of D	Diameter Of Body		ASTM A193 Head Thickness		ASTM A193 Flats Acro		ASTM A193 Corners Acro
	D (MAXIMUM)	D (MINIMUM)	H (MAXIMUM)	H (MINIMUM)	F (MAXIMUM)	F (MINIMUM)	C (MAXIMUM)	C (MINIMUM)
m10	10.00	9.78	6.63	6.17	17.00	15.73	18.48	17.77
m12	12.00	11.73	7.76	4.24	19.00	17.73	20.78	20.03
m14	14.00	13.73	9.09	8.51	22.00	20.67	24.25	23.35
m16	16.00	15.73	10.32	9.68	24.00	23.67	27.71	26.75
m20	20.00	19.67	12.88	12.12	30.00	29.16	34.64	32.95
m24	24.00	23.67	15.44	14.56	36.00	35.00	41.57	39.55
m30	30.00	29.67	19.48	17.92	46.00	45.00	53.12	50.85
m36	36.00	35.61	23.38	21.63	55.00	53.80	63.51	60.79
m42	42.00	41.38	26.97	25.03	65.00	62.90	75.06	71.71
m48	48.00	47.38	31.07	28.93	75.00	72.60	86.60	82.76
m56	56.00	55.26	36.2	33.80	85.00	82.20	98.15	93.71
m64	64.00	63.26	41.32	38.68	95.00	91.80	109.70	104.65
m72	72.00	71.26	46.45	43.55	105.00	101.40	121.24	115.60
m80	80.00	79.26	51.58	48.42	115.00	111.00	132.72	126.54
m90	90.00	89.13	57.74	54.26	130.00	125.50	150.11	143.07
m100	90.00	99.13	63.9	60.10	145.00	140.00	167.43	159.60

Stainless Steel A2-80 Hex Bolts Dimensions Chart :

NOMINAL SIZE (D)	BODY DIAMETER		HEAD THICKNEASTM A193		ACROASTM A193 THE FLATS		ACROASTM A193 CORNERS
	D (MAX)	D (MIN)	H (MAX)	H (MIN)	F (MAX)	F (MIN)	C (MAX)	C (MIN)
m10	10.00	9.78	6.63	6.17	17.00	15.73	18.48	17.77
m12	12.00	11.73	7.76	4.24	19.00	17.73	20.78	20.03
m14	14.00	13.73	9.09	8.51	22.00	20.67	24.25	23.35
m16	16.00	15.73	10.32	9.68	24.00	23.67	27.71	26.75
m20	20.00	19.67	12.88	12.12	30.00	29.16	34.64	32.95
m24	24.00	23.67	15.44	14.56	36.00	35.00	41.57	39.55
m30	30.00	29.67	19.48	17.92	46.00	45.00	53.12	50.85
m36	36.00	35.61	23.38	21.63	55.00	53.80	63.51	60.79
m42	42.00	41.38	26.97	25.03	65.00	62.90	75.06	71.71
m48	48.00	47.38	31.07	28.93	75.00	72.60	86.60	82.76
m56	56.00	55.26	36.2	33.80	85.00	82.20	98.15	93.71
m64	64.00	63.26	41.32	38.68	95.00	91.80	109.70	104.65
m72	72.00	71.26	46.45	43.55	105.00	101.40	121.24	115.60
m80	80.00	79.26	51.58	48.42	115.00	111.00	132.72	126.54
m90	90.00	89.13	57.74	54.26	130.00	125.50	150.11	143.07
m100	90.00	99.13	63.9	60.10	145.00	140.00	167.43	159.60

Stainless Steel A2-80 Stud Bolts Dimensions Chart :

Diameter
	Plain
	UNC	8UN
1/2	19568	-
5/8	19569	-
3/4	19570
7/8	19571	-
1	19572	-
11/8	19573	13979
11/4	19574	13980
13/8	19656	13981
11/2	19657	13982
13/4	19658	13983
2	19659	13984
Available lengths 12 Inch ASME B18.31.3, Also available lengths Dimensions 6 Inch

Stainless Steel A2-80 Square Bolts Dimensions Chart :

Size Of Bolt	A (maximum)	B	C (minimum)	D	E		F Length Of Thread for Bolt Length
Size Of Bolt	A (maximum)	B	C (minimum)	D	maximum	minimum	6 Inch and shorter	over 6 Inch
1/4"	0.260	3/8	0.498	11/64	0.03	0.01	0.750	1.000
5/16"	0.324	1/2	0.665	13/64	0.03	0.01	0.875	1.125
3/8"	0.388	9/16	0.747	1/4	0.03	0.01	1.000	1.250
7/16"	0.452	5/8	0.828	19/64	0.03	0.01	1.125	1.375
1/2"	0.515	3/4	0.995	21/64	0.03	0.01	1.250	1.500
5/8"	0.642	15/16	1.244	27/64	0.06	0.02	1.500	1.750
3/4"	0.768	1-1/8	1.494	1/2	0.06	0.02	1.750	2.000
7/8"	0.895	1-5/16	1.742	19/32	0.06	0.02	2.000	2.250
1"	1.022	1-1/2	1.991	21/32	0.09	0.03	2.250	2.500
1-1/8"	1.149	1-11/16	2.239	3/4	0.09	0.03	2.500	2.750
1-1/4"	1.277	1-7/8	2.489	27/32	0.09	0.03	2.750	3.000
1-3/8"	1.404	2-1/16	2.738	29/32	0.09	0.03	3.000	3.250
1-1/2"	1.531	2-1/4	2.986	1	0.09	0.03	3.250	3.500

Stainless Steel A2-80 Heavy Hex Bolts Dimensions Chart :

Nominal Size Of D	Diameter Of Body		Thickness Of Head		Flats Across		Bolts Corners Across
	D (Maximum)	D (Minimum)	H (Maximum)	H (Minimum)	F (Maximum)	F (Minimum)	C (Maximum)	C (Minimum)
m10	10.00	9.78	6.63	6.17	17.00	15.73	18.48	17.77
m12	12.00	11.73	7.76	4.24	19.00	17.73	20.78	20.03
m14	14.00	13.73	9.09	8.51	22.00	20.67	24.25	23.35
m16	16.00	15.73	10.32	9.68	24.00	23.67	27.71	26.75
m20	20.00	19.67	12.88	12.12	30.00	29.16	34.64	32.95
m24	24.00	23.67	15.44	14.56	36.00	35.00	41.57	39.55
m30	30.00	29.67	19.48	17.92	46.00	45.00	53.12	50.85
m36	36.00	35.61	23.38	21.63	55.00	53.80	63.51	60.79
m42	42.00	41.38	26.97	25.03	65.00	62.90	75.06	71.71
m48	48.00	47.38	31.07	28.93	75.00	72.60	86.60	82.76
m56	56.00	55.26	36.2	33.80	85.00	82.20	98.15	93.71
m64	64.00	63.26	41.32	38.68	95.00	91.80	109.70	104.65
m72	72.00	71.26	46.45	43.55	105.00	101.40	121.24	115.60
m80	80.00	79.26	51.58	48.42	115.00	111.00	132.72	126.54
m90	90.00	89.13	57.74	54.26	130.00	125.50	150.11	143.07
m100	90.00	99.13	63.9	60.10	145.00	140.00	167.43	159.60

Weight Chart of Stainless Steel A2-80 Bolts :

Weights for DIN 6914 Bolts
Weight in kgs. per 1,000 pcs. unless otherwise specified. All weights are approximations.

Diameter	M12	M16	M20	M22	M24	M27	M30	M36
Length	M12	M16	M20	M22	M24	M27	M30	M36
30	49.1
35	53.6
40	58.0	105
45	62.1	113	188
50	66.6	121	200	257
55	71.0	129	212	272
60	75.4	137	225	286	362
65	79.9	145	237	301	380
70	84.3	153	249	316	398	532
75	88.8	160	262	331	415	554	701
80	93.2	168	274	346	433	576	728
85	97.6	176	286	361	451	599	756	1184
90	102	184	298	375	467	621	784	1224
95	107	192	310	390	485	644	812	1264
100		199	322	405	503	665	838	1A4-80
105		207	335	420	520	688	865	1336
110		215	347	435	538	710	893	1376
115		223	359	450	556	732	921	1415
120		231	372	465	574	755	949	1455
125		239	384	479	591	777	976	1495
130		247	396	494	609	800	1004	1535
135			409	509	627	822	1032	1575
140			421	524	645	845	1059	1615
145			433	539	662	867	1087	1655
150			446	554	680	890	1115	1695
155			458	569	698	912	1143	1735
160				584	716	935	1170	1775
165				599	733	957	1198	1815
170					751	979	1226	1855
175					769	1002	1254	1895
180					787	1024	1281	1935
185					804	1047	1309	1974
190					822	1069	1337	2014
195					840	1092	1365	2054
200						1114	1392	2094

Weight Chart for SS A2-80 Hexagon Bolts & Nuts

DIN 931 & DIN 934
Approximate weights in kilograms (Kg’s) each

Stainless Steel A2-80 Type Bolts

SS A2-80 Hex Bolts

SS A2-80 Flange Bolts

A193 SS A2-80 Anchor Bolts

A2-80 Carriage Bolt

ASTM A193 SS A2-80 Elevator bolt

A2-80 SS Hanger Bolts

SS A2-80 Grade Hexagon Bolts

A2-80 SS Tap Bolts

Grade A2-80 SS Huck Bolts

SS A2-80 Lag Bolts

A2-80 SS Machine Bolts

Grade A2-80 SS Plow Bolts

SS A2-80 Square head Bolts

A2-80 SS Stud Bolts

Grade A2-80 SS Timber Bolts

SS A2-80 T-head Bolts

A2-80 SS Toggle Bolts

Grade A2-80 SS U Bolts

A2-80 SS Threaded rod

Stainless Steel Bolts Surface Coating :

Hot Dipped Galvanizing
Epoxy Coating
Electro Polished
Passivation
Zinc Plating

Chrome Plating
Mirror Buffed
Teflon Coating
Oxidized

Stainless Steel A2-80 Price Per Kg (As per demand and manufacturer):

Price of SS A2-80 Bolts manufacturer in India	Price in USD (per kg)	Price in Euro (per kg)	Price in UAE Dirham (per kg)
Stainless Steel Bolts Grade – A2-80	$6.42	€6.12	22.46 UAE Dirham
Stainless Steel Hex Bolts A2-80	$5.52	€5.27	19.15 UAE Dirham
Stainless Steel Square Nuts Grade – A2-80	$3.52	€3.34	11.82 UAE Dirham
