Visonalloys produces and manufactures ASTM A193 b8m bolts at effective costs. We deliver these bolts at best and defect-less conditions within specified time or earlier. We offer custom-made specifications of shapes, sizes, and dimensions to meet all the needs of the customers.
Stainless Steel A4-80 Hot Forged Fastener weight calculator, ASME SA479 high tensile Fastener price list, Werkstoff Nr. A4-80Hot Forged Fastener weight chart, Werkstoff Nr. A4-80high tensile Fastener distributor, Werkstoff Nr. A4-80industrial Fastener exporter, Werkstoff Nr. A4-80Hot Forged Fastener price list.
ASTM A193 b8m class 2 is a standard specification of SS 316 fasteners which are also available in wide-range of collectible forms such as bolts, screws, studs, threaded rods, washers, etc. ASTM A193 b8m bolts are used across elevated temperature atmospheres and for specific purposes where the tensile strength is highly required. ASTM A193 b8m bolts, by means of standard grade, are also used across pressure piping and pressure vessels including special purposes applications such as chemical industries, and oil and gas industries. Grade ASTM A193 b8m can be stress hardened and carbide mixture treated stainless steel that requires 100 ksi tensile strength and 50 ksi yield strength that have the maximum hardness range of 35 HRC or 321 HBW. ASTM A193 b8m specification covers all requirements of clients for the chemical composition, mechanical properties, heat-treatment, and hardness in specified time to all our esteemed clients. The chemical combination of ASTM A193 b8m bolt is comprises carbon less than 0.08%, manganese less than 2%, phosphorus less than 0.045%, silicon 1%, chromium up to 18%, nickel 10-24%, and 3% molybdenum.
Stainless Steel A4-80 high tensile Fastener, industrial Fastener, high tensile Fastener, Hot Forged Fastener, Werkstoff Nr. A4-80Hot Forged Fastener.
Specification of ASTM A193 B8M Bolts :
| Specifications | ASTM A193 / A193, ASME SA193 / SA194 |
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3 mm to 200 mm |
| Nuts Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Bolt / Screw Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Machine Screws Size | M1.6 - M12 |
| Washers Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Type | Bolts, Nuts, Sockets, Screws, Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Pan Head Screw, Allen Cap screw, Socket Head Cap Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut, Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts, Wing Screw, T-Head Bolts, Foundation Bolts, Eye Bolt,Structural Bolts. |
Chemical Composition of ASTM A193 B8M Bolts :
| Carbon, max | Manganese, max | Phosphorus, max | Sulfur, max | Silicon, max | Chromium | Molybdenum |
|---|---|---|---|---|---|---|
| 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 16.0 - 18.0 | 2.00 - 3.00 |
Mechanical Properties of ASTM A193 B8M Bolts :
| Grade | Diameter | Tensile Strength | Yield Strength | Elongation | Reduction | Hardness |
|---|---|---|---|---|---|---|
| Grade B8, B8M, Class 1, 1D | All Diameters | 515 | 205 | 30 | 50 | 223 HBW or 96 HRB |
| Grade B8M, B8MLCuN, Class 2 | M20 and under | 760 | 655 | 15 | 45 | 321 HBW or 35 HRC |
| Grade B8M, B8MLCuN, Class 2 | M20 to M24, inclusive | 690 | 550 | 20 | 45 | 321 HBW or 35 HRC |
| Grade B8M, B8MLCuN, Class 2 | M24 to M30, inclusive | 655 | 450 | 25 | 45 | 321 HBW or 35 HRC |
| Grade B8M, B8MLCuN, Class 2 | M30 to M36, inclusive | 620 | 345 | 30 | 45 | 321 HBW or 35 HRC |
EN X5CrNiMo1713 Hot Forged Fastener price list, Hot Forged Fastener weight calculator, ASTM A479 Hot Forged Fastener weight chart, ASTM A479 industrial Fastener dealer, Werkstoff Nr. A4-80high tensile Fastener price list, JIS SUS A4-80 high tensile Fastener catalogue, ASTM A479 Hot Forged Fastener price list.
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
Property Class of Bolts ASTM A193 B8M Bolts :
Looking for A193 B8M stainless steel fasteners? Ranflex Metals is a top-class manufacturer of A193 B8M stainless steel screws. We are the most experienced among all the steel fasteners market and progresses with a highly professional team who is wholly engaged in making A193 B8M screws, A193 B8M bolts, and Fastener at the lowest cost.
For Bolts & Screws: A2-80, A2-80, A4-70, A4-70, F593C, F593D, F593G, F593H
For Nuts: A2-80, A2-80, A4-70, A4-70, F594C, F594D, F594G, F594H, A2-035, A4-040
For SHCS: F837B, F837C, F837E, F837
For Threaded Rods: A2-80, A2-80, A4-70, A4-70, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2
Dimensions of ASTM A193 B8M Bolts :
ASTM A193 B8M Bolts Dimensions Chart :
| Nominal Size Of D | Diameter Of Body | ASTM A193 Head Thickness | ASTM A193 Flats Acro | ASTM A193 Corners Acro | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAXIMUM) | D (MINIMUM) | H (MAXIMUM) | H (MINIMUM) | F (MAXIMUM) | F (MINIMUM) | C (MAXIMUM) | C (MINIMUM) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
ASTM A193 B8M Hex Bolts Dimensions Chart :
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEASTM A193 | ACROASTM A193 THE FLATS | ACROASTM A193 CORNERS | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
ASTM A193 B8M Stud Bolts Dimensions Chart :
| Diameter | ||
|---|---|---|
| Plain | ||
| UNC | 8UN | |
| 1/2 | 19568 | - |
| 5/8 | 19569 | - |
| 3/4 | 19570 | |
| 7/8 | 19571 | - |
| 1 | 19572 | - |
| 11/8 | 19573 | 13979 |
| 11/4 | 19574 | 13980 |
| 13/8 | 19656 | 13981 |
| 11/2 | 19657 | 13982 |
| 13/4 | 19658 | 13983 |
| 2 | 19659 | 13984 |
| Available lengths 12 Inch ASME B18.31.3, Also available lengths Dimensions 6 Inch |
||
ASTM A193 B8M Square Bolts Dimensions Chart :
| Size Of Bolt | A (maximum) | B | C (minimum) | D | E | F Length Of Thread for Bolt Length |
||
|---|---|---|---|---|---|---|---|---|
| maximum | minimum | 6 Inch and shorter |
over 6 Inch | |||||
| 1/4" | 0.260 | 3/8 | 0.498 | 11/64 | 0.03 | 0.01 | 0.750 | 1.000 |
| 5/16" | 0.324 | 1/2 | 0.665 | 13/64 | 0.03 | 0.01 | 0.875 | 1.125 |
| 3/8" | 0.388 | 9/16 | 0.747 | 1/4 | 0.03 | 0.01 | 1.000 | 1.250 |
| 7/16" | 0.452 | 5/8 | 0.828 | 19/64 | 0.03 | 0.01 | 1.125 | 1.375 |
| 1/2" | 0.515 | 3/4 | 0.995 | 21/64 | 0.03 | 0.01 | 1.250 | 1.500 |
| 5/8" | 0.642 | 15/16 | 1.244 | 27/64 | 0.06 | 0.02 | 1.500 | 1.750 |
| 3/4" | 0.768 | 1-1/8 | 1.494 | 1/2 | 0.06 | 0.02 | 1.750 | 2.000 |
| 7/8" | 0.895 | 1-5/16 | 1.742 | 19/32 | 0.06 | 0.02 | 2.000 | 2.250 |
| 1" | 1.022 | 1-1/2 | 1.991 | 21/32 | 0.09 | 0.03 | 2.250 | 2.500 |
| 1-1/8" | 1.149 | 1-11/16 | 2.239 | 3/4 | 0.09 | 0.03 | 2.500 | 2.750 |
| 1-1/4" | 1.277 | 1-7/8 | 2.489 | 27/32 | 0.09 | 0.03 | 2.750 | 3.000 |
| 1-3/8" | 1.404 | 2-1/16 | 2.738 | 29/32 | 0.09 | 0.03 | 3.000 | 3.250 |
| 1-1/2" | 1.531 | 2-1/4 | 2.986 | 1 | 0.09 | 0.03 | 3.250 | 3.500 |
ASTM A193 B8M Heavy Hex Bolts Dimensions Chart :
| Nominal Size Of D | Diameter Of Body | Thickness Of Head | Flats Across | Bolts Corners Across | ||||
|---|---|---|---|---|---|---|---|---|
| D (Maximum) | D (Minimum) | H (Maximum) | H (Minimum) | F (Maximum) | F (Minimum) | C (Maximum) | C (Minimum) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
Weight Chart of ASTM A193 B8M Bolts :
Weights for DIN 6914 Bolts
Weight in kgs. per 1,000 pcs. unless otherwise specified. All weights are approximations.
| Diameter | M12 | M16 | M20 | M22 | M24 | M27 | M30 | M36 |
|---|---|---|---|---|---|---|---|---|
| Length | ||||||||
| 30 | 49.1 | |||||||
| 35 | 53.6 | |||||||
| 40 | 58.0 | 105 | ||||||
| 45 | 62.1 | 113 | 188 | |||||
| 50 | 66.6 | 121 | 200 | 257 | ||||
| 55 | 71.0 | 129 | 212 | 272 | ||||
| 60 | 75.4 | 137 | 225 | 286 | 362 | |||
| 65 | 79.9 | 145 | 237 | 301 | 380 | |||
| 70 | 84.3 | 153 | 249 | 316 | 398 | 532 | ||
| 75 | 88.8 | 160 | 262 | 331 | 415 | 554 | 701 | |
| 80 | 93.2 | 168 | 274 | 346 | 433 | 576 | 728 | |
| 85 | 97.6 | 176 | 286 | 361 | 451 | 599 | 756 | 1184 |
| 90 | 102 | 184 | 298 | 375 | 467 | 621 | 784 | 1224 |
| 95 | 107 | 192 | 310 | 390 | 485 | 644 | 812 | 1264 |
| 100 | 199 | 322 | 405 | 503 | 665 | 838 | 1A4-80 | |
| 105 | 207 | 335 | 420 | 520 | 688 | 865 | 1336 | |
| 110 | 215 | 347 | 435 | 538 | 710 | 893 | 1376 | |
| 115 | 223 | 359 | 450 | 556 | 732 | 921 | 1415 | |
| 120 | 231 | 372 | 465 | 574 | 755 | 949 | 1455 | |
| 125 | 239 | 384 | 479 | 591 | 777 | 976 | 1495 | |
| 130 | 247 | 396 | 494 | 609 | 800 | 1004 | 1535 | |
| 135 | 409 | 509 | 627 | 822 | 1032 | 1575 | ||
| 140 | 421 | 524 | 645 | 845 | 1059 | 1615 | ||
| 145 | 433 | 539 | 662 | 867 | 1087 | 1655 | ||
| 150 | 446 | 554 | 680 | 890 | 1115 | 1695 | ||
| 155 | 458 | 569 | 698 | 912 | 1143 | 1735 | ||
| 160 | 584 | 716 | 935 | 1170 | 1775 | |||
| 165 | 599 | 733 | 957 | 1198 | 1815 | |||
| 170 | 751 | 979 | 1226 | 1855 | ||||
| 175 | 769 | 1002 | 1254 | 1895 | ||||
| 180 | 787 | 1024 | 1281 | 1935 | ||||
| 185 | 804 | 1047 | 1309 | 1974 | ||||
| 190 | 822 | 1069 | 1337 | 2014 | ||||
| 195 | 840 | 1092 | 1365 | 2054 | ||||
| 200 | 1114 | 1392 | 2094 |
Weight Chart for ASTM A193 B8M Hexagon Bolts & Nuts
DIN 931 & DIN 934
Approximate weights in kilograms (Kg’s) each

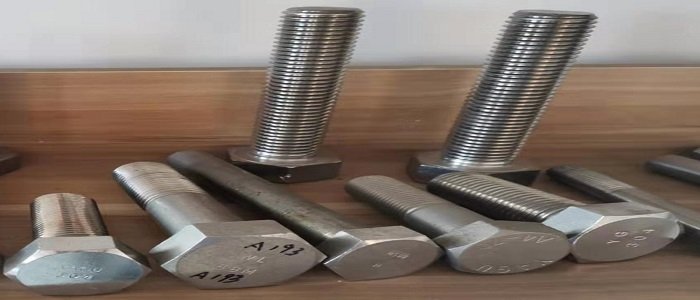

ASTM A193 B8M Type Bolts
Stainless Steel Bolts Surface Coating :
- Hot Dipped Galvanizing
- Epoxy Coating
- Electro Polished
- Passivation
- Zinc Plating
- Chrome Plating
- Mirror Buffed
- Teflon Coating
- Oxidized
ASTM A193 B8M Price Per Kg (As per demand and manufacturer):
| Price of ASTM A193 B8M Bolts manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
|---|---|---|---|
| Stainless Steel Bolts Grade – A193 B8M | $6.46 | €6.16 | 22.50 UAE Dirham |
| Stainless Steel Hex Bolts A193 B8M | $5.56 | €5.31 | 19.19 UAE Dirham |
| Stainless Steel Square Nuts Grade – A193 B8M | $3.56 | €3.38 | 11.86 UAE Dirham |
