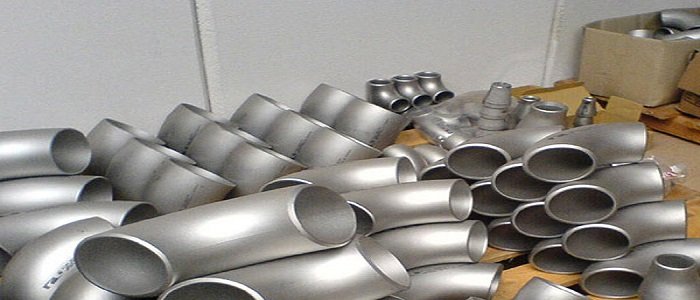

Inconel Alloy 600/601/625/718 Buttweld Fittings

ASTM B 564 Inconel UNS N06600/01/25/NO7718 Buttweld Fittings
As an abundantly appreciated association in the business sector, we as Ranflex Metals are entirely occupied with proposing an accumulation of Inconel 600, 601, 625, 718 Buttweld Fittings as an exporter, producer, supplier, and stockiest to our overall customers at sensibly valued expenses. We are viewed as a prominent supplier and maker of a huge aggregation of such Buttweld Fittings. Concerning distinctive evaluations, we offer these Inconel 600, 601, 625, 718 Buttweld Fittings in various sorts.

As for various evaluations, we offer these Fittings in various sorts, for example, Inconel Seamless Butt weld pipe fittings, Inconel Welded Butt weld pipe fittings, Inconel Elbow (45 deg, 90 deg, 180 deg), Inconel Equal and Unequal (decreasing) Tees, Inconel Equal and Unequal (diminishing) Cross, Inconel Concentric and Eccentric Reducer, Inconel Long and Short Stubends, and Inconel Pipe End Caps.

In the interim, we also offer these Inconel Alloy 600, 601, 625, 718 Buttweld Fittings in customized thicknesses and sizes according to the exact prerequisites given by our significant clients in worldwide nature of norms.

Being the emerging leader of this field, we completely value our responsibility and work hard to supply only supreme quality Buttweld Pipe Fitting. These are used in petrochemical industries, automotive, refineries and mechanical industries. It is a perfect use for tight hold on joints and sturdy support. To cater to industry defined quality parameters these components are examined thoroughly by our quality experts upon defined parameters of quality.

Ranflex Metals exports Incoloy Buttweld Fittings to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Phillipines.

Specification of Inconel Alloy Butt Weld Fittings :

Specifications :	ASTM B 366 / ASME SB 366
Dimensions :	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size :	1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type :	Seamless / Welded / Fabricated
Bending Radius :	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness :	5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75
Grade :	Inconel 600 (UNS N06600),Inconel 601(UNS N06601),Inconel 625 (UNS N06625) , Inconel 718 (UNS NO7718)
Value Added Services :	Electro Polish

Equivalent Grades of Inconel Alloy Butt Weld Fittings :

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Inconel 600	2.4816	N06600	NCF 600	NA 13	МНЖМц 28-2,5-1,5	NC15FE11M	NiCr15Fe
Inconel 601	2.4851	N06601	NCF 601	NA 49	XH60BT	NC23FeA	NiCr23Fe
Inconel 625	2.4856	N06625	NCF 625	NA 21	ХН75МБТЮ	NC22DNB4M	NiCr22Mo9Nb
Inconel 718	2.4668	N07718	-	-	-	-	-

Chemical Composition of Inconel Alloy Butt Weld Fittings :

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel 600	0.15 max	1.00 max	0.50 max	0.015max	0.50 max	6.00 – 10.00	72.00 min	14.00 – 17.00
Inconel 601	0.10 max	1.0 max	0.5 max	0.015 max	1.0 max	Balance	58.0 – 63.0	21.0 – 25.0
Inconel 625	0.10 max	0.50 max	0.50 max	0.015 max	-	5.0 max	58.0 min	20.0 - 23.0
Inconel 718	0.08 max	0.35 max	0.35 max	0.015 max	0.30 max	-	50.00 - 55.00	17.00 - 21.00

Mechanical Properties of Inconel Alloy Butt Weld Fittings :

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Inconel 600	8.47 g/cm3	1413 °C (2580 °F)	Psi – 95,000 , MPa – 655	Psi – 45,000 , MPa – 310	40 %
Inconel 601	8.1 g/cm3	1411 °C (2571 °F)	Psi – 80,000 , MPa – 550	Psi – 30,000 , MPa – 205	30 %
Inconel 625	8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa – 930	Psi – 75,000 , MPa – 517	42.5 %
Inconel 718	8.2 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa – 930	Psi – 75,000 , MPa – 482	45 %
