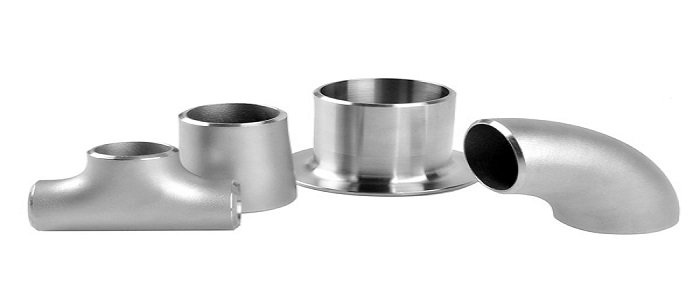

Incoloy Alloy 800/800HT/825 Buttweld Fittings

ASTM B 564 Incoloy Alloy UNS N08800/11/25 Buttweld Fittings
As an abundantly appreciated association in the business sector, we as Ranflex Metals are entirely occupied with proposing an accumulation of Incoloy Alloy 800, 800HT, 825 Buttweld Fittings as an exporter, producer, supplier, and stockiest to our overall customers at sensibly valued expenses. We are viewed as a prominent supplier and maker of a huge aggregation of such Buttweld Fittings. Concerning distinctive evaluations, we offer these Incoloy Alloy 800, 800HT, 825 Buttweld Fittings in various sorts.

As for various evaluations, we offer these Fittings in various sorts, for example, Incoloy Seamless Butt weld pipe fittings, Incoloy Welded Butt weld pipe fittings, Incoloy Elbow (45 deg, 90 deg, 180 deg), Incoloy Equal and Unequal (decreasing) Tees, Incoloy Equal and Unequal (diminishing) Cross, Incoloy Concentric and Eccentric Reducer, Incoloy Long and Short Stubends, and Incoloy Pipe End Caps. In the interim, we also offer these Incoloy Alloy 800, 800HT, 825 Buttweld Fittings in customized thicknesses and sizes according to the exact prerequisites given by our significant clients in worldwide nature of norms.

Being the emerging leader of this field, we completely value our responsibility and work hard to supply only supreme quality Buttweld Pipe Fitting. These are used in petrochemical industries, automotive, refineries and mechanical industries. It is a perfect use for tight hold on joints and sturdy support. To cater to industry defined quality parameters these components are examined thoroughly by our quality experts upon defined parameters of quality.

Ranflex Metals exports Incoloy Buttweld Fittings to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Phillipines.

Specification of Incoloy Alloy Butt Weld Fittings :

Specifications :	ASTM B 366 / ASME SB 366
Dimensions :	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size :	1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type :	Seamless / Welded / Fabricated
Bending Radius :	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness :	5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75
Grade :	Incoloy 800 (UNS N08800), Incoloy 800H (UNS N08810), Incoloy 800HT (UNS N08811), Incoloy 825(UNS N08825)
Value Added Services :	Electro Polish

Equivalent Grades of Incoloy Alloy Butt Weld Fittings :

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	Xh22T
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	Xh22T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	-	X8NiCrAlTi32-21	Xh22T
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo	Xh28BT

Chemical Composition of Incoloy Alloy Butt Weld Fittings :

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60ᴬ	0.15 – 0.60ᴬ
825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	19.50 – 23.50	0.02 max	0.06 – 1.20

Mechanical Properties of Incoloy Alloy Butt Weld Fittings :

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %
825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %
