Copper Nickel Alloy 70/30 Forged Fitting | Cu-Ni 70/30 Alloy Forged Fitting

Table of Content

What is Cu-Ni 70/30 Alloy Forged Fittings

Specification of Cu-Ni 70/30 Alloy Forged Fittings

Dimensions of Cu-Ni 70/30 Alloy Forged Fittings

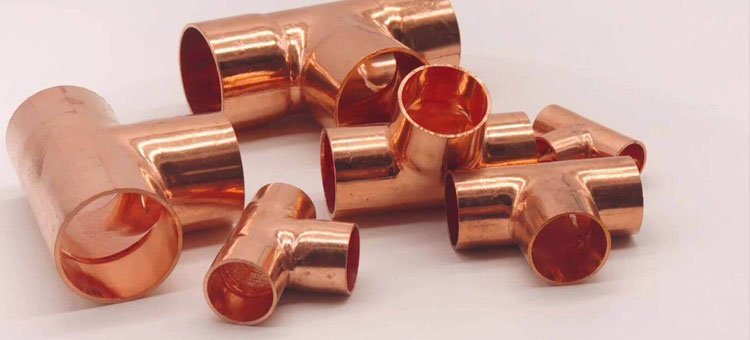

Copper Nickel Alloy 70/30 Type Forged fitting

Cu-Ni ASTM B122, B171 UNS C71500 70/30 Forged Fittings
Ranflex Metals is one of the dominating the Manufacturers, Exporters and Supplier of high quality 70/30 Cu-Ni Forged Fittings. Ranflex Metals likewise offers a complete scope of a wide range of evaluations like Cu-Ni 70/30 Forged Fittings.

Curpo Nickel Fittings (Cu-Ni Fittings) otherwise called Copper Nickel C71500 (70/30) Fittings. These items are known for their components like corrosion resistance, dimensional precision and toughness. The offered fitting is created utilizing the finest quality crude material and the most exceptional apparatus under the supervision of skilled experts. We offered according to the standard determinations. Accessible at profoundly focused costs, these fitting sand outlets can be redone according to the prerequisite of the customer. Our offered 70/30 Copper Nickel Forged Fittings is recognized for fitting reason in the business sector. Our clients can purchase this 70/30 Copper Nickel and Cupro-Nickel 90-10 Forged Fittings in a mass amount from us at reasonable rates.

Being the emerging leader of this field, we completely value our responsibility and work hard to supply only supreme quality Forged Pipe Fitting. These are used in petrochemical industries, automotive, refineries and mechanical industries. It is a perfect use for tight hold on joints and sturdy support. To cater to industry defined quality parameters these components are examined thoroughly by our quality experts upon defined parameters of quality.

Ranflex Metals exports Copper Nickel Alloy Forged Fittings to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Phillipines.

Specification of Cu-Ni 70/30 Alloy Forged Fittings :

Designation	ASTM B122, B171, B466, B467
Range	1/8" NB TO 4" NB.
Class	2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Form	Elbow 45 deg & 90 degree, Tee , Union, Full & Half coupling, Cross, Cap, Swage Nipple, Plug, Bush
Grade	CU-NI-70/30 (UNS No C71500)
Outlet's	¼" to 24" in 3000 LBS, 6000 LBS, 9000 LBS
Type	Socket Weld (S/W) & Screwed (SCRD)

Modern Equipments

Expert Engineers

Efficient Factories

Well Maintained

Dimensions of Cu-Ni 70/30 Alloy Forged Fittings :

Class 150 Cu-Ni 70/30 Alloy Forged Fittings Dimensions :

Size Of Pipes In Inch	Dia Of (A)	Dia. Of (B)	ASME B16.11 Weight in Pounds
1/8	0.69	0.66	0.06
1/4	0.80	0.80	0.10
3/8	0.94	0.97	0.15
1/2	1.11	1.17	0.22
3/4	1.24	1.38	0.32
1	1.43	1.74	0.52
1-1/4	1.72	2.07	0.76
1-1/2	1.87	2.36	0.99
2	2.25	2.86	1.49
2-1/2	2.68	3.57	2.78
3	3.05	4.23	4.41
4	3.72	5.24	6.72

Class 300 Cu-Ni 70/30 Alloy Forged Fittings Dimensions :

Normal Size Of Pipes In Inch	Length Of Thread (Minimum)		Minimum (WT)	Outer Dia.	Center-End
	(J)	(B)	(G)	(D)	Center-End
	(J)	(B)	(G)	(D)	(C)	(A)
	1/2	13.6	10.9	3.18	33	22
1/4	13.9	12.7	3.18	38	25	33
1	17.3	14.7	3.68	46	28	38
1¼	18	17	3.89	56	33	44
1½	18.4	17.8	4.01	62	35	51
2	19.2	19	4.27	75	43	60
2½	28.9	23.6	5.61	92	52	76
3	30.5	25.9	5.99	109	64	86
4	33	27.7	6.55	146	79	106

Class 3000 Cu-Ni 70/30 Alloy Forged Fittings Dimensions :

Nom Pipe Size		Socket Bore Dia (B)		Fitting Bore Dia (D)		Socket Wall Thk (C)		Body Wall Thk (G)	Socket Depth (J)	Center to bottom of socket (A)		Weight (kg)
(inches)	(mm)	Min.	Max.	Min.	Max.	Avg.	Min.	Min.	Min.	90° Elbow	45° Elbow	90° Elbow	45° Elbow
1/8	6	10.8	11.2	6.1	7.6	3.18	3.18	2.41	9.5	11.0	8.0	0.113	0.100
1/4	8	14.2	14.6	8.5	10.0	3.78	3.30	3.02	9.5	11.0	8.0	0.095	0.086
3/8	10	17.6	18.0	11.8	13.3	4.01	3.50	3.20	9.5	13.5	8.0	0.118	0.100
1/2	15	21.8	22.2	15.0	16.6	4.67	4.09	3.73	9.5	15.5	11.0	0.204	0.191
3/4	20	27.2	27.6	20.2	21.7	4.90	4.27	3.91	12.5	19.0	13.0	0.340	0.318
1	25	33.9	34.3	25.9	27.4	5.69	4.98	4.55	12.5	22.5	14.0	0.476	0.431
1-1/4	32	42.7	43.1	34.3	35.8	6.07	5.28	4.85	12.5	27.0	17.5	0.689	0.630
1-1/2	40	48.8	49.2	40.1	41.6	6.35	5.54	5.08	12.5	32.0	20.5	0.943	0.762
2	50	61.2	61.7	51.7	53.3	6.93	6.04	5.54	16.0	38.0	25.5	1.529	1.343
2-1/2	65	73.9	74.4	61.2	64.2	8.76	7.67	7.01	16.0	41.0	28.5	3.025	3.520
3	80	89.8	90.3	76.4	79.4	9.52	8.30	7.62	16.0	57.0	32.0	5.026	3.878
4	100	115.2	115.7	100.7	103.8	10.69	9.35	8.56	19.0	66.5	41.0	10.247	10.913

Class 6000 Cu-Ni 70/30 Alloy Forged Fittings Dimensions :

Nom Pipe Size		Socket Bore Dia (B)		Fitting Bore Dia (D)		Socket Wall Thk (C)		Body Wall Thk (G)	Socket Depth (J)	Center to bottom of socket (A)		Weight (kg)
(inches)	(mm)	Min.	Max.	Min.	Max.	Avg.	Min.	Min.	Min.	90° Elbow	45° Elbow	90° Elbow	45° Elbow
1/8	6	10.8	11.2	3.2	4.8	3.96	3.43	3.15	9.5	11.0	8.0	0.000	0.000
1/4	8	14.2	14.6	5.6	7.1	4.60	4.01	3.68	9.5	13.5	8.0	0.118	0.100
3/8	10	17.6	18.0	8.4	9.9	5.03	4.37	4.01	9.5	15.5	11.0	0.268	0.218
1/2	15	21.8	22.2	11.0	12.5	5.97	5.18	4.78	9.5	19.0	12.5	0.440	0.404
3/4	20	27.2	27.6	14.8	16.3	6.96	6.04	5.56	12.5	22.5	14.0	0.644	0.572
1	25	33.9	34.3	19.9	21.5	7.92	6.93	6.35	12.5	27.0	17.5	1.057	0.907
1-1/4	32	42.7	43.1	28.7	30.2	7.92	6.93	6.35	12.5	32.0	20.5	1.343	1.039
1-1/2	40	48.8	49.2	33.2	34.7	8.92	7.80	7.14	12.5	38.0	25.5	2.590	2.037
2	50	61.2	61.7	42.1	43.6	10.92	9.50	8.74	16.0	41.0	28.5	2.912	2.527

Class 9000 Cu-Ni 70/30 Alloy Forged Fittings Dimensions :

Nom Pipe Size		Socket Bore Dia (B)		Fitting Bore Dia (D)		Socket Wall Thk (C)		Socket Depth (J)	Laying Length		Weight (kg)
(inches)	(mm)	Min.	Max.	Min.	Max.	Avg.	Min.	Min.	Full Coupling (E)	Half Coupling (F)	Full Coupling	Half Coupling
1/2	15	21.8	22.2	5.6	7.2	9.35	8.18	9.5	9.5	22.5	0.281	0.399
3/4	20	27.2	27.6	10.3	11.8	9.78	8.56	12.5	9.5	24.0	0.472	0.363
1	25	33.9	34.3	14.4	16.0	11.38	9.96	12.5	12.5	28.5	0.776	0.789
1-1/4	32	42.7	43.1	22.0	23.5	12.14	10.62	12.5	12.5	30.0	0.767	1.007
1-1/2	40	48.8	49.2	27.2	28.7	12.70	11.12	12.5	12.5	32.0	1.329	1.329
2	50	61.2	61.7	37.4	38.9	13.84	12.12	16.0	19.0	41.0	2.091	2.263
