Owing to our immense years of industry experience, we are offering a huge array of Copper Alloy Forged Pipe Fittings. The offered pipe fittings are manufactured by using best quality materials under the observation of skilled professionals. These pipe fittings are available in various grades which are highly used in water supply, engineering and irrigation sectors that are perfect fitting to join the pipes.
These pipe fittings are flawless in quality and can be fitted in the pipe without any trouble. Made from quality metal, these well polished pipe fittings are certain to last for long time due to their corrosion proof features.
Being the emerging leader of this field, we completely value our responsibility and work hard to supply only supreme quality Forged Pipe Fitting. These are used in petrochemical industries, automotive, refineries and mechanical industries. It is a perfect use for tight hold on joints and sturdy support. To cater to industry defined quality parameters these components are examined thoroughly by our quality experts upon defined parameters of quality.
Ranflex Metals exports Copper Alloy Forged Pipe Fittings to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Phillipines.
Specification of Copper Alloy Forged Pipe Fittings :
| Designation | ASTM / ASME SB 61, ASTM / ASME SB 151, ASTM / ASME SB 62 |
| Range | 1/8" NB TO 4" NB. |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Form | Elbow 45 deg & 90 degree, Tee , Union, Full & Half coupling, Cross, Cap, Swage Nipple, Plug, Bush |
| Grade | UNS NO. C 92200 & UNS NO. C 83600, UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200. |
| Outlet's | ¼" to 24" in 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld (S/W) & Screwed (SCRD) |
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
Dimensions of Copper Alloy Forged Pipe Fittings :
Class 150 Copper Alloy Forged Pipe Fittings Dimensions :
| Size Of Pipes In Inch | Dia Of (A) |
Dia. Of (B) |
ASME B16.11 Weight in Pounds |
|---|---|---|---|
| 1/8 | 0.69 | 0.66 | 0.06 |
| 1/4 | 0.80 | 0.80 | 0.10 |
| 3/8 | 0.94 | 0.97 | 0.15 |
| 1/2 | 1.11 | 1.17 | 0.22 |
| 3/4 | 1.24 | 1.38 | 0.32 |
| 1 | 1.43 | 1.74 | 0.52 |
| 1-1/4 | 1.72 | 2.07 | 0.76 |
| 1-1/2 | 1.87 | 2.36 | 0.99 |
| 2 | 2.25 | 2.86 | 1.49 |
| 2-1/2 | 2.68 | 3.57 | 2.78 |
| 3 | 3.05 | 4.23 | 4.41 |
| 4 | 3.72 | 5.24 | 6.72 |
Class 300 Copper Alloy Forged Pipe Fittings Dimensions :
| Normal Size Of Pipes In Inch | Length Of Thread (Minimum) | Minimum (WT) | Outer Dia. | Center-End | ||
| (J) | (B) | (G) | (D) | |||
| (C) | (A) | |||||
| 1/2 | 13.6 | 10.9 | 3.18 | 33 | 22 | |
| 1/4 | 13.9 | 12.7 | 3.18 | 38 | 25 | 33 |
| 1 | 17.3 | 14.7 | 3.68 | 46 | 28 | 38 |
| 1¼ | 18 | 17 | 3.89 | 56 | 33 | 44 |
| 1½ | 18.4 | 17.8 | 4.01 | 62 | 35 | 51 |
| 2 | 19.2 | 19 | 4.27 | 75 | 43 | 60 |
| 2½ | 28.9 | 23.6 | 5.61 | 92 | 52 | 76 |
| 3 | 30.5 | 25.9 | 5.99 | 109 | 64 | 86 |
| 4 | 33 | 27.7 | 6.55 | 146 | 79 | 106 |
Class 3000 Copper Alloy Forged Pipe Fittings Dimensions :
| Nom Pipe Size | Socket Bore Dia (B) | Fitting Bore Dia (D) | Socket Wall Thk (C) | Body Wall Thk (G) | Socket Depth (J) | Center to bottom of socket (A) | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | Min. | Max. | Min. | Max. | Avg. | Min. | Min. | Min. | 90° Elbow |
45° Elbow |
90° Elbow |
45° Elbow |
| 1/8 | 6 | 10.8 | 11.2 | 6.1 | 7.6 | 3.18 | 3.18 | 2.41 | 9.5 | 11.0 | 8.0 | 0.113 | 0.100 |
| 1/4 | 8 | 14.2 | 14.6 | 8.5 | 10.0 | 3.78 | 3.30 | 3.02 | 9.5 | 11.0 | 8.0 | 0.095 | 0.086 |
| 3/8 | 10 | 17.6 | 18.0 | 11.8 | 13.3 | 4.01 | 3.50 | 3.20 | 9.5 | 13.5 | 8.0 | 0.118 | 0.100 |
| 1/2 | 15 | 21.8 | 22.2 | 15.0 | 16.6 | 4.67 | 4.09 | 3.73 | 9.5 | 15.5 | 11.0 | 0.204 | 0.191 |
| 3/4 | 20 | 27.2 | 27.6 | 20.2 | 21.7 | 4.90 | 4.27 | 3.91 | 12.5 | 19.0 | 13.0 | 0.340 | 0.318 |
| 1 | 25 | 33.9 | 34.3 | 25.9 | 27.4 | 5.69 | 4.98 | 4.55 | 12.5 | 22.5 | 14.0 | 0.476 | 0.431 |
| 1-1/4 | 32 | 42.7 | 43.1 | 34.3 | 35.8 | 6.07 | 5.28 | 4.85 | 12.5 | 27.0 | 17.5 | 0.689 | 0.630 |
| 1-1/2 | 40 | 48.8 | 49.2 | 40.1 | 41.6 | 6.35 | 5.54 | 5.08 | 12.5 | 32.0 | 20.5 | 0.943 | 0.762 |
| 2 | 50 | 61.2 | 61.7 | 51.7 | 53.3 | 6.93 | 6.04 | 5.54 | 16.0 | 38.0 | 25.5 | 1.529 | 1.343 |
| 2-1/2 | 65 | 73.9 | 74.4 | 61.2 | 64.2 | 8.76 | 7.67 | 7.01 | 16.0 | 41.0 | 28.5 | 3.025 | 3.520 |
| 3 | 80 | 89.8 | 90.3 | 76.4 | 79.4 | 9.52 | 8.30 | 7.62 | 16.0 | 57.0 | 32.0 | 5.026 | 3.878 |
| 4 | 100 | 115.2 | 115.7 | 100.7 | 103.8 | 10.69 | 9.35 | 8.56 | 19.0 | 66.5 | 41.0 | 10.247 | 10.913 |
Class 6000 Copper Alloy Forged Pipe Fittings Dimensions :
| Nom Pipe Size | Socket Bore Dia (B) | Fitting Bore Dia (D) | Socket Wall Thk (C) | Body Wall Thk (G) | Socket Depth (J) | Center to bottom of socket (A) | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | Min. | Max. | Min. | Max. | Avg. | Min. | Min. | Min. | 90° Elbow |
45° Elbow |
90° Elbow |
45° Elbow |
| 1/8 | 6 | 10.8 | 11.2 | 3.2 | 4.8 | 3.96 | 3.43 | 3.15 | 9.5 | 11.0 | 8.0 | 0.000 | 0.000 |
| 1/4 | 8 | 14.2 | 14.6 | 5.6 | 7.1 | 4.60 | 4.01 | 3.68 | 9.5 | 13.5 | 8.0 | 0.118 | 0.100 |
| 3/8 | 10 | 17.6 | 18.0 | 8.4 | 9.9 | 5.03 | 4.37 | 4.01 | 9.5 | 15.5 | 11.0 | 0.268 | 0.218 |
| 1/2 | 15 | 21.8 | 22.2 | 11.0 | 12.5 | 5.97 | 5.18 | 4.78 | 9.5 | 19.0 | 12.5 | 0.440 | 0.404 |
| 3/4 | 20 | 27.2 | 27.6 | 14.8 | 16.3 | 6.96 | 6.04 | 5.56 | 12.5 | 22.5 | 14.0 | 0.644 | 0.572 |
| 1 | 25 | 33.9 | 34.3 | 19.9 | 21.5 | 7.92 | 6.93 | 6.35 | 12.5 | 27.0 | 17.5 | 1.057 | 0.907 |
| 1-1/4 | 32 | 42.7 | 43.1 | 28.7 | 30.2 | 7.92 | 6.93 | 6.35 | 12.5 | 32.0 | 20.5 | 1.343 | 1.039 |
| 1-1/2 | 40 | 48.8 | 49.2 | 33.2 | 34.7 | 8.92 | 7.80 | 7.14 | 12.5 | 38.0 | 25.5 | 2.590 | 2.037 |
| 2 | 50 | 61.2 | 61.7 | 42.1 | 43.6 | 10.92 | 9.50 | 8.74 | 16.0 | 41.0 | 28.5 | 2.912 | 2.527 |
Class 9000 Copper Alloy Forged Pipe Fittings Dimensions :
| Nom Pipe Size | Socket Bore Dia (B) | Fitting Bore Dia (D) | Socket Wall Thk (C) | Socket Depth (J) | Laying Length | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | Min. | Max. | Min. | Max. | Avg. | Min. | Min. | Full Coupling (E) |
Half Coupling (F) |
Full Coupling | Half Coupling |
| 1/2 | 15 | 21.8 | 22.2 | 5.6 | 7.2 | 9.35 | 8.18 | 9.5 | 9.5 | 22.5 | 0.281 | 0.399 |
| 3/4 | 20 | 27.2 | 27.6 | 10.3 | 11.8 | 9.78 | 8.56 | 12.5 | 9.5 | 24.0 | 0.472 | 0.363 |
| 1 | 25 | 33.9 | 34.3 | 14.4 | 16.0 | 11.38 | 9.96 | 12.5 | 12.5 | 28.5 | 0.776 | 0.789 |
| 1-1/4 | 32 | 42.7 | 43.1 | 22.0 | 23.5 | 12.14 | 10.62 | 12.5 | 12.5 | 30.0 | 0.767 | 1.007 |
| 1-1/2 | 40 | 48.8 | 49.2 | 27.2 | 28.7 | 12.70 | 11.12 | 12.5 | 12.5 | 32.0 | 1.329 | 1.329 |
| 2 | 50 | 61.2 | 61.7 | 37.4 | 38.9 | 13.84 | 12.12 | 16.0 | 19.0 | 41.0 | 2.091 | 2.263 |

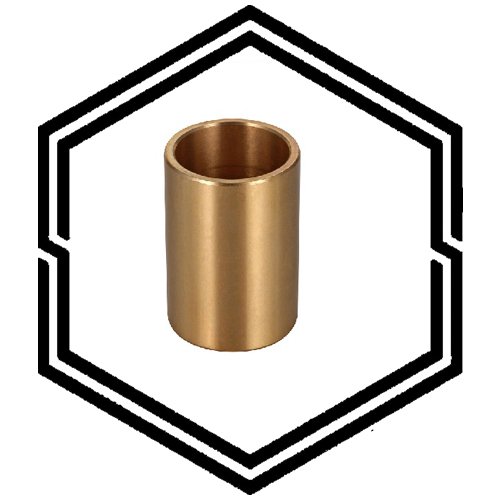

Copper Nickel Alloy Type Forged fitting
Applications :
- Processing plant for sulphuric, phosphoric and acetic acids
- Pulp and paper processing
- Components in gas scrubbing plants
- Seawater cooling equipment
- Oil refinery components
- Wires in electrostatic precipitators
