UNS N08367 Welding Stud bolt, AL-6XN Continuous Threaded Stud bolt, AL-6XN Fully Threaded Stud bolt, UNS N08367 Flange Stud bolt, AL-6XN Flange Stud bolt, AL-6XN Welding Stud bolt.
Ranflex Metals are the leading manufacturer of high integrity special fasteners (e.g. bolts, set screws, stud-bolts, nuts and washers), meeting clients’ exacting demands for critical applications in hostile environments. Whether for offshore (buoyancy and petrochemical), seawater, pump, valve or nuclear, the demands for an exceptional service and supply is never ending. We believe manufacturing bolting in exotic materials is an art form and it is something we have perfected at Ranflex Metals.
UNS N08367 Flange Stud bolt exporter, AL-6XN Welding Stud bolt trader, UNS N08367 Fully Threaded Stud bolt stockiest, AL-6XN Tap End Stud bolt wholesaler, AL-6XN Double End Stud bolt exporter, UNS N08367 Tap End Stud bolt wholesaler, UNS N08367 Welding Stud bolt exporter.
Our AL-6XN Stainless Steel Fasteners product range includes AL-6XN Stainless Steel Bolts, Hexagon head bolt, Hexagon head screw, Round head square neck bolt, Hexagon socket head cap screw in full thread and half thread, Hexagon wood screw, Hexagon socket button head screw, Hexagon socket button flange screw, Hexagon socket counter sunk head cap screw in full thread and half thread, square nuts, square weld nuts, hexagon weld nuts, thick nyloc nuts, hexagon flange nuts, threaded rods, dowel screws,Plain / Flat Washer, Spring Washers, Countersunk Washer,Tooth Lock Washer and many more. We provide products as per DIN, ANSI, JIS standards.
Our AL6XN fastener inventory includes hex bolts, nuts and flat washers, primarily in 1/4” to 3/4″ diameters. Please check with us for socket head cap screws, full thread studs, square head set screws and other non-stock items in this material.
AL6XN is a super-austenitic alloy, the most abundant element being iron. It is the most popular of the 6% molybdenum alloys. Common usages are in the food processing, pharmaceutical and biotech industries. In most environments, it shows superior corrosion resistance when compared to duplex alloys. Due to the lower nickel content, AL6XN fasteners are generally more economical than the high nickel alloy fasteners.
UNS N08367 Tap End Stud bolt, UNS N08367 Fully Threaded Stud bolt, AL-6XN Tap End Stud bolt, AL-6XN Double End Stud bolt, UNS N08367 Continuous Threaded Stud bolt, UNS N08367 Double End Stud bolt.

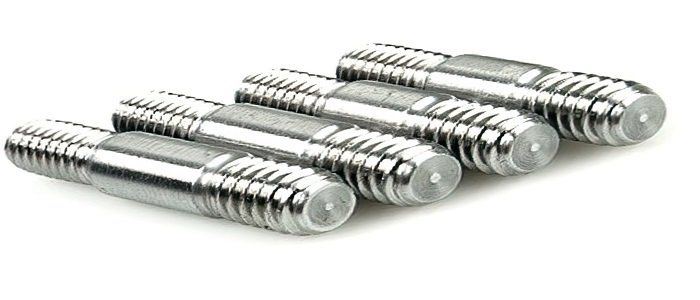

Specification of AL-6XN Stainless Steel Stud Bolt :
| Specifications | ASTM A479 / A479, ASME SA479 / SA194 |
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3 mm to 200 mm |
| Nuts Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Stainless Steel Bolt / Screw Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Stainless Steel Machine Screws Size | M1.6 - M12 |
| Stainless Steel Washers Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Stainless Steel Stud bolts Type | Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts,Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets, Screws, Allen Cap screw, Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw, Pan Head Screw, Socket Head Cap Screw, Wing Screw, T-Head Bolts, Foundation Bolts,Screw, Studs |
Equivalent Grades of Stainless Steel AL-6XN Stud Bolt :
| STANDARD | UNS |
| SS AL6XN | N08367 |
Chemical Composition of AL-6XN Stainless Steel Stud Bolt :
| C | S | Cr | Mn | Ni | P | N | Mo | Cu | Si |
| 0.03 Max | 0.03 Max | 20.00-22.00 | 2.0 Max | 23.5-25.5 | .040 Max | 0.18-0.25 | 6.00-7.00 | 0.75 Max | 1.00 Max |
Mechanical Properties of SS AL-6XN Stud Bolt :
| UNS Designation | Tensile Strength, min | Yield Strength, min | Elongation in 2 in. or 50 mm, min, % |
Reduction of Area, min, % |
||
|---|---|---|---|---|---|---|
| ksi | MPa | ksi | MPa | |||
| UNS N08367 | 95 | 655 | 45 | 310 | 30 | 50 |
Physical Properties of Stainless Steel AL-6XN Stud Bolt :
| Physical Properties | Metric | English | Comments |
| Density | 8.06 g/cc | 0.291 lb/in³ |
Electrical Properties
Typical Electrical Properties for grade AL-6XN Stainless Steel Stud Bolt
| Electrical Properties | Metric | English | Comments |
| Electrical Resistivity | 0.0000890 ohm-cm | 0.0000890 ohm-cm | |
| Magnetic Permeability | 1.0028 | 1.0028 | at 200 Oersted |
Thermal Properties
Typical Thermal Properties for grade AL-6XN Stainless Steel Stud Bolt
| Thermal Properties | Metric | English | Comments |
| CTE, linear | 15.3 µm/m-°C @Temperature 20.0 - 100 °C |
8.50 µin/in-°F @Temperature 68.0 - 212 °F |
|
| 15.5 µm/m-°C @Temperature 20.0 - 200 °C |
8.61 µin/in-°F @Temperature 68.0 - 392 °F |
||
| 15.7 µm/m-°C @Temperature 20.0 - 300 °C |
8.72 µin/in-°F @Temperature 68.0 - 572 °F |
||
| 16.4 µm/m-°C @Temperature 20.0 - 600 °C |
9.11 µin/in-°F @Temperature 68.0 - 1110 °F |
||
| 17.6 µm/m-°C @Temperature 20.0 - 800 °C |
9.78 µin/in-°F @Temperature 68.0 - 1470 °F |
||
| Thermal Conductivity | 13.7 W/m-K @Temperature 20.0 - 100 °C |
95.1 BTU-in/hr-ft²-°F @Temperature 68.0 - 212 °F |
|
| Melting Point | 1320 - 1400 °C | 2410 - 2550 °F | |
| Solidus | 1320 °C | 2410 °F | |
| Liquidus | 1400 °C | 2550 °F |
AL-6XN Fully Threaded Stud bolt dealer, AL-6XN Continuous Threaded Stud bolt manufacturer, AL-6XN Double End Stud bolt wholesaler, UNS N08367 Double End Stud bolt distributor, UNS N08367 Welding Stud bolt wholesaler, UNS N08367 Double End Stud bolt supplier.
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
Property Class of Stud Bolt AL-6XN Stainless Steel :
Looking for AL-6XN stainless steel Stud Bolt? Ranflex Metals is a top-class manufacturer of AL-6XN stainless steel screws. We are the most experienced among all the steel fasteners market and progresses with a highly professional team who is wholly engaged in making AL-6XN screws, AL-6XN bolts, and Fastener at the lowest cost.
For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H
For Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040
For SHCS: F837B, F837C, F837E, F837
For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2
Dimensions of Stainless Steel AL-6XN Stud Bolt :
Stainless Steel AL-6XN Stud Bolts Dimensions Chart :
| Diameter | ||
|---|---|---|
| Plain | ||
| UNC | 8UN | |
| 1/2 | 19568 | - |
| 5/8 | 19569 | - |
| 3/4 | 19570 | |
| 7/8 | 19571 | - |
| 1 | 19572 | - |
| 11/8 | 19573 | 13979 |
| 11/4 | 19574 | 13980 |
| 13/8 | 19656 | 13981 |
| 11/2 | 19657 | 13982 |
| 13/4 | 19658 | 13983 |
| 2 | 19659 | 13984 |
| Available lengths 12 Inch ASME B18.31.3, Also available lengths Dimensions 6 Inch |
||
Stainless Steel AL-6XN Threaded Rod Dimensions Chart :
| D | P |
D
|
P |
|---|---|---|---|
| M2 | 0.4 | M20 | 1.5/2.5 |
| M2.5 | 0.45 | M22 | 1.5/2.5 |
| M3 | 0.5 | M24 | 2/3 |
| M3.5 | 0.6 | M27 | 2/3 |
| M4 | 0.7 | M30 | 2/3.5 |
| M5 | 0.8 | M33 | 2/3.5 |
| M6 | 1 | M36 | 3/4 |
| M8 | 1/1.25 | M39 | 3/4 |
| M10 | 1/1.25/1.5 | M42 | 3/4.5 |
| M12 | 1.25/1.5/1.75 | M45 | 3/4.5 |
| M14 | 1.5/2 | M48 | 3/5 |
| M16 | 1.5/2 | M52 | 3/5 |
| M18 | 1.5/2.5 |
Size of Stainless Steel AL-6XN Stud Bolt :
Stainless Steel AL-6XN Nuts Size Chart :
| Size Of Nut (millimeter) |
Diameter Of (millimeter) |
Height Table (millimeter) |
||
|---|---|---|---|---|
| Hex Nut | Jam Nut | Nylock Nut | ||
| 2 | 4 | 1.6 | 1.2 | - |
| 2.5 | 5 | 2 | 1.6 | - |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 5 | 8 | 4 | 2.7 | 5 |
| 6 | 10 | 5 | 3.2 | 6 |
| 7 | 11 | 5.5 | 3.5 | - |
| 8 | 13 | 6.5 | 4 | 8 |
| 10 | 17 | 8 | 5 | 10 |
| 12 | 19 | 10 | 6 | 12 |
| 14 | 22 | 11 | 7 | 14 |
| 16 | 24 | 13 | 8 | 16 |
| 18 | 27 | 15 | 9 | 18.5 |
| 20 | 30 | 16 | 10 | 20 |
Stainless Steel AL-6XN Threaded Rod Size Chart :
|
Size Table Of Threaded Rod
|
per Inch Threads
|
||
|---|---|---|---|
|
Frac. [Number]
|
Decimal
|
UNC
|
UNF
|
|
1/8 [#6]
|
0.1380
|
32
|
40
|
|
5/32 [#8]
|
0.1640
|
32
|
36
|
|
3/16 [#10]
|
0.1900
|
24
|
32
|
|
1/4
|
0.2500
|
20
|
28
|
|
5/16
|
0.3125
|
18
|
24
|
|
3/8
|
0.3750
|
16
|
24
|
|
7/16
|
0.4375
|
14
|
20
|
|
1/2
|
0.5000
|
13
|
20
|
|
9/16
|
0.5625
|
12
|
18
|
|
5/8
|
0.6250
|
11
|
18
|
|
3/4
|
0.7500
|
10
|
16
|
|
7/8
|
0.8750
|
9
|
14
|
|
1
|
1.0000
|
8
|
12, 14
|
|
1 1/8
|
1.1250
|
7
|
12
|
|
1 1/4
|
1.2500
|
7
|
12
|
|
1 3/8
|
1.3750
|
6
|
12
|
|
1 1/2
|
1.5000
|
6
|
12
|
|
1 3/4
|
1.7500
|
5
|
–
|
Stainless Steel AL-6XN Type Bolts
Stainless Steel Stud Bolt Surface Coating :
- Hot Dipped Galvanizing
- Epoxy Coating
- Electro Polished
- Passivation
- Zinc Plating
- Chrome Plating
- Mirror Buffed
- Teflon Coating
- Oxidized
Stainless Steel AL-6XN Price Per Kg (As per demand and manufacturer):
| Price of SS AL-6XN Stud Bolt manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
|---|---|---|---|
| Stainless Steel Stud Bolt Grade – AL-6XN | $6.78 | €6.48 | 22.80 UAE Dirham |
| Stainless Steel Double End Stud Bolt AL-6XN | $5.88 | €5.63 | 19.51 UAE Dirham |
| Stainless Steel Square Nuts Grade – AL-6XN | $3.88 | €3.70 | 12.19 UAE Dirham |
