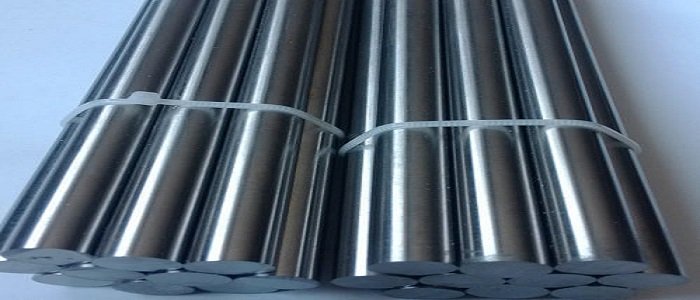

Ranflex Metals is one of the aptitude manufacturer and suppliers of Titanium Grade 5 Round Bars, Titanium Alloys Grade5 Round Bars, ASTM B348 Ti Gr5 Bright Bar, Titanium UNS R50400 Round Bar, and ASME SB348 Titanium Grade5 Titanium Bars which have built up a persona as a bad dream to the machine. Titanium Gr. 5 Bars (UNS R52400) is an erosion safe alpha titanium compound with comparative mechanical properties to the monetarily unadulterated evaluations. This makes Titanium Gr. 5 Rods perfect for applications that require both softness of weight and superb quality, for example, oil and gas (down-opening), military and donning products. In many fluid situations, Titanium Grade 5 Bars exhibit a fantastic erosion resistance because of the defensive oxide movies suddenly framed and stay stable at first glance. At the point when the surface of Titanium Grade 5 Rods is presented to oxygen or dampness, another consumption safe layer of titanium oxide is made.
Our association has complex base, where we store our extent of items. We offer our items to all inclusive market and certification to offer our items with quality and sturdiness. As a provider, stockiest, exporter and creator, we give these Titanium Grade 5 Round Bars and Rods in exclusively gathered thicknesses and sizes, as shown by exact necessities of our inside and out, regarded promoters.
Grade | Titanium Alloys Round Bar |
---|---|
Titanium Alloys Square bar size | 4 to 100mm |
Titanium Alloys Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
Hot Rolled Steel Hex Bar size | 2-100mm A/F |
Titanium Alloys Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
Titanium Alloys Rectangles Size | 33 x 30mm to 295 x 1066mm |
Hot Rolled Steel Flat bar size | Thickness: 2 -100mm |
Width: 10 to 500mm | |
Titanium Alloys Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
Titanium Alloys Section | 3.0 to 12.0mm thickness |
Hot Rolled Steel Round bar size | Diameter: 3-~800mm |
Titanium Alloys Billet Size | 1/2" to 495mm Diameter |
Titanium Alloys Round Bar Standard Dimensions | Diameter / Height: Titanium Alloys Rod and Bar Sizes : 0.5 inches / 0.Grade5 inches / 0.75 inches / 0.875 inches / 1.0 inches / 1.125 inches / 1.25 inches / 1.375 inches / 1.5 inches / 1.75 inches / 2.0 inches / 2.25 inches / 2.5 inches / 2.75 inches / 3.0 inches / 3.25 inches / 3.5 inches / 3.75 inches / 4.0 inches / 4.25 inches / 4.5 inches / 5.0 inches / 5.25 inches / 5.5 inches / 6.0 inches / 7.0 inches / 8.0 inches / 9.0 inches. |
Titanium Alloys Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
Titanium Alloys Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
Hot Rolled Steel Technique | Titanium Alloys Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
Titanium Alloys Condition | Hardened & tempered, annealed |
Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
Form | Titanium Alloys Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
Processing | Bar cutting to 650mm |
STANDARD | UNS | WNR. |
---|---|---|
Titanium Gr 5 | R56400 | 3.7165 |
Al | Fe | O | Ti | V |
---|---|---|---|---|
6max | 0.25max | 0.2max | 90max | 4max |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
---|---|---|---|---|---|
Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Physical Properties | Metric | English |
---|---|---|
Density | 4.43 g/cc | 0.16 lb/in³ |
Diameter or Width (mm) |
Weight per meter | Sectional Area | Perimeter | |||
Square (kg) |
Round (kg) |
Square (cm²) |
Round (cm²) |
Square (cm) |
Round (cm) |
|
5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
---|---|---|---|---|---|
7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
---|---|---|---|
Cold Drawn and Polish | 3.00 - 75.00 | 1/8 - 3.00 | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 - 75.00 | 5/6 - 2.50 | h8-h9-h10-h11 |
Peeled and Polished | 40.00 - 150.00 | 1.50 - 6.00 | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 - 50.00 | 3/4 - 2.00 | h9-h10-h11 |
Titanium Alloys Bars Standard lengths of 2000 mm up to Grade50 mm. Cut to size on request (tolerance +2/-0 mm).
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 200.0 |
Flat bar sizes in mm | Flat Bar Size (inch) | Flat Bar Thickness (mm) | Flat Bar Thickness (in Inches) |
---|---|---|---|
22 | 7/8 | 17 & 18 | 2/3 - 5/7 |
25 | 1 | 5 to 20 | 3/16 - 4/5 |
30 | 1-3/16 | 5 to 20 | 3/16 - 4/5 |
32 | 1-1/4 | 6 to 20 | 1/4 - 4/5 |
35 | 1-3/8 | 5 to 20 | 3/16 - 3/16 |
40 | 1-4/7 | 5 to 25 | 3/16 - 1 |
45 | 1-7/9 | 5 to 25 | 3/16 - 1 |
47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
50 | 2 | 5 to 32 | 3/16 - 1-1/4 |
55 | 2-1/16 | 5 to 25 | 3/16 - 1 |
57 | 2-1/4 | 32 | 1-1/4 |
60 | 2-3/8 | 5 to 35 | 3/16 - 1-3/8 |
63 | 2-1/2 | 10 to 30 | 3/8 - 1-3/16 |
65 | 2-5/9 | 10 to 30 & 35 | 3/8 - 1-3/16, & 1-3/8 |
70 | 2-3/4 | 6 to 25 & 40 | 1/4 - 1, & 1-4/7 |
75 | 3 | 8 to 25 | 5/16 - 1 |
80 | 3-1/8 | 8 to 20 | 5/16 - 4/5 |
90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
OD = outside diameter, ID = inside diameter
Size | Chucked true to OD | Chucked true to ID | |||||||
---|---|---|---|---|---|---|---|---|---|
OD, mm |
ID, mm |
Max. OD, mm |
Min. ID, mm |
Max. OD, in. |
Min. ID, in. |
Max. OD, mm |
Min. ID, mm |
Max. OD, in. |
Min. ID, in. |
32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
160 | 112 | 157.6 | 115.5 | 6.205 | 4.547 | 155.8 | 113.7 | 6.134 | 4.476 |
160 | 90 | 157.6 | 94.0 | 6.205 | 3.701 | 155.2 | 91.4 | 6.110 | 3.598 |
170 | 140 | 167.4 | 143.5 | 6.591 | 5.650 | 166 | 142.1 | 6.535 | 5.594 |
170 | 130 | 167.4 | 133.6 | 6.591 | 5.260 | 165.8 | 132 | 6.528 | 5.197 |
170 | 128 | 167.4 | 131.6 | 6.591 | 5.181 | 165.7 | 130 | 6.524 | 5.118 |
170 | 118 | 167.4 | 121.7 | 6.591 | 4.791 | 165.5 | 119.8 | 6.516 | 4.717 |
170 | 106 | 167.4 | 109.8 | 6.591 | 4.323 | 165.2 | 107.6 | 6.504 | 4.236 |
170 | 100 | 167.4 | 103.9 | 6.591 | 4.091 | 165 | 101.5 | 6.496 | 3.996 |
180 | 150 | 177.3 | 153.6 | 6.980 | 6.047 | 176 | 152.3 | 6.929 | 5.996 |
180 | 140 | 177.3 | 143.7 | 6.980 | 5.657 | 175.7 | 142.1 | 6.917 | 5.594 |
180 | 125 | 177.3 | 128.9 | 6.980 | 5.075 | 175.3 | 126.9 | 6.902 | 4.996 |
180 | 100 | 177.3 | 104.1 | 6.980 | 4.098 | 174.7 | 101.5 | 6.878 | 3.996 |
190 | 160 | 187.1 | 163.8 | 7.366 | 6.449 | 185.7 | 162.4 | 7.311 | 6.394 |
190 | 150 | 187.1 | 153.9 | 7.366 | 6.059 | 185.5 | 152.3 | 7.303 | 5.996 |
190 | 132 | 187.1 | 136 | 7.366 | 5.354 | 185.1 | 134 | 7.287 | 5.276 |
200 | 170 | 197.0 | 173.9 | 7.756 | 6.846 | 195.6 | 172.6 | 7.701 | 6.795 |
200 | 160 | 197.0 | 164 | 7.756 | 6.457 | 195.4 | 162.4 | 7.693 | 6.394 |
200 | 150 | 197.0 | 154.1 | 7.756 | 6.067 | 195.2 | 152.3 | 7.685 | 5.996 |
200 | 140 | 197.0 | 144.2 | 7.756 | 5.677 | 194.9 | 142.1 | 7.673 | 5.594 |
212 | 170 | 208.8 | 174.2 | 8.220 | 6.858 | 207.2 | 172.6 | 8.157 | 6.795 |
212 | 150 | 208.8 | 154.4 | 8.220 | 6.079 | 206.6 | 152.3 | 8.133 | 5.997 |
212 | 130 | 208.8 | 134.6 | 8.220 | 5.299 | 206.2 | 132 | 8.118 | 5.197 |
224 | 180 | 220.6 | 184.4 | 8.685 | 7.260 | 218.9 | 182.7 | 8.618 | 7.193 |
224 | 140 | 220.6 | 144.8 | 8.685 | 5.701 | 217.9 | 142.1 | 8.579 | 5.594 |
236 | 190 | 232.4 | 194.6 | 9.150 | 7.661 | 230.7 | 192.9 | 9.083 | 7.594 |
236 | 150 | 232.4 | 155.0 | 9.150 | 6.102 | 229.7 | 152.3 | 9.043 | 5.996 |
250 | 200 | 246.2 | 204.9 | 9.693 | 8.067 | 244.3 | 203.0 | 9.618 | 7.992 |
275 | 200 | 268.9 | 205.4 | 10.587 | 8.087 | 266.5 | 203.0 | 10.492 | 7.992 |
Size (mm) | Weight per metre (Kg) |
---|---|
12 x 12 | 1.14 |
16 x 16 | 2.02 |
20 x 20 | 3.16 |
25 x 25 | 4.94 |
30x30 | 7.11 |
40 x 40 | 12.60 |
50 x 50 | 19.80 |
Diameter or Width (mm) |
Weight per meter | Sectional Area | Perimeter | |||
Square (kg) |
Round (kg) |
Square (cm²) |
Round (cm²) |
Square (cm) |
Round (cm) |
|
5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Description | Per Unit (INR) | Price in USD | Pricein EURO |
---|---|---|---|
Titanium Alloys Bright Bars Grade Aisi Grade5 Bright Bars | 125.64 | 2.34 | 2.04 |
Titanium Alloys Bright Bars Titanium Alloys Grade5 Shape Round | 118.64 | 2.24 | 1.96 |
Grade Aisi Grade5 Bright Rods Of Titanium Alloys | 125.64 | 2.34 | 2.04 |
Titanium Alloys Bright Bars grade Grade5 Shape Round | 118.64 | 2.24 | 1.96 |
Grade Aisi Grade5 Round Bars | 124.60 | 2.30 | 1.92 |
Grade Aisi Grade5 Bars & Rods Of Titanium Alloys | 135.64 | 2.48 | 3.14 |
