ANSI / ASME B16.9 Titanium Butt weld Pipe Fittings
Ranflex Metals is one of the main Manufacturers, Suppliers and Exporters of top notch Titanium Alloys Gr 2 Buttweld Fittings. Titanium Grade 2 Buttweld Fittings has moderate strength and excellent cold forming properties. It provides excellent welding properties and has high resistance to oxidation and corrosion.

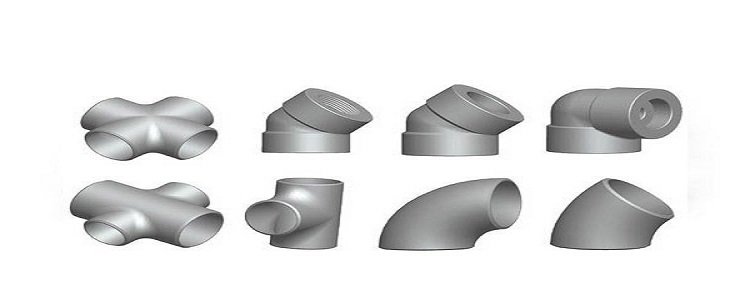

Concerning distinctive evaluations, we offer these Titanium Gr 2 Butt Weld Fittings in various sorts, for example, Titanium Gr 2 Seamless Butt weld pipe fittings, Titanium Gr 2 Welded Butt weld pipe fittings, Titanium Gr 2 Elbow (45 deg, 90 deg, 180 deg), Titanium Gr 2 Equal and Unequal (diminishing) Tees, Titanium Gr 2 Equal and Unequal (decreasing) Cross, Titanium Gr 2 Concentric and Eccentric Reducer, Titanium Gr 2 Long and Short Stubends, and Titanium Gr 2 Pipe End Caps.
Concerning distinctive evaluations, we offer these Titanium Gr 2 Butt Weld Fittings in various sorts, for example, Titanium Gr 2 Seamless Butt weld pipe fittings, Titanium Gr 2 Welded Butt weld pipe fittings, Titanium Gr 2 Elbow (45 deg, 90 deg, 180 deg), Titanium Gr 2 Equal and Unequal (diminishing) Tees, Titanium Gr 2 Equal and Unequal (decreasing) Cross, Titanium Gr 2 Concentric and Eccentric Reducer, Titanium Gr 2 Long and Short Stubends, and Titanium Gr 2 Pipe End Caps.
Being the emerging leader of this field, we completely value our responsibility and work hard to supply only supreme quality Buttweld Pipe Fitting. These are used in petrochemical industries, automotive, refineries and mechanical industries. It is a perfect use for tight hold on joints and sturdy support. To cater to industry defined quality parameters these components are examined thoroughly by our quality experts upon defined parameters of quality.
Ranflex Metals exports Titanium Alloys Grade2 Buttweld Fittings to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Phillipines.
Specifications : | ASTM B 363 / ASME SB 363 |
Dimensions : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
Size : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
Type : | Seamless / Welded / Fabricated |
Bending Radius : | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
Thickness : | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
Grade : | Titanium Grade 2 (UNS No. R50400) |
Value Added Services : | Electro Polish |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Titanium Gr 2 | 3.7035 | R50400 | - | - | - | - | - |
Grade | C | N | O | H | Ti | Fe |
Titanium Gr 2 | 0.10 max | 0.03 max | 0.25 max | 0.015 max | Bal | 0.30 max |
Grade | Min.Tensile(KSI) | Min.Yield(KSI) | Hardness | Tensile Modulus | Poisson's Ratio |
Gr2 | 50 | 40 | 14.9 | 103 GPa | 0.34-0.10 |
Nominal Pipe Size |
Outside Diameter |
90° Elbows | 45° Elbows | 180° Returns | ||||
---|---|---|---|---|---|---|---|---|
(inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) |
Center to Face (inches) |
Center to Face (inches) |
Radius (inches) |
Center to Center (inches) |
Back to face (inches) |
|
1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Nominal Pipe Size |
Outside Diameter |
Caps | Straight Tees | Straight Crosses | Stub Ends | |||
---|---|---|---|---|---|---|---|---|
(inches) | (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Nominal Pipe Size |
Outside Diameter |
Reducers | ||
---|---|---|---|---|
Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) |
Concentric & Eccentric Length (inches) |
1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
3/8 | 1 1/2 | |||
3/4 | 26.7 | 1.050 | 3/8 | 2 |
1/2 | 2 | |||
1 | 33.4 | 1.315 | 3/8 | 2 |
1/2 | 2 | |||
3/4 | 2 | |||
1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
3/4 | 2 | |||
1 | 2 | |||
1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
3/4 | 2 1/2 | |||
1 | 2 1/2 | |||
1 1/4 | 2 1/2 | |||
2 | 60.3 | 2.375 | 3/4 | 3 |
1 | 3 | |||
1 1/4 | 3 | |||
1 1/2 | 3 | |||
2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
1 1/4 | 3 1/2 | |||
1 1/2 | 3 1/2 | |||
2 | 3 1/2 | |||
3 | 88.9 | 3.500 | 1 | 3 1/2 |
1 1/2 | 3 1/2 | |||
2 | 3 1/2 | |||
2 1/2 | 3 1/2 | |||
3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
1 1/2 | 4 | |||
2 | 4 | |||
2 1/2 | 4 | |||
3 | 4 | |||
4 | 114.3 | 4.500 | 1 1/2 | 4 |
2 | 4 | |||
2 1/2 | 4 | |||
3 | 4 | |||
3 1/2 | 4 | |||
5 | 141.3 | 5.563 | 2 | 5 |
2 1/2 | 5 | |||
3 | 5 | |||
3 1/2 | 5 | |||
4 | 5 | |||
6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
3 | 5 1/2 | |||
3 1/2 | 5 1/2 | |||
4 | 5 1/2 | |||
5 | 5 1/2 | |||
8 | 219.1 | 8.625 | 3 | 6 |
3 1/2 | 6 | |||
4 | 6 | |||
5 | 6 | |||
6 | 6 | |||
10 | 273.1 | 10.750 | 4 | 7 |
5 | 7 | |||
6 | 7 | |||
8 | 7 | |||
12 | 323.9 | 12.750 | 5 | 8 |
6 | 8 | |||
8 | 8 | |||
10 | 8 |
