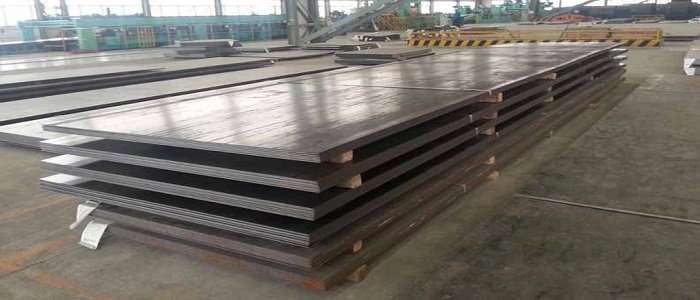

ASTM B265 Gr1 UNS R50250 Plates & Sheets Ranflex Metals is one of the main Manufacturers, Suppliers and Exporters of top notch Titanium Grade 1 Sheets & Plates. Our Titanium Grade 1 Sheets & Plates are testimonials of our quality principles.
Commercially Pure Titanium Grade 1 Sheets & Plates is one of the mildest and most pliable evaluations displaying the best formability. It has astounding corrosion resistance property, great weldability and is utilized as a part of a wide assortment of utilizations. This evaluation material is basically utilized as a part of marine and compound commercial enterprises where the parts are subjected to exceptionally harsh environments. This material is likewise utilized for creating anodes for cathodic protection applications. These Titanium Grade 1 Sheets & Plates are utilized as a part of different application industry. Working towards the point of customer fulfillment, we offer these items at the most reasonable industry costs.
Specifications: | ASTM B265 / ASME SB265 |
Thickness: | 4 mm To 100 mm |
Length: | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm,or as required |
Width: | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,or as required |
Grade | Gr 1 / Gr 2 / Gr 5 |
Application | Building industry,architectural decoration,elevators,building doors,panels and so on. |
Standard: | ASTM,AISI,JIS,GB, DIN,EN |
Surface: | BA,2B,NO.1,NO.4,4K,HL,8K |
Certification: | ISO, SGS,BV |
Technique: | Cold Rolled Hot Rolled |
Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils |
STANDARD | UNS | WNR. |
---|---|---|
Titanium GR 1 | R50250 | 3.7025 |
C | Fe | H | N | O | Ti |
---|---|---|---|---|---|
0.1 | 0.2 | 0.015 | 0.03 | 0.18 | 99.5 |
Grade | Tensile (ksi) | Yield Strength (ksi) | Elongation % |
---|---|---|---|
Titanium Gr 1 | 240 | 170 | 24 |
Physical Properties | Metric | English |
---|---|---|
Density | 4.51 g/cc | 0.163 lb/in³ |
Sheet & Plate Surface finish | Thickness (mm) | Width (max mm) |
---|---|---|
2B – Cold rolled, heat treated, pickled, skin passed Sheet | 0.25–8.0 | 2032 |
2D – Cold rolled, heat treated, pickled Sheet | 0.4–6.35 | 1524 |
2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
2H – Work hardened plate | 0.4–6.35 | 1524 |
Polished, brushed plate | 0.5–4.0 | 1524 |
Sheet & Plate Surface finish | Gauge (in) | Width (max in) |
---|---|---|
2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
BA Mexinox only | 18–28 | 48 |
Polished Sheet (not brushed) | 11–24 | 60 |
Temper rolled Sheet Mexinox only | 13–29 | 48 |
Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
---|---|---|---|---|---|---|
inches | mm | lbs/ft² | kg/m² | lbs | kg | |
0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
10 | 78.5 | 94 | 118 | 141 | 188 |
12 | 94.2 | 113 | 141 | 170 | 226 |
16 | 125.6 | 151 | 188 | 226 | 301 |
20 | 157 | 188 | 236 | 283 | 377 |
22 | 172.7 | 207 | 259 | 311 | 415 |
25 | 196.25 | 236 | 294 | 353 | 471 |
28 | 219.8 | 264 | 330 | 396 | 528 |
32 | 251.2 | 301 | 377 | 452 | 603 |
36 | 282.6 | 339 | 424 | 509 | 678 |
40 | 314 | 377 | 471 | 565 | 754 |
45 | 353.25 | 424 | 530 | 636 | 848 |
50 | 392.5 | 471 | 589 | 707 | 942 |
55 | 431.75 | 518 | 648 | 777 | 1036 |
60 | 471 | 565 | 707 | 848 | 1130 |
65 | 510 | 612 | 765 | 918 | 1224 |
70 | 549.5 | 659 | 824 | 989 | 1319 |
75 | 588.75 | 707 | 883 | 1060 | 1413 |
80 | 628 | 754 | 942 | 1130 | 1507 |
90 | 706.5 | 848 | 1060 | 1272 | 1696 |
100 | 785 | 942 | 1178 | 1413 | 1884 |
Size (mm) | Weight per Sheet (Kg) |
Size (mm) | Weight per Sheet (Kg) |
---|---|---|---|
2000 x1000 x 0.7 | 11.5 | 2500 x 1250 x 1.5 | 38.4 |
2500 x1250 x 0.7 | 17.9 | 3000 x 1500 x 1.5 | 55.3 |
2000 x1000 x 0.9 | 14.7 | 2000 x 1000 x 2.0 | 32.7 |
2500 x1250 x 0.9 | 23.0 | 2500 x 1250 x 2.0 | 51.2 |
2000 x1000 x 1.0 | 16.4 | 3000 x 1500 x 2.0 | 73.7 |
2500 x1250 x 1.0 | 25.6 | 2000 x 1000 x 2.5 | 40.9 |
3000 x1500 x 1.0 | 36.8 | 2500 x 1250 x 2.5 | 63.9 |
2000 x1000 x 1.2 | 19.6 | 3000 x 1500 x 2.5 | 92.1 |
2500 x1250 x 1.2 | 30.7 | 2000 x 1000 x 3.0 | 49.6 |
3000 x1500 x 1.2 | 44.2 | 2500 x 1250 x 3.0 | 77.5 |
2000 x1000 x 1.5 | 24.6 | 3000 x 1500 x 3.0 | 112.0 |
Nominal Size Thickness (inches) |
Weight (lb/ft2) |
---|---|
3/16 | 7.65 |
1/4 | 10.2 |
5/16 | 12.8 |
3/8 | 15.3 |
7/16 | 17.9 |
1/2 | 20.4 |
9/16 | 22.9 |
5/8 | 25.5 |
11/16 | 28.1 |
3/4 | 30.6 |
13/16 | 33.2 |
7/8 | 35.7 |
1 | 40.8 |
1 1/8 | 45.9 |
1 1/4 | 51.0 |
1 3/8 | 56.1 |
1 1/2 | 61.2 |
1 5/8 | 66.3 |
1 3/4 | 71.4 |
1 7/8 | 76.5 |
2 | 81.6 |
2 1/8 | 86.7 |
2 1/4 | 91.8 |
2 1/2 | 102 |
2 3/4 | 112 |
3 | 122 |
3 1/4 | 133 |
3 1/2 | 143 |
3 3/4 | 153 |
4 | 163 |
4 1/4 | 173 |
4 1/2 | 184 |
5 | 204 |
5 1/2 | 224 |
6 | 245 |
6 1/2 | 265 |
7 | 286 |
7 1/2 | 306 |
8 | 326 |
9 | 367 |
10 | 408 |
Plate Thickness (mm) |
Weight (kg/m2) |
---|---|
1.6 | 12.6 |
2.0 | 15.7 |
2.5 | 19.6 |
3 | 23.6 |
3.2 | 25.1 |
4 | 31.4 |
5 | 39.3 |
6 | 47.1 |
8 | 62.8 |
10 | 78.5 |
12.5 | 98.1 |
15 | 118 |
20 | 157 |
22.5 | 177 |
25 | 196 |
30 | 236 |
32 | 251 |
35 | 275 |
40 | 314 |
45 | 353 |
50 | 393 |
55 | 432 |
60 | 471 |
65 | 510 |
70 | 550 |
75 | 589 |
80 | 628 |
90 | 707 |
100 | 785 |
110 | 864 |
120 | 942 |
130 | 1051 |
150 | 1178 |
160 | 1256 |
180 | 1413 |
200 | 1570 |
250 | 1963 |
Price of Titanium Alloys Gr 1 Sheets & Plates manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
---|---|---|---|
Titanium Alloys Gr 1 Sheet | 280 - 300 | 3.25 - 3.49 | 13.51 - 14.47 |
Titanium Alloys Gr 1 Plate | 300 - 350 | 3.49 - 4.07 | 14.47 - 16.88 |
Titanium Alloys Gr 1 Sheet manufacturer | 290 - 310 | 3.35 - 3.59 | 13.61 - 14.57 |
Titanium Alloys Gr 1 Plate manufacturer | 310 - 360 | 3.59 - 4.17 | 14.57 - 16.98 |
