Super Duplex Werkstoff nr. 1.4410 ASTM A815 Buttweld Fittings
By using abilities of our accomplished experts, we at Ranflex Metals are manufacturing, exporting and supplying a comprehensive assortment of Super Duplex Steel 2507 Buttweld Fittings. With genuine aims to protect and elevate our notoriety in the business sector, Ranflex Metals are putting forth an exhaustive arrangement of Super Duplex Steel 2507 Buttweld Fittings. Our offered extent is made in a manner that we can keep up internationally acknowledged guidelines. Inferable from their astounding elements, these Super Duplex Steel 2507 Buttweld Fittings are to a great extent requested for associating two pipes. Furthermore, customers can benefit the offered range from us in an extensive variety of particulars.

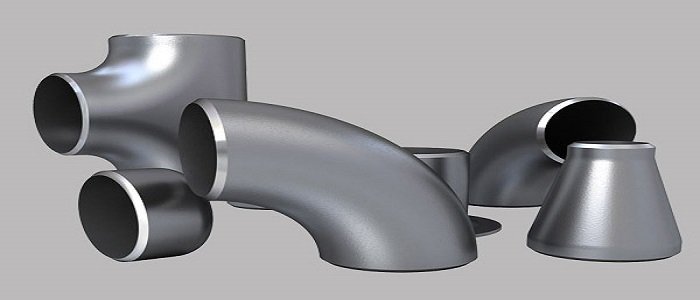

We offer these Super Duplex Steel 2507 Butt Weld Fittings in various sorts, for example, Super Duplex Steel 2507 Seamless Butt weld pipe fittings, Super Duplex Steel 2507 Welded Butt weld pipe fittings, Super Duplex Steel 2507 Elbow (45 deg, 90 deg, 180 deg), Super Duplex Steel 2507 Equal and Unequal (diminishing) Tees, Super Duplex Steel 2507 Equal and Unequal (decreasing) Cross, Super Duplex Steel 2507 Concentric and Eccentric Reducer, Super Duplex Steel 2507 Long and Short Stubends, and Super Duplex Steel 2507 Pipe End Caps.
Super Duplex Steel 2507 Buttweld Fittings are designed in such a way that it possesses features such as Flawless finish, Sturdy design and it is Rust proof. We at Ranflex Metals makes sure that our product goes through various level of quality phase and ensures on time delivery of the product.
Being the emerging leader of this field, we completely value our responsibility and work hard to supply only supreme quality Buttweld Pipe Fitting. These are used in petrochemical industries, automotive, refineries and mechanical industries. It is a perfect use for tight hold on joints and sturdy support. To cater to industry defined quality parameters these components are examined thoroughly by our quality experts upon defined parameters of quality.
Ranflex Metals exports Super Duplex Steel 2507 Buttweld Fittings to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Phillipines.
Specification of Super Duplex Steel Butt Weld Fittings :
| Specifications : | ASTM / ASME A815 / SA815 |
| Dimensions : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Type : | Seamless / Welded / Fabricated |
| Bending Radius : | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Thickness : | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Grade : | Super Duplex Stainless 2207 (UNS S 32750, S 32760 , S 32950) , F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Value Added Services : | Electro Polish |
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
Dimensions of Super Duplex Steel Butt Weld Fittings :
| Nominal Pipe Size |
Outside Diameter |
90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
| (mm) | (inches) | Center to Face (inches) |
Center to Face (inches) |
Center to Face (inches) |
Radius (inches) |
Center to Center (inches) |
Back to face (inches) |
|
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Super Duplex Steel Tees, Caps, Stub Ends and Straight Crosses :
| Nominal Pipe Size |
Outside Diameter |
Caps | Straight Tees | Straight Crosses | Stub Ends | |||
|---|---|---|---|---|---|---|---|---|
| (inches) | (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Super Duplex Steel Reducers :
| Nominal Pipe Size |
Outside Diameter |
Reducers | ||
|---|---|---|---|---|
| Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) |
Concentric & Eccentric Length (inches) |
| 1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
| 3/8 | 1 1/2 | |||
| 3/4 | 26.7 | 1.050 | 3/8 | 2 |
| 1/2 | 2 | |||
| 1 | 33.4 | 1.315 | 3/8 | 2 |
| 1/2 | 2 | |||
| 3/4 | 2 | |||
| 1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
| 3/4 | 2 | |||
| 1 | 2 | |||
| 1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
| 3/4 | 2 1/2 | |||
| 1 | 2 1/2 | |||
| 1 1/4 | 2 1/2 | |||
| 2 | 60.3 | 2.375 | 3/4 | 3 |
| 1 | 3 | |||
| 1 1/4 | 3 | |||
| 1 1/2 | 3 | |||
| 2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
| 1 1/4 | 3 1/2 | |||
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 3 | 88.9 | 3.500 | 1 | 3 1/2 |
| 1 1/2 | 3 1/2 | |||
| 2 | 3 1/2 | |||
| 2 1/2 | 3 1/2 | |||
| 3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
| 1 1/2 | 4 | |||
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 4 | 114.3 | 4.500 | 1 1/2 | 4 |
| 2 | 4 | |||
| 2 1/2 | 4 | |||
| 3 | 4 | |||
| 3 1/2 | 4 | |||
| 5 | 141.3 | 5.563 | 2 | 5 |
| 2 1/2 | 5 | |||
| 3 | 5 | |||
| 3 1/2 | 5 | |||
| 4 | 5 | |||
| 6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
| 3 | 5 1/2 | |||
| 3 1/2 | 5 1/2 | |||
| 4 | 5 1/2 | |||
| 5 | 5 1/2 | |||
| 8 | 219.1 | 8.625 | 3 | 6 |
| 3 1/2 | 6 | |||
| 4 | 6 | |||
| 5 | 6 | |||
| 6 | 6 | |||
| 10 | 273.1 | 10.750 | 4 | 7 |
| 5 | 7 | |||
| 6 | 7 | |||
| 8 | 7 | |||
| 12 | 323.9 | 12.750 | 5 | 8 |
| 6 | 8 | |||
| 8 | 8 | |||
| 10 | 8 | |||
Applications :
- Processing plant for sulphuric, phosphoric and acetic acids
- Pulp and paper processing
- Components in gas scrubbing plants
- Seawater cooling equipment
- Oil refinery components
- Wires in electrostatic precipitators
