Ranflex Metals is a manufacturer and supplier of best quality finishes of 254 SMO Pipes and Tubes in the industry. 254 is one of the hardest materials of austenitic stainless steel. We focus our strength in supplying and manufacturing different size and grades of 254 SMO Pipes and Tubes.
SMO 245 Pipes and Tubes are designed for maximum resistance to corrosion. By means of chemical composition of high molybdenum and chrome, it is perfect for use in high chloride environments. It is time and again used in areas where 316 or 317l have failed to corrosion. It provides the most superior resistance to chloride. It is habitually used as a less pricey replacement for titanium and nickel based alloys.
Wiring in electrostatic precipitators, Oil refinery components, Seawater cooling devices, Gas scrubbing plants, Pulp and paper processing industries, Acetic, phosphoric and sulphuric acid processing plants.

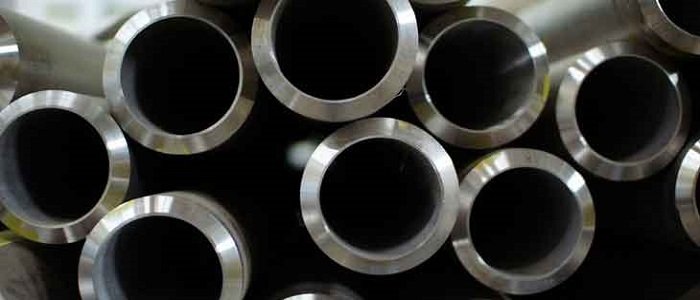

Ranflex Metals exports Stainless Steel SMO 254 Seamless & Welded Pipes & Tubes to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Phillipines.
Stainless Steel Pipe Specification | ASTM A312, A269, A213, A249, A358, UNS S31254 |
SS Tube Specification | ASTM A312, A269, A213, A249, A358, UNS S31254 |
Pipe Size | 1/8” NB to 24” NB, 1/4” OD to 24” OD sizes. |
Tube Size | 1/2" OD to 8" OD |
Thickness Range | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
Type | Seamless / ERW / Welded / Fabricated Pipes |
Form | Round, Square, Rectangular, Oval, Hydraulic Etc |
Length | Single Random, Double Random & Required Length |
End | Plain End, Beveled End, Treaded |
End Protection | Plastic Caps |
Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements |
Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
Inspection, Test Reports | Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports |
Packing | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
Specials | Sizes and Specifications other than above can be manufactured on request |
STANDARD | WERKSTOFF NR. | UNS | SIS | AFNOR | EN |
---|---|---|---|---|---|
254 SMO | 1.4547 | S31254 | 2378 | Z1 CNDU 20.18.06Az | X1CrNiMoCuN20-18-7 |
Grade | Ni | Cr | Mo | Cu | N | C | Mn | Si | P | S |
---|---|---|---|---|---|---|---|---|---|---|
SMO 254 | 17.5 - 18.5 | 19.5 - 20.5 | 6 - 6.5 | 0.5 - 1 | 0.18 - 0.22 | 0.02 max | 1 max | 0.8 max | 0.03 max | 0.01 max |
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
---|---|---|---|
SMO 254 | 650 | 300 | 35 |
Nominal pipe Size(NPS) | Outside Diameter | Nominal Wall Thickness | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sch5s | SCH10S | Sch20 | Sch30 | Sch40 | STD | Sch80 | XS | Sch160 | XXS | ||||
8 | 1/4 | 13.7 | 0.54 | – | 1.65 | – | 1.85 | 2.24 | 2.24 | 3.02 | 3.02 | – | – |
10 | 3/8 | 17.1 | 0.675 | – | 1.65 | – | 1.85 | 2.31 | 2.31 | 3.20 | 3.20 | – | – |
15 | 1/2 | 21.3 | 0.84 | 1.65 | 2.11 | – | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 |
20 | 3/4 | 26.7 | 1.05 | 1.65 | 2.11 | – | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 |
25 | 1 | 33.4 | 1.32 | 1.65 | 2.77 | – | 2.90 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 |
32 | 1.1/4 | 42.2 | 1.66 | 1.65 | 2.77 | – | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | 9.70 |
40 | 1.1/2 | 48.3 | 1.90 | 1.65 | 2.77 | – | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | 10.15 |
50 | 2 | 60.3 | 2.38 | 1.65 | 2.77 | – | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | 11.07 |
65 | 2.1/2 | 73.0 | 2.88 | 2.11 | 3.05 | – | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | 14.02 |
80 | 3 | 88.9 | 3.50 | 2.11 | 3.05 | – | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | 15.24 |
90 | 3.1/2 | 101.6 | 4.00 | 2.11 | 3.05 | – | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | – | – |
100 | 4 | 114.3 | 4.50 | 2.11 | 3.05 | – | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 13.49 | 17.12 |
125 | 5 | 141.3 | 5.56 | 2.77 | 3.40 | – | – | 6.55 | 6.55 | 9.53 | 9.53 | 15.88 | 19.05 |
150 | 6 | 168.3 | 6.62 | 2.77 | 3.40 | – | – | 7.11 | 7.11 | 10.97 | 10.97 | 18.26 | 21.96 |
200 | 8 | 219.1 | 8.62 | 2.77 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 12.70 | 12.70 | 23.01 | 22.23 |
250 | 10 | 273.0 | 10.75 | 3.40 | 4.19 | 6.35 | 7.80 | 9.27 | 9.27 | 15.09 | 12.70 | 28.58 | 25.40 |
300 | 12 | 323.8 | 12.75 | 3.96 | 4.57 | 6.35 | 8.38 | 10.13 | 9.53 | 17.48 | 12.70 | 33.32 | 25.40 |
350 | 14 | 355.6 | 14 | 3.96 | 4.78 | 7.92 | 9.53 | 11.13 | 9.53 | 19.05 | 12.70 | 35.71 | – |
400 | 16 | 406.4 | 16 | 4.19 | 4.78 | 7.92 | 9.53 | 12.70 | 9.53 | 21.44 | 12.70 | 40.49 | – |
450 | 18 | 457 | 18 | 4.19 | 4.78 | 7.92 | 11.13 | 14.27 | 9.53 | 23.83 | 12.70 | 45.24 | – |
500 | 10 | 508 | 20 | 4.78 | 5.54 | 9.53 | 12.70 | 15.09 | 9.53 | 26.19 | 12.70 | 50.01 | – |
550 | 22 | 559 | 22 | 4.78 | 5.54 | 9.53 | 12.70 | – | 9.53 | 28.58 | 12.70 | 53.98 | – |
600 | 24 | 610 | 24 | 5.54 | 6.35 | 9.53 | 14.27 | 17.48 | 9.53 | 30.96 | 12.70 | 59.54 | – |
650 | *26 | 660 | 26 | – | – | – | – | – | 9.53 | – | 12.70 | – | – |
700 | *28 | 711 | 28 | – | – | – | – | – | 9.53 | – | 12.70 | – | – |
750 | *30 | 762 | 30 | – | – | – | – | – | 9.53 | – | 12.70 | – | – |
800 | *32 | 813 | 32 | – | – | – | – | – | 9.53 | – | 12.70 | – | – |
ASTM A312 SS SMO 254 Pipe OD mm |
Pipe WT mm |
in. | Sch | Kg/m |
---|---|---|---|---|
13.72 | 1.65 | 1/4 | 10S | 0.50 |
13.72 | 2.24 | 1/4 | 40S | 0.64 |
13.72 | 3.02 | 1/4 | 80S | 0.81 |
17.15 | 1.65 | 3/8 | 10S | 0.64 |
17.15 | 2.31 | 3/8 | 40S | 0.86 |
17.15 | 3.20 | 3/8 | 80S | 1.12 |
21.34 | 2.11 | 1/2 | 10S | 1.02 |
21.34 | 2.77 | 1/2 | 40S | 1.29 |
21.34 | 3.73 | 1/2 | 80S | 1.65 |
26.67 | 2.11 | 3/4 | 10S | 1.30 |
26.67 | 2.87 | 3/4 | 40S | 1.71 |
26.67 | 3.91 | 3/4 | 80S | 2.23 |
33.40 | 2.77 | 1 | 10S | 2.13 |
33.40 | 3.38 | 1 | 40S | 2.54 |
33.40 | 4.55 | 1 | 80S | 3.29 |
33.40 | 6.352) | 1 | 160 | 4.30 |
42.16 | 2.77 | 1¼ | 10S | 2.73 |
42.16 | 3.56 | 1¼ | 40S | 3.44 |
42.16 | 4.85 | 1¼ | 80S | 4.53 |
42.16 | 6.352) | 1¼ | 160 | 5.69 |
48.26 | 2.77 | 1½ | 10S | 3.16 |
48.26 | 3.68 | 1½ | 40S | 4.11 |
48.26 | 5.08 | 1½ | 80S | 5.49 |
60.33 | 2.77 | 2 | 10S | 3.99 |
60.33 | 3.91 | 2 | 40S | 5.52 |
60.33 | 5.54 | 2 | 80S | 7.60 |
60.33 | 8.742) | 2 | 160 | 11.29 |
73.03 | 3.05 | 2½ | 10S | 5.35 |
73.03 | 5.16 | 2½ | 40S | 8.77 |
73.03 | 7.01 | 2½ | 80S | 11.59 |
88.90 | 3.05 | 3 | 10S | 6.56 |
88.90 | 5.49 | 3 | 40S | 11.47 |
88.90 | 7.62 | 3 | 80S | 15.51 |
88.90 | 11.132) | 3 | 160 | 21.67 |
101.60 | 3.05 | 3½ | 10S | 7.53 |
101.60 | 5.74 | 3½ | 40S | 13.78 |
101.60 | 8.08 | 3½ | 80S | 18.92 |
114.30 | 3.05 | 4 | 10S | 8.50 |
114.30 | 6.02 | 4 | 40S | 16.32 |
114.30 | 8.56 | 4 | 80S | 22.67 |
114.30 | 13.492) | 4 | 160 | 34.05 |
141.30 | 6.55 | 5 | 40S | 22.10 |
141.30 | 9.53 | 5 | 80S | 31.44 |
141.30 | 15.882) | 5 | 160 | 49.87 |
168.28 | 3.4 | 6 | 10S | 14.04 |
168.28 | 7.11 | 6 | 40S | 28.69 |
168.28 | 10.97 | 6 | 80S | 43.21 |
168.28 | 14.27 | 6 | 120 | 54.75 |
168.28 | 18.262) | 6 | 160 | 68.59 |
219.08 | 8.18 | 8 | 40S | 43.20 |
219.08 | 12.7 | 8 | 80S | 65.63 |
219.08 | 18.23 | 8 | 120 | 91.30 |
219.08 | 23.012) | 8 | 160 | 112.97 |
Wall Thickness | Stainless Steel SMO 254 Tube Sizes ( O.D.) Sizes ( O.D.) |
---|---|
.010 | 1/16" , 1/8" , 3/16" |
.020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
.012 | 1/8" |
.016 | 1/8" , 3/16" |
.028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
.035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
.049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
.065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
.083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
.095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
.109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
.120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
.125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
.134 | 1" |
.250 | 3" |
.375 | 3 1/2" |
Nominal Pipe Size | Outside Diameter | Schedule 5 S | Schedule 10 S | Schedule 20 S | Schedule 40 S | Schedule 80 S | Schedule 160 S | XXS | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
mm | inch | mm | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) |
3 | 1/8 | 10.3 | 1.2 | 0.20 | 1.24 | 0.28 | 1.5 | 0.33 | 1.73 | 0.37 | 2.41 | 0.47 | - | - | - | - |
6 | 1/4 | 13.7 | 1.2 | 0.37 | 1.65 | 0.49 | 2.00 | 0.58 | 2.24 | 0.630 | 3.02 | 0.80 | - | - | - | - |
10 | 3/8 | 17.1 | 1.2 | 0.47 | 1.65 | 0.63 | 2.00 | 0.74 | 2.31 | 0.840 | 3.20 | 1.10 | - | - | - | - |
15 | 1/2 | 21.3 | 1.65 | 0.80 | 2.11 | 1.00 | 2.30 | 1.07 | 2.77 | 1.27 | 3.73 | 1.62 | 4.75 | 1.94 | 7.47 | 2.55 |
20 | 3/4 | 26.7 | 1.65 | 1.03 | 2.11 | 1.28 | 2.55 | 1.52 | 2.87 | 1.69 | 3.91 | 2.20 | 5.56 | 2.90 | 7.82 | 3.64 |
25 | 1 | 33.4 | 1.65 | 1.30 | 2.77 | 2.09 | 2.55 | 1.94 | 3.38 | 2.50 | 4.55 | 3.24 | 6.35 | 4.24 | 9.09 | 5.45 |
32 | 1.1/4 | 42.2 | 1.65 | 1.65 | 2.77 | 2.70 | 3.00 | 2.90 | 3.56 | 3.39 | 4.85 | 4.47 | 6.35 | 5.61 | 9.70 | 7.77 |
40 | 1.1/2 | 48.3 | 1.65 | 1.91 | 2.77 | 3.11 | 3.00 | 3.55 | 3.68 | 4.05 | 5.08 | 5.41 | 7.14 | 7.25 | 11.1 | 10.18 |
50 | 2 | 60.3 | 1.65 | 2.40 | 2.77 | 3.93 | 3.00 | 4.24 | 3.91 | 5.44 | 5.54 | 7.48 | 8.74 | 11.11 | 11.07 | 13.44 |
65 | 2.1/2 | 73.0 | 2.11 | 3.69 | 3.05 | 5.26 | 4.00 | 6.81 | 5.16 | 8.63 | 7.01 | 11.41 | 9.53 | 14.91 | 14.02 | 20.39 |
80 | 3 | 88.9 | 2.11 | 4.51 | 3.05 | 6.45 | 4.00 | 8.37 | 5.49 | 11.29 | 7.62 | 15.27 | 11.1 | 21.30 | 15.24 | 27.68 |
100 | 4 | 114.3 | 2.11 | 5.84 | 3.05 | 8.36 | 4.50 | 12.18 | 6.02 | 16.07 | 8.56 | 22.32 | 13.49 | 33.54 | 17.12 | 41.03 |
125 | 5 | 141.3 | 2.77 | 9.47 | 3.40 | 11.57 | 5.00 | 16.80 | 6.55 | 21.8 | 9.53 | 30.97 | 15.88 | 49.11 | 19.05 | 57.43 |
150 | 6 | 168.3 | 2.77 | 11.32 | 3.40 | 13.84 | 6.35 | 25.36 | 7.11 | 28.26 | 10.97 | 42.56 | 18.25 | 67.53 | 21.95 | 79.22 |
200 | 8 | 219.1 | 2.77 | 14.79 | 3.76 | 19.96 | 6.35 | 33.31 | 8.18 | 42.55 | 12.7 | 64.64 | 23.01 | 111.27 | 22.23 | 107.92 |
250 | 10 | 273.1 | 3.40 | 22.63 | 4.19 | 27.78 | 6.35 | 41.77 | 9.27 | 60.31 | 12.7 | 96.01 | 28.58 | 172.33 | 25.40 | 155.15 |
300 | 12 | 323.8 | 3.96 | 31.25 | 4.57 | 36.00 | 6.35 | 49.7 | 9.53 | 73.88 | 12.7 | 132.05 | 33.32 | 238.76 | 25.40 | 186.97 |
350 | 14 | 355.6 | 3.96 | 34.36 | 4.78 | 41.3 | 7.92 | 67.80 | 11.13 | 94.59 |
28 | .028" Thick |
035 | .035" Thick |
039 | .039" Thick |
049 | .049" Thick |
065 | .065" Thick |
083 | .083" Thick |
109 | .109" Thick |
NPS | Outside Diameter | Wall Thickness | Weight | Weight | |||
in | mm | in | mm | Sched | kg/Mtr | Lb/ft | |
1/2″ | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
0.147 | 3.734 | 80 STD | 1.621 | 1.088 | |||
3/4″ | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
0.154 | 3.912 | 80 STD | 2.195 | 1.474 | |||
1″ | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
0.179 | 4.547 | 80 STD | 3.325 | 2.172 | |||
1 1/4″ | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
0.191 | 4.851 | 80 STD | 4.464 | 2.997 | |||
1 1/2″ | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
0.200 | 5.080 | 80 STD | 5.409 | 3.361 | |||
2″ | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
0.218 | 5.537 | 80 STD | 7.480 | 5.022 | |||
2 1/2″ | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
0.276 | 7.010 | 80 STD | 11.411 | 7.661 | |||
3″ | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
0.300 | 7.620 | 80 STD | 15.272 | 10.253 | |||
4″ | 4.500 | 114 | 0.237 | 6.020 | 16.073 | 10.790 | |
0.337 | 8.560 | 22.318 | 14.983 | ||||
6″ | 6.625 | 168 | 0.188 | 4.775 | 19.252 | 12.924 | |
0.203 | 5.516 | 20.739 | 13.923 | ||||
0.219 | 5.563 | 22.318 | 14.983 | ||||
0.250 | 6.350 | 25.354 | 17.021 | ||||
0.280 | 7.112 | 40 STD | 58.263 | 18.974 | |||
0.312 | 7.925 | 31.334 | 21.036 | ||||
0.375 | 9.525 | 37.285 | 25.031 | ||||
0.432 | 10.973 | 80 XHY | 42.561 | 28.573 | |||
0.500 | 12.700 | 48.719 | 32.708 | ||||
8″ | 8.625 | 219 | 0.188 | 4.775 | 25.233 | 16.940 | |
0.203 | 5.156 | 27.198 | 18.259 | ||||
0.219 | 5.563 | 29.286 | 19.661 | ||||
0.250 | 6.350 | 20 | 33.308 | 22.361 | |||
0.277 | 7.036 | 30 | 36.786 | 24.696 | |||
0.322 | 8.179 | 40 | 42.352 | 28.554 | |||
0.375 | 9.525 | 49.216 | 33.041 | ||||
0.406 | 10.312 | 60 | 53.085 | 35.638 | |||
0.500 | 12.700 | 80 XHY | 64.627 | 43.388 | |||
10″ | 10.750 | 273 | 0.188 | 4.775 | 31.588 | 21.207 | |
0.219 | 5.563 | 36.689 | 24.631 | ||||
0.250 | 6.350 | 20 | 41.759 | 28.035 | |||
0.307 | 7.798 | 30 | 51.002 | 34.240 | |||
0.344 | 8.738 | 56.946 | 38.231 | ||||
0.365 | 9.271 | 40 STD | 63.301 | 40.483 | |||
0.438 | 11.125 | 71.852 | 48.238 | ||||
0.500 | 12.700 | 60 XHY | 81.530 | 54.735 | |||
0.594 | 15.088 | 80 | 95.969 | 64.429 | |||
12″ | 12.750 | 324 | 0.188 | 4.775 | 37.570 | 25.222 | |
0.219 | 5.563 | 43.657 | 29.309 | ||||
0.250 | 6.350 | 49.713 | 33.375 | ||||
0.281 | 7.137 | 55.739 | 37.420 | ||||
0.312 | 7.925 | 61.735 | 41.445 | ||||
0.375 | 9.525 | 73.824 | 49.562 | ||||
0.406 | 10.312 | 79.727 | 53.525 | ||||
0.500 | 12.700 | 97.438 | 65.415 | ||||
0.562 | 14.275 | 108.966 | 73.154 | ||||
14″ | 14.000 | 356 | 0.188 | 4.775 | 41.308 | 27.732 | |
0.219 | 5.563 | 48.012 | 32.233 | ||||
0.250 | 6.350 | 20 | 54.685 | 36.713 | |||
0.281 | 7.137 | 61.327 | 41.172 | ||||
0.312 | 7.925 | 67.939 | 45.611 | ||||
0.375 | 9.525 | STD | 81.281 | 54.568 | |||
0.438 | 11.125 | 40 | 94.498 | 63.441 | |||
0.500 | 12.700 | XHY | 107.381 | 72.090 | |||
0.625 | 15.875 | 132.983 | 89.278 | ||||
16” | 16.000 | 406 | 0.188 | 4.775 | 47.290 | 21.748 | |
0.219 | 5.563 | 54.980 | 36.910 | ||||
0.250 | 6.350 | 10 | 62.639 | 42.053 | |||
0.281 | 7.137 | 70.268 | 47.174 | ||||
0.312 | 7.925 | 20 | 77.866 | 52.275 | |||
0.344 | 8.738 | 85.677 | 57.519 | ||||
0.375 | 9.525 |
30 STD |
93.213 | 62.578 | |||
0.438 | 11.125 | 108.433 | 72.797 | ||||
0.500 | 12.700 |
40 XHY |
123.289 | 82.770 | |||
18″ | 18.000 | 457 | 0.219 | 5.563 | 61.948 | 41.588 | |
0.250 | 6.350 | 70.593 | 47.393 | ||||
0.281 | 7.137 | 79.208 | 53.176 | ||||
0.312 | 7.925 | 20 | 87.792 | 58.939 | |||
0.375 | 9.525 | STD | 105.144 | 70.588 | |||
0.438 | 11.125 | 30 | 122.369 | 82.152 | |||
0.500 | 12.700 | XHY | 139.198 | 93.450 | |||
0.562 | 14.275 | 40 | 155.904 | 104.666 | |||
0.625 | 15.875 | 172.754 | 115.978 | ||||
20″ | 20.000 | 508 | 0.250 | 6.350 | 78.547 | 52.733 | |
0.282 | 7.163 | 88.458 | 59.386 | ||||
0.312 | 7.925 | 97.719 | 65.604 | ||||
0.375 | 9.525 | 20 STD | 117.075 | 78.598 | |||
0.438 | 11.125 | 136.305 | 91.508 | ||||
0.500 | 12.700 | 30 XHY | 155.106 | 104.130 | |||
0.594 | 15.088 | 40 | 183.378 | 123.110 | |||
0.625 | 15.875 | 192.640 | 129.328 | ||||
0.688 | 17.475 | 211.368 | 141.901 | ||||
24″ | 24.000 | 610 | 0.250 | 6.350 | 94.456 | 63.413 | |
0.281 | 7.137 | 106.029 | 71.183 | ||||
0.312 | 7.925 | 117.573 | 18.932 | ||||
0.375 | 9.525 | 20 STD | 140.938 | 64.618 | |||
0.438 | 11.125 | 164.176 | 110.219 | ||||
0.500 | 12.700 | XHY | 186.923 | 125.490 | |||
0.625 | 15.875 | 232.410 | 156.028 | ||||
0.688 | 17.475 | 40 | 255.148 | 171.293 | |||
0.750 | 19.050 | 277.401 | 186.233 | ||||
30″ | 30.000 | 762 | 0.250 | 6.350 | 118.318 | 79.433 | |
0.281 | 7.137 | 132.851 | 89.189 | ||||
0.312 | 7.925 | 10 | 147.353 | 98.925 | |||
0.375 | 9.525 | STD | 176.731 | 118.648 | |||
0.438 | 11.125 | 205.983 | 138.286 | ||||
0.500 | 12.700 | 20 XHY | 234.647 | 157.530 | |||
0.625 | 15.875 | 30 | 292.066 | 196.078 | |||
0.688 | 17.475 | 320.817 | 215.380 | ||||
0.750 | 19.050 | 348.988 | 234.293 | ||||
36″ | 36.000 | 914 | 0.250 | 6.350 | 142.180 | 95.453 | |
0.281 | 7.137 | 159.672 | 107.196 | ||||
0.312 | 7.925 | 10 | 177.133 | 118.918 | |||
0.375 | 9.525 | STD | 215.525 | 142.678 | |||
0.438 | 11.125 | 247.790 | 166.353 | ||||
0.500 | 12.700 | 20 XHY | 282.372 | 198.570 | |||
0.625 | 15.875 | 351.723 | 236.128 | ||||
0.688 |
17.475 | 386.487 | 259.467 | ||||
0.750 |
19.050 | 420.576 | 282.353 | ||||
42″ | 42.000 | 1067 | 0.312 | 7.925 | 206.914 | 138.911 | |
0.375 | 9.525 | STD | 248.319 | 166.708 | |||
0.500 | 12.700 | XHY | 33.097 | 221.610 | |||
0.750 | 19.050 | 492.163 | 330.413 | ||||
48″ | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
0.438 | 11.125 | 331.404 | 222.487 | ||||
0.500 | 12.700 | XHY | 377.822 | 253.650 | |||
0.750 | 19.050 | 563.750 | 378.473 | ||||
0.875 | 22.225 | 655.969 | 440.383 |
Stainless Steel SMO 254 Pipe OD | ASTM A312 TPSMO 254 Pipe Tolerance |
---|---|
4 to 35mm | +/- 0.08mm |
35 to 38mm | +/- 0.15mm |
38 to 60mm | +/- 0.20mm |
60 and above | +/- 0.25mm |
Price of SS SMO 254 Pipes & Tubess manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
---|---|---|---|
SS SMO 254 stainless steel pipe | 126.12 | 2.82 | 2.52 |
SMO 254 thick wall seamless stainless steel pipe | 119.14 | 2.74 | 2.46 |
SMO 254 thick wall seamless stainless steel tube | 126.14 | 2.84 | 2.54 |
stainless steel SMO 254 stainless steel pipe manufacturer | 119.14 | 2.74 | 2.46 |
SMO 254 round square rectangular stainless steel pipe | 125.06 | 2.76 | 2.38 |
SMO 254 round square rectangular stainless steel tube | 136.10 | 2.94 | 3.62 |
