Stainless Steel Gr 1 industrial Perforated Sheets, Werkstoff Nr. 1.4301 high tensile Perforated Sheets, X5Crni18-10 industrial Perforated Sheets, ASME SA193 Hot Forged Perforated Sheets, ASTM A193 industrial Perforated Sheets.
Designed with perfection, this Perforated Sheet is extensively used in automobile industry and also used for offering insulation of rooms from sound. High grade of the component is used for the fabrication that further provides excellent durability and resistance against corrosion. Our customers can avail this sheet in different dimensions, shapes and apertures at market leading prices. The main purpose of using this sheet is that it is used for filtering and sugar screening.
Stainless Steel Gr 1 industrial Perforated Sheets trader, ASTM A193 industrial Perforated Sheets supplier, JIS SUS Gr 1 high tensile Perforated Sheets distributor, high tensile Perforated Sheets retailer, Stainless Steel 2332 industrial Perforated Sheets exporter, ASTM A193 industrial Perforated Sheets dealer, JIS SUS Gr 1 high tensile Perforated Sheets price list in India.
Features of Perforated Sheet :
- Sturdy design
- High mechanical strength
- Optimum thickness
- Fine finish
EN 58E industrial Perforated Sheets, ASTM A193 Hot Forged Perforated Sheets, JIS SUS Gr 1 industrial Perforated Sheets, BS Gr 1S31 Hot Forged Perforated Sheets, X5Crni18-10 high tensile Perforated Sheets, EN 58E high tensile Perforated Sheets.
Specification of Stainless Steel Perforated Sheets :
| Specifications: | ASTM A240 / ASME SA240 |
| Thickness: | 4 mm To 100 mm |
| Length: | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm，or as required |
| Width: | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,or as required |
| Grade | 301,302,303,304,304L,304N,309,309S,310,316,316L,321,347 |
| Application | Building industry,architectural decoration,elevators,building doors,panels and so on. |
| Standard: | ASTM，AISI，JIS，GB， DIN，EN |
| Surface: | BA，2B，NO.1，NO.4，4K，HL，8K |
| Certification: | ISO, SGS，BV |
| Technique: | Cold Rolled Hot Rolled |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils |
Equivalent Grades of Stainless Steel Perforated Sheets :
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| SS 304 | 1.4301 | S30400 |
| SS 304L | 1.4306 / 1.4307 | S30403 |
| SS 304H | 1.4301 | S30409 |
| SS 309S | 1.4833 | S30908 |
| SS 309H | 1.4833 | S30909 |
| SS 310 | 1.4841 | S31000 |
| SS 310S | 1.4845 | S31008 |
| SS 310H | - | S31009 |
| SS 316 | 1.4401 / 1.4436 | S31600 |
| SS 316L | 1.4404 / 1.4435 | S31603 |
| SS 316H | 1.4401 | S31609 |
| SS 316Ti | 1.4571 | S31635 |
| SS 317 | 1.4449 | S31700 |
| SS 317L | 1.4438 | S31703 |
| SS 321 | 1.4541 | S32100 |
| SS 321H | 1.4878 | S32109 |
| SS 347 | 1.4550 | S34700 |
| SS 347H | 1.4961 | S34709 |
| SS 409 | 1.4512 | S40900 |
| SS 409L | 1.4512 | S40903 |
| SS 409M | – | S40920 |
| SS 410 | 1.4006 | S41000 |
| SS 430 | 1.4016 | S43000 |
| SS 431 | 1.4057 | S43100 |
| SS 439 | 1.4510 | S43035 |
| SS 440 | 1.4125 | S44000 |
| SS 904L | 1.4539 | N08904 |
| SS 17-4 PH | 1.4542 | S17400 |
| SS 253 MA | 1.4835 | S30815 |
| SS SMO 254 | 1.4547 | S31254 |
Chemical Composition of Stainless Steel Perforated Sheets :
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | - | 8 – 11 | - |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | - | 8 – 13 | - |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | - | 8 – 10.5 | - |
| SS 309 | 0.20 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 22.0 – 24.0 | - | 12.0 – 15.0 | - |
| SS 309S | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 22.0 – 24.0 | 0.75 max | 12.0 – 15.0 | - |
| SS 309H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 22.0 – 24.0 | - | 12.0 – 15.0 | - |
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24 – 26 | 0.10 max | 19 – 21 | 54.7 min |
| SS 310S | 0.08 max | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24 – 26 | 0.75 max | 19 – 21 | 53.095 min |
| SS 310H | 0.04 – 0.1 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24 – 26 | – | 19 – 21 | 53.885 min |
| SS 316 |
0.08 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
16.0 - 18.0 | 2.0 - 3.0 | 10.0 - 14.0 | 0.10 max |
|---|---|---|---|---|---|---|---|---|---|
| SS 316L |
0.03 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
16.0 - 18.0 | 2.0 - 3.0 | 10.0 - 14.0 | 0.10 max |
| SS 316TI | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 16.0- 18.0 | 2.00 - 3.00 | 10.0 - 14.0 | 0.1 max |
| SS 317 | 0.08 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 14 | - |
| SS 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | - |
| SS 321 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.03 max | 17 – 19 | - | 9 – 12 | 0.10 max |
| SS 321H | 0.04 - 0.10 | 2 max | 18 - 20 | 0.045 max | 0.03 max | 17 – 19 | - | 9 – 12 | 0.10 max |
| SS 347 | 0.08 max | 2.0 max | 0.75 max | 0.04 max | 0.30 max | min: 17.0 max: 20.0 |
- | min: 9.0 max: 13.0 |
- |
| SS 347H | 0.04 - 0.10 | 2.0 max | 0.75 max | 0.03 max | 0.30 max | min: 17.0 max: 20.0 |
- | min: 9.0 max: 13.0 |
- |
| SS 409 | 0.08 max | 1.00 max | 1.00 max | 0.045 max | 0.045 max | 11.75 -10.5 | - | 0.5 max | - |
| SS 409L | 0.03 max | 1.00 max | 1.00 max | 0.04 max | 0.02 max | 11.75 -10.5 | - | 0.5 max | - |
| SS 409M | 0.03 max | 1.5 max | 0.5 -1.5 | 0.040 max | 10.80-12.50 | 0.030 max | - | 1 max | - |
| SS 410 | 0.15 max | 1.0 max | 1.00 max | 0.040 max | 0.030 max | 11.5 – 13.5 | - | 0.50 max | - |
| SS 430 | 0.12 max | 1.0 max | 1.00 max | 0.040 max | 0.030 max | 16.0 - 18.0 | - | - | - |
| SS 430F | 0.12 max | 1.25 max | 1.00 max | 0.06 max | 0.15 max | 16.0 - 18.0 | - | - | - |
| SS 439 | 0.01 max | 0.25 max | 0.35 max | 0.02 max | 0.0015 max | 17.35 max | - | 0.200 | - |
| SS 440 | 0.95 1.20 | 1.0 max | 1.00 max | 0.040 max | 0.030 max | 16.0 - 18.0 | - | - | - |
| SS 904L | 0.020 max | 2 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | - |
| SS 17-4 PH | 0.07 max | 1 max | 1 max | 0.04 max | 0.03 max | 15-17.5 | - | 3 - 5 | - |
| SS 253 MA | 0.05 - 0.10 | 0.80 max | 1.40 - 2 | 0.040 max | 0.030 max | 20 - 22 | - | 10 - 12 | - |
| SS SMO 254 | 0.02 max | 1.0 max | 0.08 max | 0.03 max | 0.01 max | 19.5-20.5 | 6-6.5 | 17.5-18.5 | 0.18-0.22 |
JIS SUS Gr 1 industrial Perforated Sheets retailer, Titanium Stainless Steel 2332 high tensile Perforated Sheets stockyards, Titanium Stainless Steel Gr 1 industrial Perforated Sheets At Factory Price, X5Crni18-10 high tensile Perforated Sheets dealer, JIS SUS Gr 1 Hot Forged Perforated Sheets catalogue, Hot Forged Perforated Sheets stockist, EN 58E high tensile Perforated Sheets At Factory Price.
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
Dimensions of Stainless Steel Perforated Sheets :
| Sheet & Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Sheet | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled Sheet | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
ASTM A240 Stainless Steel Sheet & Plate Imperial Dimensions :
| Sheet & Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished Sheet (not brushed) | 11–24 | 60 |
| Temper rolled Sheet Mexinox only | 13–29 | 48 |
Sizes Chart of Standard Stainless Steel Perforated Sheet :
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
|---|---|---|---|---|---|
| 0.033 In. | 0.84mm | 0.055« | 0.0165-0.0198 IN. | 0.40-0.50mm | 28.00% |
| 0.045 In. | 1.14mm | 0.066« | 0.0165-0.0198 IN. | 0.40-0.50mm | 37.00% |
| 1/16 In. | 1.59mm | 3/32 In. | 0.026-0.053 IN. | 0.66-1.35mm | 41.00% |
| 1/16 In. | 1.59mm | 1/8 In. | 0.046-0.053 IN. | 1.17-1.36mm | 23.00% |
| 3/32 In. | 2.38mm | 9/64 In. | 0.054-0.065 IN. | 1.37-1.65mm | 40.30% |
| 3/32 In. | 2.38mm | 5/32 In. | 0.026-0.079 IN. | 0.66-2.00mm | 33.00% |
| 3/32 In. | 2.38mm | 1/4 In. | 0.033-0.053” | 0.84-1.35mm | 12.50% |
| 1/8 In. | 3.17mm | 3/16 In. | 0.026-0.129” | 0.80-2.89mm | 40.00% |
| 1/8 In. | 3.17mm | 7/32 In. | 0.026-0.039” | 0.66-0.99mm | 29.60% |
| 5/32 In. | 3.97mm | 3/16 IN. | 0.026-0.065” | 0.66-1.65mm | 63.00% |
| 3/16 In. | 4.76mm | 1/4 IN. | 0.026-0.079” | 0.66-2.00mm | 50.00% |
| 3/16 In. | 4.76mm | 5/16 IN. | 0.029”, 0.059” | 0.73mm, 1.50mm | 32.00% |
| 1/4 In. | 6.35mm | 5/16 IN. | 0.026-0.079” | 0.66-2.00mm | 58.00% |
| 1/4 In. | 6.35mm | 3/8 IN. | 0.012”, 0.026-0.065” | 0.30mm, 0.66-1.65mm | 40.00% |
| 1/2 In. | 12.70mm | 11/16 IN. | 0.059”, 0.121” | 1.50mm, 3.00mm; | 48.00% |
| W (mm) | P (mm) | Thick × panel size |
|---|---|---|
| 2 | 4 | 2 mm × 1 m × 2 m |
| 2 | 3.5 | 1 mm × 1 m × 2 m |
| 3 | 5 | 1 mm × 1 m × 2 m |
| 4 | 6 | 1 mm × 1 m × 2 m |
| 6 | 8 | 1 mm × 1 m × 2 m |
Weight Chart of Stainless Steel Perforated Sheets :
| Width | Alloy | Hole Pattern | Thickness | Length | Hole Size | Weight Each | Hole Center |
|---|---|---|---|---|---|---|---|
| 48″ | 304 | Staggered | 16 ga | 48″ | 3/8″ | 24.19 # | 9/16″ |
| 48″ | 304 | Staggered | 16 ga | 48″ | 1/2″ | 20.965 # | 11/16″ |
| 48″ | 304 | Staggered | 16 ga | 48″ | 3/4″ | 19.76 # | 1″ |
| 48″ | 304 | Staggered | 16 ga | 96″ | 3/8″ | 48.38 # | 9/16″ |
| 48″ | 304 | Staggered | 16 ga | 96″ | 3/4″ | 39.51 # | 1″ |
| 48″ | 304 | Staggered | 20 GA | 48″ | 1/8″ | 14.52 # | 3/16″ |
| 48″ | 304 | Staggered | 20 GA | 48″ | 3/16″ | 15.97 # | 1/4″ |
| 48″ | 304 | Staggered | 20 GA | 48″ | 1/4″ | 14.04 # | 3/8″ |
| 48″ | 304 | Staggered | 20 GA | 96″ | 1/8″ | 29.03 # | 3/16″ |
| 48″ | 304 | Staggered | 20 GA | 96″ | 1/4″ | 28.07 # | 3/8″ |
Stainless Steel Type Perforated Sheets

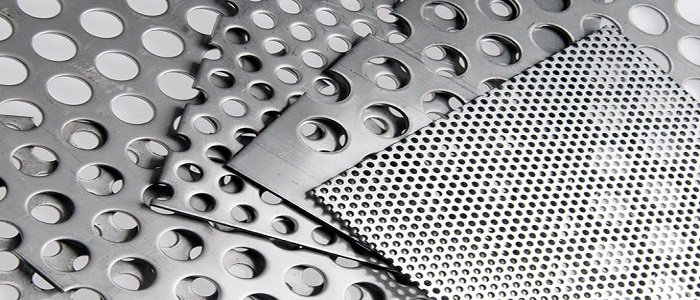

Stainless Steel Perforated Sheet

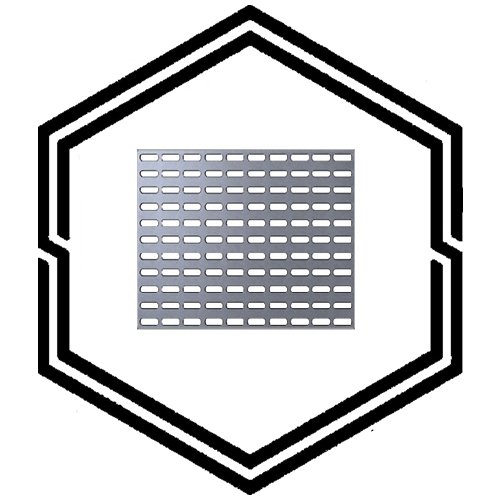

Slotted SS Perforated Sheet

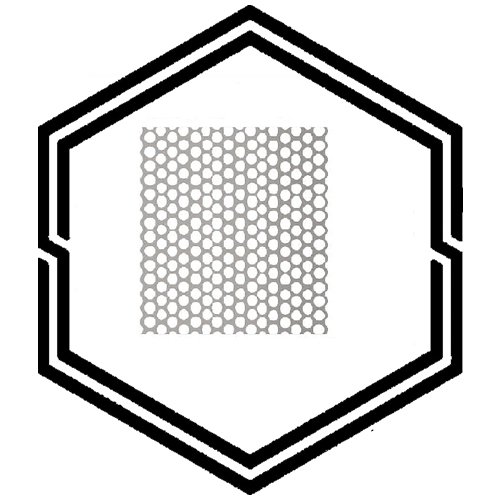

stainless steel perforated mesh sheet

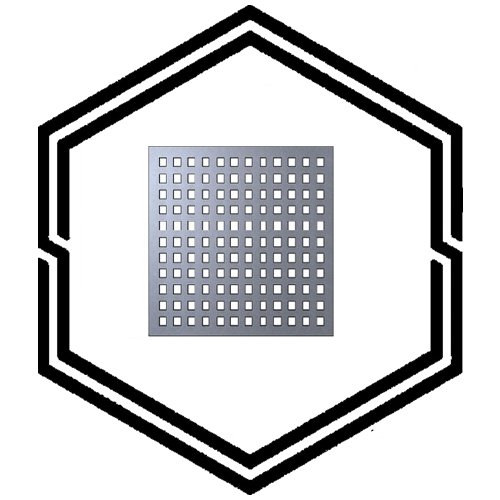

Square Hole Perforated Sheet

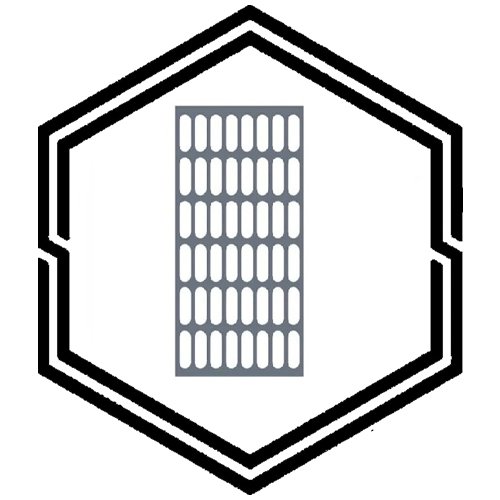

Slot Hole Perforated Sheet
Decorative Perforated Sheet

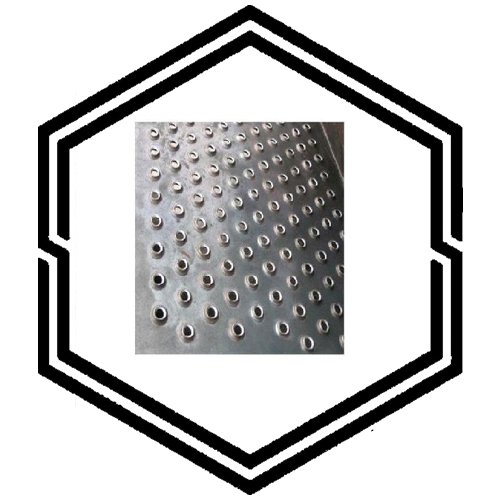

Embossed Perforated Sheet

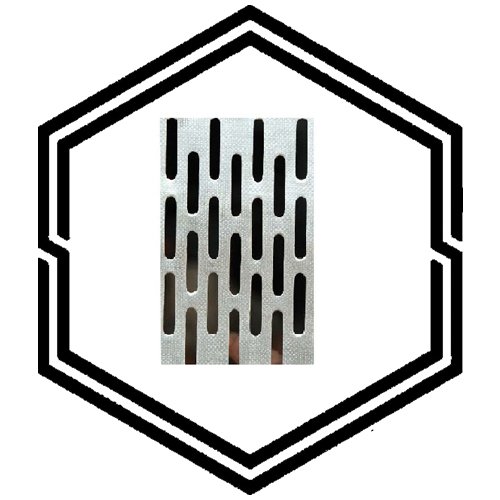

Capsule Hole Perforated Sheet

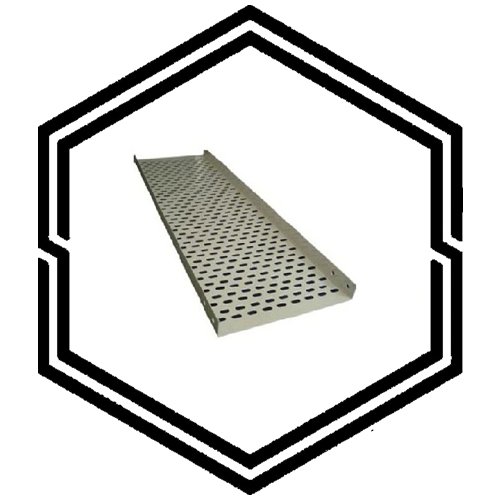

Cable Tray Perforated Sheet
Stainless Steel Perforated Sheets Price Per Kg (As per demand and manufacturer):
| Price of Stainless Steel Perforated Sheets manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
|---|---|---|---|
| Stainless Steel Perforated Sheets | 280 - 300 | 3.25 - 3.49 | 13.51 - 14.47 |
| Slotted SS Perforated Sheet | 300 - 350 | 3.49 - 4.07 | 14.47 - 16.88 |
| Stainless Steel Perforated Sheets manufacturer | 290 - 310 | 3.35 - 3.59 | 13.61 - 14.57 |
| Slotted SS Perforated Sheet manufacturer | 310 - 360 | 3.59 - 4.17 | 14.57 - 16.98 |
