Stainless Steel 316L Flanges

Table of Content

  •   What is Stainless Steel 316L Flanges
  •   Specification of Stainless Steel 316L Flanges
  •   Equivalent Grades of Stainless Steel 316L Flanges
  •   Chemical Composition of Stainless Steel 316L Flanges
  •   Mechanical Properties of Stainless Steel 316L Flanges
  •   Physical Properties of Stainless Steel 316L Flanges
  •   Dimensions of Stainless Steel 316L Flanges
  •   Thickness Chart of Stainless Steel 316L Flanges
  •   Weight Chart of Stainless Steel 316L Flanges
  •   Stainless Steel 316L Type Flanges
  •   Stainless Steel 316L Price Per Kg (As per demand and manufacturer)
  •   People also Search for Stainless Steel 316L Flanges
  •   Export Destinations
  •   Domestic Supply

    • As an acclaimed undertaking of the business, Ranflex Metals is included in offering an unfathomable cluster of Stainless Steel 316/316L Flanges as a maker, exporter, stockiest and supplier to our household and worldwide customers. Alloy 316/316L (UNS S31600/S31603) is a chromium-nickel molybdenum austenitic stainless steel created to give enhanced corrosion imperviousness to Alloy 304/304L in reasonably destructive situations. Alloy 316H (UNS S31609) is a high carbon change of Alloy 316 produced for use in raised temperature administration.

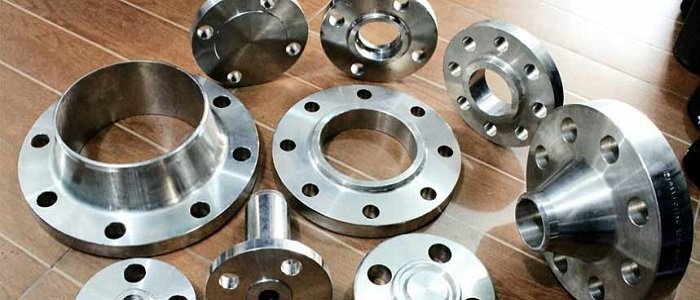

    Stainless Steel 316L Flanges

    Regarding diverse evaluations, we also offer these Flanges in various sorts, for example, SS Slip On Flanges, SS Blind Flanges, SS Weld Neck Flanges, SS Socket Weld Flanges, SS Spectacle Blind Flanges, SS Screwed/Threaded Flanges, SS Reducing Flanges, and SS Ring Type Joint Flanges (RTJ). In the interim, our costs of such spines are set remembering customers prerequisite.

    As for national and global nature of crude materials, we likewise offer these SS 316/316L/316Ti Flanges in tweaked sizes and thicknesses according to particular requests by our regarded customers at business sector driving costs.

    Specification of Stainless Steel 316L Flanges :

    Specification ASTM A182 / ASME SA182
    Supporting Flange Material Flanges Bolts, Ring Joint, Gasket
    Design For Size JIS Flanges, ANSI Flanges, BS Flanges, EN Flanges, ASA Flanges, ASME Flanges, DIN Flanges, PN Flanges
    Common Types of SS Flange Flanges 150 LB WNRF
    600# BLRF
    Class 300 RTJ
    Class 900 SORF
    Size Chart 1/2″ (15 NB) To 48″ (1200NB)
    Production Process Forged, Heat Treated and Machined
    Stainless Steel 316L Flanges Coating Flange Faces Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint, Cold and Hot Dip Galvanized
    Application Chemical Industry
    Water Pipeline Industry
    Nuclear Power Plant
    Fabrication Industry
    Natural Gas Industry
    Oil And Gas Industry
    Standards JIS Flanges, ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, ASME B16.47 (Series A, Series B) Flanges
    Pressure Rating Table Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
    Connect Type Type RF, FF, RTJ, LMF, SMF, LJF
    Flange Machining Equipment Sand-blasting machine, Press machine, Bending machine, Pushing Machine, electric bevelling machine etc

    Equivalent Grades of Stainless Steel 316L Flanges :

    STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
    SS 316L 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17‐11‐02 / Z3CND18‐14‐03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3

    Chemical Composition of Stainless Steel 316L Flanges :

    Grade C Mn Si P S Cr Mo Ni N
    SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00 68.89 min

    Mechanical Properties of Stainless Steel 316L Flanges :

    Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
    8.0 g/cm3 1399 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

    Physical Properties of Stainless Steel 316L Flanges :

    Density
    lbm/in3    		 Thermal Conductivity
    (BTU/h ft. °F)    		 Electrical
    Resistivity
    (in x 10-6)    		 Modulus of
    Elasticity
    (psi x 106    		 Coefficient of
    Thermal Expansion
    (in/in)/°F x 10-6    		 Specific Heat
    (BTU/lb/°F)    		 Melting
    Range (°F)
    0.29 at 68°F 100.8 at 68 212°F 29.1 at 68°F 29 8.9 at 32 – 212°F 0.108 at 68°F 2500 to 2550
            9.7 at 32 – 1000°F 0.116 at 200°F
            11.1 at 32 – 1500°F

    Modern Equipments

    Expert Engineers

    Efficient Factories

    Well Maintained

    Dimensions of Stainless Steel 316L Flanges :

    Stainless Steel 316 Flanges dimensions

    Pipe Normal Diam. O.D. Flange Thk. Of Flange Min Diam.
    of
    Hub    		 Diameter of Raised Face Length Hub.Y Thread Length Diam.
    of Bolt
    Circle    		 Diam.
    of Bolt
    Holes    		 Number
    of Bolts    		 Diam. of
    Bolts
    (inch)    		 KG LB
    inch dn O C X G Y T BC BH BN BD
    1/2" 15 89.00 11.20 30.20 35.10 15.70 15.70 60.50 15.80 4 1/2" 0.4 0.9
    3/4" 20 98.50 12.70 38.10 42.90 15.70 15.70 69.90 15.80 4 1/2" 0.7 1.5
    1" 25 108.00 14.20 49.30 50.80 17.50 17.50 79.30 15.80 4 1/2" 0.8 1.8
    1-1/4" 32 117.50 15.70 58.70 63.50 20.60 20.60 88.90 15.80 4 1/2" 1.2 2.6
    1-1/2" 40 127.00 17.50 65.00 73.20 22.40 22.40 98.60 15.80 4 1/2" 1.5 3.3
    2" 50 152.50 19.10 77.70 91.90 25.40 25.40 120.70 19.10 4 5/8" 2.3 5.1
    2-1/2" 65 178.00 22.40 90.40 104.60 28.40 28.40 139.70 19.10 4 5/8" 3.7 8.1
    3" 80 190.50 23.90 108.00 127.00 30.20 30.20 152.40 19.10 4 5/8" 4.1 9
    3-1/2" 90 216.00 23.90 122.20 139.70 31.80 31.80 177.80 19.10 8 5/8" 5.1 11.2
    4" 100 228.50 23.90 134.90 157.20 33.30 33.30 190.50 19.10 8 5/8" 5.9 13
    5" 125 254.00 23.90 163.60 185.70 36.60 36.60 215.90 22.40 8 3/4" 7 15.4
    6" 150 279.50 25.40 192.00 215.90 39.60 39.60 241.30 22.40 8 3/4" 8.4 18.5
    8" 200 343.00 28.40 246.10 269.70 44.50 44.50 298.50 22.40 8 3/4" 13 28.6
    10" 250 406.50 30.20 304.80 323.90 49.30 49.30 362.00 25.40 12 7/8" 18 39.5
    12" 300 482.50 31.80 365.30 381.00 55.60 55.60 431.80 25.40 12 7/8" 29 64
    14" 350 533.50 35.10 400.10 412.80 57.20 57.20 476.30 28.50 12 1" 39 86
    16" 400 597.00 36.60 457.20 469.90 63.50 63.50 539.80 28.50 16 1" 47 103
    18" 450 635.00 39.60 505.00 533.40 68.30 68.30 577.90 31.80 16 1 1/8" 57 126
    20" 500 698.50 42.90 558.80 584.20 73.20 73.20 635.00 31.80 20 1 1/8" 76 167
    24" 600 813.00 47.80 663.40 692.20 82.60 82.60 749.30 35.10 20 1 1/4" 97 214

    Size Chart 316L Stainless Steel Flanges :

    Nominal Pipe Size Outside Diameter of Flanges Thickness of Flanges Diameter of Raised Face Diameter of Hub at Base Length Thru Hub Diameter or Bore Diameter of Hub at Bevel Radius of Fillet Depth of Socket
    Welding Neck Slip-On Threaded Socket Lap Joint Slip-on Socket Lap Joint
    O Q R X Y Y Y W B H r Z
    1/2 3-1/2 7/16 1-3/8 1-3/16 1-7/8 5/8 5/8 .88 .90 .84 1/8 3/8
    3/4 3-7/8 1/2 1-11/16 1-1/2 2-1/16 5/8 5/8 1.09 1.11 1.05 1/8 7/16
    1 4-1/4 9/16 2 1-15/16 2-3/16 11/16 11/16 1.36 1.38 1.32 1/8 1/2
    1-1/4 4-5/8 5/8 2-1/2 2-5/16 2-1/4 13/16 13/16 1.70 1.72 1.66 3/16 9/16
    1-1/2 5 11/16 2-7/8 2-9/16 2-7/16 7/8 7/8 1.95 1.97 1.90 1/4 5/8
    2 6 3/4 3-5/8 3-1/16 2-1/2 1 1 2.44 2.46 2.38 5/16 11/16
    2-1/2 7 7/8 4-1/8 3-9/16 2-3/4 1-1/8 1-1/8 2.94 2.97 2.88 5/16 3/4
    3 7-1/2 15/16 5 4-1/4 2-3/4 1-3/16 1-3/16 3.57 3.60 3.50 3/8 13/16
    3-1/2 8-1/2 15/16 5-1/2 4-13/16 2-13/16 1-1/4 1-1/4 4.07 4.10 4.00 3/8 7/8
    4 9 15/16 6-3/16 5-5/16 3 1-5/16 1-5/16 4.57 4.60 4.50 7/16 15/16
    5 10 15/16 7.5/16 6-7/16 3-1/2 1-7/16 1-7/16 5.66 5.69 5.56 7/16 15/16
    6 11 1 8-1/2 7-9/16 3-1/2 1-9/16 1-9/16 6.72 6.75 6.63 1/2 1-1/16
    8 13-1/2 1-1/8 10-5/8 9-11/16 4 1-3/4 1-3/4 8.72 8.75 8.63 1/2 1-1/4
    10 16 1-3/16 12-3/4 12 4 1-15/16 1-15/16 10.88 10.92 10.75 1/2 1-5/16
    12 19 1-1/4 15 14-3/8 4-1/2 2-3/16 2-3/16 12.88 12.92 12.75 1/2 1-9/16
    14 21 1-3/8 16-1/4 15-3/4 5 2-1/4 3-1/8 14.14 14.18 14.00 1/2 1-5/8
    16 23-1/2 1-7/16 18-1/2 18 5 2-1/2 3-7/16 16.16 16.19 16.00 1/2 1-3/4
    18 25 1-9/16 21 19-7/8 5-1/2 2-11/16 3-13/16 18.18 18.20 18.00 1/2 1-15/16
    20 27-1/2 1-11/16 23 22 5-11/16 2-7/8 4-1/16 20.20 20.25 20.00 1/2 2-1/8
    24 32 1-7/8 27-1/4 26-1/8 6 3-1/4 4-3/8 24.25 24.25 24.00 1/2 2-1/2

    Weight Chart of Stainless Steel 316L Flanges :

    Pipe Normal Diam. O.D. Flange Thk. Of Flange Min Diam.
    of
    Hub    		 Diameter of Raised Face Length Hub.Y Thread Length Diam.
    of Bolt
    Circle    		 Diam.
    of Bolt
    Holes    		 Number
    of Bolts    		 Diam. of
    Bolts
    (inch)    		 KG LB
    inch dn O C X G Y T BC BH BN BD
    1/2" 15 89.00 11.20 30.20 35.10 15.70 15.70 60.50 15.80 4 1/2" 0.4 0.9
    3/4" 20 98.50 12.70 38.10 42.90 15.70 15.70 69.90 15.80 4 1/2" 0.7 1.5
    1" 25 108.00 14.20 49.30 50.80 17.50 17.50 79.30 15.80 4 1/2" 0.8 1.8
    1-1/4" 32 117.50 15.70 58.70 63.50 20.60 20.60 88.90 15.80 4 1/2" 1.2 2.6
    1-1/2" 40 127.00 17.50 65.00 73.20 22.40 22.40 98.60 15.80 4 1/2" 1.5 3.3
    2" 50 152.50 19.10 77.70 91.90 25.40 25.40 120.70 19.10 4 5/8" 2.3 5.1
    2-1/2" 65 178.00 22.40 90.40 104.60 28.40 28.40 139.70 19.10 4 5/8" 3.7 8.1
    3" 80 190.50 23.90 108.00 127.00 30.20 30.20 152.40 19.10 4 5/8" 4.1 9
    3-1/2" 90 216.00 23.90 122.20 139.70 31.80 31.80 177.80 19.10 8 5/8" 5.1 11.2
    4" 100 228.50 23.90 134.90 157.20 33.30 33.30 190.50 19.10 8 5/8" 5.9 13
    5" 125 254.00 23.90 163.60 185.70 36.60 36.60 215.90 22.40 8 3/4" 7 15.4
    6" 150 279.50 25.40 192.00 215.90 39.60 39.60 241.30 22.40 8 3/4" 8.4 18.5
    8" 200 343.00 28.40 246.10 269.70 44.50 44.50 298.50 22.40 8 3/4" 13 28.6
    10" 250 406.50 30.20 304.80 323.90 49.30 49.30 362.00 25.40 12 7/8" 18 39.5
    12" 300 482.50 31.80 365.30 381.00 55.60 55.60 431.80 25.40 12 7/8" 29 64
    14" 350 533.50 35.10 400.10 412.80 57.20 57.20 476.30 28.50 12 1" 39 86
    16" 400 597.00 36.60 457.20 469.90 63.50 63.50 539.80 28.50 16 1" 47 103
    18" 450 635.00 39.60 505.00 533.40 68.30 68.30 577.90 31.80 16 1 1/8" 57 126
    20" 500 698.50 42.90 558.80 584.20 73.20 73.20 635.00 31.80 20 1 1/8" 76 167
    24" 600 813.00 47.80 663.40 692.20 82.60 82.60 749.30 35.10 20 1 1/4" 97 214

    Stainless Steel 316L Type Flanges

    Stainless Steel Blind Flanges

    Stainless Steel 316L Blind Flanges
    Stainless Steel Lap Joint Flanges

    Stainless Steel 316L Lap Joint Flanges
    Stainless Steel Spectacle Flanges

    Stainless Steel 316L Spectacle Flanges


    Stainless Steel Reducing Flanges

    Stainless Steel 316L Reducing Flanges
    Stainless Steel Socket Weld Flanges

    Stainless Steel 316L Socket Weld Flanges
    Stainless Steel Orifice Flanges

    Stainless Steel 316L Orifice Flange


    Stainless Steel Slip-On Flanges

    Stainless Steel 316L Slip On Flange
    Stainless Steel Threaded Flanges

    Stainless Steel 316L Threaded Flange
    Stainless Steel Ring Type Flanges

    Stainless Steel 316L Ring Type Flanges


    Stainless Steel Weld Neck Flanges

    Stainless Steel 316L Weld Neck Flanges
    Stainless Steel High Hub Flanges

    Stainless Steel 316L High Hub Flanges
    Stainless Steel Long weld Neck Flanges

    Stainless Steel 316L Long weld Neck Flanges


    Stainless Steel 316L Price Per Kg (As per demand and manufacturer):

    Price of Stainless Steel 316L Flanges manufacturer in India Price in USD (per kg) Price in Euro (per kg) Price in UAE Dirham (per kg)
    Stainless Steel 316L Blind Flanges 280 - 300 3.25 - 3.49 13.51 - 14.47
    Stainless Steel 316L Spectacle Flanges 300 - 350 3.49 - 4.07 14.47 - 16.88
    Stainless Steel 316L Reducing Flanges manufacturer 290 - 310 3.35 - 3.59 13.61 - 14.57
    Stainless Steel 316L Socket Weld Flanges manufacturer 310 - 360 3.59 - 4.17 14.57 - 16.98
