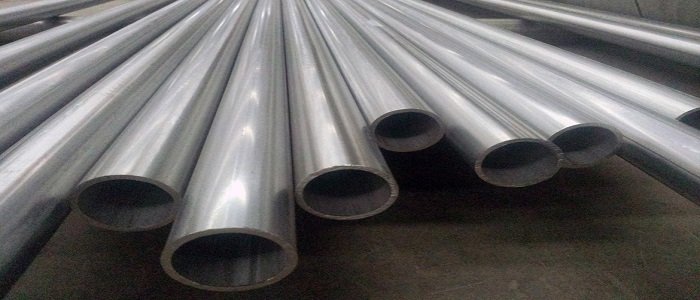

Inconel Alloy 600/601/625/718 industrial Pipes & Tubes, Werkstoff Nr. 1.4301 high tensile Pipes & Tubes, X5Crni18-10 industrial Pipes & Tubes, ASME SA193 Hot Forged Pipes & Tubes, ASTM A193 industrial Pipes & Tubes.
Ranflex Metals is a leading manufacturer of Inconel 600/601/625/718 pipes and tubes designed acording to the national and global rules and policies ensure durability and high quality.
Inconel 601 Pipes (Alloy 601): It is a nickel chromium alloy used in appliances to protect from corrosion and heat
Inconel 625 Pipes (Alloy 625): Inconel 625 has unique feature that is having soaring strength and aqueous corrosion resistance.
Inconel 718 Pipes (Alloy 718): It is a nickel-chromium-molybdenum alloy intended to defy an extensive range of sternly corrosive situations, crevice and pitting corrosion
Inconel Alloy 600/601/625/718 industrial Pipes & Tubes trader, ASTM A193 industrial Pipes & Tubes supplier, JIS SUS 600/601/625/718 high tensile Pipes & Tubes distributor, UNS N06600 high tensile Pipes & Tubes retailer, Inconel Alloy 2332 industrial Pipes & Tubes exporter, ASTM A193 industrial Pipes & Tubes dealer, JIS SUS 600/601/625/718 high tensile Pipes & Tubes price list in India.
These Inconel 600/601/625/718 pipes and tubes are also known as UNS N06600, UNS N06601, UNS N06625 and UNS N07718 and further divided into various sizes, dimensions and thicknesses.
WNR 2.4816/2.4851/2.4856 Pipes and Tubes is essential in gas turbine edges, seals, and combustors, and likewise turbo charger rotors and seals, electric submersible well pump motor shafts, high temperature locks, and so on. As a manufacturer, provider, stockiest and exporter, we offer these Inconel Alloy 600/601/625 Pipes and Tubes in interestingly created sizes and thicknesses, as indicated by the exact solicitations of our respected clients at the best price range.
Ranflex Metals exports Inconel Alloy 600, 601, 625, 718 Pipes & Tubes to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Phillipines.
EN 58E industrial Pipes & Tubes, ASTM A193 Hot Forged Pipes & Tubes, JIS SUS 600/601/625/718 industrial Pipes & Tubes, BS 600/601/625/718S31 Hot Forged Pipes & Tubes, X5Crni18-10 high tensile Pipes & Tubes, EN 58E high tensile Pipes & Tubes.
Features of Inconel 600/601/625/718 pipes and tubes :
- Excellent Efficiency
- Long life service
- Leak Proof
- Rust resistant
- Smooth Finish
Application of Inconel Alloy 600/601/625/718 Pipes & Tubes :
Inconel Alloy 600/601/625/718 seamless and welded pipes & tubes used as a part of desalination plants whose ocean has a great deal of salt water. It is also used in marine applications and heat exchanger plants. Moreover, used in Oil and gas industry equipment, Offshore platforms, heat exchangers, process and service water systems, fire-fighting systems, injection and ballast water systems, Chemical process industries, heat exchangers, vessels, and piping, Desalination plants, high pressure RO-plant and seawater piping, Mechanical and structural components, high strength, corrosion-resistant parts, Power industry FGD systems, utility and industrial scrubber systems, absorber towers, ducting, and piping.
Ranflex Metals exports Inconel Alloy 600/601/625/718 Seamless & Welded Pipes & Tubes to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Phillippines.
Specification of 600/601/625/718 Inconel Alloy Pipes & Tubess :
| Inconel Alloy Pipe Specification | ASTM B167, B163, B516, B517, B704, B705 / ASME SB167, SB163, SB516, SB517, SB704, SB705 |
| Inconel Alloy Tube Specification | ASTM B167, B163, B516, B517, B704, B705 / ASME SB167, SB163, SB516, SB517, SB704, SB705 |
| Pipe Size | 1/8” NB to 24” NB, 1/4” OD to 24” OD sizes. |
| Tube Size | 1/2" OD to 8" OD |
| Thickness Range | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Type | Seamless / ERW / Welded / Fabricated Pipes |
| Form | Round, Square, Rectangular, Oval, Hydraulic Etc |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Beveled End, Treaded |
| End Protection | Plastic Caps |
| Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Inconel Alloy Pipes, Finish as per customer Requirements |
| Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
| Inspection, Test Reports | Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports |
| Packing | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
| Specials | Sizes and Specifications other than above can be manufactured on request |
Equivalent Grades of Inconel Alloy 600/601/625/718 Pipes & Tubess :
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4668 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | - | - | - | - | - |
Chemical Composition of 600/601/625/718 Inconel Alloy Pipes & Tubess :
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Alloy 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Alloy 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Alloy 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | - | 5.0 max | 58.0 min | 20.0 - 23.0 |
| Alloy 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | - | 50.00 - 55.00 | 17.00 - 21.00 |
Mechanical Properties of Inconel Alloy 600/601/625/718 Pipes & Tubess :
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Alloy 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Alloy 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Alloy 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
JIS SUS 600/601/625/718 industrial Pipes & Tubes retailer, Inconel Alloy 2332 high tensile Pipes & Tubes stockyards, Inconel Alloy 600/601/625/718 industrial Pipes & Tubes At Factory Price, X5Crni18-10 high tensile Pipes & Tubes dealer, JIS SUS 600/601/625/718 Hot Forged Pipes & Tubes catalogue, UNS N06600 Hot Forged Pipes & Tubes stockist, EN 58E high tensile Pipes & Tubes At Factory Price.
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
Dimensions of Inconel Alloy 600/601/625/718 Pipes & Tubes :
Inconel Alloy 600/601/625/718 Pipe & Tube Dimensions Chart :
| Nominal pipe Size(NPS) | Outside Diameter | Nominal Wall Thickness | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sch5s | SCH10S | Sch20 | Sch30 | Sch40 | STD | Sch80 | XS | Sch160 | XXS | ||||
| 8 | 1/4 | 13.7 | 0.54 | – | 1.65 | – | 1.85 | 2.24 | 2.24 | 3.02 | 3.02 | – | – |
| 10 | 3/8 | 17.1 | 0.675 | – | 1.65 | – | 1.85 | 2.31 | 2.31 | 3.20 | 3.20 | – | – |
| 15 | 1/2 | 21.3 | 0.84 | 1.65 | 2.11 | – | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4 | 26.7 | 1.05 | 1.65 | 2.11 | – | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 33.4 | 1.32 | 1.65 | 2.77 | – | 2.90 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 |
| 32 | 1.1/4 | 42.2 | 1.66 | 1.65 | 2.77 | – | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | 9.70 |
| 40 | 1.1/2 | 48.3 | 1.90 | 1.65 | 2.77 | – | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 60.3 | 2.38 | 1.65 | 2.77 | – | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 2.1/2 | 73.0 | 2.88 | 2.11 | 3.05 | – | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | 14.02 |
| 80 | 3 | 88.9 | 3.50 | 2.11 | 3.05 | – | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | 15.24 |
| 90 | 3.1/2 | 101.6 | 4.00 | 2.11 | 3.05 | – | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | – | – |
| 100 | 4 | 114.3 | 4.50 | 2.11 | 3.05 | – | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 13.49 | 17.12 |
| 125 | 5 | 141.3 | 5.56 | 2.77 | 3.40 | – | – | 6.55 | 6.55 | 9.53 | 9.53 | 15.88 | 19.05 |
| 150 | 6 | 168.3 | 6.62 | 2.77 | 3.40 | – | – | 7.11 | 7.11 | 10.97 | 10.97 | 18.26 | 21.96 |
| 200 | 8 | 219.1 | 8.62 | 2.77 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 12.70 | 12.70 | 23.01 | 22.23 |
| 250 | 10 | 273.0 | 10.75 | 3.40 | 4.19 | 6.35 | 7.80 | 9.27 | 9.27 | 15.09 | 12.70 | 28.58 | 25.40 |
| 300 | 12 | 323.8 | 12.75 | 3.96 | 4.57 | 6.35 | 8.38 | 10.13 | 9.53 | 17.48 | 12.70 | 33.32 | 25.40 |
| 350 | 14 | 355.6 | 14 | 3.96 | 4.78 | 7.92 | 9.53 | 11.13 | 9.53 | 19.05 | 12.70 | 35.71 | – |
| 400 | 16 | 406.4 | 16 | 4.19 | 4.78 | 7.92 | 9.53 | 12.70 | 9.53 | 21.44 | 12.70 | 40.49 | – |
| 450 | 18 | 457 | 18 | 4.19 | 4.78 | 7.92 | 11.13 | 14.27 | 9.53 | 23.83 | 12.70 | 45.24 | – |
| 500 | 10 | 508 | 20 | 4.78 | 5.54 | 9.53 | 12.70 | 15.09 | 9.53 | 26.19 | 12.70 | 50.01 | – |
| 550 | 22 | 559 | 22 | 4.78 | 5.54 | 9.53 | 12.70 | – | 9.53 | 28.58 | 12.70 | 53.98 | – |
| 600 | 24 | 610 | 24 | 5.54 | 6.35 | 9.53 | 14.27 | 17.48 | 9.53 | 30.96 | 12.70 | 59.54 | – |
| 650 | *26 | 660 | 26 | – | – | – | – | – | 9.53 | – | 12.70 | – | – |
| 700 | *28 | 711 | 28 | – | – | – | – | – | 9.53 | – | 12.70 | – | – |
| 750 | *30 | 762 | 30 | – | – | – | – | – | 9.53 | – | 12.70 | – | – |
| 800 | *32 | 813 | 32 | – | – | – | – | – | 9.53 | – | 12.70 | – | – |
Size of Inconel Alloy 600/601/625/718 Pipe & Tube :
600/601/625/718 Inconel Alloy Exhaust Pipe Size Chart In Mm :
| ASTM A312 Inconel Alloy 600/601/625/718 Pipe OD mm |
Pipe WT mm |
in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Inconel Alloy 600/601/625/718 Erw Tube Size Chart :
| Wall Thickness | Inconel Alloy 600/601/625/718 Tube Sizes ( O.D.) Sizes ( O.D.) |
|---|---|
| .010 | 1/16" , 1/8" , 3/16" |
| .020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
| .012 | 1/8" |
| .016 | 1/8" , 3/16" |
| .028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
| .035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
| .065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
| .083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
| .095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
| .109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
| .120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
| .125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
| .134 | 1" |
| .250 | 3" |
| .375 | 3 1/2" |
Weight Chart of Inconel Alloy 600/601/625/718 Pipes & Tubes :
| Nominal Pipe Size | Outside Diameter | Schedule 5 S | Schedule 10 S | Schedule 20 S | Schedule 40 S | Schedule 80 S | Schedule 160 S | XXS | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) |
| 3 | 1/8 | 10.3 | 1.2 | 0.20 | 1.24 | 0.28 | 1.5 | 0.33 | 1.73 | 0.37 | 2.41 | 0.47 | - | - | - | - |
| 6 | 1/4 | 13.7 | 1.2 | 0.37 | 1.65 | 0.49 | 2.00 | 0.58 | 2.24 | 0.630 | 3.02 | 0.80 | - | - | - | - |
| 10 | 3/8 | 17.1 | 1.2 | 0.47 | 1.65 | 0.63 | 2.00 | 0.74 | 2.31 | 0.840 | 3.20 | 1.10 | - | - | - | - |
| 15 | 1/2 | 21.3 | 1.65 | 0.80 | 2.11 | 1.00 | 2.30 | 1.07 | 2.77 | 1.27 | 3.73 | 1.62 | 4.75 | 1.94 | 7.47 | 2.55 |
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 2.11 | 1.28 | 2.55 | 1.52 | 2.87 | 1.69 | 3.91 | 2.20 | 5.56 | 2.90 | 7.82 | 3.64 |
| 25 | 1 | 33.4 | 1.65 | 1.30 | 2.77 | 2.09 | 2.55 | 1.94 | 3.38 | 2.50 | 4.55 | 3.24 | 6.35 | 4.24 | 9.09 | 5.45 |
| 32 | 1.1/4 | 42.2 | 1.65 | 1.65 | 2.77 | 2.70 | 3.00 | 2.90 | 3.56 | 3.39 | 4.85 | 4.47 | 6.35 | 5.61 | 9.70 | 7.77 |
| 40 | 1.1/2 | 48.3 | 1.65 | 1.91 | 2.77 | 3.11 | 3.00 | 3.55 | 3.68 | 4.05 | 5.08 | 5.41 | 7.14 | 7.25 | 11.1 | 10.18 |
| 50 | 2 | 60.3 | 1.65 | 2.40 | 2.77 | 3.93 | 3.00 | 4.24 | 3.91 | 5.44 | 5.54 | 7.48 | 8.74 | 11.11 | 11.07 | 13.44 |
| 65 | 2.1/2 | 73.0 | 2.11 | 3.69 | 3.05 | 5.26 | 4.00 | 6.81 | 5.16 | 8.63 | 7.01 | 11.41 | 9.53 | 14.91 | 14.02 | 20.39 |
| 80 | 3 | 88.9 | 2.11 | 4.51 | 3.05 | 6.45 | 4.00 | 8.37 | 5.49 | 11.29 | 7.62 | 15.27 | 11.1 | 21.30 | 15.24 | 27.68 |
| 100 | 4 | 114.3 | 2.11 | 5.84 | 3.05 | 8.36 | 4.50 | 12.18 | 6.02 | 16.07 | 8.56 | 22.32 | 13.49 | 33.54 | 17.12 | 41.03 |
| 125 | 5 | 141.3 | 2.77 | 9.47 | 3.40 | 11.57 | 5.00 | 16.80 | 6.55 | 21.8 | 9.53 | 30.97 | 15.88 | 49.11 | 19.05 | 57.43 |
| 150 | 6 | 168.3 | 2.77 | 11.32 | 3.40 | 13.84 | 6.35 | 25.36 | 7.11 | 28.26 | 10.97 | 42.56 | 18.25 | 67.53 | 21.95 | 79.22 |
| 200 | 8 | 219.1 | 2.77 | 14.79 | 3.76 | 19.96 | 6.35 | 33.31 | 8.18 | 42.55 | 12.7 | 64.64 | 23.01 | 111.27 | 22.23 | 107.92 |
| 250 | 10 | 273.1 | 3.40 | 22.63 | 4.19 | 27.78 | 6.35 | 41.77 | 9.27 | 60.31 | 12.7 | 96.01 | 28.58 | 172.33 | 25.40 | 155.15 |
| 300 | 12 | 323.8 | 3.96 | 31.25 | 4.57 | 36.00 | 6.35 | 49.7 | 9.53 | 73.88 | 12.7 | 132.05 | 33.32 | 238.76 | 25.40 | 186.97 |
| 350 | 14 | 355.6 | 3.96 | 34.36 | 4.78 | 41.3 | 7.92 | 67.80 | 11.13 | 94.59 | ||||||
600/601/625/718 Inconel Alloy Schedule 40 Pipe Standard Weight Chart :
| 28 | .028" Thick |
| 035 | .035" Thick |
| 039 | .039" Thick |
| 049 | .049" Thick |
| 065 | .065" Thick |
| 083 | .083" Thick |
| 109 | .109" Thick |
Pressure Rating Table of Inconel Alloy UNS N06600 Square Pipe :
| NPS | Outside Diameter | Wall Thickness | Weight | Weight | |||
| in | mm | in | mm | Sched | kg/Mtr | Lb/ft | |
| 1/2″ | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
| 0.147 | 3.734 | 80 STD | 1.621 | 1.088 | |||
| 3/4″ | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
| 0.154 | 3.912 | 80 STD | 2.195 | 1.474 | |||
| 1″ | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
| 0.179 | 4.547 | 80 STD | 3.325 | 2.172 | |||
| 1 1/4″ | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
| 0.191 | 4.851 | 80 STD | 4.464 | 2.997 | |||
| 1 1/2″ | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
| 0.200 | 5.080 | 80 STD | 5.409 | 3.361 | |||
| 2″ | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
| 0.218 | 5.537 | 80 STD | 7.480 | 5.022 | |||
| 2 1/2″ | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
| 0.276 | 7.010 | 80 STD | 11.411 | 7.661 | |||
| 3″ | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
| 0.300 | 7.620 | 80 STD | 15.272 | 10.253 | |||
| 4″ | 4.500 | 114 | 0.237 | 6.020 | 16.073 | 10.790 | |
| 0.337 | 8.560 | 22.318 | 14.983 | ||||
| 6″ | 6.625 | 168 | 0.188 | 4.775 | 19.252 | 12.924 | |
| 0.203 | 5.516 | 20.739 | 13.923 | ||||
| 0.219 | 5.563 | 22.318 | 14.983 | ||||
| 0.250 | 6.350 | 25.354 | 17.021 | ||||
| 0.280 | 7.112 | 40 STD | 58.263 | 18.974 | |||
| 0.312 | 7.925 | 31.334 | 21.036 | ||||
| 0.375 | 9.525 | 37.285 | 25.031 | ||||
| 0.432 | 10.973 | 80 XHY | 42.561 | 28.573 | |||
| 0.500 | 12.700 | 48.719 | 32.708 | ||||
| 8″ | 8.625 | 219 | 0.188 | 4.775 | 25.233 | 16.940 | |
| 0.203 | 5.156 | 27.198 | 18.259 | ||||
| 0.219 | 5.563 | 29.286 | 19.661 | ||||
| 0.250 | 6.350 | 20 | 33.308 | 22.361 | |||
| 0.277 | 7.036 | 30 | 36.786 | 24.696 | |||
| 0.322 | 8.179 | 40 | 42.352 | 28.554 | |||
| 0.375 | 9.525 | 49.216 | 33.041 | ||||
| 0.406 | 10.312 | 60 | 53.085 | 35.638 | |||
| 0.500 | 12.700 | 80 XHY | 64.627 | 43.388 | |||
| 10″ | 10.750 | 273 | 0.188 | 4.775 | 31.588 | 21.207 | |
| 0.219 | 5.563 | 36.689 | 24.631 | ||||
| 0.250 | 6.350 | 20 | 41.759 | 28.035 | |||
| 0.307 | 7.798 | 30 | 51.002 | 34.240 | |||
| 0.344 | 8.738 | 56.946 | 38.231 | ||||
| 0.365 | 9.271 | 40 STD | 63.301 | 40.483 | |||
| 0.438 | 11.125 | 71.852 | 48.238 | ||||
| 0.500 | 12.700 | 60 XHY | 81.530 | 54.735 | |||
| 0.594 | 15.088 | 80 | 95.969 | 64.429 | |||
| 12″ | 12.750 | 324 | 0.188 | 4.775 | 37.570 | 25.222 | |
| 0.219 | 5.563 | 43.657 | 29.309 | ||||
| 0.250 | 6.350 | 49.713 | 33.375 | ||||
| 0.281 | 7.137 | 55.739 | 37.420 | ||||
| 0.312 | 7.925 | 61.735 | 41.445 | ||||
| 0.375 | 9.525 | 73.824 | 49.562 | ||||
| 0.406 | 10.312 | 79.727 | 53.525 | ||||
| 0.500 | 12.700 | 97.438 | 65.415 | ||||
| 0.562 | 14.275 | 108.966 | 73.154 | ||||
| 14″ | 14.000 | 356 | 0.188 | 4.775 | 41.308 | 27.732 | |
| 0.219 | 5.563 | 48.012 | 32.233 | ||||
| 0.250 | 6.350 | 20 | 54.685 | 36.713 | |||
| 0.281 | 7.137 | 61.327 | 41.172 | ||||
| 0.312 | 7.925 | 67.939 | 45.611 | ||||
| 0.375 | 9.525 | STD | 81.281 | 54.568 | |||
| 0.438 | 11.125 | 40 | 94.498 | 63.441 | |||
| 0.500 | 12.700 | XHY | 107.381 | 72.090 | |||
| 0.625 | 15.875 | 132.983 | 89.278 | ||||
| 16” | 16.000 | 406 | 0.188 | 4.775 | 47.290 | 21.748 | |
| 0.219 | 5.563 | 54.980 | 36.910 | ||||
| 0.250 | 6.350 | 10 | 62.639 | 42.053 | |||
| 0.281 | 7.137 | 70.268 | 47.174 | ||||
| 0.312 | 7.925 | 20 | 77.866 | 52.275 | |||
| 0.344 | 8.738 | 85.677 | 57.519 | ||||
| 0.375 | 9.525 |
30 STD |
93.213 | 62.578 | |||
| 0.438 | 11.125 | 108.433 | 72.797 | ||||
| 0.500 | 12.700 |
40 XHY |
123.289 | 82.770 | |||
| 18″ | 18.000 | 457 | 0.219 | 5.563 | 61.948 | 41.588 | |
| 0.250 | 6.350 | 70.593 | 47.393 | ||||
| 0.281 | 7.137 | 79.208 | 53.176 | ||||
| 0.312 | 7.925 | 20 | 87.792 | 58.939 | |||
| 0.375 | 9.525 | STD | 105.144 | 70.588 | |||
| 0.438 | 11.125 | 30 | 122.369 | 82.152 | |||
| 0.500 | 12.700 | XHY | 139.198 | 93.450 | |||
| 0.562 | 14.275 | 40 | 155.904 | 104.666 | |||
| 0.625 | 15.875 | 172.754 | 115.978 | ||||
| 20″ | 20.000 | 508 | 0.250 | 6.350 | 78.547 | 52.733 | |
| 0.282 | 7.163 | 88.458 | 59.386 | ||||
| 0.312 | 7.925 | 97.719 | 65.604 | ||||
| 0.375 | 9.525 | 20 STD | 117.075 | 78.598 | |||
| 0.438 | 11.125 | 136.305 | 91.508 | ||||
| 0.500 | 12.700 | 30 XHY | 155.106 | 104.130 | |||
| 0.594 | 15.088 | 40 | 183.378 | 123.110 | |||
| 0.625 | 15.875 | 192.640 | 129.328 | ||||
| 0.688 | 17.475 | 211.368 | 141.901 | ||||
| 24″ | 24.000 | 610 | 0.250 | 6.350 | 94.456 | 63.413 | |
| 0.281 | 7.137 | 106.029 | 71.183 | ||||
| 0.312 | 7.925 | 117.573 | 18.932 | ||||
| 0.375 | 9.525 | 20 STD | 140.938 | 64.618 | |||
| 0.438 | 11.125 | 164.176 | 110.219 | ||||
| 0.500 | 12.700 | XHY | 186.923 | 125.490 | |||
| 0.625 | 15.875 | 232.410 | 156.028 | ||||
| 0.688 | 17.475 | 40 | 255.148 | 171.293 | |||
| 0.750 | 19.050 | 277.401 | 186.233 | ||||
| 30″ | 30.000 | 762 | 0.250 | 6.350 | 118.318 | 79.433 | |
| 0.281 | 7.137 | 132.851 | 89.189 | ||||
| 0.312 | 7.925 | 10 | 147.353 | 98.925 | |||
| 0.375 | 9.525 | STD | 176.731 | 118.648 | |||
| 0.438 | 11.125 | 205.983 | 138.286 | ||||
| 0.500 | 12.700 | 20 XHY | 234.647 | 157.530 | |||
| 0.625 | 15.875 | 30 | 292.066 | 196.078 | |||
| 0.688 | 17.475 | 320.817 | 215.380 | ||||
| 0.750 | 19.050 | 348.988 | 234.293 | ||||
| 36″ | 36.000 | 914 | 0.250 | 6.350 | 142.180 | 95.453 | |
| 0.281 | 7.137 | 159.672 | 107.196 | ||||
| 0.312 | 7.925 | 10 | 177.133 | 118.918 | |||
| 0.375 | 9.525 | STD | 215.525 | 142.678 | |||
| 0.438 | 11.125 | 247.790 | 166.353 | ||||
| 0.500 | 12.700 | 20 XHY | 282.372 | 198.570 | |||
| 0.625 | 15.875 | 351.723 | 236.128 | ||||
|
0.688 |
17.475 | 386.487 | 259.467 | ||||
|
0.750 |
19.050 | 420.576 | 282.353 | ||||
| 42″ | 42.000 | 1067 | 0.312 | 7.925 | 206.914 | 138.911 | |
| 0.375 | 9.525 | STD | 248.319 | 166.708 | |||
| 0.500 | 12.700 | XHY | 33.097 | 221.610 | |||
| 0.750 | 19.050 | 492.163 | 330.413 | ||||
| 48″ | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
| 0.438 | 11.125 | 331.404 | 222.487 | ||||
| 0.500 | 12.700 | XHY | 377.822 | 253.650 | |||
| 0.750 | 19.050 | 563.750 | 378.473 | ||||
| 0.875 | 22.225 | 655.969 | 440.383 | ||||
Tolerance Chart of 600/601/625/718 Inconel Alloy Tube :
| Inconel Alloy 600/601/625/718 Pipe OD | ASTM A312 TP 600/601/625/718 Pipe Tolerance |
|---|---|
| 4 to 35mm | +/- 0.08mm |
| 35 to 38mm | +/- 0.15mm |
| 38 to 60mm | +/- 0.20mm |
| 60 and above | +/- 0.25mm |
Inconel Alloy 600/601/625/718 Type Pipes & Tubess
600 Inconel Alloy Square Pipe
601 Inconel Alloy Square Pipe
625 Inconel Alloy Square Pipe
718 Inconel Alloy Square Pipe
600 Inconel Alloy Round Pipe
601 Inconel Alloy Round Pipe
625 Inconel Alloy Round Pipe
718 Inconel Alloy Round Pipe
600 Inconel Alloy Rectangular Pipe
601 Inconel Alloy Rectangular Pipe
625 Inconel Alloy Rectangular Pipe
718 Inconel Alloy Rectangular Pipe
DIN 2.4816 Pipe
DIN 2.4851 Pipe
DIN 2.4856 Pipe
DIN 2.4668 Pipe
600 Inconel Alloy Ornamental Tubes
601 Inconel Alloy Ornamental Tubes
625 Inconel Alloy Ornamental Tubes
718 Inconel Alloy Ornamental Tubes
600 Inconel Electropolished Pipe
601 Inconel Electropolished Pipe
625 Inconel Electropolished Pipe
718 Inconel Electropolished Pipe
600 Inconel Alloy Slot Round Pipe
601 Inconel Alloy Slot Round Pipe
625 Inconel Alloy Slot Round Pipe
718 Inconel Alloy Slot Round Pipe
600 Inconel Alloy Triangle Tube
601 Inconel Alloy Triangle Tube
625 Inconel Alloy Triangle Tube
718 Inconel Alloy Triangle Tube
600 Inconel Alloy Hexagonal Tube
601 Inconel Alloy Hexagonal Tube
625 Inconel Alloy Hexagonal Tube
718 Inconel Alloy Hexagonal Tube
600 Inconel Alloy Handrail Tube
601 Inconel Alloy Handrail Tube
625 Inconel Alloy Handrail Tube
718 Inconel Alloy Handrail Tube
600 Inconel Alloy U Shaped Tube
601 Inconel Alloy U Shaped Tube
625 Inconel Alloy U Shaped Tube
718 Inconel Alloy U Shaped Tube
600 Thin-Wall Seamless Inconel Alloy Tube
601 Thin-Wall Seamless Inconel Alloy Tube
625 Thin-Wall Seamless Inconel Alloy Tube
718 Thin-Wall Seamless Inconel Alloy Tube
600 Inner/Outside Polished Inconel Alloy Pipe
601 Inner/Outside Polished Inconel Alloy Pipe
625 Inner/Outside Polished Inconel Alloy Pipe
718 Inner/Outside Polished Inconel Alloy Pipe
600 Inconel Alloy Capillary Tube
601 Inconel Alloy Capillary Tube
625 Inconel Alloy Capillary Tube
718 Inconel Alloy Capillary Tube
600 Inconel Alloy Seamless Tube
601 Inconel Alloy Seamless Tube
625 Inconel Alloy Seamless Tube
718 Inconel Alloy Seamless Tube
AISI 600 Stainless Stel ERW Pipe
AISI 601 Stainless Stel ERW Pipe
AISI 625 Stainless Stel ERW Pipe
AISI 718 Stainless Stel ERW Pipe
AISI 600 Inconel Alloy Welded Pipe
AISI 601 Inconel Alloy Welded Pipe
AISI 625 Inconel Alloy Welded Pipe
AISI 718 Inconel Alloy Welded Pipe
UNS N06600 Tube
UNS N06601 Tube
UNS N06625 Tube
UNS N07718 Tube
Inconel Alloy Pipes & Tubess Surface Coating :
- Hot Dipped Galvanizing
- Epoxy Coating
- Electro Polished
- Passivation
- Zinc Plating
- Chrome Plating
- Mirror Buffed
- Teflon Coating
- Oxidized
Inconel Alloy 600/601/625/718 Price Per Kg (As per demand and manufacturer):
| Price of Inconel Alloy 600/601/625/718 Pipes & Tubess manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
|---|---|---|---|
| Inconel Alloy 600/601/625/718 stainless steel pipe | 126.24 | 2.94 | 2.64 |
| 600/601/625/718 thick wall seamless stainless steel pipe | 119.26 | 2.86 | 2.58 |
| 600/601/625/718 thick wall seamless stainless steel tube | 126.26 | 2.96 | 2.66 |
| stainless steel 600/601/625/718 stainless steel pipe manufacturer | 119.26 | 2.86 | 2.58 |
| 600/601/625/718 round square rectangular stainless steel pipe | 125.18 | 2.88 | 2.50 |
| 600/601/625/718 round square rectangular stainless steel tube | 136.22 | 3.06 | 3.74 |
