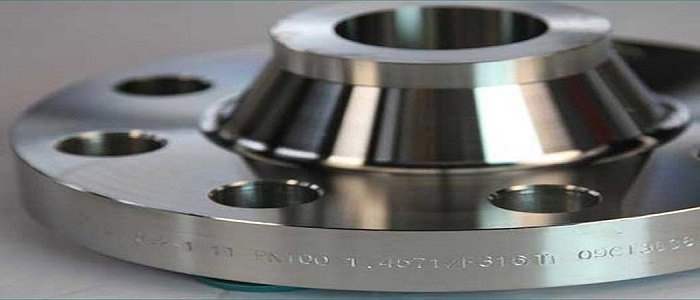

Incoloy Alloy 800/800HT/825 Flanges

Table of Content

  •   What is Incoloy Alloy Flanges
  •   Specification of Incoloy Alloy Flanges
  •   Equivalent Grades of Incoloy Alloy Flanges
  •   Chemical Composition of Incoloy Alloy Flanges
  •   Mechanical Properties of Incoloy Alloy Flanges
  •   Physical Properties of Incoloy Alloy Flanges
  •   Dimensions of Incoloy Alloy Flanges
  •   Thickness Chart of Incoloy Alloy Flanges
  •   Weight Chart of Incoloy Alloy Flanges
  •   Incoloy Alloy Type Flanges
  •   Incoloy Alloy Price Per Kg (As per demand and manufacturer)
  •   People also Search for Incoloy Alloy Flanges
  •   Export Destinations
  •   Domestic Supply

    • ASTM B 564 Incoloy Alloy UNS N08800/11/25 Flanges

    As an abundantly appreciated association in the business sector, we as Ranflex Metals are entirely occupied with proposing an accumulation of Incoloy Alloy 800, 800HT, 825 Flanges as an exporter, producer, supplier, and stockiest to our overall customers at sensibly valued expenses. We are viewed as a prominent supplier and maker of a huge aggregation of such Flanges. Concerning distinctive evaluations, we offer these Incoloy Alloy 800, 800HT, 825 Flanges in various sorts.

    Super Duplex Steel Flanges

    We at Ranflex Metals offer Incoloy Forged Fittings in various types such as Incoloy 800/800HT/825 Blind Flanges, Incoloy 800/800HT/825 Weld Neck Flanges, Incoloy 800/800HT/825 Socket Weld Flanges, Incoloy 800/800HT/825 Spectacle Blind Flanges, Incoloy 800/800HT/825 Screwed/Threaded Flanges, Incoloy 800/800HT/825 Reducing Flanges, and Incoloy 800/800HT/825 Ring Type Joint Flanges (RTJ).

    In the interim, we also offer these Incoloy Alloy 800, 800HT, 825 Flangesin customized thicknesses and sizes according to the exact prerequisites given by our significant clients in worldwide nature of norms.

    Specification of Incoloy Alloy Flanges :

    Specification ASTM B 564 / ASME SB 564
    Supporting Flange Material Flanges Bolts, Ring Joint, Gasket
    Design For Size JIS Flanges, ANSI Flanges, BS Flanges, EN Flanges, ASA Flanges, ASME Flanges, DIN Flanges, PN Flanges
    Common Types of SS Flange Flanges 150 LB WNRF
    600# BLRF
    Class 300 RTJ
    Class 900 SORF
    Size Chart 1/2″ (15 NB) To 48″ (1200NB)
    Production Process Forged, Heat Treated and Machined
    Stainless Steel 310 Flanges Coating Flange Faces Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint, Cold and Hot Dip Galvanized
    Application Chemical Industry
    Water Pipeline Industry
    Nuclear Power Plant
    Fabrication Industry
    Natural Gas Industry
    Oil And Gas Industry
    Standards JIS Flanges, ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, ASME B16.47 (Series A, Series B) Flanges
    Pressure Rating Table Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
    Connect Type Type RF, FF, RTJ, LMF, SMF, LJF
    Flange Machining Equipment Sand-blasting machine, Press machine, Bending machine, Pushing Machine, electric bevelling machine etc

    Equivalent Grades of Incoloy Alloy Flanges :

    STANDARD WERKSTOFF NR. UNS GOST AFNOR JIS BS EN OR
    Incoloy 800 1.4876 N08800 ЭИ670 Z8NC32-21 NCF 800 NA 15 X10NiCrAlTi32-20 XH32T
    Incoloy 800HT 1.4859 / 1.4876 N08811 ЭИ670 - NCF 800HT NA 15(HT) X8NiCrAlTi32-21 XH32T
    Incoloy 825 2.4858 N08825 协袩703 NFE30C20DUM NCF 825 NA 16 NiCr21Mo XH38BT

    Chemical Composition of Incoloy Alloy Flanges :

    Grade C Mn Si S Cu Fe Ni Cr Al Ti
    800 0.10 max 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60 0.15 – 0.60
    800HT 0.06 – 0.10 1.50 max 1.00 max 0.015 max 0.75 max 39.50 min 30.00 – 35.00 19.00 – 23.00 0.15 – 0.60 0.15 – 0.60
    Alloy 825 0.05 max 1.0 max 0.5 max 0.03 max 1.5 – 3.0 22.0 min 38.0 – 46.0 19.5 – 23.5 0.2max 0.6 – 1.2

    Mechanical Properties of Incoloy Alloy Flanges :

    Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
    Alloy 800 / 800HT 7.94 g/cm3 1385 °C (2525 °F) Psi – 75,000 , MPa – 520 Psi – 30,000 , MPa – 205 30 %
    Alloy 825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %

    Physical Properties of Incoloy Alloy Flanges :

    Density
    lbm/in3    		 Thermal Conductivity
    (BTU/h ft. °F)    		 Electrical
    Resistivity
    (in x 10-6)    		 Modulus of
    Elasticity
    (psi x 106    		 Coefficient of
    Thermal Expansion
    (in/in)/
    °F x 10-6    		 Specific Heat
    (BTU/lb/
    °F)    		 Melting
    Range
    (°F)
    at 68°F: 0.285 9.4 at 212°F 28.3 at 68°F 28 9.4 at 32 – 212°F 0.1200 at 68°F to 212°F 2500 to 2590
      12.4 at 932 °F 39.4 at 752°F   10.2 at 32 – 1000°F
        49.6 at 1652 °F   10.4 at 32 – 1500°F

    Modern Equipments

    Expert Engineers

    Efficient Factories

    Well Maintained

    Dimensions of Incoloy Alloy Flanges :

    Stainless Steel 321/321H Flanges dimensions

    Pipe Normal Diam. O.D. Flange Thk. Of Flange Min Diam.
    of
    Hub    		 Diameter of Raised Face Length Hub.Y Thread Length Diam.
    of Bolt
    Circle    		 Diam.
    of Bolt
    Holes    		 Number
    of Bolts    		 Diam. of
    Bolts
    (inch)    		 KG LB
    inch dn O C X G Y T BC BH BN BD
    1/2" 15 89.00 11.20 30.20 35.10 15.70 15.70 60.50 15.80 4 1/2" 0.4 0.9
    3/4" 20 98.50 12.70 38.10 42.90 15.70 15.70 69.90 15.80 4 1/2" 0.7 1.5
    1" 25 108.00 14.20 49.30 50.80 17.50 17.50 79.30 15.80 4 1/2" 0.8 1.8
    1-1/4" 32 117.50 15.70 58.70 63.50 20.60 20.60 88.90 15.80 4 1/2" 1.2 2.6
    1-1/2" 40 127.00 17.50 65.00 73.20 22.40 22.40 98.60 15.80 4 1/2" 1.5 3.3
    2" 50 152.50 19.10 77.70 91.90 25.40 25.40 120.70 19.10 4 5/8" 2.3 5.1
    2-1/2" 65 178.00 22.40 90.40 104.60 28.40 28.40 139.70 19.10 4 5/8" 3.7 8.1
    3" 80 190.50 23.90 108.00 127.00 30.20 30.20 152.40 19.10 4 5/8" 4.1 9
    3-1/2" 90 216.00 23.90 122.20 139.70 31.80 31.80 177.80 19.10 8 5/8" 5.1 11.2
    4" 100 228.50 23.90 134.90 157.20 33.30 33.30 190.50 19.10 8 5/8" 5.9 13
    5" 125 254.00 23.90 163.60 185.70 36.60 36.60 215.90 22.40 8 3/4" 7 15.4
    6" 150 279.50 25.40 192.00 215.90 39.60 39.60 241.30 22.40 8 3/4" 8.4 18.5
    8" 200 343.00 28.40 246.10 269.70 44.50 44.50 298.50 22.40 8 3/4" 13 28.6
    10" 250 406.50 30.20 304.80 323.90 49.30 49.30 362.00 25.40 12 7/8" 18 39.5
    12" 300 482.50 31.80 365.30 381.00 55.60 55.60 431.80 25.40 12 7/8" 29 64
    14" 350 533.50 35.10 400.10 412.80 57.20 57.20 476.30 28.50 12 1" 39 86
    16" 400 597.00 36.60 457.20 469.90 63.50 63.50 539.80 28.50 16 1" 47 103
    18" 450 635.00 39.60 505.00 533.40 68.30 68.30 577.90 31.80 16 1 1/8" 57 126
    20" 500 698.50 42.90 558.80 584.20 73.20 73.20 635.00 31.80 20 1 1/8" 76 167
    24" 600 813.00 47.80 663.40 692.20 82.60 82.60 749.30 35.10 20 1 1/4" 97 214

    Size Chart Incoloy Alloy Flanges :

    Nominal Pipe Size Outside Diameter of Flanges Thickness of Flanges Diameter of Raised Face Diameter of Hub at Base Length Thru Hub Diameter or Bore Diameter of Hub at Bevel Radius of Fillet Depth of Socket
    Welding Neck Slip-On Threaded Socket Lap Joint Slip-on Socket Lap Joint
    O Q R X Y Y Y W B H r Z
    1/2 3-1/2 7/16 1-3/8 1-3/16 1-7/8 5/8 5/8 .88 .90 .84 1/8 3/8
    3/4 3-7/8 1/2 1-11/16 1-1/2 2-1/16 5/8 5/8 1.09 1.11 1.05 1/8 7/16
    1 4-1/4 9/16 2 1-15/16 2-3/16 11/16 11/16 1.36 1.38 1.32 1/8 1/2
    1-1/4 4-5/8 5/8 2-1/2 2-5/16 2-1/4 13/16 13/16 1.70 1.72 1.66 3/16 9/16
    1-1/2 5 11/16 2-7/8 2-9/16 2-7/16 7/8 7/8 1.95 1.97 1.90 1/4 5/8
    2 6 3/4 3-5/8 3-1/16 2-1/2 1 1 2.44 2.46 2.38 5/16 11/16
    2-1/2 7 7/8 4-1/8 3-9/16 2-3/4 1-1/8 1-1/8 2.94 2.97 2.88 5/16 3/4
    3 7-1/2 15/16 5 4-1/4 2-3/4 1-3/16 1-3/16 3.57 3.60 3.50 3/8 13/16
    3-1/2 8-1/2 15/16 5-1/2 4-13/16 2-13/16 1-1/4 1-1/4 4.07 4.10 4.00 3/8 7/8
    4 9 15/16 6-3/16 5-5/16 3 1-5/16 1-5/16 4.57 4.60 4.50 7/16 15/16
    5 10 15/16 7.5/16 6-7/16 3-1/2 1-7/16 1-7/16 5.66 5.69 5.56 7/16 15/16
    6 11 1 8-1/2 7-9/16 3-1/2 1-9/16 1-9/16 6.72 6.75 6.63 1/2 1-1/16
    8 13-1/2 1-1/8 10-5/8 9-11/16 4 1-3/4 1-3/4 8.72 8.75 8.63 1/2 1-1/4
    10 16 1-3/16 12-3/4 12 4 1-15/16 1-15/16 10.88 10.92 10.75 1/2 1-5/16
    12 19 1-1/4 15 14-3/8 4-1/2 2-3/16 2-3/16 12.88 12.92 12.75 1/2 1-9/16
    14 21 1-3/8 16-1/4 15-3/4 5 2-1/4 3-1/8 14.14 14.18 14.00 1/2 1-5/8
    16 23-1/2 1-7/16 18-1/2 18 5 2-1/2 3-7/16 16.16 16.19 16.00 1/2 1-3/4
    18 25 1-9/16 21 19-7/8 5-1/2 2-11/16 3-13/16 18.18 18.20 18.00 1/2 1-15/16
    20 27-1/2 1-11/16 23 22 5-11/16 2-7/8 4-1/16 20.20 20.25 20.00 1/2 2-1/8
    24 32 1-7/8 27-1/4 26-1/8 6 3-1/4 4-3/8 24.25 24.25 24.00 1/2 2-1/2

    Weight Chart of Incoloy Alloy Flanges :

    Pipe Normal Diam. O.D. Flange Thk. Of Flange Min Diam.
    of
    Hub    		 Diameter of Raised Face Length Hub.Y Thread Length Diam.
    of Bolt
    Circle    		 Diam.
    of Bolt
    Holes    		 Number
    of Bolts    		 Diam. of
    Bolts
    (inch)    		 KG LB
    inch dn O C X G Y T BC BH BN BD
    1/2" 15 89.00 11.20 30.20 35.10 15.70 15.70 60.50 15.80 4 1/2" 0.4 0.9
    3/4" 20 98.50 12.70 38.10 42.90 15.70 15.70 69.90 15.80 4 1/2" 0.7 1.5
    1" 25 108.00 14.20 49.30 50.80 17.50 17.50 79.30 15.80 4 1/2" 0.8 1.8
    1-1/4" 32 117.50 15.70 58.70 63.50 20.60 20.60 88.90 15.80 4 1/2" 1.2 2.6
    1-1/2" 40 127.00 17.50 65.00 73.20 22.40 22.40 98.60 15.80 4 1/2" 1.5 3.3
    2" 50 152.50 19.10 77.70 91.90 25.40 25.40 120.70 19.10 4 5/8" 2.3 5.1
    2-1/2" 65 178.00 22.40 90.40 104.60 28.40 28.40 139.70 19.10 4 5/8" 3.7 8.1
    3" 80 190.50 23.90 108.00 127.00 30.20 30.20 152.40 19.10 4 5/8" 4.1 9
    3-1/2" 90 216.00 23.90 122.20 139.70 31.80 31.80 177.80 19.10 8 5/8" 5.1 11.2
    4" 100 228.50 23.90 134.90 157.20 33.30 33.30 190.50 19.10 8 5/8" 5.9 13
    5" 125 254.00 23.90 163.60 185.70 36.60 36.60 215.90 22.40 8 3/4" 7 15.4
    6" 150 279.50 25.40 192.00 215.90 39.60 39.60 241.30 22.40 8 3/4" 8.4 18.5
    8" 200 343.00 28.40 246.10 269.70 44.50 44.50 298.50 22.40 8 3/4" 13 28.6
    10" 250 406.50 30.20 304.80 323.90 49.30 49.30 362.00 25.40 12 7/8" 18 39.5
    12" 300 482.50 31.80 365.30 381.00 55.60 55.60 431.80 25.40 12 7/8" 29 64
    14" 350 533.50 35.10 400.10 412.80 57.20 57.20 476.30 28.50 12 1" 39 86
    16" 400 597.00 36.60 457.20 469.90 63.50 63.50 539.80 28.50 16 1" 47 103
    18" 450 635.00 39.60 505.00 533.40 68.30 68.30 577.90 31.80 16 1 1/8" 57 126
    20" 500 698.50 42.90 558.80 584.20 73.20 73.20 635.00 31.80 20 1 1/8" 76 167
    24" 600 813.00 47.80 663.40 692.20 82.60 82.60 749.30 35.10 20 1 1/4" 97 214

    Incoloy Alloy Type Flanges

    Super Duplex Steel Blind Flanges

    Incoloy Alloy 800 Blind Flanges
    Incoloy Alloy 800HT Blind Flanges
    Incoloy Alloy 825 Blind Flanges
    Super Duplex Steel Lap Joint Flanges

    Incoloy Alloy 800 Lap Joint Flanges
    Incoloy Alloy 800HT Lap Joint Flanges
    Incoloy Alloy 825 Lap Joint Flanges
    Super Duplex Steel Spectacle Flanges

    Incoloy Alloy 800 Spectacle Flanges
    Incoloy Alloy 800HT Spectacle Flanges
    Incoloy Alloy 825 Spectacle Flanges


    Super Duplex Steel Reducing Flanges

    Incoloy Alloy 800 Reducing Flanges
    Incoloy Alloy 800HT Reducing Flanges
    Incoloy Alloy 825 Reducing Flanges
    Super Duplex Steel Socket Weld Flanges

    Incoloy Alloy 800 Socket Weld Flanges
    Incoloy Alloy 800HT Socket Weld Flanges
    Incoloy Alloy 825 Socket Weld Flanges
    Super Duplex Steel Orifice Flanges

    Incoloy Alloy 800 Orifice Flange
    Incoloy Alloy 800HT Orifice Flange
    Incoloy Alloy 825 Orifice Flange


    Super Duplex Steel Slip-On Flanges

    Incoloy Alloy 800 Slip On Flange
    Incoloy Alloy 800HT Slip On Flange
    Incoloy Alloy 825 Slip On Flange
    Super Duplex Steel Threaded Flanges

    Incoloy Alloy 800 Threaded Flange
    Incoloy Alloy 800HT Threaded Flange
    Incoloy Alloy 825 Threaded Flange
    Super Duplex Steel Ring Type Flanges

    Incoloy Alloy 800 Ring Type Flanges
    Incoloy Alloy 800HT Ring Type Flanges
    Incoloy Alloy 825 Ring Type Flanges


    Super Duplex Steel Weld Neck Flanges

    Incoloy Alloy 800 Weld Neck Flanges
    Incoloy Alloy 800HT Weld Neck Flanges
    Incoloy Alloy 825 Weld Neck Flanges
    Super Duplex Steel High Hub Flanges

    Incoloy Alloy 800 High Hub Flanges
    Incoloy Alloy 800HT High Hub Flanges
    Incoloy Alloy 825 High Hub Flanges
    Super Duplex Steel Long weld Neck Flanges

    Incoloy Alloy 800 Long weld Neck Flanges
    Incoloy Alloy 800HT Long weld Neck Flanges
    Incoloy Alloy 825 Long weld Neck Flanges


    Incoloy Alloy Price Per Kg (As per demand and manufacturer):

    Price of Incoloy Alloy Flanges manufacturer in India Price in USD (per kg) Price in Euro (per kg) Price in UAE Dirham (per kg)
    Incoloy Alloy 800 Blind Flanges 280 - 300 3.25 - 3.49 13.51 - 14.47
    Incoloy Alloy 800HT Spectacle Flanges 300 - 350 3.49 - 4.07 14.47 - 16.88
    Incoloy Alloy 825 Reducing Flanges manufacturer 290 - 347/347H 3.35 - 3.59 13.61 - 14.57
    Incoloy Alloy 800/ 800HT Socket Weld Flanges manufacturer 347/347H - 360 3.59 - 4.17 14.57 - 16.98
