We at Ranflex Metals are noticeable provider, stockist, producer and manufacturer of Duplex Steel 2205 Pipes and Tubes. Duplex Pipes are made using Zeron 100 stainless steel and have dominating resistance against consumption. They are transcendent to the extent quality and illustrated by the settlement of the customer. We ensure our clients that our Duplex Steel 2205 Pipes and Tubes will give long organization life to the customer. Prevalent nature of rough material is used to manufacture our entire thing go.

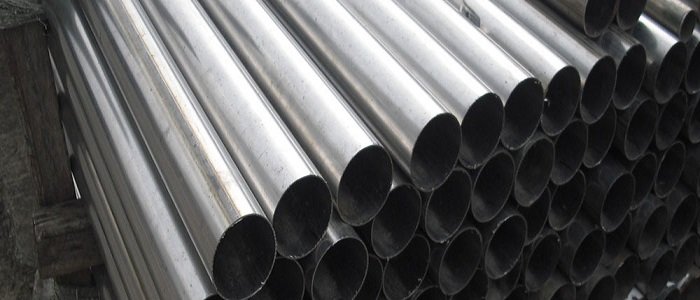

Duplex Steel 2205 Pipes and Tubes has a part of the considerable components, for instance, High mechanical quality, Resistance to corosion and Improved welding properties. Available in various assessments and judgments, these Duplex Steel 2205 Pipes and Tubes are used as a piece of oil and gas refineries, substance, fertilizer, petrochemicals and diverse business wanders. We passed on our assignments in a conferred day and age utilizing modified bundling.
Chemical process vessels, piping and heat exchangers, Pulp mill digesters, bleach washers, chip pre-steaming vessels, Food processing equipment, Oil field piping and heat exchangers, Flue gas desulfurization equipment.
Duplex Steel Pipe Specification | ASTM A790 / ASME SA790, ASTM A789 / ASME SA A789 |
Duplex Steel Tube Specification | ASTM A790 / ASME SA790, ASTM A789 / ASME SA A789 |
Pipe Size | 1/8” NB to 24” NB, 1/4” OD to 24” OD sizes. |
Tube Size | 1/2" OD to 8" OD |
Thickness Range | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
Type | Seamless / ERW / Welded / Fabricated Pipes |
Form | Round, Square, Rectangular, Oval, Hydraulic Etc |
Length | Single Random, Double Random & Required Length |
End | Plain End, Beveled End, Treaded |
End Protection | Plastic Caps |
Outside Finish | 2B, No.4, No.1, No.8 Mirror Finish for Duplex Steel Pipes, Finish as per customer Requirements |
Delivery Condition | Annealed and Pickled, Polished, Bright Annealed, Cold Drawn |
Inspection, Test Reports | Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports |
Packing | Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests |
Specials | Sizes and Specifications other than above can be manufactured on request |
STANDARD | UNS | WNR. |
---|---|---|
Duplex Steel 2205 | S31803 / S32205 | 1.4462 |
Grade | Common Name | C% | Mn% | Si% | P% | S% | Cr% | Ni% | Mo% | N% |
---|---|---|---|---|---|---|---|---|---|---|
2205 | S31803 | 0.030 | 2.00 | 1.00 | 0.030 | 0.020 | 21.0-23.0 | 4.5-6.5 | 2.5-3.5 | 0.08-0.20 |
Tensile strength | Yield strength | Density | Elastic modulus |
620MPa min | 450MPa mi | 7,805kg/m3 | 200GPa |
Density lbm/in3 | Electrical Resistivity mW•in | Thermal Conductivity (BTU/hr•ft•°F) | Heat Capacity BTU/lbm•°F | Electrical Resistivity (in x 10-6) | |
---|---|---|---|---|---|
at 68°F | 0.278 | 27.6 | 8.7 | 0.112 | 33.5 |
at 212°F | 26.1 | 9.2 | 0.119 | 35.4 | |
at 392°F | 25.4 | 9.8 | 0.127 | 37.4 | |
at 572°F | 24.9 | 10.4 | 0.134 | 39.4 |
Nominal pipe Size(NPS) | Outside Diameter | Nominal Wall Thickness | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sch5s | SCH10S | Sch20 | Sch30 | Sch40 | STD | Sch80 | XS | Sch160 | XXS | ||||
8 | 1/4 | 13.7 | 0.54 | – | 1.65 | – | 1.85 | 2.24 | 2.24 | 3.02 | 3.02 | – | – |
10 | 3/8 | 17.1 | 0.675 | – | 1.65 | – | 1.85 | 2.31 | 2.31 | 3.20 | 3.20 | – | – |
15 | 1/2 | 21.3 | 0.84 | 1.65 | 2.11 | – | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 |
20 | 3/4 | 26.7 | 1.05 | 1.65 | 2.11 | – | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 |
25 | 1 | 33.4 | 1.32 | 1.65 | 2.77 | – | 2.90 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 |
32 | 1.1/4 | 42.2 | 1.66 | 1.65 | 2.77 | – | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | 9.70 |
40 | 1.1/2 | 48.3 | 1.90 | 1.65 | 2.77 | – | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | 10.15 |
50 | 2 | 60.3 | 2.38 | 1.65 | 2.77 | – | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | 11.07 |
65 | 2.1/2 | 73.0 | 2.88 | 2.11 | 3.05 | – | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | 14.02 |
80 | 3 | 88.9 | 3.50 | 2.11 | 3.05 | – | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | 15.24 |
90 | 3.1/2 | 101.6 | 4.00 | 2.11 | 3.05 | – | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | – | – |
100 | 4 | 114.3 | 4.50 | 2.11 | 3.05 | – | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 13.49 | 17.12 |
125 | 5 | 141.3 | 5.56 | 2.77 | 3.40 | – | – | 6.55 | 6.55 | 9.53 | 9.53 | 15.88 | 19.05 |
150 | 6 | 168.3 | 6.62 | 2.77 | 3.40 | – | – | 7.11 | 7.11 | 10.97 | 10.97 | 18.26 | 21.96 |
200 | 8 | 219.1 | 8.62 | 2.77 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 12.70 | 12.70 | 23.01 | 22.23 |
250 | 10 | 273.0 | 10.75 | 3.40 | 4.19 | 6.35 | 7.80 | 9.27 | 9.27 | 15.09 | 12.70 | 28.58 | 25.40 |
300 | 12 | 323.8 | 12.75 | 3.96 | 4.57 | 6.35 | 8.38 | 10.13 | 9.53 | 17.48 | 12.70 | 33.32 | 25.40 |
350 | 14 | 355.6 | 14 | 3.96 | 4.78 | 7.92 | 9.53 | 11.13 | 9.53 | 19.05 | 12.70 | 35.71 | – |
400 | 16 | 406.4 | 16 | 4.19 | 4.78 | 7.92 | 9.53 | 12.70 | 9.53 | 21.44 | 12.70 | 40.49 | – |
450 | 18 | 457 | 18 | 4.19 | 4.78 | 7.92 | 11.13 | 14.27 | 9.53 | 23.83 | 12.70 | 45.24 | – |
500 | 10 | 508 | 20 | 4.78 | 5.54 | 9.53 | 12.70 | 15.09 | 9.53 | 26.19 | 12.70 | 50.01 | – |
550 | 22 | 559 | 22 | 4.78 | 5.54 | 9.53 | 12.70 | – | 9.53 | 28.58 | 12.70 | 53.98 | – |
600 | 24 | 610 | 24 | 5.54 | 6.35 | 9.53 | 14.27 | 17.48 | 9.53 | 30.96 | 12.70 | 59.54 | – |
650 | *26 | 660 | 26 | – | – | – | – | – | 9.53 | – | 12.70 | – | – |
700 | *28 | 711 | 28 | – | – | – | – | – | 9.53 | – | 12.70 | – | – |
750 | *30 | 762 | 30 | – | – | – | – | – | 9.53 | – | 12.70 | – | – |
800 | *32 | 813 | 32 | – | – | – | – | – | 9.53 | – | 12.70 | – | – |
ASTM A312 Duplex Steel 2205 Pipe OD mm |
Pipe WT mm |
in. | Sch | Kg/m |
---|---|---|---|---|
13.72 | 1.65 | 1/4 | 10S | 0.50 |
13.72 | 2.24 | 1/4 | 40S | 0.64 |
13.72 | 3.02 | 1/4 | 80S | 0.81 |
17.15 | 1.65 | 3/8 | 10S | 0.64 |
17.15 | 2.31 | 3/8 | 40S | 0.86 |
17.15 | 3.20 | 3/8 | 80S | 1.12 |
21.34 | 2.11 | 1/2 | 10S | 1.02 |
21.34 | 2.77 | 1/2 | 40S | 1.29 |
21.34 | 3.73 | 1/2 | 80S | 1.65 |
26.67 | 2.11 | 3/4 | 10S | 1.30 |
26.67 | 2.87 | 3/4 | 40S | 1.71 |
26.67 | 3.91 | 3/4 | 80S | 2.23 |
33.40 | 2.77 | 1 | 10S | 2.13 |
33.40 | 3.38 | 1 | 40S | 2.54 |
33.40 | 4.55 | 1 | 80S | 3.29 |
33.40 | 6.352) | 1 | 160 | 4.30 |
42.16 | 2.77 | 1¼ | 10S | 2.73 |
42.16 | 3.56 | 1¼ | 40S | 3.44 |
42.16 | 4.85 | 1¼ | 80S | 4.53 |
42.16 | 6.352) | 1¼ | 160 | 5.69 |
48.26 | 2.77 | 1½ | 10S | 3.16 |
48.26 | 3.68 | 1½ | 40S | 4.11 |
48.26 | 5.08 | 1½ | 80S | 5.49 |
60.33 | 2.77 | 2 | 10S | 3.99 |
60.33 | 3.91 | 2 | 40S | 5.52 |
60.33 | 5.54 | 2 | 80S | 7.60 |
60.33 | 8.742) | 2 | 160 | 11.29 |
73.03 | 3.05 | 2½ | 10S | 5.35 |
73.03 | 5.16 | 2½ | 40S | 8.77 |
73.03 | 7.01 | 2½ | 80S | 11.59 |
88.90 | 3.05 | 3 | 10S | 6.56 |
88.90 | 5.49 | 3 | 40S | 11.47 |
88.90 | 7.62 | 3 | 80S | 15.51 |
88.90 | 11.132) | 3 | 160 | 21.67 |
101.60 | 3.05 | 3½ | 10S | 7.53 |
101.60 | 5.74 | 3½ | 40S | 13.78 |
101.60 | 8.08 | 3½ | 80S | 18.92 |
114.30 | 3.05 | 4 | 10S | 8.50 |
114.30 | 6.02 | 4 | 40S | 16.32 |
114.30 | 8.56 | 4 | 80S | 22.67 |
114.30 | 13.492) | 4 | 160 | 34.05 |
141.30 | 6.55 | 5 | 40S | 22.10 |
141.30 | 9.53 | 5 | 80S | 31.44 |
141.30 | 15.882) | 5 | 160 | 49.87 |
168.28 | 3.4 | 6 | 10S | 14.04 |
168.28 | 7.11 | 6 | 40S | 28.69 |
168.28 | 10.97 | 6 | 80S | 43.21 |
168.28 | 14.27 | 6 | 120 | 54.75 |
168.28 | 18.262) | 6 | 160 | 68.59 |
219.08 | 8.18 | 8 | 40S | 43.20 |
219.08 | 12.7 | 8 | 80S | 65.63 |
219.08 | 18.23 | 8 | 120 | 91.30 |
219.08 | 23.012) | 8 | 160 | 112.97 |
Wall Thickness | Duplex Steel 2205 Tube Sizes ( O.D.) Sizes ( O.D.) |
---|---|
.010 | 1/16" , 1/8" , 3/16" |
.020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
.012 | 1/8" |
.016 | 1/8" , 3/16" |
.028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
.035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
.049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
.065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
.083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
.095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
.109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
.120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
.125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
.134 | 1" |
.250 | 3" |
.375 | 3 1/2" |
Nominal Pipe Size | Outside Diameter | Schedule 5 S | Schedule 10 S | Schedule 20 S | Schedule 40 S | Schedule 80 S | Schedule 160 S | XXS | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
mm | inch | mm | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) | WT mm | WEIGHT (KGM) |
3 | 1/8 | 10.3 | 1.2 | 0.20 | 1.24 | 0.28 | 1.5 | 0.33 | 1.73 | 0.37 | 2.41 | 0.47 | - | - | - | - |
6 | 1/4 | 13.7 | 1.2 | 0.37 | 1.65 | 0.49 | 2.00 | 0.58 | 2.24 | 0.630 | 3.02 | 0.80 | - | - | - | - |
10 | 3/8 | 17.1 | 1.2 | 0.47 | 1.65 | 0.63 | 2.00 | 0.74 | 2.31 | 0.840 | 3.20 | 1.10 | - | - | - | - |
15 | 1/2 | 21.3 | 1.65 | 0.80 | 2.11 | 1.00 | 2.30 | 1.07 | 2.77 | 1.27 | 3.73 | 1.62 | 4.75 | 1.94 | 7.47 | 2.55 |
20 | 3/4 | 26.7 | 1.65 | 1.03 | 2.11 | 1.28 | 2.55 | 1.52 | 2.87 | 1.69 | 3.91 | 2.20 | 5.56 | 2.90 | 7.82 | 3.64 |
25 | 1 | 33.4 | 1.65 | 1.30 | 2.77 | 2.09 | 2.55 | 1.94 | 3.38 | 2.50 | 4.55 | 3.24 | 6.35 | 4.24 | 9.09 | 5.45 |
32 | 1.1/4 | 42.2 | 1.65 | 1.65 | 2.77 | 2.70 | 3.00 | 2.90 | 3.56 | 3.39 | 4.85 | 4.47 | 6.35 | 5.61 | 9.70 | 7.77 |
40 | 1.1/2 | 48.3 | 1.65 | 1.91 | 2.77 | 3.11 | 3.00 | 3.55 | 3.68 | 4.05 | 5.08 | 5.41 | 7.14 | 7.25 | 11.1 | 10.18 |
50 | 2 | 60.3 | 1.65 | 2.40 | 2.77 | 3.93 | 3.00 | 4.24 | 3.91 | 5.44 | 5.54 | 7.48 | 8.74 | 11.11 | 11.07 | 13.44 |
65 | 2.1/2 | 73.0 | 2.11 | 3.69 | 3.05 | 5.26 | 4.00 | 6.81 | 5.16 | 8.63 | 7.01 | 11.41 | 9.53 | 14.91 | 14.02 | 20.39 |
80 | 3 | 88.9 | 2.11 | 4.51 | 3.05 | 6.45 | 4.00 | 8.37 | 5.49 | 11.29 | 7.62 | 15.27 | 11.1 | 21.30 | 15.24 | 27.68 |
100 | 4 | 114.3 | 2.11 | 5.84 | 3.05 | 8.36 | 4.50 | 12.18 | 6.02 | 16.07 | 8.56 | 22.32 | 13.49 | 33.54 | 17.12 | 41.03 |
125 | 5 | 141.3 | 2.77 | 9.47 | 3.40 | 11.57 | 5.00 | 16.80 | 6.55 | 21.8 | 9.53 | 30.97 | 15.88 | 49.11 | 19.05 | 57.43 |
150 | 6 | 168.3 | 2.77 | 11.32 | 3.40 | 13.84 | 6.35 | 25.36 | 7.11 | 28.26 | 10.97 | 42.56 | 18.25 | 67.53 | 21.95 | 79.22 |
200 | 8 | 219.1 | 2.77 | 14.79 | 3.76 | 19.96 | 6.35 | 33.31 | 8.18 | 42.55 | 12.7 | 64.64 | 23.01 | 111.27 | 22.23 | 107.92 |
250 | 10 | 273.1 | 3.40 | 22.63 | 4.19 | 27.78 | 6.35 | 41.77 | 9.27 | 60.31 | 12.7 | 96.01 | 28.58 | 172.33 | 25.40 | 155.15 |
300 | 12 | 323.8 | 3.96 | 31.25 | 4.57 | 36.00 | 6.35 | 49.7 | 9.53 | 73.88 | 12.7 | 132.05 | 33.32 | 238.76 | 25.40 | 186.97 |
350 | 14 | 355.6 | 3.96 | 34.36 | 4.78 | 41.3 | 7.92 | 67.80 | 11.13 | 94.59 |
28 | .028" Thick |
035 | .035" Thick |
039 | .039" Thick |
049 | .049" Thick |
065 | .065" Thick |
083 | .083" Thick |
109 | .109" Thick |
NPS | Outside Diameter | Wall Thickness | Weight | Weight | |||
in | mm | in | mm | Sched | kg/Mtr | Lb/ft | |
1/2″ | 0.840 | 21 | 0.109 | 2.769 | 40 STD | 1.268 | 0.851 |
0.147 | 3.734 | 80 STD | 1.621 | 1.088 | |||
3/4″ | 1.050 | 27 | 0.113 | 2.870 | 40 STD | 1.684 | 1.131 |
0.154 | 3.912 | 80 STD | 2.195 | 1.474 | |||
1″ | 1.315 | 33 | 0.133 | 3.378 | 40 STD | 2.501 | 1.679 |
0.179 | 4.547 | 80 STD | 3.325 | 2.172 | |||
1 1/4″ | 1.660 | 42 | 0.140 | 3.556 | 40 STD | 3.385 | 2.273 |
0.191 | 4.851 | 80 STD | 4.464 | 2.997 | |||
1 1/2″ | 1.900 | 48 | 0.145 | 3.683 | 40 STD | 4.048 | 2.718 |
0.200 | 5.080 | 80 STD | 5.409 | 3.361 | |||
2″ | 2.375 | 60 | 0.154 | 3.912 | 40 STD | 5.441 | 3.653 |
0.218 | 5.537 | 80 STD | 7.480 | 5.022 | |||
2 1/2″ | 2.875 | 73 | 0.203 | 5.516 | 40 STD | 8.629 | 5.793 |
0.276 | 7.010 | 80 STD | 11.411 | 7.661 | |||
3″ | 3.500 | 89 | 0.216 | 5.486 | 40 STD | 11.284 | 7.576 |
0.300 | 7.620 | 80 STD | 15.272 | 10.253 | |||
4″ | 4.500 | 114 | 0.237 | 6.020 | 16.073 | 10.790 | |
0.337 | 8.560 | 22.318 | 14.983 | ||||
6″ | 6.625 | 168 | 0.188 | 4.775 | 19.252 | 12.924 | |
0.203 | 5.516 | 20.739 | 13.923 | ||||
0.219 | 5.563 | 22.318 | 14.983 | ||||
0.250 | 6.350 | 25.354 | 17.021 | ||||
0.280 | 7.112 | 40 STD | 58.263 | 18.974 | |||
0.312 | 7.925 | 31.334 | 21.036 | ||||
0.375 | 9.525 | 37.285 | 25.031 | ||||
0.432 | 10.973 | 80 XHY | 42.561 | 28.573 | |||
0.500 | 12.700 | 48.719 | 32.708 | ||||
8″ | 8.625 | 219 | 0.188 | 4.775 | 25.233 | 16.940 | |
0.203 | 5.156 | 27.198 | 18.259 | ||||
0.219 | 5.563 | 29.286 | 19.661 | ||||
0.250 | 6.350 | 20 | 33.308 | 22.361 | |||
0.277 | 7.036 | 30 | 36.786 | 24.696 | |||
0.322 | 8.179 | 40 | 42.352 | 28.554 | |||
0.375 | 9.525 | 49.216 | 33.041 | ||||
0.406 | 10.312 | 60 | 53.085 | 35.638 | |||
0.500 | 12.700 | 80 XHY | 64.627 | 43.388 | |||
10″ | 10.750 | 273 | 0.188 | 4.775 | 31.588 | 21.207 | |
0.219 | 5.563 | 36.689 | 24.631 | ||||
0.250 | 6.350 | 20 | 41.759 | 28.035 | |||
0.307 | 7.798 | 30 | 51.002 | 34.240 | |||
0.344 | 8.738 | 56.946 | 38.231 | ||||
0.365 | 9.271 | 40 STD | 63.301 | 40.483 | |||
0.438 | 11.125 | 71.852 | 48.238 | ||||
0.500 | 12.700 | 60 XHY | 81.530 | 54.735 | |||
0.594 | 15.088 | 80 | 95.969 | 64.429 | |||
12″ | 12.750 | 324 | 0.188 | 4.775 | 37.570 | 25.222 | |
0.219 | 5.563 | 43.657 | 29.309 | ||||
0.250 | 6.350 | 49.713 | 33.375 | ||||
0.281 | 7.137 | 55.739 | 37.420 | ||||
0.312 | 7.925 | 61.735 | 41.445 | ||||
0.375 | 9.525 | 73.824 | 49.562 | ||||
0.406 | 10.312 | 79.727 | 53.525 | ||||
0.500 | 12.700 | 97.438 | 65.415 | ||||
0.562 | 14.275 | 108.966 | 73.154 | ||||
14″ | 14.000 | 356 | 0.188 | 4.775 | 41.308 | 27.732 | |
0.219 | 5.563 | 48.012 | 32.233 | ||||
0.250 | 6.350 | 20 | 54.685 | 36.713 | |||
0.281 | 7.137 | 61.327 | 41.172 | ||||
0.312 | 7.925 | 67.939 | 45.611 | ||||
0.375 | 9.525 | STD | 81.281 | 54.568 | |||
0.438 | 11.125 | 40 | 94.498 | 63.441 | |||
0.500 | 12.700 | XHY | 107.381 | 72.090 | |||
0.625 | 15.875 | 132.983 | 89.278 | ||||
16” | 16.000 | 406 | 0.188 | 4.775 | 47.290 | 21.748 | |
0.219 | 5.563 | 54.980 | 36.910 | ||||
0.250 | 6.350 | 10 | 62.639 | 42.053 | |||
0.281 | 7.137 | 70.268 | 47.174 | ||||
0.312 | 7.925 | 20 | 77.866 | 52.275 | |||
0.344 | 8.738 | 85.677 | 57.519 | ||||
0.375 | 9.525 |
30 STD |
93.213 | 62.578 | |||
0.438 | 11.125 | 108.433 | 72.797 | ||||
0.500 | 12.700 |
40 XHY |
123.289 | 82.770 | |||
18″ | 18.000 | 457 | 0.219 | 5.563 | 61.948 | 41.588 | |
0.250 | 6.350 | 70.593 | 47.393 | ||||
0.281 | 7.137 | 79.208 | 53.176 | ||||
0.312 | 7.925 | 20 | 87.792 | 58.939 | |||
0.375 | 9.525 | STD | 105.144 | 70.588 | |||
0.438 | 11.125 | 30 | 122.369 | 82.152 | |||
0.500 | 12.700 | XHY | 139.198 | 93.450 | |||
0.562 | 14.275 | 40 | 155.904 | 104.666 | |||
0.625 | 15.875 | 172.754 | 115.978 | ||||
20″ | 20.000 | 508 | 0.250 | 6.350 | 78.547 | 52.733 | |
0.282 | 7.163 | 88.458 | 59.386 | ||||
0.312 | 7.925 | 97.719 | 65.604 | ||||
0.375 | 9.525 | 20 STD | 117.075 | 78.598 | |||
0.438 | 11.125 | 136.305 | 91.508 | ||||
0.500 | 12.700 | 30 XHY | 155.106 | 104.130 | |||
0.594 | 15.088 | 40 | 183.378 | 123.110 | |||
0.625 | 15.875 | 192.640 | 129.328 | ||||
0.688 | 17.475 | 211.368 | 141.901 | ||||
24″ | 24.000 | 610 | 0.250 | 6.350 | 94.456 | 63.413 | |
0.281 | 7.137 | 106.029 | 71.183 | ||||
0.312 | 7.925 | 117.573 | 18.932 | ||||
0.375 | 9.525 | 20 STD | 140.938 | 64.618 | |||
0.438 | 11.125 | 164.176 | 110.219 | ||||
0.500 | 12.700 | XHY | 186.923 | 125.490 | |||
0.625 | 15.875 | 232.410 | 156.028 | ||||
0.688 | 17.475 | 40 | 255.148 | 171.293 | |||
0.750 | 19.050 | 277.401 | 186.233 | ||||
30″ | 30.000 | 762 | 0.250 | 6.350 | 118.318 | 79.433 | |
0.281 | 7.137 | 132.851 | 89.189 | ||||
0.312 | 7.925 | 10 | 147.353 | 98.925 | |||
0.375 | 9.525 | STD | 176.731 | 118.648 | |||
0.438 | 11.125 | 205.983 | 138.286 | ||||
0.500 | 12.700 | 20 XHY | 234.647 | 157.530 | |||
0.625 | 15.875 | 30 | 292.066 | 196.078 | |||
0.688 | 17.475 | 320.817 | 215.380 | ||||
0.750 | 19.050 | 348.988 | 234.293 | ||||
36″ | 36.000 | 914 | 0.250 | 6.350 | 142.180 | 95.453 | |
0.281 | 7.137 | 159.672 | 107.196 | ||||
0.312 | 7.925 | 10 | 177.133 | 118.918 | |||
0.375 | 9.525 | STD | 215.525 | 142.678 | |||
0.438 | 11.125 | 247.790 | 166.353 | ||||
0.500 | 12.700 | 20 XHY | 282.372 | 198.570 | |||
0.625 | 15.875 | 351.723 | 236.128 | ||||
0.688 |
17.475 | 386.487 | 259.467 | ||||
0.750 |
19.050 | 420.576 | 282.353 | ||||
42″ | 42.000 | 1067 | 0.312 | 7.925 | 206.914 | 138.911 | |
0.375 | 9.525 | STD | 248.319 | 166.708 | |||
0.500 | 12.700 | XHY | 33.097 | 221.610 | |||
0.750 | 19.050 | 492.163 | 330.413 | ||||
48″ | 48.000 | 1219 | 0.375 | 9.525 | STD | 284.112 | 190.738 |
0.438 | 11.125 | 331.404 | 222.487 | ||||
0.500 | 12.700 | XHY | 377.822 | 253.650 | |||
0.750 | 19.050 | 563.750 | 378.473 | ||||
0.875 | 22.225 | 655.969 | 440.383 |
Duplex Steel 2205 Pipe OD | ASTM A312 TP 2205 Pipe Tolerance |
---|---|
4 to 35mm | +/- 0.08mm |
35 to 38mm | +/- 0.15mm |
38 to 60mm | +/- 0.20mm |
60 and above | +/- 0.25mm |
Price of Duplex Steel 2205 Pipes & Tubess manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
---|---|---|---|
Duplex Steel 2205 stainless steel pipe | 126.20 | 2.90 | 2.60 |
2205 thick wall seamless stainless steel pipe | 119.22 | 2.82 | 2.54 |
2205 thick wall seamless stainless steel tube | 126.22 | 2.92 | 2.62 |
stainless steel 2205 stainless steel pipe manufacturer | 119.22 | 2.82 | 2.54 |
2205 round square rectangular stainless steel pipe | 125.14 | 2.84 | 2.46 |
2205 round square rectangular stainless steel tube | 136.18 | 3.02 | 3.70 |
