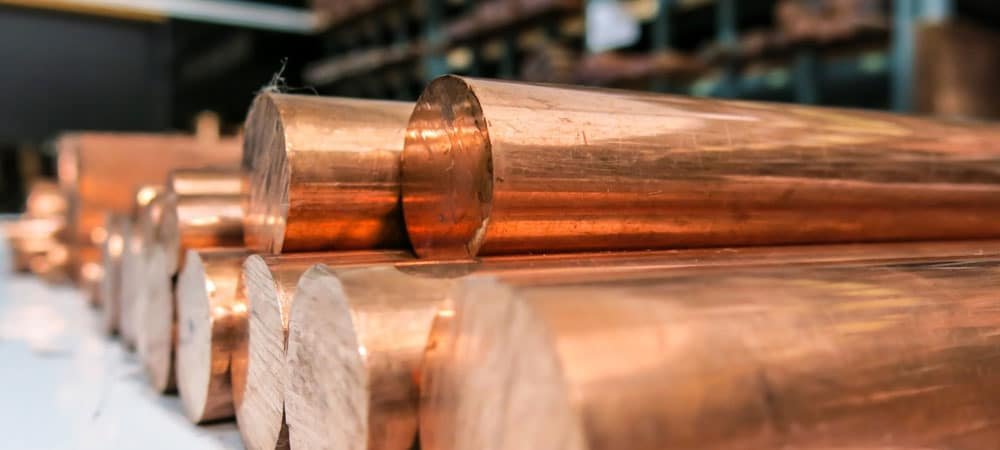

Ranflex Metals is one of the prime Manufacturers, Exporters and Supplier of Cupro-Nickel 90-10 Round Bar, Copper Nickel Alloy 90/10 Round Bars, Cu-Ni UNS No C70600 90/10 Bars, CU-NI-90/10 Round Bars & Rods, Copper Nickel (Cu-Ni 90/10) Round Bars, Rods that are being sourced by utilizing high caliber of crude material and tries to give solidness of most noteworthy nature of industry standard items. Likewise perceived as cupro-nickel bars or CuNi bars, these copper composites demonstrate that they have a to a great degree phenomenal imperviousness to seawater, natural mixes, weakened non-oxidizing acids, saline solution water, salts, and the sky is the limit from there. These Cupro Nickel ASTM B466 UNS C70600 90/10 Round Bars are to a great extent utilized as a part of the car, customer, mechanical and marine enterprises. In the meantime, these Copper Nickel Round Bars can further be altered regarding sizes and thicknesses according to particular necessities given by our regarded customers. We offer these Cupro Nickel Rods in market driving costs.
Our extent of effectively planned 90/10 Cu-Ni Bars and Rods that have expanded enormous honors far and wide. The Round Bars and Rods created by us demonstrate high caliber, transcendent quality, and exact advancement, idealize culmination and brilliant erosion resistance. These 90/10 Cu-Ni Bars and Rods in open assorted assessments, detail, and thickness as per the client's necessities. These are extensively used as a piece of various application industries, for instance, Cement industry, Power Industry, Sugar Mills, Chemical Plants, Pharmaceuticals et cetera.
Grade | CU-NI-90/10 Round Bar |
---|---|
CU-NI-90/10 Square bar size | 4 to 100mm |
CU-NI-90/10 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
Hot Rolled Steel Hex Bar size | 2-100mm A/F |
CU-NI-90/10 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
CU-NI-90/10 Rectangles Size | 33 x 30mm to 295 x 1066mm |
Hot Rolled Steel Flat bar size | Thickness: 2 -100mm |
Width: 10 to 500mm | |
CU-NI-90/10 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
CU-NI-90/10 Section | 3.0 to 12.0mm thickness |
Hot Rolled Steel Round bar size | Diameter: 3-~800mm |
CU-NI-90/10 Billet Size | 1/2" to 495mm Diameter |
CU-NI-90/10 Round Bar Standard Dimensions | Diameter / Height: CU-NI-90/10 Rod and Bar Sizes : 0.5 inches / 0.Grade5 inches / 0.75 inches / 0.875 inches / 1.0 inches / 1.125 inches / 1.25 inches / 1.375 inches / 1.5 inches / 1.75 inches / 2.0 inches / 2.25 inches / 2.5 inches / 2.75 inches / 3.0 inches / 3.25 inches / 3.5 inches / 3.75 inches / 4.0 inches / 4.25 inches / 4.5 inches / 5.0 inches / 5.25 inches / 5.5 inches / 6.0 inches / 7.0 inches / 8.0 inches / 9.0 inches. |
CU-NI-90/10 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
CU-NI-90/10 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
Hot Rolled Steel Technique | CU-NI-90/10 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
CU-NI-90/10 Condition | Hardened & tempered, annealed |
Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
Form | CU-NI-90/10 Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
Processing | Bar cutting to 650mm |
STANDARD | UNS | WNR. | EN | AFNOR |
---|---|---|---|---|
Cupro Nickel 90/10 | C70600 | 2.0872 | NiCr20CuMo | Z2NCUD31-20AZ |
Grade | Cu | Mn | Pb | Ni | Fe | Zn |
---|---|---|---|---|---|---|
Cupro Nickel 90/10 | 88.6 | 1.0 max | 0.05 max | 9 - 11 max | 1.8 max | 1 max |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
---|---|---|---|---|
0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
Properties | Metric | Imperial |
---|---|---|
Density | 8.94 g/cm3 | 0.323 lb/in3 |
Diameter or Width (mm) |
Weight per meter | Sectional Area | Perimeter | |||
Square (kg) |
Round (kg) |
Square (cm²) |
Round (cm²) |
Square (cm) |
Round (cm) |
|
5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
---|---|---|---|---|---|
7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
---|---|---|---|
Cold Drawn and Polish | 3.00 - 75.00 | 1/8 - 3.00 | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 - 75.00 | 5/6 - 2.50 | h8-h9-h10-h11 |
Peeled and Polished | 40.00 - 150.00 | 1.50 - 6.00 | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 - 50.00 | 3/4 - 2.00 | h9-h10-h11 |
CU-NI-90/10 Bars Standard lengths of 2000 mm up to Grade50 mm. Cut to size on request (tolerance +2/-0 mm).
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 200.0 |
Flat bar sizes in mm | Flat Bar Size (inch) | Flat Bar Thickness (mm) | Flat Bar Thickness (in Inches) |
---|---|---|---|
22 | 7/8 | 17 & 18 | 2/3 - 5/7 |
25 | 1 | 5 to 20 | 3/16 - 4/5 |
30 | 1-3/16 | 5 to 20 | 3/16 - 4/5 |
32 | 1-1/4 | 6 to 20 | 1/4 - 4/5 |
35 | 1-3/8 | 5 to 20 | 3/16 - 3/16 |
40 | 1-4/7 | 5 to 25 | 3/16 - 1 |
45 | 1-7/9 | 5 to 25 | 3/16 - 1 |
47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
50 | 2 | 5 to 32 | 3/16 - 1-1/4 |
55 | 2-1/16 | 5 to 25 | 3/16 - 1 |
57 | 2-1/4 | 32 | 1-1/4 |
60 | 2-3/8 | 5 to 35 | 3/16 - 1-3/8 |
63 | 2-1/2 | 10 to 30 | 3/8 - 1-3/16 |
65 | 2-5/9 | 10 to 30 & 35 | 3/8 - 1-3/16, & 1-3/8 |
70 | 2-3/4 | 6 to 25 & 40 | 1/4 - 1, & 1-4/7 |
75 | 3 | 8 to 25 | 5/16 - 1 |
80 | 3-1/8 | 8 to 20 | 5/16 - 4/5 |
90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
OD = outside diameter, ID = inside diameter
Size | Chucked true to OD | Chucked true to ID | |||||||
---|---|---|---|---|---|---|---|---|---|
OD, mm |
ID, mm |
Max. OD, mm |
Min. ID, mm |
Max. OD, in. |
Min. ID, in. |
Max. OD, mm |
Min. ID, mm |
Max. OD, in. |
Min. ID, in. |
32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
160 | 112 | 157.6 | 115.5 | 6.205 | 4.547 | 155.8 | 113.7 | 6.134 | 4.476 |
160 | 90 | 157.6 | 94.0 | 6.205 | 3.701 | 155.2 | 91.4 | 6.110 | 3.598 |
170 | 140 | 167.4 | 143.5 | 6.591 | 5.650 | 166 | 142.1 | 6.535 | 5.594 |
170 | 130 | 167.4 | 133.6 | 6.591 | 5.260 | 165.8 | 132 | 6.528 | 5.197 |
170 | 128 | 167.4 | 131.6 | 6.591 | 5.181 | 165.7 | 130 | 6.524 | 5.118 |
170 | 118 | 167.4 | 121.7 | 6.591 | 4.791 | 165.5 | 119.8 | 6.516 | 4.717 |
170 | 106 | 167.4 | 109.8 | 6.591 | 4.323 | 165.2 | 107.6 | 6.504 | 4.236 |
170 | 100 | 167.4 | 103.9 | 6.591 | 4.091 | 165 | 101.5 | 6.496 | 3.996 |
180 | 150 | 177.3 | 153.6 | 6.980 | 6.047 | 176 | 152.3 | 6.929 | 5.996 |
180 | 140 | 177.3 | 143.7 | 6.980 | 5.657 | 175.7 | 142.1 | 6.917 | 5.594 |
180 | 125 | 177.3 | 128.9 | 6.980 | 5.075 | 175.3 | 126.9 | 6.902 | 4.996 |
180 | 100 | 177.3 | 104.1 | 6.980 | 4.098 | 174.7 | 101.5 | 6.878 | 3.996 |
190 | 160 | 187.1 | 163.8 | 7.366 | 6.449 | 185.7 | 162.4 | 7.311 | 6.394 |
190 | 150 | 187.1 | 153.9 | 7.366 | 6.059 | 185.5 | 152.3 | 7.303 | 5.996 |
190 | 132 | 187.1 | 136 | 7.366 | 5.354 | 185.1 | 134 | 7.287 | 5.276 |
200 | 170 | 197.0 | 173.9 | 7.756 | 6.846 | 195.6 | 172.6 | 7.701 | 6.795 |
200 | 160 | 197.0 | 164 | 7.756 | 6.457 | 195.4 | 162.4 | 7.693 | 6.394 |
200 | 150 | 197.0 | 154.1 | 7.756 | 6.067 | 195.2 | 152.3 | 7.685 | 5.996 |
200 | 140 | 197.0 | 144.2 | 7.756 | 5.677 | 194.9 | 142.1 | 7.673 | 5.594 |
212 | 170 | 208.8 | 174.2 | 8.220 | 6.858 | 207.2 | 172.6 | 8.157 | 6.795 |
212 | 150 | 208.8 | 154.4 | 8.220 | 6.079 | 206.6 | 152.3 | 8.133 | 5.997 |
212 | 130 | 208.8 | 134.6 | 8.220 | 5.299 | 206.2 | 132 | 8.118 | 5.197 |
224 | 180 | 220.6 | 184.4 | 8.685 | 7.260 | 218.9 | 182.7 | 8.618 | 7.193 |
224 | 140 | 220.6 | 144.8 | 8.685 | 5.701 | 217.9 | 142.1 | 8.579 | 5.594 |
236 | 190 | 232.4 | 194.6 | 9.150 | 7.661 | 230.7 | 192.9 | 9.083 | 7.594 |
236 | 150 | 232.4 | 155.0 | 9.150 | 6.102 | 229.7 | 152.3 | 9.043 | 5.996 |
250 | 200 | 246.2 | 204.9 | 9.693 | 8.067 | 244.3 | 203.0 | 9.618 | 7.992 |
275 | 200 | 268.9 | 205.4 | 10.587 | 8.087 | 266.5 | 203.0 | 10.492 | 7.992 |
Size (mm) | Weight per metre (Kg) |
---|---|
12 x 12 | 1.14 |
16 x 16 | 2.02 |
20 x 20 | 3.16 |
25 x 25 | 4.94 |
30x30 | 7.11 |
40 x 40 | 12.60 |
50 x 50 | 19.80 |
Diameter or Width (mm) |
Weight per meter | Sectional Area | Perimeter | |||
Square (kg) |
Round (kg) |
Square (cm²) |
Round (cm²) |
Square (cm) |
Round (cm) |
|
5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Description | Per Unit (INR) | Price in USD | Pricein EURO |
---|---|---|---|
CU-NI-90/10 Bright Bars Bright Bars | 125.72 | 2.42 | 2.12 |
CU-NI-90/10 Bright Bars CU-NI-90/10 Shape Round | 118.72 | 2.32 | 2.04 |
Bright Rods Of CU-NI-90/10 | 125.72 | 2.42 | 2.12 |
CU-NI-90/10 Bright Bars grade Grade5 Shape Round | 118.72 | 2.32 | 2.04 |
CU-NI-90/10 Round Bars | 124.64 | 2.34 | 1.96 |
CU-NI-90/10 Bars & Rods Of CU-NI-90/10 | 135.68 | 2.52 | 3.18 |
