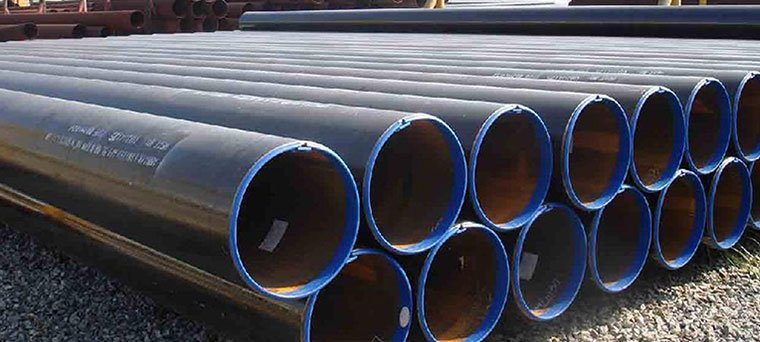

Carbon Steel API 5L Line Pipes & Tubes

This Carbon Steel API 5L Line Pipes & Tubes specification covers seamless and welded steel line pipe. The purpose of this specification is to conveying gas, water and oil in both the oil and natural gas organization. API 5L Line Pipe Specifications for these pipes regulate usage for standard Grade A and Grade B pipes, with Grade X showing stronger variants for penetrating, generation and transport requirements for offshore, arctic, deep well or harsher environments. These items intended for extraordinary conditions or exceedingly high pressure situations.

Carbon Steel API 5L Line industrial Pipes & Tubes trader, ASTM A671 industrial Pipes & Tubes supplier, JIS SUS API 5L Line high tensile Pipes & Tubes distributor, UNS C70600 high tensile Pipes & Tubes retailer, Carbon Steel 2332 industrial Pipes & Tubes exporter, ASTM A671 industrial Pipes & Tubes dealer, JIS SUS API 5L Line high tensile Pipes & Tubes price list in India.

API 5L Grade B seamless pipes is one of our most widely used grade of carbon steel and is readily available ex-stock for all standard thickness upto SCH160. Ranflex Metals is a reputed distributor of API 5L line pipes in Mumbai India and deliver at the best price.

Carbon Steel API 5L Line Pipes & Tubes build according to ASTM Standard. Requirements to API 5L X evaluations are more severe; moved evaluations are not adequate and revamp is not permitted. Also, specific consideration is given to strength and power tests for sharp administrations and higher weight and temperature classes.

EN 58E industrial Pipes & Tubes, ASTM A671 Hot Forged Pipes & Tubes, JIS SUS API 5L Line industrial Pipes & Tubes, BS API 5L LineS31 Hot Forged Pipes & Tubes, X5Crni18-10 high tensile Pipes & Tubes, EN 58E high tensile Pipes & Tubes.

Application of Carbon Steel API 5L Line Pipes & Tubes :

* Refineries, Power Plants, Boilers, Ship Building, Heat Exchangers, Condensers, Paper & Pulp, Marine Applications, Nuclear Power, Fossil Fuel Power Plants
* Ranflex Metals exports Carbon Steel API 5L Line Pipes & Tubes to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Phillipines.

Specification of API 5L Line Carbon Steel Pipes & Tubess :

Carbon Steel API 5L Pipe Specification	API 5L Gr A, B, X42, X46, X52, X56, X60, X65, X70, PSL 1/ 2, ETC
Carbon Steel API 5L Tube Specification	API 5L Gr A, B, X42, X46, X52, X56, X60, X65, X70, PSL 1/ 2, ETC
Pipe Size	1/8” NB to 24” NB, 1/4” OD to 24” OD sizes.
Tube Size	1/2" OD to 8" OD
Thickness Range	0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type	Seamless / ERW / Welded / Fabricated Pipes
Form	Round, Square, Rectangular, Oval, Hydraulic Etc
Length	Single Random, Double Random & Required Length
End	Plain End, Beveled End, Treaded
End Protection	Plastic Caps
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for Carbon Steel Pipes, Finish as per customer Requirements
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Inspection, Test Reports	Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing	Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials	Sizes and Specifications other than above can be manufactured on request

Equivalent Grades of Carbon Steel API 5L Line Pipes & Tubess :

Standard	SEAMLESS	WELDED	Other standards
API 5L Gr B PSL1 Equivalent	EN 10216-1 P265	EN 10217-1 P265	BS 3601 430
API 5L Grade B PSL2 Equivalent	EN 10216-1 P265	EN 10217-1 P265	BS 3601 430

Chemical Composition of API 5L Line Carbon Steel Pipes & Tubess :

PSL1

Grade		C (Max)	Mn (Max)	P (Max)	S (Max)
Grade A25	CL I	0.21	0.60	0.030	0.030
Grade A25	CL II	0.21	0.60	0.030	0.030
Grade A		0.22	0.90	0.030	0.030
Grade B		0.26	1.20	0.030	0.030
X42		0.26	1.30	0.030	0.030
X46		0.26	1.40	0.030	0.030
X52		0.26	1.40	0.030	0.030
X56		0.26	1.40	0.030	0.030
X60		0.26	1.40	0.030	0.030
X65		0.26	1.45	0.030	0.030
X70		0.26	1.65	0.030	0.030

PSL2

Grade	C (Max)	Mn (Max)	P (Max)	S (Max)
Grade B	0.22	1.20	0.025	0.015
X42	0.22	1.30	0.025	0.015
X46	0.22	1.40	0.025	0.015
X52	0.22	1.40	0.025	0.015
X56	0.22	1.40	0.025	0.015
X60	0.22	1.40	0.025	0.015
X65	0.22	1.45	0.025	0.015
X70	0.22	1.65	0.025	0.015
X80	0.22	1.90	0.025	0.015

Mechanical Properties of Carbon Steel API 5L Line Pipes & Tubess :

PSL1 Elongation E=1944 A 0.2 /U 0.9

Grade	Yield Strength(Min.)		Tensile Strength(Max.)
	Ksi	MPa	Ksi	MPa
B	35	241	60	414
X42	42	290	60	414
X46	46	317	63	434
X52	52	359	66	455
X56	56	386	60	414
X60	60	414	63	434
X65	65	448	66	455

PSL 2 Elongation E=1944 A 0.2 / U 0.9

Grade	Yield Strength		Yield Strength		Tensile Strength		Tensile Strength
	Min		Max		Min		Max
	Ksi	MPa	Ksi	MPa	Ksi	MPa	Ksi	MPa
B	35	241	65	448	60	414	110	758
X42	42	290	72	496	60	414	110	758
X46	46	317	76	524	63	434	110	758
X52	52	359	77	531	66	455	110	758
X56	56	386	79	544	71	490	110	758
X60	60	414	82	565	75	517	110	758
X65	65	448	87	600	77	531	110	758

Physical Properties of Carbon Steel WERKSTOFF NR. 2.0872 :

API 5L Grade	Yield Strength min. (ksi)	Tensile Strength min. (ksi)	Yield to Tensile Ratio (max.)	Elongation min. 1%
A	30	48	0.93	28
B	35	60	0.93	23
X42	42	60	0.93	23
X46	46	63	0.93	22
X52	52	66	0.93	21
X56	56	71	0.93	19
X60	60	75	0.93	19
X65	65	77	0.93	18
X70	70	82	0.93	17
X80	80	90	0.93	16

JIS SUS API 5L Line industrial Pipes & Tubes retailer, Carbon Steel 2332 high tensile Pipes & Tubes stockyards, Carbon Steel API 5L Line industrial Pipes & Tubes At Factory Price, X5Crni18-10 high tensile Pipes & Tubes dealer, JIS SUS API 5L Line Hot Forged Pipes & Tubes catalogue, UNS C70600 Hot Forged Pipes & Tubes stockist, EN 58E high tensile Pipes & Tubes At Factory Price.

Modern Equipments

Expert Engineers

Efficient Factories

Well Maintained

Dimensions of Carbon Steel API 5L Line Pipes & Tubes :

Carbon Steel API 5L Line Pipe & Tube Dimensions Chart :

Nominal pipe Size(NPS)		Outside Diameter		Nominal Wall Thickness
				Sch5s	SCH10S	Sch20	Sch30	Sch40	STD	Sch80	XS	Sch160	XXS
8	1/4	13.7	0.54	–	1.65	–	1.85	2.24	2.24	3.02	3.02	–	–
10	3/8	17.1	0.675	–	1.65	–	1.85	2.31	2.31	3.20	3.20	–	–
15	1/2	21.3	0.84	1.65	2.11	–	2.41	2.77	2.77	3.73	3.73	4.78	7.47
20	3/4	26.7	1.05	1.65	2.11	–	2.41	2.87	2.87	3.91	3.91	5.56	7.82
25	1	33.4	1.32	1.65	2.77	–	2.90	3.38	3.38	4.55	4.55	6.35	9.09
32	1.1/4	42.2	1.66	1.65	2.77	–	2.97	3.56	3.56	4.85	4.85	6.35	9.70
40	1.1/2	48.3	1.90	1.65	2.77	–	3.18	3.68	3.68	5.08	5.08	7.14	10.15
50	2	60.3	2.38	1.65	2.77	–	3.18	3.91	3.91	5.54	5.54	8.74	11.07
65	2.1/2	73.0	2.88	2.11	3.05	–	4.78	5.16	5.16	7.01	7.01	9.53	14.02
80	3	88.9	3.50	2.11	3.05	–	4.78	5.49	5.49	7.62	7.62	11.13	15.24
90	3.1/2	101.6	4.00	2.11	3.05	–	4.78	5.74	5.74	8.08	8.08	–	–
100	4	114.3	4.50	2.11	3.05	–	4.78	6.02	6.02	8.56	8.56	13.49	17.12
125	5	141.3	5.56	2.77	3.40	–	–	6.55	6.55	9.53	9.53	15.88	19.05
150	6	168.3	6.62	2.77	3.40	–	–	7.11	7.11	10.97	10.97	18.26	21.96
200	8	219.1	8.62	2.77	3.76	6.35	7.04	8.18	8.18	12.70	12.70	23.01	22.23
250	10	273.0	10.75	3.40	4.19	6.35	7.80	9.27	9.27	15.09	12.70	28.58	25.40
300	12	323.8	12.75	3.96	4.57	6.35	8.38	10.13	9.53	17.48	12.70	33.32	25.40
350	14	355.6	14	3.96	4.78	7.92	9.53	11.13	9.53	19.05	12.70	35.71	–
400	16	406.4	16	4.19	4.78	7.92	9.53	12.70	9.53	21.44	12.70	40.49	–
450	18	457	18	4.19	4.78	7.92	11.13	14.27	9.53	23.83	12.70	45.24	–
500	10	508	20	4.78	5.54	9.53	12.70	15.09	9.53	26.19	12.70	50.01	–
550	22	559	22	4.78	5.54	9.53	12.70	–	9.53	28.58	12.70	53.98	–
600	24	610	24	5.54	6.35	9.53	14.27	17.48	9.53	30.96	12.70	59.54	–
650	*26	660	26	–	–	–	–	–	9.53	–	12.70	–	–
700	*28	711	28	–	–	–	–	–	9.53	–	12.70	–	–
750	*30	762	30	–	–	–	–	–	9.53	–	12.70	–	–
800	*32	813	32	–	–	–	–	–	9.53	–	12.70	–	–

Size of Carbon Steel API 5L Line Pipe & Tube :

API 5L Line Carbon steel Exhaust Pipe Size Chart In Mm :

ASTM B466 Carbon Steel API 5L Line Pipe OD mm	Pipe WT mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97

Carbon Steel API 5L Line Erw Tube Size Chart :

Wall Thickness	Carbon Steel API 5L Line Tube Sizes ( O.D.) Sizes ( O.D.)
.010	1/16" , 1/8" , 3/16"
.020	1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012	1/8"
.016	1/8" , 3/16"
.028	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049	3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065	1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083	1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095	1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109	1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120	1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125	3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134	1"
.250	3"
.375	3 1/2"

Weight Chart of Carbon Steel API 5L Line Pipes & Tubes :

Nominal Pipe Size		Outside Diameter	Schedule 5 S		Schedule 10 S		Schedule 20 S		Schedule 40 S		Schedule 80 S		Schedule 160 S		XXS
mm	inch	mm	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)	WT mm	WEIGHT (KGM)
3	1/8	10.3	1.2	0.20	1.24	0.28	1.5	0.33	1.73	0.37	2.41	0.47	-	-	-	-
6	1/4	13.7	1.2	0.37	1.65	0.49	2.00	0.58	2.24	0.630	3.02	0.80	-	-	-	-
10	3/8	17.1	1.2	0.47	1.65	0.63	2.00	0.74	2.31	0.840	3.20	1.10	-	-	-	-
15	1/2	21.3	1.65	0.80	2.11	1.00	2.30	1.07	2.77	1.27	3.73	1.62	4.75	1.94	7.47	2.55
20	3/4	26.7	1.65	1.03	2.11	1.28	2.55	1.52	2.87	1.69	3.91	2.20	5.56	2.90	7.82	3.64
25	1	33.4	1.65	1.30	2.77	2.09	2.55	1.94	3.38	2.50	4.55	3.24	6.35	4.24	9.09	5.45
32	1.1/4	42.2	1.65	1.65	2.77	2.70	3.00	2.90	3.56	3.39	4.85	4.47	6.35	5.61	9.70	7.77
40	1.1/2	48.3	1.65	1.91	2.77	3.11	3.00	3.55	3.68	4.05	5.08	5.41	7.14	7.25	11.1	10.18
50	2	60.3	1.65	2.40	2.77	3.93	3.00	4.24	3.91	5.44	5.54	7.48	8.74	11.11	11.07	13.44
65	2.1/2	73.0	2.11	3.69	3.05	5.26	4.00	6.81	5.16	8.63	7.01	11.41	9.53	14.91	14.02	20.39
80	3	88.9	2.11	4.51	3.05	6.45	4.00	8.37	5.49	11.29	7.62	15.27	11.1	21.30	15.24	27.68
100	4	114.3	2.11	5.84	3.05	8.36	4.50	12.18	6.02	16.07	8.56	22.32	13.49	33.54	17.12	41.03
125	5	141.3	2.77	9.47	3.40	11.57	5.00	16.80	6.55	21.8	9.53	30.97	15.88	49.11	19.05	57.43
150	6	168.3	2.77	11.32	3.40	13.84	6.35	25.36	7.11	28.26	10.97	42.56	18.25	67.53	21.95	79.22
200	8	219.1	2.77	14.79	3.76	19.96	6.35	33.31	8.18	42.55	12.7	64.64	23.01	111.27	22.23	107.92
250	10	273.1	3.40	22.63	4.19	27.78	6.35	41.77	9.27	60.31	12.7	96.01	28.58	172.33	25.40	155.15
300	12	323.8	3.96	31.25	4.57	36.00	6.35	49.7	9.53	73.88	12.7	132.05	33.32	238.76	25.40	186.97
350	14	355.6	3.96	34.36	4.78	41.3	7.92	67.80	11.13	94.59

API 5L Line Carbon Steel Schedule 40 Pipe Standard Weight Chart :

28	.028" Thick
035	.035" Thick
039	.039" Thick
049	.049" Thick
065	.065" Thick
083	.083" Thick
109	.109" Thick

Pressure Rating Table of Carbon Steel UNS C70600 Square Pipe :

NPS	Outside Diameter		Wall Thickness			Weight	Weight
NPS	in	mm	in	mm	Sched	kg/Mtr	Lb/ft
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

Tolerance Chart of API 5L Line Carbon Steel Tube :

Carbon Steel API 5L Line Pipe OD	ASTM B466 TPAPI 5L Line Pipe Tolerance
4 to 35mm	+/- 0.08mm
35 to 38mm	+/- 0.15mm
38 to 60mm	+/- 0.20mm
60 and above	+/- 0.25mm

Carbon Steel API 5L Line Type Pipes & Tubess

API 5L Line Carbon Steel Square Pipe

API 5L Line Carbon Steel Round Pipe

API 5L Line Carbon Steel Rectangular Pipe

Carbon Steel API 5L Line Pipe

API 5L Line Carbon Steel Ornamental Tubes

API 5L Line Carbon Steel Electropolished Pipe

API 5L Line Carbon Steel Slot Round Pipe

API 5L Line Carbon Steel Triangle Tube

API 5L Line Carbon Steel Hexagonal Tube

API 5L Line Carbon Steel Handrail Tube

API 5L Line Carbon Steel U Shaped Tube

API 5L Line Thin-Wall Seamless Carbon Steel Tube

API 5L Line Inner/Outside Polished Carbon Steel Pipe

API 5L Line Carbon Steel Capillary Tube

API 5L Line Carbon Steel Seamless Tube

AISI API 5L Line Stainless Stel ERW Pipe

AISI API 5L Line Carbon Steel Welded Pipe

Carbon Steel API 5L Line Tube

Carbon Steel Pipes & Tubess Surface Coating :

Hot Dipped Galvanizing
Epoxy Coating
Electro Polished
Passivation
Zinc Plating

Chrome Plating
Mirror Buffed
Teflon Coating
Oxidized

Carbon Steel API 5L Line Price Per Kg (As per demand and manufacturer):

Price of Carbon Steel API 5L Line Pipes & Tubess manufacturer in India	Price in USD (per kg)	Price in Euro (per kg)	Price in UAE Dirham (per kg)
Carbon Steel API 5L Line stainless steel pipe	126.00	2.70	2.40
API 5L Line thick wall seamless stainless steel pipe	119.02	2.62	2.34
API 5L Line thick wall seamless stainless steel tube	126.02	2.72	2.42
stainless steel API 5L Line stainless steel pipe manufacturer	119.02	2.62	2.34
API 5L Line round square rectangular stainless steel pipe	124.94	2.64	2.26
API 5L Line round square rectangular stainless steel tube	135.98	2.82	3.50

People also search
City we Deliver
Country we export
