Table of Content
Werkstoff Nr. 1.4550 Self Locking nut, EN X6Crninb18-10 Hex Head nut, ASTM A193 Lock Nut nut, SS 347 Serrated Flange nut, ASTM A193 Acorn nut, SS 347 Panel nut, Werkstoff Nr. 1.4550 Wing nut, Werkstoff Nr. 1.4550 Hex Head nut.
Ranflex Metals are the leading manufacturer of high integrity special fasteners (e.g. bolts, set screws, stud-bolts, nuts and washers), meeting clients’ exacting demands for critical applications in hostile environments. Whether for offshore (buoyancy and petrochemical), seawater, pump, valve or nuclear, the demands for an exceptional service and supply is never ending. We believe manufacturing bolting in exotic materials is an art form and it is something we have perfected at Ranflex Metals..
SS 347 Wing nut wholesaler, JIS SUS 347 Wing nut supplier, ASTM A193 Nylon Insert nut wholesaler, SS 347 Dome nut wholesaler, JIS SUS 347 Lock Nut nut exporter, JIS SUS 347 Square nut exporter, EN X6Crninb18-10 Square nut distributor, ASME SA193 Lock Nut nut trader, Gost 08Ch18N12B Hex nut supplier.
Our 347 Stainless Steel Fasteners product range includes 347 Stainless Steel Bolts, Hexagon head bolt, Hexagon head screw, Round head square neck bolt, Hexagon socket head cap screw in full thread and half thread, Hexagon wood screw, Hexagon socket button head screw, Hexagon socket button flange screw, Hexagon socket counter sunk head cap screw in full thread and half thread, square nuts, square weld nuts, hexagon weld nuts, thick nyloc nuts, hexagon flange nuts, threaded rods, dowel screws,Plain / Flat Washer, Spring Washers, Countersunk Washer,Tooth Lock Washer and many more. We provide products as per DIN, ANSI, JIS standards.
We export to United State,Canada, Kazakhstan, Algiers, Johannesburg, Pretoria, Dakar, Ghana, Uganda, Mozambique, Iraq, Subra al-Haymah,Australia, Yaounde, Saudi Arabia, Kampala, Benin, Ethiopa, Kuwait, Nairobi, Turkey, Russia, Khartoum, Kano, UAE, Bahrain, London, Lebanon, Tunisia, Qatar, Zaria, Dubai, Yemen, Casablanca, South Africa, Oman, UK,USA, Argentina, China,Las Vegas Hong Kong, Vietnam, Singapore, Egypt, Venezuela, Iran,Vancouver Malaysia, Mexico, New York, Indonesia, Italy, Azerbaijan, Israel, Brazil, United States, Thailand (Bangkok), Cyprus, Sri Lanka, Colombo, Germany
EN X6Crninb18-10 Panel nut, SS 347 Nyloc nut, Werkstoff Nr. 1.4550 Serrated Flange nut, EN X6Crninb18-10 Eye nut, EN X6Crninb18-10 Cap nut, SS 347 Coupling nut, SS 347 Cap nut, Werkstoff Nr. 1.4550 Dome nut, EN X6Crninb18-10 Self Locking nut.
Specification of 347 Stainless Steel Nuts :
| Specifications | ASTM A479 / A479, ASME SA479 / SA194 |
| Standard | DIN, ASTM, BS and all International Standards |
| Bolts Size | 3 mm to 200 mm | Custom Sizes |
| Nut Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Screw Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Machine Screws Size | M1.6 - M12 | Custom Sizes |
| Washers Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Fasteners Type | Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw, Pan Head Screw, Socket Head Cap Screw, Wing Screw, T-Head Bolts, Foundation Bolts,Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts,Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets, Screws, Allen Cap screw |
Equivalent Grades of Stainless Steel 347 Nuts :
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
Chemical Composition of 347 Stainless Steel Nuts :
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 - 20.00 | 10xC – 1.10 | 9.00 - 13.00 | 62.74 min |
Mechanical Properties of SS 347 Nuts :
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Physical Properties of Stainless Steel WERKSTOFF NR. 1.4550 :
| Grade | Density (g/cm3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 347 | 7.93 | 190-210 | 16-18 | 17.2 | 18.6 | 16.1 | 22.2 | 500 | 70-73 |
ASME SA193 Nyloc nut dealer, ASTM A193 Heavy Hex nut supplier, Werkstoff Nr. 1.4550 T nut wholesaler, ASME SA193 Hex nut manufacturer, EN X6Crninb18-10 Lock Nut nut supplier, Gost 08Ch18N12B Serrated Flange nut trader, EN X6Crninb18-10 Heavy Hex nut exporter, Gost 08Ch18N12B Heavy Hex nut distributor.
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained
Property Class of Nuts 347 Stainless Steel :
Looking for 347 stainless steel fasteners? Ranflex Metals is a top-class manufacturer of 347 stainless steel screws. We are the most experienced among all the steel fasteners market and progresses with a highly professional team who is wholly engaged in making 347 screws, 347 bolts, and Fastener at the lowest cost.
For Bolts & Screws: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H
For Nuts: A2-70, A2-80, A4-70, A4-80, F594C, F594D, F594G, F594H, A2-035, A4-040
For SHCS: F837B, F837C, F837E, F837
For Threaded Rods: A2-70, A2-80, A4-70, A4-80, F593C, F593D, F593G, F593H, B8, B8M CL1 & CL2
Dimensions of Stainless Steel 347 Nuts :
Stainless Steel 347 Hex Nuts Dimensions Chart :
| Nominal Size Of Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Across Flats Width |
Across Corners Width |
Thickness Row | |||||||
| Basic | Maximum | Minimum | Maximum | Minimum | Basic | Maximum | Minimum | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Stainless Steel 347 Heavy Hex Nuts Dimensions :
| Nominal Size For Thread Diameter | F | G | H | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Width Of Across Flats | Width Of Across Corners | Thickness Table | |||||||
| Basic | Maximum | Minimum | Maximum | Minimum | Basic | Maximum | Minimum | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | 226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2. | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
Size of Stainless Steel 347 Nuts :
Stainless Steel 347 Nuts Size Chart :
| Size Of Nut (millimeter) |
Diameter Of (millimeter) |
Height Table (millimeter) |
||
|---|---|---|---|---|
| Hex Nut | Jam Nut | Nylock Nut | ||
| 2 | 4 | 1.6 | 1.2 | - |
| 2.5 | 5 | 2 | 1.6 | - |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 5 | 8 | 4 | 2.7 | 5 |
| 6 | 10 | 5 | 3.2 | 6 |
| 7 | 11 | 5.5 | 3.5 | - |
| 8 | 13 | 6.5 | 4 | 8 |
| 10 | 17 | 8 | 5 | 10 |
| 12 | 19 | 10 | 6 | 12 |
| 14 | 22 | 11 | 7 | 14 |
| 16 | 24 | 13 | 8 | 16 |
| 18 | 27 | 15 | 9 | 18.5 |
| 20 | 30 | 16 | 10 | 20 |

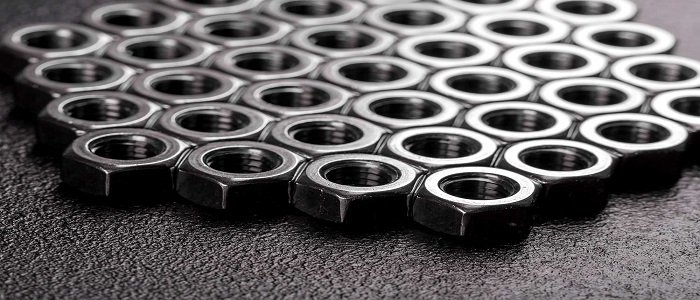

Stainless Steel 347 Type Nuts
Stainless Steel Nuts Surface Coating :
- Hot Dipped Galvanizing
- Epoxy Coating
- Electro Polished
- Passivation
- Zinc Plating
- Chrome Plating
- Mirror Buffed
- Teflon Coating
- Oxidized
Stainless Steel 347 Price Per Kg (As per demand and manufacturer):
| Price of SS 347 Fasteners manufacturer in India | Price in USD (per kg) | Price in Euro (per kg) | Price in UAE Dirham (per kg) |
|---|---|---|---|
| Stainless Steel Fasteners Grade – 347 | $3.12 | €2.68 | 52 UAE Dirham |
| Stainless Steel Hex Bolts 347 | $3.90 | €3.36 | 8.18 UAE Dirham |
| Stainless Steel Square Nuts Grade – 347 | $4.54 | €3.90 | 26.64 UAE Dirham |
