Mild Steel Buttweld Fittings

Table of Content

  •   What is Mild Steel Butt Weld Fittings
  •   Specification of Mild Steel Butt Weld Fittings
  •   Dimensions of Mild Steel Butt Weld Fittings
  •    Applications
  •   People also Search for Mild Steel Butt Weld Fittings
  •   Export Destinations
  •   Domestic Supply

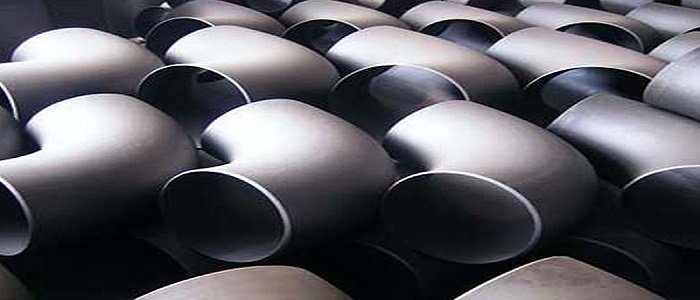

    • We manufacture finest quality of Mild Steel Butt Weld Fittings to meet diverse material specification. Our Mild Steel Butt Weld Fittings are extremely durable and are available in various shape such as bent,triangular, rectangular etc. Mild Steel Butt Weld Fittings are ideal multiple connection of pipes and to prevent fluid leakage. Different types of fittings can minimize potential fluid handling system and enhances their over all performance

    Backed by the team of experienced professionals, we are providing an extensive array of Mild Steel Butt Weld Fitting. The offered fitting is manufactured from the superior quality of material & modern techniques in adherence with the set norms of industry. We check this fitting on numerous parameters in order to deliver a defect free range to customers. Our fitting is can be availed in a given time frame from us at nominal price.

    Super Duplex Steel Flanges

    Being the emerging leader of this field, we completely value our responsibility and work hard to supply only supreme quality Butt Weld Fittings. These are used in petrochemical industries, automotive, refineries and mechanical industries. It is a perfect use for tight hold on joints and sturdy support. To cater to industry defined quality parameters these components are examined thoroughly by our quality experts upon defined parameters of quality.

    Ranflex Metals exports Mild Steel Butt Weld Fittings to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Phillipines.

    Specification of Mild Steel Butt Weld Fittings :

    Materials : Mild Steel
    Size : 15 NB to 150 NB, 200 NB to 500 NB
    Class & Thickness : 'B' Class & 'C' Class & 6.35mm to 12.7mm Thk
    Type : Seamless / Welded / Fabricated
    Form :
  • Elbows in Long & Short Radius in 45 deg, 90 deg, 180 deg.
  • Equal, Unequal Tee & Barred Tee.
  • Eccentric Reducer & Concentric Reducer
  • Caps & Crosses.
  • Long & Short Stub End.
  • Swage Nipple & Barrel Nipple.
    • Value Added Services :
  • Hot Dipped Galvanizing
  • Sand Blasting
  • Threading (As per Gauge)

    • Modern Equipments

    Expert Engineers

    Efficient Factories

    Well Maintained

    Dimensions of Mild Steel Butt Weld Fittings :

    Nominal
    Pipe
    Size    		 Outside
    Diameter    		 90° Elbows 45° Elbows 180° Returns
    (inches)   Long Radius Short Radius Long Radius Long Radius
      (mm) (inches) Center to Face
    (inches)    		 Center to Face
    (inches)    		 Center to Face
    (inches)    		 Radius
    (inches)    		 Center to Center
    (inches)    		 Back to face
    (inches)
    1/2 21.3 0.840 1 1/2 – 5/8   2 1 7/8
    3/4 26.7 1.050 1 1/8 – 7/16   2 1/4 1 11/16
    1 33.4 1.315 1 1/2 1 7/8   3 2 3/16
    1 1/4 42.2 1.660 1 7/8 1 1/4 1   3 3/4 2 3/4
    1 1/2 48.3 1.900 2 1/4 1 1/2 1 1/8 3 4 1/2 3 1/4
    2 60.3 2.375 3 2 1 3/8 4 6 4 3/16
    2 1/2 73.0 2.875 3 3/4 2 1/2 1 3/4 5 7 1/2 5 3/16
    3 88.9 3.500 4 1/2 3 2 6 9 6 1/4
    3 1/2 101.6 4.000 5 1/4 3 1/2 2 1/4 7 10 1/2 7 1/4
    4 114.3 4.500 6 4 2 1/2 8 12 8 1/4
    5 141.3 5.563 7 1/2 5 3 1/8 10 15 10 5/16
    6 168.3 6.625 9 6 3 3/4 12 18 12 5/16
    8 219.1 8.625 12 8 5 12 24 16 5/16
    10 273.1 10.750 15 10 6 1/4 15 30 20 3/8
    12 323.9 12.750 18 12 7 1/2 18 36 24 3/8

    Mild Steel Tees, Caps, Stub Ends and Straight Crosses :

    Nominal
    Pipe
    Size    		 Outside
    Diameter    		 Caps Straight Tees Straight Crosses Stub Ends
    (inches) (mm) (inches) Length
    (inches)    		 Center to End
    (inches)    		 Center to End
    (inches)    		 Lap Diameter
    (inches)    		 Long Length
    (inches)    		 Short Length
    (inches)
    1/2 21.3 0.840 1 1 – 1 3/8 3 2
    3/4 26.7 1.050 1 1 1/8 – 1 11/16 3 2
    1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
    1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
    1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
    2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
    2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
    3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
    3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
    4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
    5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
    6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
    8 219.1 8.625 4 7 7 10 5/8 8 4
    10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
    12 323.9 12.750 6 10 10 15 10 6

    Mild Steel Reducers :

    Nominal
    Pipe Size    		 Outside
    Diameter    		 Reducers
    Reduced from
    (inches)    		 (mm) (inches) Reduced to
    (inches)    		 Concentric & Eccentric Length
    (inches)
    1/2 21.3 0.840 1/4 1 1/2
    3/8 1 1/2
    3/4 26.7 1.050 3/8 2
    1/2 2
    1 33.4 1.315 3/8 2
    1/2 2
    3/4 2
    1 1/4 42.2 1.660 1/2 2
    3/4 2
    1 2
    1 1/2 48.3 1.900 1/2 2 1/2
    3/4 2 1/2
    1 2 1/2
    1 1/4 2 1/2
    2 60.3 2.375 3/4 3
    1 3
    1 1/4 3
    1 1/2 3
    2 1/2 73.0 2.875 1 3 1/2
    1 1/4 3 1/2
    1 1/2 3 1/2
    2 3 1/2
    3 88.9 3.500 1 3 1/2
    1 1/2 3 1/2
    2 3 1/2
    2 1/2 3 1/2
    3 1/2 101.6 4.000 1 1/4 4
    1 1/2 4
    2 4
    2 1/2 4
    3 4
    4 114.3 4.500 1 1/2 4
    2 4
    2 1/2 4
    3 4
    3 1/2 4
    5 141.3 5.563 2 5
    2 1/2 5
    3 5
    3 1/2 5
    4 5
    6 168.3 6.625 2 1/2 5 1/2
    3 5 1/2
    3 1/2 5 1/2
    4 5 1/2
    5 5 1/2
    8 219.1 8.625 3 6
    3 1/2 6
    4 6
    5 6
    6 6
    10 273.1 10.750 4 7
    5 7
    6 7
    8 7
    12 323.9 12.750 5 8
    6 8
    8 8
    10 8

    Applications :

    • Processing plant for sulphuric, phosphoric and acetic acids
    • Pulp and paper processing
    • Components in gas scrubbing plants
    • Seawater cooling equipment
    • Oil refinery components
    • Wires in electrostatic precipitators
