We pride ourselves on being at the forefront of innovation in both product lines and after sales services. This is why we will constantly upgrade our products and services to meet market expectations and demands. We are reputed as an excellent quality Elbolet supplier in the industry.
Elbolet is used widely abroad in recent years, It is used to connect the reinforced fittings. It takes place of traditional connecting ways. The body of Elbolet is made in excellent Forgings.
Specification of Elbolet :
| Type of Olets | Elbolet |
| Standard | MSS SP-97 |
| Size | 1/8" to 20" (6 NB to 500NB) |
| Class | 6000LB（XXS, SCH160）3000LB（SCH80，XS，SCH40，STD) |
| Stainless Steel | ASTM A 182, A 240 F 304H, 316L, 321H, 310, 304L, 310S, 317, 347H, 321, 347, 316Ti, 904L, 304, 316 |
| Carbon Steel | ASTM / ASME A 350, ASTM / ASME A/SA 105, ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F46, F42, F52, F65, F60, F70 |
| Alloy Steel | ASTM / ASME A/SA 182 F22, F5, F12, F11, A350 LF2/ LF3 |
Modern Equipments
Expert Engineers
Efficient Factories
Well Maintained

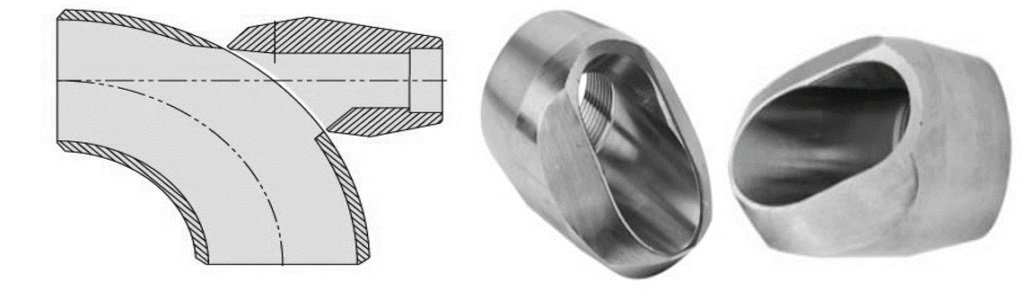

Dimensions of Elbolet :
| Nominal Elbow Size Inches |
Outlet Size Inches |
Dimensions | |||
| CL 3000 Threaded & Socket Weld Std. & XS Butt-Weld |
CL 6000 Threaded & Socket Socket-Weld Sch. 160 & XXS Butt-Weld |
||||
| C | E | C | E | ||
| 36 - 3/4 | 1/4 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 - 3/4 | 3/8 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 - 3/4 | 1/2 | 1 1/2 | 1 19/32 | 1 23/32 | 1 7/8 |
| 36 - 1 | 3/4 | 1 23/32 | 1 7/8 | 2 1/4 | 2 1/4 |
| 36 - 2 | 1 | 2 1/4 | 2 1/4 | 2 7/8 | 2 1/2 |
| 36 - 2 | 1 1/4 | 2 7/8 | 2 1/2 | 3 1/8 | 2 11/16 |
| 36 - 2 | 1 1/2 | 3 1/8 | 2 11/16 | 4 3/16 | 3 1/4 |
| 36 - 3 | 2 | 4 3/16 | 3 1/4 | ||
| **2 1/2 | 4 3/16 | 3 1/4 | |||
| **3 | 5 1/16 | 3 7/8 | |||
| Order to Specific | **4 | 6 5/8 | 4 13/16 | ||
| Elbow Sizes | **6 | 9 3/8 | 6 1/2 | ** | ** |
| **8 | 13 5/16 | 8 1/16 | |||
| **10 | 17 1/32 | 10 3/8 | |||
| **12 | 19 5/8 | 11 1/8 | |||
Conventional Run Size Combinations :
| Inches | Class 3000 Threaded & Socket Weld Std. & XS Butt-Weld | ||||
|---|---|---|---|---|---|
| Size | D | A | C | B | E |
| 1/4 | 40.48 | Elbow Radius 1.5D (NPS) | 38.10 | Elbow Radius 2D (NPS) | ((Run Pipe O.D.)/2 + Root Gap) / 0.707 + D |
| 3/8 | 40.48 | 38.10 | |||
| 1/2 | 40.48 | 38.10 | |||
| 3/4 | 47.63 | 43.66 | |||
| 1 | 57.15 | 57.15 | |||
| 1 1/4 | 63.50 | 73.03 | |||
| 1 1/2 | 68.26 | 79.38 | |||
| 2 | 82.55 | 106.36 | |||
| 2 1/2 | 82.55 | 106.36 | |||
| 3 | 98.43 | 128.59 | |||
| 4 | 122.24 | 168.28 | |||
| 6 | 165.10 | 238.13 | |||
| 8 | 204.79 | 338.14 | |||
| 10 | 263.53 | 432.59 | |||
| 12 | 282.58 | 498.48 | |||
| Inches | Class 6000 Threaded & Socket Socket-Weld Sch. 160 & XXS Butt-Weld | ||||
|---|---|---|---|---|---|
| Size | D | A | B | E | C |
| 1/4 | 40.48 | Elbow Radius 1.5D (NPS) | Elbow Radius 2D (NPS) | ((Run Pipe O.D.)/2 + Root Gap) / 0.707 + D | 38.10 |
| 3/8 | 40.48 | 38.10 | |||
| 1/2 | 47.63 | 43.66 | |||
| 3/4 | 57.15 | 57.15 | |||
| 1 | 63.50 | 73.03 | |||
| 1 1/4 | 68.26 | 79.38 | |||
| 1 1/2 | 82.55 | 106.36 | |||
Applications :
- Processing plant for sulphuric, phosphoric and acetic acids
- Pulp and paper processing
- Components in gas scrubbing plants
- Seawater cooling equipment
- Oil refinery components
- Wires in electrostatic precipitators
