Carbon Steel Buttweld Fittings

Table of Content

  •   What is Carbon Steel Buttweld Fittings
  •   Specification of Carbon Steel Buttweld Fittings
  •   Dimensions of Carbon Steel Buttweld Fittings
  •    Applications
  •   People also Search for Carbon Steel Buttweld Fittings
  •   Export Destinations
  •   Domestic Supply

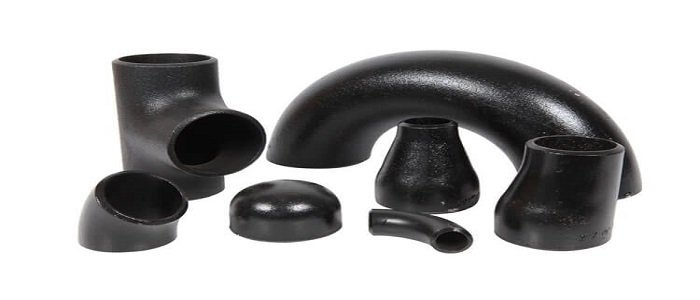

    • We manufacture finest quality of butt weld pipe fittings to meet diverse material specification. Our steel butt weld pipe fittings are extremely durable and are available in various shape such as bent,triangular, rectangular etc. Butt weld pipe fittings are ideal multiple connection of pipes and to prevent fluid leakage. Different types of fittings can minimize potential fluid handling system and enhances their over all performance

    Fittings are manufactured using premium quality metal alloy and latest techniques. Additionally, our provided fittings are processed adhering to industry standards and quality norms. The offered fittings are examined on set quality parameter in order to deliver better range to the clients. Also, these fittings are made available in various sizes and shapes. Apart from this, clients can get the fittings from us at cost effective rates.

    Super Duplex Steel Flanges

    Being the emerging leader of this field, we completely value our responsibility and work hard to supply only supreme quality Butt Weld Fittings. These are used in petrochemical industries, automotive, refineries and mechanical industries. It is a perfect use for tight hold on joints and sturdy support. To cater to industry defined quality parameters these components are examined thoroughly by our quality experts upon defined parameters of quality.

    Ranflex Metals exports Carbon Steel Buttweld Fittings to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Phillipines.

    Specification of Carbon Steel Buttweld Fittings :

    Specifications : ASTM A234 WPB / MSS-SP-75, ASTM / ASME A 860, ASTM A 420 WPL6
    Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
    Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
    Type : Seamless / Welded / Fabricated
    Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
    Thickness : 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75
    Grade : WPB, WPC, WPBW, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
    Value Added Services : Hot Dipped Galvanizing, Epoxy Coating , Sand Blasting

    Modern Equipments

    Expert Engineers

    Efficient Factories

    Well Maintained

    Dimensions of Carbon Steel Buttweld Fittings :

    Nominal
    Pipe
    Size    		 Outside
    Diameter    		 90° Elbows 45° Elbows 180° Returns
    (inches)   Long Radius Short Radius Long Radius Long Radius
      (mm) (inches) Center to Face
    (inches)    		 Center to Face
    (inches)    		 Center to Face
    (inches)    		 Radius
    (inches)    		 Center to Center
    (inches)    		 Back to face
    (inches)
    1/2 21.3 0.840 1 1/2 – 5/8   2 1 7/8
    3/4 26.7 1.050 1 1/8 – 7/16   2 1/4 1 11/16
    1 33.4 1.315 1 1/2 1 7/8   3 2 3/16
    1 1/4 42.2 1.660 1 7/8 1 1/4 1   3 3/4 2 3/4
    1 1/2 48.3 1.900 2 1/4 1 1/2 1 1/8 3 4 1/2 3 1/4
    2 60.3 2.375 3 2 1 3/8 4 6 4 3/16
    2 1/2 73.0 2.875 3 3/4 2 1/2 1 3/4 5 7 1/2 5 3/16
    3 88.9 3.500 4 1/2 3 2 6 9 6 1/4
    3 1/2 101.6 4.000 5 1/4 3 1/2 2 1/4 7 10 1/2 7 1/4
    4 114.3 4.500 6 4 2 1/2 8 12 8 1/4
    5 141.3 5.563 7 1/2 5 3 1/8 10 15 10 5/16
    6 168.3 6.625 9 6 3 3/4 12 18 12 5/16
    8 219.1 8.625 12 8 5 12 24 16 5/16
    10 273.1 10.750 15 10 6 1/4 15 30 20 3/8
    12 323.9 12.750 18 12 7 1/2 18 36 24 3/8

    Carbon Steel Tees, Caps, Stub Ends and Straight Crosses :

    Nominal
    Pipe
    Size    		 Outside
    Diameter    		 Caps Straight Tees Straight Crosses Stub Ends
    (inches) (mm) (inches) Length
    (inches)    		 Center to End
    (inches)    		 Center to End
    (inches)    		 Lap Diameter
    (inches)    		 Long Length
    (inches)    		 Short Length
    (inches)
    1/2 21.3 0.840 1 1 – 1 3/8 3 2
    3/4 26.7 1.050 1 1 1/8 – 1 11/16 3 2
    1 33.4 1.315 1 1/2 1 1/2 1 1/2 2 4 2
    1 1/4 42.2 1.660 1 1/2 1 7/8 1 7/8 2 1/2 4 2
    1 1/2 48.3 1.900 1 1/2 2 1/4 2 1/4 2 7/8 4 2
    2 60.3 2.375 1 1/2 2 1/2 2 1/2 3 5/8 6 2 1/2
    2 1/2 73.0 2.875 1 1/2 3 3 4 1/8 6 2 1/2
    3 88.9 3.500 2 3 3/8 3 3/8 5 6 2 1/2
    3 1/2 101.6 4.000 2 1/2 3 3/4 3 3/4 5 1/2 6 3
    4 114.3 4.500 2 1/2 4 1/8 4 1/8 6 3/16 6 3
    5 141.3 5.563 3 4 7/8 4 7/8 7 5/16 8 3
    6 168.3 6.625 3 1/2 5 5/8 5 5/8 8 1/2 8 3 1/2
    8 219.1 8.625 4 7 7 10 5/8 8 4
    10 273.1 10.750 5 8 1/2 8 1/2 12 3/4 10 5
    12 323.9 12.750 6 10 10 15 10 6

    Carbon Steel Reducers :

    Nominal
    Pipe Size    		 Outside
    Diameter    		 Reducers
    Reduced from
    (inches)    		 (mm) (inches) Reduced to
    (inches)    		 Concentric & Eccentric Length
    (inches)
    1/2 21.3 0.840 1/4 1 1/2
    3/8 1 1/2
    3/4 26.7 1.050 3/8 2
    1/2 2
    1 33.4 1.315 3/8 2
    1/2 2
    3/4 2
    1 1/4 42.2 1.660 1/2 2
    3/4 2
    1 2
    1 1/2 48.3 1.900 1/2 2 1/2
    3/4 2 1/2
    1 2 1/2
    1 1/4 2 1/2
    2 60.3 2.375 3/4 3
    1 3
    1 1/4 3
    1 1/2 3
    2 1/2 73.0 2.875 1 3 1/2
    1 1/4 3 1/2
    1 1/2 3 1/2
    2 3 1/2
    3 88.9 3.500 1 3 1/2
    1 1/2 3 1/2
    2 3 1/2
    2 1/2 3 1/2
    3 1/2 101.6 4.000 1 1/4 4
    1 1/2 4
    2 4
    2 1/2 4
    3 4
    4 114.3 4.500 1 1/2 4
    2 4
    2 1/2 4
    3 4
    3 1/2 4
    5 141.3 5.563 2 5
    2 1/2 5
    3 5
    3 1/2 5
    4 5
    6 168.3 6.625 2 1/2 5 1/2
    3 5 1/2
    3 1/2 5 1/2
    4 5 1/2
    5 5 1/2
    8 219.1 8.625 3 6
    3 1/2 6
    4 6
    5 6
    6 6
    10 273.1 10.750 4 7
    5 7
    6 7
    8 7
    12 323.9 12.750 5 8
    6 8
    8 8
    10 8

    Applications :

    • Processing plant for sulphuric, phosphoric and acetic acids
    • Pulp and paper processing
    • Components in gas scrubbing plants
    • Seawater cooling equipment
    • Oil refinery components
    • Wires in electrostatic precipitators
