We pride ourselves on being at the forefront of innovation in both product lines and after sales services. This is why we will constantly upgrade our products and services to meet market expectations and demands. We are reputed as an excellent quality Flexolet Butt Weld supplier in the industry.
Flexolet Butt Weld is used widely abroad in recent years, It is used to connect the reinforced fittings. It takes place of traditional connecting ways. The body of Flexolet Butt Weld is made in excellent Forgings.
Type | Pipe Weldolet / Pipe Olet |
---|---|
Specialized in | Flexolet Butt Weld |
Pattern | Weldolet, socketolet, threadedolet, nipolet, latrolet, eblowolet etc. |
size | 1/8”-4” |
Pressure class | 3000/6000/9000LBS (Sch40, Sch80/Xs Sch160 Xxs) |
Manufacturing standards | ANSI/ASME B16.11/MSS-SP-79/MSS-SP-83/MSS-SP-95/MSS-SP-97 |

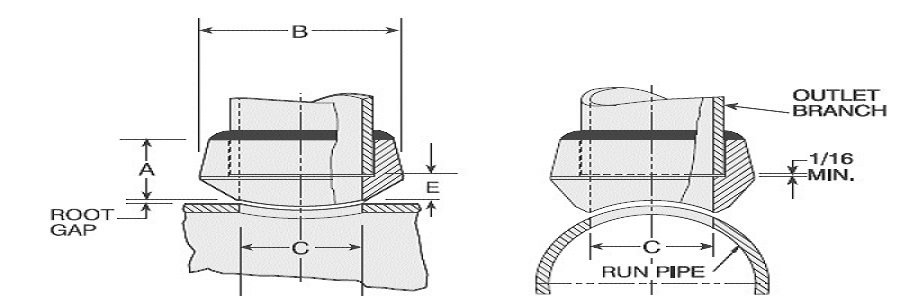

CL 3000 | Outlet Size Inches |
Dimensions | Appx Weight Pounds |
||
---|---|---|---|---|---|
A | B | C | |||
1/4 | 3/4 | 1 1/16 | 0.437 | 0.14 | |
3/8 | 13/16 | 1 1/16 | 0.578 | 0.14 | |
1/2 | 1 | 1 15/32 | 0.718 | 0.28 | |
3/4 | 1 1/16 | 1 45/64 | 0.922 | 0.39 | |
1 | 1 5/16 | 2 3/32 | 1.156 | 0.73 | |
1 1/4 | 1 5/16 | 2 17/32 | 1.500 | 0.96 | |
1 1/2 | 1 3/8 | 2 25/32 | 1.734 | 1.12 | |
2 | 1 1/2 | 3 5/16 | 2.218 | 1.66 | |
2 1/2 | 1 13/16 | 3 29/32 | 2.625 | 2.73 | |
3 | 2 | 4 21/32 | 3.250 | 3.88 | |
4 | 2 1/4 | 5 13/16 | 4.250 | 6.18 |
CL6000 | Outlet Size Inches |
Dimensions | Appx Weight Pounds |
||
---|---|---|---|---|---|
A | B | C | |||
1/4 | 3/4 | 1 1/16 | 0.437 | 0.14 | |
3/8 | 1 1/8 | 1 5/16 | 0.578 | 0.14 | |
1/2 | 1 1/4 | 1 3/4 | 0.718 | 0.28 | |
3/4 | 1 7/16 | 2 1/16 | 0.922 | 0.39 | |
1 | 1 9/16 | 2 17/32 | 1.156 | 0.73 | |
1 1/4 | 1 5/8 | 2 1/2 | 1.500 | 0.96 | |
1 1/2 | 1 11/16 | 3 5/16 | 1.734 | 1.12 | |
2 | 2 1/6 | 3 31/32 | 2.218 | 1.66 |
Standard | Outlet Size | Dimensions | Appx Weight | ||
Inches | A | B | C | Pounds | |
3/8 | 3/4 | 1 | 0.493 | 0.10 | |
1/2 | 3/4 | 1 1/8 | 0.622 | 0.12 | |
3/4 | 7/8 | 1 1/2 | 0.824 | 0.22 | |
1 | 1 1/16 | 1 13/16 | 1.062 | 0.32 | |
1 1/4 | 1 1/4 | 2 1/4 | 1.38 | 0.64 | |
1 1/2 | 1 5/16 | 2 9/16 | 1.625 | 0.78 | |
2 | 1 1/2 | 3 5/16 | 2.313 | 1.14 | |
2 1/2 | 1 5/8 | 3 21/32 | 2.500 | 1.94 | |
3 | 1 3/4 | 4 9/32 | 3.125 | 2.60 | |
4 | 2 | 5 3/8 | 4.145 | 4.12 | |
6 | 2 3/8 | 7 21/32 | 6.112 | 11 | |
|
|||||
Extra Strong | Outlet Size | Dimensions | Appx Weight | ||
Inches | A | B | C | Pounds | |
3/8 | 3/4 | 1 | 0.423 | 0.10 | |
1/2 | 3/4 | 1 1/8 | 0.546 | 0.12 | |
3/4 | 7/8 | 1 1/2 | 0.742 | 0.18 | |
1 | 1 1/16 | 2 13/16 | 1.062 | 0.36 | |
1 1/4 | 1 1/4 | 2 1/4 | 1.278 | 0.55 | |
1 1/2 | 1 5/16 | 2 9/16 | 1.625 | 0.68 | |
2 | 1 1/2 | 3 5/16 | 2.313 | 1.24 | |
2 1/2 | 1 5/8 | 3 21/32 | 2.500 | 2.26 | |
3 | 1 3/4 | 4 9/32 | 3.125 | 2.84 | |
4 | 2 | 5 3/8 | 4.145 | 4.56 | |
6 | 3 1/16 | 7 23/32 | 5.800 | 15.00 |
Standard | Outlet Size | Dimensions | Appx Weight | ||
Inches | A | B | C | Pounds | |
3/8 | 3/4 | 1 | 0.493 | 0.10 | |
1/2 | 3/4 | 1 1/8 | 0.622 | 0.12 | |
3/4 | 7/8 | 1 1/2 | 0.824 | 0.22 | |
1 | 1 1/16 | 1 13/16 | 1.062 | 0.32 | |
1 1/4 | 1 1/4 | 2 1/4 | 1.38 | 0.64 | |
1 1/2 | 1 5/16 | 2 9/16 | 1.625 | 0.78 | |
2 | 1 1/2 | 3 5/16 | 2.313 | 1.14 | |
2 1/2 | 1 5/8 | 3 21/32 | 2.500 | 1.94 | |
3 | 1 3/4 | 4 9/32 | 3.125 | 2.60 | |
4 | 2 | 5 3/8 | 4.145 | 4.12 | |
6 | 2 3/8 | 7 21/32 | 6.112 | 11 | |
|
|||||
Extra Strong | Outlet Size | Dimensions | Appx Weight | ||
Inches | A | B | C | Pounds | |
3/8 | 3/4 | 1 | 0.423 | 0.10 | |
1/2 | 3/4 | 1 1/8 | 0.546 | 0.12 | |
3/4 | 7/8 | 1 1/2 | 0.742 | 0.18 | |
1 | 1 1/16 | 2 13/16 | 1.062 | 0.36 | |
1 1/4 | 1 1/4 | 2 1/4 | 1.278 | 0.55 | |
1 1/2 | 1 5/16 | 2 9/16 | 1.625 | 0.68 | |
2 | 1 1/2 | 3 5/16 | 2.313 | 1.24 | |
2 1/2 | 1 5/8 | 3 21/32 | 2.500 | 2.26 | |
3 | 1 3/4 | 4 9/32 | 3.125 | 2.84 | |
4 | 2 | 5 3/8 | 4.145 | 4.56 | |
6 | 3 1/16 | 7 23/32 | 5.800 | 15.00 |
