We Ranflex Metals are affianced in Manufacturing and Exporting an extensive variety of Aluminum Round Bar, Aluminium HE30 Round Bar, Aluminium Alloy 2014, 2024, 5083, 6061, 6082, 7075 Round Bars & Rods which is utilized as a part of different modern applications. Our offered aluminum round bars are accurately produced utilizing first class material by our specialists taking after the set measures of an industry.
This arrangement is appropriately examined by our quality specialists on the premise of very much characterized parameters before conveying at the customer's end. Our aluminum bars are light in weight with high-quality to-weight proportion.

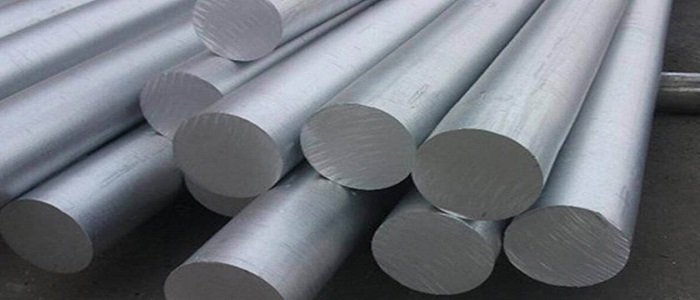

Our Aluminum round bars and poles are known for its Good machinability, particularly free-cutting qualities, great mechanical properties, excellent surface and complete ability. Aluminum Round bars and bars are utilized broadly in Aircraft fittings, apparatuses, and shafts, intertwine parts, meter shafts, and riggings, rocket parts, directing valve parts, worm gears, keys, flying machine, aviation and protection applications; bicycle outlines, off-road vehicle (ATV) sprockets and so on. Aluminium Alloy 6063 Rods, Aluminium 6082 Round Bars, Aluminium HE30 Round Bar, Aluminium 6061 Round Rods, Aluminium Alloy 6061 Hexagonal Bars, Aluminium 6063 Bright Bars Supplier & 6061 Bars Exporter in India.
We are fabricated these products according to the national and global quality norms. These Aluminium Alloy Round Bars & Rods accessible in different evaluations, for example, 5083, 6061, 6063, 2014, 2024, 7075, Etc.
Ranflex Metals are gifted to offer an overwhelming extent of Aluminium HE30 Round Bar, Aluminum-Alloy Round Bars and Rods which is perceived as uncommon quality and strong nature. Our item is used in the business. Convenient craftsmen use the finest quality material and impelled techniques to manufacture these items at industry guidelines. These are open in different assurance and estimations as per the client's necessities. These are by and large used as a piece of various application industries, for instance, oil and gas, compound industry, passing on water and different liquids and so on. We offer to our clients at comprehensive extent of Aluminum-Alloy Round Bars and Rods at to great degree sensible costs.
Grade | Aluminium Alloy Round Bar |
---|---|
Aluminium Alloy Square bar size | 4 to 100mm |
Aluminium Alloy Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
Hot Rolled Steel Hex Bar size | 2-100mm A/F |
Aluminium Alloy Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
Aluminium Alloy Rectangles Size | 33 x 30mm to 295 x 1066mm |
Hot Rolled Steel Flat bar size | Thickness: 2 -100mm |
Width: 10 to 500mm | |
Aluminium Alloy Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
Aluminium Alloy Section | 3.0 to 12.0mm thickness |
Hot Rolled Steel Round bar size | Diameter: 3-~800mm |
Aluminium Alloy Billet Size | 1/2" to 495mm Diameter |
Aluminium Alloy Round Bar Standard Dimensions | Diameter / Height: Aluminium Alloy Rod and Bar Sizes : 0.5 inches / 0.Grade5 inches / 0.75 inches / 0.875 inches / 1.0 inches / 1.125 inches / 1.25 inches / 1.375 inches / 1.5 inches / 1.75 inches / 2.0 inches / 2.25 inches / 2.5 inches / 2.75 inches / 3.0 inches / 3.25 inches / 3.5 inches / 3.75 inches / 4.0 inches / 4.25 inches / 4.5 inches / 5.0 inches / 5.25 inches / 5.5 inches / 6.0 inches / 7.0 inches / 8.0 inches / 9.0 inches. |
Aluminium Alloy Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
Aluminium Alloy Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
Hot Rolled Steel Technique | Aluminium Alloy Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
Aluminium Alloy Condition | Hardened & tempered, annealed |
Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
Form | Aluminium Alloy Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
Processing | Bar cutting to 650mm |
STANDARD | UNS | WERKSTOFF NR. / DIN |
---|---|---|
Aluminium 6061 T6 Bar | A96061 | 3.1211 |
Grade | Si | Fe | Cu | Zn | Mn | Mg | Ti | Cr | Al | Others(Total) |
Aluminium 6061 | 0.40 – 0.80 | 0.70 max | 0.15-0.40 | 0.25 max | 0.15 | 0.8-1.2 | 0.15 max | 0.04-0.35 | Balance | 0.15 max |
Alloy | Tensile Strength (PSI) | Yield Strength(PSI) | Shear Strength (PSI) | Elongation in 2″ | Brinell Hardness |
Aluminium Alloy 6061 T6 | 45,000 | 40,000 | 31,000 | 12 | 95 |
Physical Property | Density | Melting Point | Thermal Expansion | Modulus of Elasticity | Thermal Conductivity | Electrical Resistivity |
Value | 2,70 g/cm³ | 582 °C | 23.4 x 10^-6 /K | 69 GPa | 170 W/m.K | %43 IACS |
Diameter or Width (mm) |
Weight per meter | Sectional Area | Perimeter | |||
Square (kg) |
Round (kg) |
Square (cm²) |
Round (cm²) |
Square (cm) |
Round (cm) |
|
5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
---|---|---|---|---|---|
7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
---|---|---|---|
Cold Drawn and Polish | 3.00 - 75.00 | 1/8 - 3.00 | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 - 75.00 | 5/6 - 2.50 | h8-h9-h10-h11 |
Peeled and Polished | 40.00 - 150.00 | 1.50 - 6.00 | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 - 50.00 | 3/4 - 2.00 | h9-h10-h11 |
Aluminium Alloy Bars Standard lengths of 2000 mm up to Grade50 mm. Cut to size on request (tolerance +2/-0 mm).
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 200.0 |
Flat bar sizes in mm | Flat Bar Size (inch) | Flat Bar Thickness (mm) | Flat Bar Thickness (in Inches) |
---|---|---|---|
22 | 7/8 | 17 & 18 | 2/3 - 5/7 |
25 | 1 | 5 to 20 | 3/16 - 4/5 |
30 | 1-3/16 | 5 to 20 | 3/16 - 4/5 |
32 | 1-1/4 | 6 to 20 | 1/4 - 4/5 |
35 | 1-3/8 | 5 to 20 | 3/16 - 3/16 |
40 | 1-4/7 | 5 to 25 | 3/16 - 1 |
45 | 1-7/9 | 5 to 25 | 3/16 - 1 |
47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
50 | 2 | 5 to 32 | 3/16 - 1-1/4 |
55 | 2-1/16 | 5 to 25 | 3/16 - 1 |
57 | 2-1/4 | 32 | 1-1/4 |
60 | 2-3/8 | 5 to 35 | 3/16 - 1-3/8 |
63 | 2-1/2 | 10 to 30 | 3/8 - 1-3/16 |
65 | 2-5/9 | 10 to 30 & 35 | 3/8 - 1-3/16, & 1-3/8 |
70 | 2-3/4 | 6 to 25 & 40 | 1/4 - 1, & 1-4/7 |
75 | 3 | 8 to 25 | 5/16 - 1 |
80 | 3-1/8 | 8 to 20 | 5/16 - 4/5 |
90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
OD = outside diameter, ID = inside diameter
Size | Chucked true to OD | Chucked true to ID | |||||||
---|---|---|---|---|---|---|---|---|---|
OD, mm |
ID, mm |
Max. OD, mm |
Min. ID, mm |
Max. OD, in. |
Min. ID, in. |
Max. OD, mm |
Min. ID, mm |
Max. OD, in. |
Min. ID, in. |
32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
160 | 112 | 157.6 | 115.5 | 6.205 | 4.547 | 155.8 | 113.7 | 6.134 | 4.476 |
160 | 90 | 157.6 | 94.0 | 6.205 | 3.701 | 155.2 | 91.4 | 6.110 | 3.598 |
170 | 140 | 167.4 | 143.5 | 6.591 | 5.650 | 166 | 142.1 | 6.535 | 5.594 |
170 | 130 | 167.4 | 133.6 | 6.591 | 5.260 | 165.8 | 132 | 6.528 | 5.197 |
170 | 128 | 167.4 | 131.6 | 6.591 | 5.181 | 165.7 | 130 | 6.524 | 5.118 |
170 | 118 | 167.4 | 121.7 | 6.591 | 4.791 | 165.5 | 119.8 | 6.516 | 4.717 |
170 | 106 | 167.4 | 109.8 | 6.591 | 4.323 | 165.2 | 107.6 | 6.504 | 4.236 |
170 | 100 | 167.4 | 103.9 | 6.591 | 4.091 | 165 | 101.5 | 6.496 | 3.996 |
180 | 150 | 177.3 | 153.6 | 6.980 | 6.047 | 176 | 152.3 | 6.929 | 5.996 |
180 | 140 | 177.3 | 143.7 | 6.980 | 5.657 | 175.7 | 142.1 | 6.917 | 5.594 |
180 | 125 | 177.3 | 128.9 | 6.980 | 5.075 | 175.3 | 126.9 | 6.902 | 4.996 |
180 | 100 | 177.3 | 104.1 | 6.980 | 4.098 | 174.7 | 101.5 | 6.878 | 3.996 |
190 | 160 | 187.1 | 163.8 | 7.366 | 6.449 | 185.7 | 162.4 | 7.311 | 6.394 |
190 | 150 | 187.1 | 153.9 | 7.366 | 6.059 | 185.5 | 152.3 | 7.303 | 5.996 |
190 | 132 | 187.1 | 136 | 7.366 | 5.354 | 185.1 | 134 | 7.287 | 5.276 |
200 | 170 | 197.0 | 173.9 | 7.756 | 6.846 | 195.6 | 172.6 | 7.701 | 6.795 |
200 | 160 | 197.0 | 164 | 7.756 | 6.457 | 195.4 | 162.4 | 7.693 | 6.394 |
200 | 150 | 197.0 | 154.1 | 7.756 | 6.067 | 195.2 | 152.3 | 7.685 | 5.996 |
200 | 140 | 197.0 | 144.2 | 7.756 | 5.677 | 194.9 | 142.1 | 7.673 | 5.594 |
212 | 170 | 208.8 | 174.2 | 8.220 | 6.858 | 207.2 | 172.6 | 8.157 | 6.795 |
212 | 150 | 208.8 | 154.4 | 8.220 | 6.079 | 206.6 | 152.3 | 8.133 | 5.997 |
212 | 130 | 208.8 | 134.6 | 8.220 | 5.299 | 206.2 | 132 | 8.118 | 5.197 |
224 | 180 | 220.6 | 184.4 | 8.685 | 7.260 | 218.9 | 182.7 | 8.618 | 7.193 |
224 | 140 | 220.6 | 144.8 | 8.685 | 5.701 | 217.9 | 142.1 | 8.579 | 5.594 |
236 | 190 | 232.4 | 194.6 | 9.150 | 7.661 | 230.7 | 192.9 | 9.083 | 7.594 |
236 | 150 | 232.4 | 155.0 | 9.150 | 6.102 | 229.7 | 152.3 | 9.043 | 5.996 |
250 | 200 | 246.2 | 204.9 | 9.693 | 8.067 | 244.3 | 203.0 | 9.618 | 7.992 |
275 | 200 | 268.9 | 205.4 | 10.587 | 8.087 | 266.5 | 203.0 | 10.492 | 7.992 |
Size (mm) | Weight per metre (Kg) |
---|---|
12 x 12 | 1.14 |
16 x 16 | 2.02 |
20 x 20 | 3.16 |
25 x 25 | 4.94 |
30x30 | 7.11 |
40 x 40 | 12.60 |
50 x 50 | 19.80 |
Diameter or Width (mm) |
Weight per meter | Sectional Area | Perimeter | |||
Square (kg) |
Round (kg) |
Square (cm²) |
Round (cm²) |
Square (cm) |
Round (cm) |
|
5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Description | Per Unit (INR) | Price in USD | Pricein EURO |
---|---|---|---|
Aluminium Alloy Bright Bars Bright Bars | 125.76 | 2.46 | 2.16 |
Aluminium Alloy Bright Bars Aluminium Alloy Shape Round | 118.76 | 2.36 | 2.08 |
Bright Rods Of Aluminium Alloy | 125.76 | 2.46 | 2.16 |
Aluminium Alloy Bright Bars grade Grade5 Shape Round | 118.76 | 2.36 | 2.08 |
Aluminium Alloy Round Bars | 124.68 | 2.38 | 2.00 |
Aluminium Alloy Bars & Rods Of Aluminium Alloy | 135.72 | 2.56 | 3.22 |
