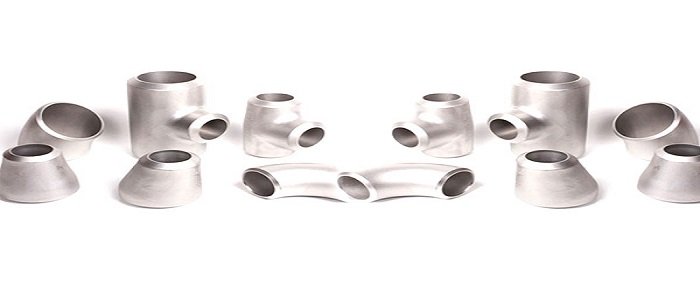

We manufacture and design Alloy Steel Butt Weld Fittings in various designs and specifications for different requirements of our clients. Manufactured using quality material and sophisticated machines, our range of butt weld fittings is known for its high quality, zero-defects and superior performance. The offered fitting is manufactured from the superior quality of material & modern techniques in adherence with the set norms of industry. We check this fitting on numerous parameters in order to deliver a defect free range to customers. Our fitting is can be availed in a given time frame from us at nominal price.
Being the emerging leader of this field, we completely value our responsibility and work hard to supply only supreme quality Butt Weld Fittings. These are used in petrochemical industries, automotive, refineries and mechanical industries. It is a perfect use for tight hold on joints and sturdy support. To cater to industry defined quality parameters these components are examined thoroughly by our quality experts upon defined parameters of quality.
Ranflex Metals exports Alloy Steel Butt Weld Fittings to countries like Saudi Arabia, United Arab Emirates, Singapore, Malaysia, Germany, Iran, United Kingdom, Italy, Israel, Russia, United States Of America, South Africa, Kenya, Nigeria, Phillipines.
Specifications : | ASTM / ASME A/SA 234 |
Dimensions : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
Size : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
Type : | Seamless / Welded / Fabricated |
Bending Radius : | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
Thickness : | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
Grade : | WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91 |
Value Added Services : | Electro Polish |
Nominal Pipe Size |
Outside Diameter |
90° Elbows | 45° Elbows | 180° Returns | ||||
---|---|---|---|---|---|---|---|---|
(inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) |
Center to Face (inches) |
Center to Face (inches) |
Radius (inches) |
Center to Center (inches) |
Back to face (inches) |
|
1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Nominal Pipe Size |
Outside Diameter |
Caps | Straight Tees | Straight Crosses | Stub Ends | |||
---|---|---|---|---|---|---|---|---|
(inches) | (mm) | (inches) | Length (inches) |
Center to End (inches) |
Center to End (inches) |
Lap Diameter (inches) |
Long Length (inches) |
Short Length (inches) |
1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Nominal Pipe Size |
Outside Diameter |
Reducers | ||
---|---|---|---|---|
Reduced from (inches) |
(mm) | (inches) | Reduced to (inches) |
Concentric & Eccentric Length (inches) |
1/2 | 21.3 | 0.840 | 1/4 | 1 1/2 |
3/8 | 1 1/2 | |||
3/4 | 26.7 | 1.050 | 3/8 | 2 |
1/2 | 2 | |||
1 | 33.4 | 1.315 | 3/8 | 2 |
1/2 | 2 | |||
3/4 | 2 | |||
1 1/4 | 42.2 | 1.660 | 1/2 | 2 |
3/4 | 2 | |||
1 | 2 | |||
1 1/2 | 48.3 | 1.900 | 1/2 | 2 1/2 |
3/4 | 2 1/2 | |||
1 | 2 1/2 | |||
1 1/4 | 2 1/2 | |||
2 | 60.3 | 2.375 | 3/4 | 3 |
1 | 3 | |||
1 1/4 | 3 | |||
1 1/2 | 3 | |||
2 1/2 | 73.0 | 2.875 | 1 | 3 1/2 |
1 1/4 | 3 1/2 | |||
1 1/2 | 3 1/2 | |||
2 | 3 1/2 | |||
3 | 88.9 | 3.500 | 1 | 3 1/2 |
1 1/2 | 3 1/2 | |||
2 | 3 1/2 | |||
2 1/2 | 3 1/2 | |||
3 1/2 | 101.6 | 4.000 | 1 1/4 | 4 |
1 1/2 | 4 | |||
2 | 4 | |||
2 1/2 | 4 | |||
3 | 4 | |||
4 | 114.3 | 4.500 | 1 1/2 | 4 |
2 | 4 | |||
2 1/2 | 4 | |||
3 | 4 | |||
3 1/2 | 4 | |||
5 | 141.3 | 5.563 | 2 | 5 |
2 1/2 | 5 | |||
3 | 5 | |||
3 1/2 | 5 | |||
4 | 5 | |||
6 | 168.3 | 6.625 | 2 1/2 | 5 1/2 |
3 | 5 1/2 | |||
3 1/2 | 5 1/2 | |||
4 | 5 1/2 | |||
5 | 5 1/2 | |||
8 | 219.1 | 8.625 | 3 | 6 |
3 1/2 | 6 | |||
4 | 6 | |||
5 | 6 | |||
6 | 6 | |||
10 | 273.1 | 10.750 | 4 | 7 |
5 | 7 | |||
6 | 7 | |||
8 | 7 | |||
12 | 323.9 | 12.750 | 5 | 8 |
6 | 8 | |||
8 | 8 | |||
10 | 8 |
